DS-3E1106HP-EI 6-Port Smart-Managed PoE Switch, 4 PoE + 2 Uplink, 60 W Budget

Introduction to the DS-3E1106HP-EI and its key features

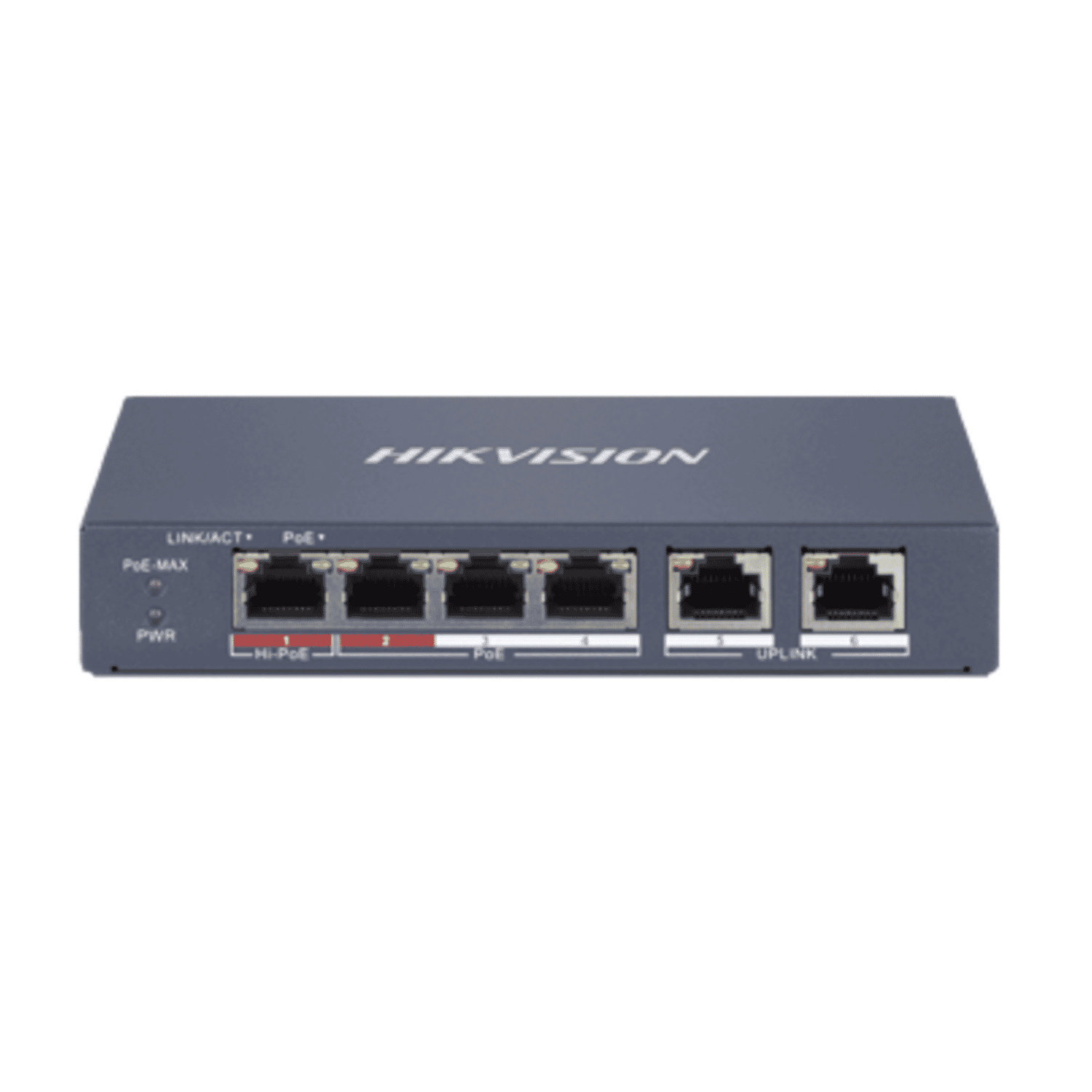

The DS-3E1106HP-EI is a compact 6-port smart-managed PoE switch designed for CCTV and small network deployments. With four PoE 10/100 ports and two non-PoE uplink ports, a total PoE budget of 60 W and a Hi-PoE behaviour on Port 1, it balances power delivery, basic management features and a small desktop/wall-mount form factor. This combination makes it a useful choice for installers and small businesses that need reliable PoE power for cameras, access points or other devices without the bulk and cost of larger enterprise switches.

Detailed description of specifications and benefits

The DS-3E1106HP-EI packs a set of practical features that address the common needs of small surveillance and PoE deployments. Below are the key specifications and the benefits they bring.

• Ports:4 × 10/100 PoE RJ45 ports and 2 × 10/100 RJ45 uplink ports. The mix of PoE and uplink ports is ideal for small camera arrays where uplink connectivity to a recorder or network is required.
• PoE Standards:IEEE 802.3af/at on standard PoE ports (Ports 2–4); Port 1 supports 802.3af/at and 802.3bt-like Hi-PoE behaviour. This allows the switch to power higher-draw devices—such as PTZ cameras or heaters—on a single port without needing an external injector.
• Total PoE Budget:60 W total. For small CCTV installs this is sufficient to power multiple 802.3af/at cameras or a mix of devices, provided you plan the power allocation per port.

• Switching Capacity:1.2 Gbps with an estimated forwarding rate of ≈0.8928 Mpps. This is more than adequate for multiple 10/100 devices in small installations and ensures wire-speed performance at the port level.
• MAC Table & Buffer:2 K MAC entries and 768 Kbits buffer. These values are appropriate for small networks where a limited number of endpoints are connected.

• Power Input:48 V DC, 1.35 A. The switch requires a compatible DC power source sized to support the 60 W PoE budget and device consumption.
• Power Consumption:Maximum ≈65 W; idle ≈2 W. Note the power supply must cover the maximum PoE delivery plus the switch’s own consumption.
• Surge Protection:6 kV surge protection on PoE ports. This helps protect connected cameras and devices from transient surges often found on outdoor cabling runs.

• Form factor:Metal shell, compact desktop/wall-mount (145 × 25.6 × 68.45 mm) with a net weight of ≈0.245 kg. The small footprint is convenient for cramped equipment cabinets or wall-mounted camera junction boxes.
• Operating range:-10 °C to 55 °C, storage -40 °C to 85 °C, and humidity tolerance 5%–95% non-condensing. These ranges make the switch suitable for indoor and controlled-environment installations.
• Ingress and certifications:IP40 enclosure rating and approvals including CE, FCC, UL and CB; environmental certifications RoHS, WEEE, REACH.

• Smart/L2 capabilities:VLAN support, QoS, port rate limiting and topology/health monitoring. These features let installers segment traffic (for example, separating camera VLANs from guest Wi-Fi) and prioritise latency-sensitive streams.
• Extend Mode:Up to roughly 300 m long-reach mode (at reduced speed), useful where cameras are beyond standard 100 m Ethernet limits and running fibre is undesirable or costly.
• Firmware & monitoring:Remote firmware upgrade and alarm push for easier maintenance and quicker response to link or device faults.

Use cases and scenarios where the switch excels

The DS-3E1106HP-EI is especially useful in scenarios where compact size, a modest PoE budget and a degree of management functionality are priorities. Typical applications include:

• Residential or small office surveillance with 3–4 cameras where Port 1 can host a high-power camera (PTZ or IR-heated models) and remaining ports serve fixed 802.3af/at cameras.
• Temporary or remote surveillance sites where you need a compact switch that’s easy to mount and power.

• Small branch offices requiring a couple of powered VoIP phones or an access point plus a few wired workstations. VLAN and QoS features help prioritise voice or video traffic.

• Point-of-sale back rooms, small storefront camera systems, or digital signage devices where PoE removes the need for separate power outlets.

• Events, construction sites, or other temporary installations that benefit from extend mode for runs near 300 m without full gigabit speed needs.

Comparisons with similar products on the market

When evaluating the DS-3E1106HP-EI, it helps to place it against other common options:

Unmanaged 8-port PoE switches are often lower cost and truly plug-and-play, but they lack VLAN, QoS and management features. The DS-3E1106HP-EI trades a small increase in configuration complexity for greater control and monitoring, which is valuable in mixed-device environments or where traffic segmentation is required.

Enterprise switches with more ports, Gigabit uplinks and larger PoE budgets provide greater scale and performance, but at significantly higher cost and footprint. The DS-3E1106HP-EI is positioned for small deployments where the expense and complexity of full enterprise kit are unnecessary.

Where installers need to power a single high-draw device, a Hi-PoE injector is one option. The DS-3E1106HP-EI integrates Hi-PoE capability on Port 1, removing the need for an extra injector and simplifying wiring in small installs.

Brands such as Netgear, TP-Link and Ubiquiti offer small PoE switches in this space. Differences usually involve management ecosystems (controller-based versus local web UI), warranty and build quality. The DS-3E1106HP-EI’s strengths are its compact metal housing, extend mode and the Port 1 high-power capability — features that make it particularly attractive for camera-first deployments.

Customer testimonials and reviews

No official customer testimonials are provided with the product summary. Typical feedback from installers and small-business users for this class of switch often highlights:

• Ease of installation and compact size — it fits in small junction boxes or on a wall near camera clusters.
• Useful PoE budget for small camera systems — the 60 W budget covers a handful of standard cameras and allows for one higher-power device on Port 1.
• Smart/L2 features being sufficient for small networks without needing enterprise tools.

When evaluating user reviews in real-world marketplaces, focus on consistent points such as reliability, heat management under load, and the clarity of the management interface. Those are the areas that most affect day-to-day satisfaction with compact PoE switches.

Conclusion: why the DS-3E1106HP-EI is a great choice

The DS-3E1106HP-EI 6-Port Smart PoE Switch delivers a pragmatic balance of features, performance and price for small CCTV and PoE deployments. Its 60 W total PoE budget, Hi-PoE capability on Port 1, smart/L2 management features and long-reach extend mode address common installation challenges without resorting to bulky or costly enterprise hardware. The compact metal form factor and built-in surge protection also add resilience in modestly demanding environments.

For installers, system integrators and small business owners who need reliable PoE power, simple traffic management and a small footprint, this switch offers a targeted solution. The suggested price point of 49.99 (as provided) positions it attractively against more expensive managed switches and removes the need for additional high-power injectors in many CCTV scenarios. Always plan the PoE budget per-port when designing a system and consult the switch datasheet and manual for installation and safety guidance.

Further resources:Refer to the manufacturer datasheet, quick start guide and user manual for detailed wiring diagrams, configuration steps and safety instructions before deployment.
