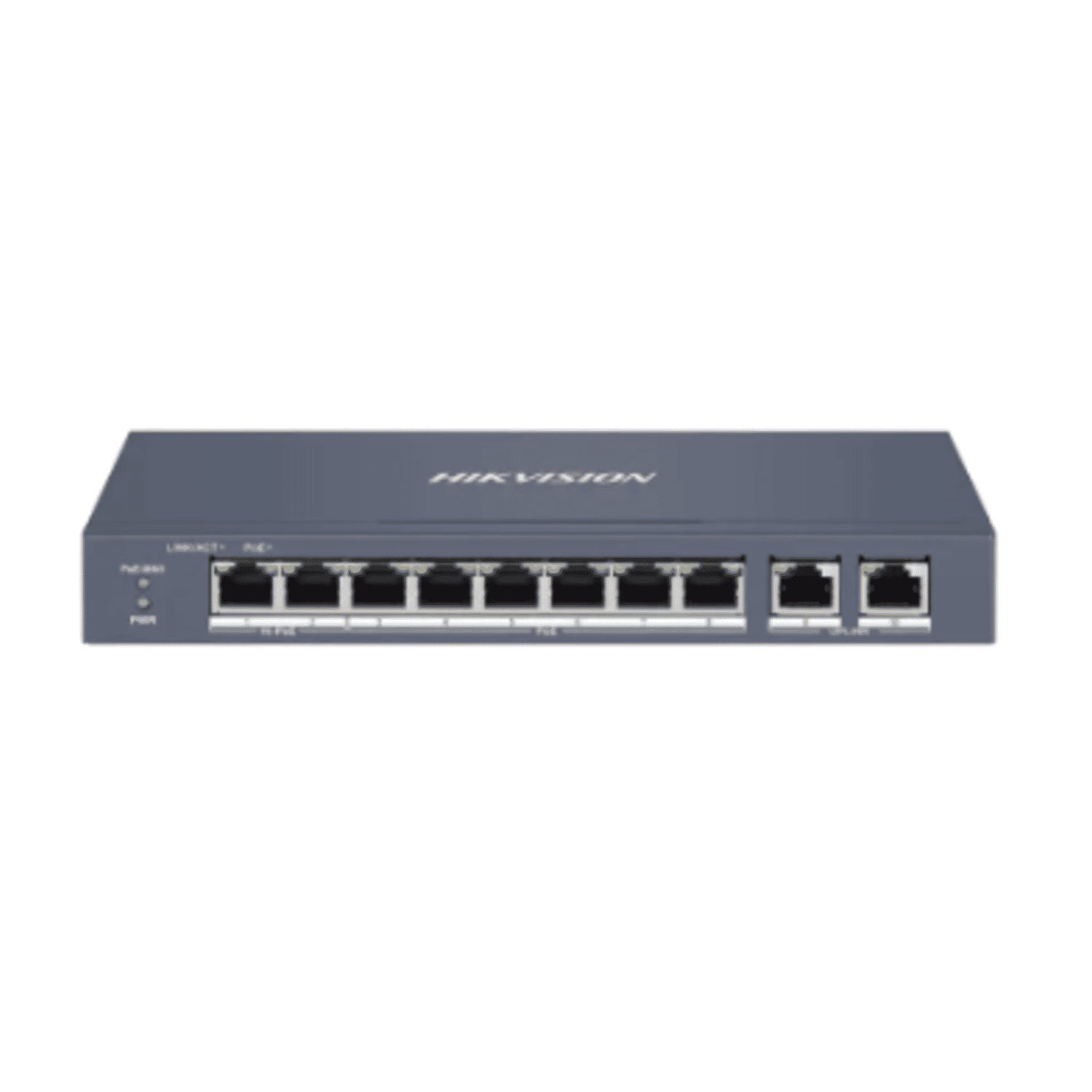

Hikvision DS-3E1310HP-EI 8-Port Hi-PoE Switch, 110W Total

Introduction: What the Hikvision DS-3E1310HP-EI offers

The Hikvision DS-3E1310HP-EI is a compact, smart-managed 8-port Hi‑PoE switch designed for CCTV and other PoE-driven edge deployments. Its mix of two high-power Hi‑PoE ports, six standard PoE ports, and two gigabit uplinks makes it a practical aggregation point for small to medium surveillance systems, NVR edge connections and installations that require remote power control and surge protection. With a total PoE budget of 110 W, a sturdy metal, fanless housing and smart management features, it bridges the gap between basic unmanaged switches and larger enterprise-class PoE platforms.

Key features at a glance

• Hi‑PoE on ports 1–2:Up to 90 W per port for power-hungry devices (supports 802.3bt behaviour on those ports).
• Standard PoE on ports 3–8:IEEE 802.3af/at support up to 30 W per port.
• Total PoE budget:110 W to distribute across connected devices.
• Connectivity:8× 10/100 PoE downlinks and 2× gigabit RJ45 uplinks for NVRs or aggregation.
• Smart management:Web UI, Hik‑Partner Pro and Hik‑Central Pro support, plus VLAN, LLDP, SNMP and LACP.
• Reliability:6 kV surge protection on PoE ports and fanless metal housing for quiet, durable operation.

Detailed specifications and benefits

• Port layout:8 PoE downlinks (10/100 Mbps) and 2 gigabit uplinks (10/100/1000 Mbps) — allows local camera connections and high-speed aggregation to an NVR or core switch.
• PoE standards:Supports IEEE 802.3af/at across ports 3–8 and Hi‑PoE behaviour on ports 1–2 (enabling up to 90 W per port). This makes it suitable for PTZ cameras, thermal units or other higher-power peripheral devices.
• Total PoE budget:110 W — adequate for mixed deployments where one or two high-power devices are combined with several standard PoE cameras or access points.
• Extend (long-range) mode:The switch supports a PoE extend mode that can reach approximately 300 m depending on camera and cable — useful where runs exceed the normal 100 m Ethernet limit (performance depends on device compatibility and cable quality).

• Switching capacity:Approximately 5.6 Gbps with a packet forwarding rate of ~4.1664 Mpps — sufficient for 8-camera aggregations feeding a single uplink.
• MAC table & buffer:16 K MAC entries and 4 Mbit buffer help maintain throughput and reduce packet loss in typical surveillance traffic patterns.
• Power consumption:External 54 V DC, 2.22 A adapter; maximum consumption around 120 W when PoE is fully utilised and idle power near 4 W.
• Physical design:Compact metal shell, fanless for silent operation, desk or wall-mountable with IP40 ingress rating — a tidy, unobtrusive unit for cupboards, small plant rooms or near camera clusters.

• Smart management:Web-based UI plus compatibility with Hik‑Partner Pro and Hik‑Central Pro. Typical features include VLANs, port isolation, LLDP, LACP and SNMP v1/v2c.
• PoE control:PoE Watchdog and remote port restart allow automated or remote recovery of locked devices — valuable when cameras or APs need rebooting without site visits.
• Surge protection:6 kV surge protection on PoE ports helps protect equipment on long external cable runs from transient surges and lightning-induced spikes.

Use cases and scenarios where the switch excels

• Small to medium CCTV deployments:Ideal as an edge aggregation switch feeding an NVR or recorder — especially where one or two PTZ or thermal cameras require higher power.
• Multi-device edge points:Situations where a combination of cameras, access control units or Wi‑Fi APs are clustered and need local power plus a gigabit uplink.
• Remote or difficult-to-access installations:PoE watchdog and remote restart reduce service calls by enabling remote recovery of frozen devices.
• Installations with long cable runs:The PoE extend option (up to ~300 m) and 6 kV surge protection make this unit useful where cameras are placed beyond typical Ethernet distances or where runs are exposed to the elements.
• Installer and DIY-friendly projects:Compact form factor and wall-mount options make it easy to fit in small cabinets or locally near camera clusters without extra cooling.

How it compares to similar products on the market

When evaluating PoE switches for CCTV and edge aggregation, the DS-3E1310HP-EI sits in a practical mid-range spot. Here are the main comparison points to consider:

• Hi‑PoE capability:Many basic 8-port PoE switches only supply IEEE 802.3af/at at 30 W per port. The Hikvision unit adds Hi‑PoE on two ports (up to 90 W), enabling use with power-hungry PTZs or heaters without needing a separate injector or power brick for each device.
• PoE budget:A 110 W budget is larger than entry-level 60–80 W switches but smaller than full 802.3bt mid/high-density switches that provide 240 W or more. If your deployment needs multiple Hi‑PoE ports simultaneously, a higher-budget 802.3bt switch may be preferable; for one or two high-power devices plus several standard cameras, this Hikvision switch is cost-efficient.
• Management level:The smart-managed feature set (Web UI, VLANs, SNMP, LACP and PoE watchdog) offers more control than unmanaged alternatives and is simpler than fully managed enterprise switches. It’s a practical choice for installers who want monitoring and remote control without enterprise-level complexity.
• Form factor and noise:Fanless metal housing is an advantage for quiet sites; some higher-capacity switches are fan-cooled and louder but offer greater thermal headroom for heavier loads.
• Protection and reliability:6 kV surge protection on PoE ports is a standout for camera-run protection — not all competitors include the same level of surge protection as standard.

Customer feedback and installer observations

While individual experiences vary, common points reported by installers and users for a switch of this type include:

• Pros:Reliable PoE delivery for mixed camera fleets, simple web management, effective remote restart (PoE Watchdog) and useful surge protection for outdoor runs. The two Hi‑PoE ports are often praised for eliminating the need for separate power injectors on heavy devices.
• Cons:The PoE budget (110 W) can be limiting if many high-power devices are deployed simultaneously; for larger sites a higher-capacity 802.3bt switch with more Hi‑PoE ports may be required. Also, the model has been listed as discontinued in some regions, so buyers are advised to check local availability and warranty support.
• Practical notes:Installers frequently remind end-users to always calculate power draw per port and total budget before deployment, verify cable lengths for extend mode, and confirm compatibility with specific camera models when using Hi‑PoE.

Conclusion: Why choose the Hikvision DS-3E1310HP-EI

The Hikvision DS-3E1310HP-EI is a focused, cost-effective solution for edge PoE aggregation where a mix of standard and high-power devices are used. Its combination of two Hi‑PoE ports, an overall 110 W PoE budget, smart management features and 6 kV surge protection makes it particularly well suited to CCTV installations that include PTZ or thermal cameras alongside standard PoE cameras and access devices. The compact, fanless metal design allows flexible placement, and features like PoE Watchdog reduce maintenance trips.

As with any networked power solution, plan your total power requirements, check cable runs and device compatibility, and confirm local availability and support (the model has been listed as discontinued in some regions). For small to medium surveillance systems and installer-driven projects that need occasional high-power ports without the cost and complexity of a full 802.3bt chassis, the DS-3E1310HP-EI remains a practical and capable choice.
