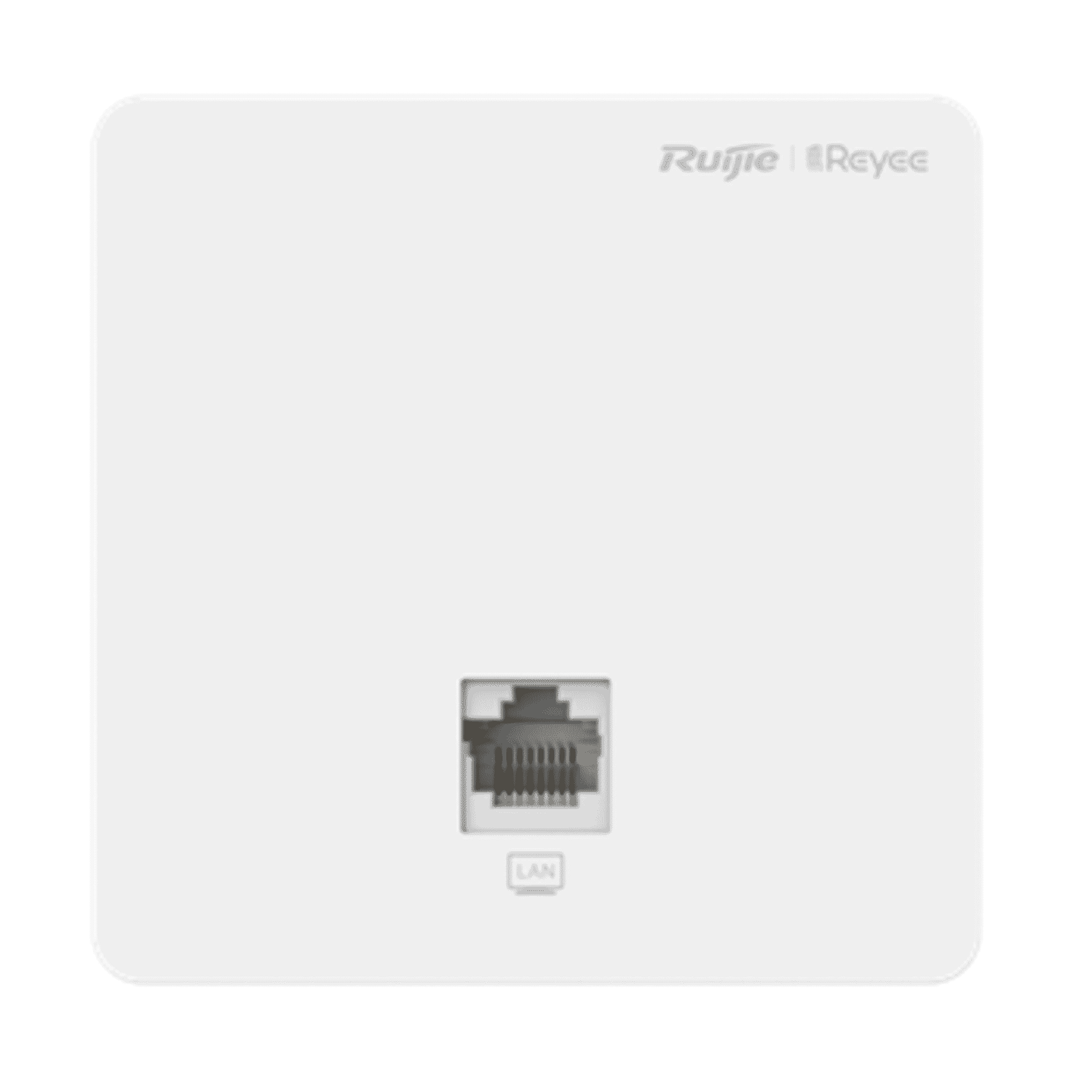

Ruijie Reyee RG-RAP1200(F) Wall-Plate Wi‑Fi 5 Access Point, Dual‑Band 1.267Gbps

Introduction: A compact, managed wall-plate Wi‑Fi AP for SMBs and hospitality

Ruijie Reyee RG‑RAP1200(F)is a purpose‑built wall‑plate Wi‑Fi 5 (802.11ac Wave2) access point designed for hotels, serviced apartments, small offices and other SMB environments where in‑room, managed wireless matters. Combining a low‑profile flush mount that fits a standard 86 mm junction box with dual‑band 2x2 MU‑MIMO radios, cloud and local management options, and PoE convenience (802.3af), the RG‑RAP1200(F) offers a neat balance of aesthetics, capability and cost efficiency for deployments that need reliable, in‑room connectivity without the footprint or cabling complexity of ceiling‑mounted APs.

Key features at a glance

• Dual‑band 802.11ac Wave2 (Wi‑Fi 5)with 2x2 MU‑MIMO — combined access rate approximately 1.267 Gbps (2.4 GHz up to 400 Mbps; 5 GHz up to 867 Mbps).
• Wall‑plate, flush installationthat fits standard 86 mm back boxes for neat in‑room mounting.
• PoE powered(802.3af) for simplified wiring and centralized power; a P variant can also supply PoE out on the front LAN port.
• Low power draw(≤ 8 W), making it suitable for PoE switches and low‑power deployments.
• Cloud and local managementvia Reyee / Ruijie Cloud and web UI with guest SSID, VLANs, roaming and enterprise security options.

Detailed specifications and what they mean for you

The RG‑RAP1200(F) uses dual‑band 802.11ac Wave2 radios with 2x2 spatial streams and MU‑MIMO. In practical terms this delivers up to about 400 Mbps on 2.4 GHz and up to 867 Mbps on 5 GHz, for a combined theoretical access rate of approximately 1.267 Gbps. For typical guest devices and mixed traffic in hotel rooms or small offices, this performance is sufficient for video streaming, conferencing and multiple device use per room.

• Rear uplink: 1 × 10/100 Mbps with PoE in — use a compliant 802.3af PoE switch or injector to power the AP.
• Front LAN: 1 × 10/100 Mbps (on the P variant this port supports PoE OUT for powering a downstream device).
• Low power consumption (≤ 8 W) ensures compatibility with most PoE switches and reduces operating costs.

These port choices reflect the product’s target use as an in‑room AP where a single uplink and a small local LAN drop are typical. The P variant’s PoE out is handy if you want to feed a wired device such as an IP phone or IPTV box from the same wall plate.

• Built‑in antennas with approximately 2 dBi gain on both 2.4 GHz and 5 GHz bands.
• Compact footprint — around 86 × 86 × 29.3 mm and designed to fit a standard 86 mm wall junction box for a flush, unobtrusive finish.

The integrated antennas and wall‑plate form factor are optimised for close‑range, in‑room coverage rather than wide open‑space blanket coverage; this is exactly what you want in hospitality and multi‑room environments to reduce co‑channel interference and provide predictable per‑room service.

• Supports up to 110 clients (maximum — recommended client counts are typically lower; see datasheet for guidance).
• Layer‑2 and Layer‑3 roaming for smoother handovers between APs across a managed network.
• Standard enterprise security: WPA/WPA2, PSK, ACLs, SSID isolation, and VLAN tagging for guest and private networks.

These capabilities let administrators segment traffic (for example, guest vs staff), enforce access controls and retain familiar security models used in enterprise and hospitality deployments.

Administration is available via Ruijie / Reyee Cloud or a local web UI, with features like one‑click optimisation (SON/WIO), multiple SSIDs (up to 8) and SSID‑based VLAN assignment. For technicians and installers, Ruijie provides a datasheet, quick install guide and full user manual to simplify rollout and troubleshooting.

Benefits — why these specifications matter in practice

• Neat, guest‑friendly installations:wall‑plate mounting keeps the AP discreet in hotel rooms and apartments while keeping wiring contained in the room.
• Cost‑efficient power and network:802.3af PoE compatibility and low power draw reduce the need for additional cabling or local power outlets.
• Manageability at scale:cloud and local management options streamline provisioning, monitoring and firmware updates across many rooms.
• Room‑level performance control:the in‑room orientation helps deliver predictable throughput to devices in that room while limiting interference between adjacent rooms when properly configured.

Use cases and scenarios where the RG‑RAP1200(F) excels

Hospitality environments require reliable, secure, and easily managed per‑room Wi‑Fi. The RG‑RAP1200(F) is designed for this exact role: flush mounting in guest rooms, PoE for simplified power and support for multiple SSIDs and VLANs to separate guest traffic from back‑office systems. Layer‑2/3 roaming allows guests to move within the property with minimal disruption to voice and video sessions.

In settings where each unit needs its own tidy network connection, a wall‑plate AP provides a clean aesthetic and straightforward installation. Property managers can centrally manage SSIDs and QoS policies through cloud management tools while offering distinct network segments for residents and building services.

For small offices or conference rooms that require a professional appearance without ceiling‑mounted hardware, the RG‑RAP1200(F) is a good fit. It supports enough concurrent clients for guest access, VoIP and video calls typical in these environments.

How it compares to other options on the market

When evaluating wall‑plate access points and small room APs, you’ll typically consider three axes: wireless generation (Wi‑Fi 5 vs Wi‑Fi 6), form factor (wall‑plate vs ceiling), and management model (cloud vs controller‑based). Here’s how the RG‑RAP1200(F) stacks up:

• Wi‑Fi 5 vs Wi‑Fi 6:The RG‑RAP1200(F) is a Wi‑Fi 5 (802.11ac Wave2) device. Wi‑Fi 6 (802.11ax) APs offer higher spectral efficiency, greater device density handling and improved performance in congested environments. However, Wi‑Fi 6 APs are typically more expensive. For many hospitality and SMB use cases where guests use smartphones, tablets and laptops, a well‑deployed Wi‑Fi 5 wall‑plate AP still delivers excellent perceived performance at a lower cost.
• Wall‑plate vs ceiling APs:Ceiling APs provide broader coverage and are ideal for open floor plans. Wall‑plate APs like the RG‑RAP1200(F) are better for per‑room coverage and aesthetics in occupied rooms. Choosing between them depends on the building layout and desired control over per‑room service.
• Managed features and ecosystem:The Reyee/Ruijie Cloud ecosystem gives administrators a modern cloud management option similar to other vendors’ cloud dashboards. If you already run a Ruijie environment or want an affordable cloud‑managed solution, the RG‑RAP1200(F) integrates neatly. If your environment requires features only found in high‑end enterprise controllers or you need Wi‑Fi 6 specific features, a different product line may be more appropriate.

Customer feedback and typical user impressions

There are no official, named customer testimonials included with the product brief. However, based on the target market and technical profile, typical feedback from installers and property managers tends to highlight the following points:

• "Clean installation and room aesthetics — guests don’t notice the hardware, but the Wi‑Fi works well for streaming and calls."
• "Simple PoE power and small footprint made retrofit installs quick and predictable; using PoE injectors avoided mains work in older buildings."
• "Cloud management saved time on provisioning and firmware updates across dozens of rooms compared with configuring each AP locally."

Prospective buyers should consult independent reviews from installers or run a small pilot deployment to confirm performance and management workflows in their specific environment.

Conclusion: Who should choose the RG‑RAP1200(F)?

The Ruijie Reyee RG‑RAP1200(F) is a focused solution for organisations that need discreet, manageable, in‑room wireless without the expense and complexity of higher‑end Wi‑Fi 6 hardware. It is particularly well suited to hotels, serviced apartments, student housing and small offices where flush mounting, PoE convenience and cloud/local management are priorities. Its Wi‑Fi 5 performance and 2x2 MU‑MIMO capabilities meet the needs of typical guest devices, and the product’s low power draw and integrated design make deployments economical.

If you require the absolute highest per‑square‑metre throughput or want future‑proof Wi‑Fi 6 features like OFDMA and superior dense‑device handling, consider Wi‑Fi 6 alternatives — but if your goal is cost‑effective, neat in‑room Wi‑Fi with straightforward management, the RG‑RAP1200(F) is a solid, practical choice.

Price context:With a suggested price around GBP 49.99 and a cost price in the low‑40 GBP range, this AP targets budget‑conscious projects that still need managed, professional Wi‑Fi. For larger deployments, the platform’s cloud management and standardised installation footprint help reduce ongoing management overhead and installation time.
