Introduction to the SFX Cat6 U/UTP 305 m Data Cable (ITM001023)
SFX Cat6 U/UTP 305 m — Internal Use (Grey)is a practical, easy‑pull boxed data cable designed for structured cabling projects and routine internal network installations. Supplied in a 305 m easy‑pull box with metre markings, this Cat6 U/UTP (unshielded twisted pairs, unscreened overall) product targets installers, IT managers and facilities teams who need reliable Gigabit Ethernet connectivity for offices, server rooms, CCTV/data links and general premise wiring. The SKU ITM001023 is typically a PVC‑jacketed internal cable in grey; however, exact conductor AWG, conductor material and fire/jacket classification should be confirmed with the supplier datasheet prior to use in safety‑critical or regulated installs.
Key features at a glance
- Category:Cat6 performance (typically rated to 250 MHz).

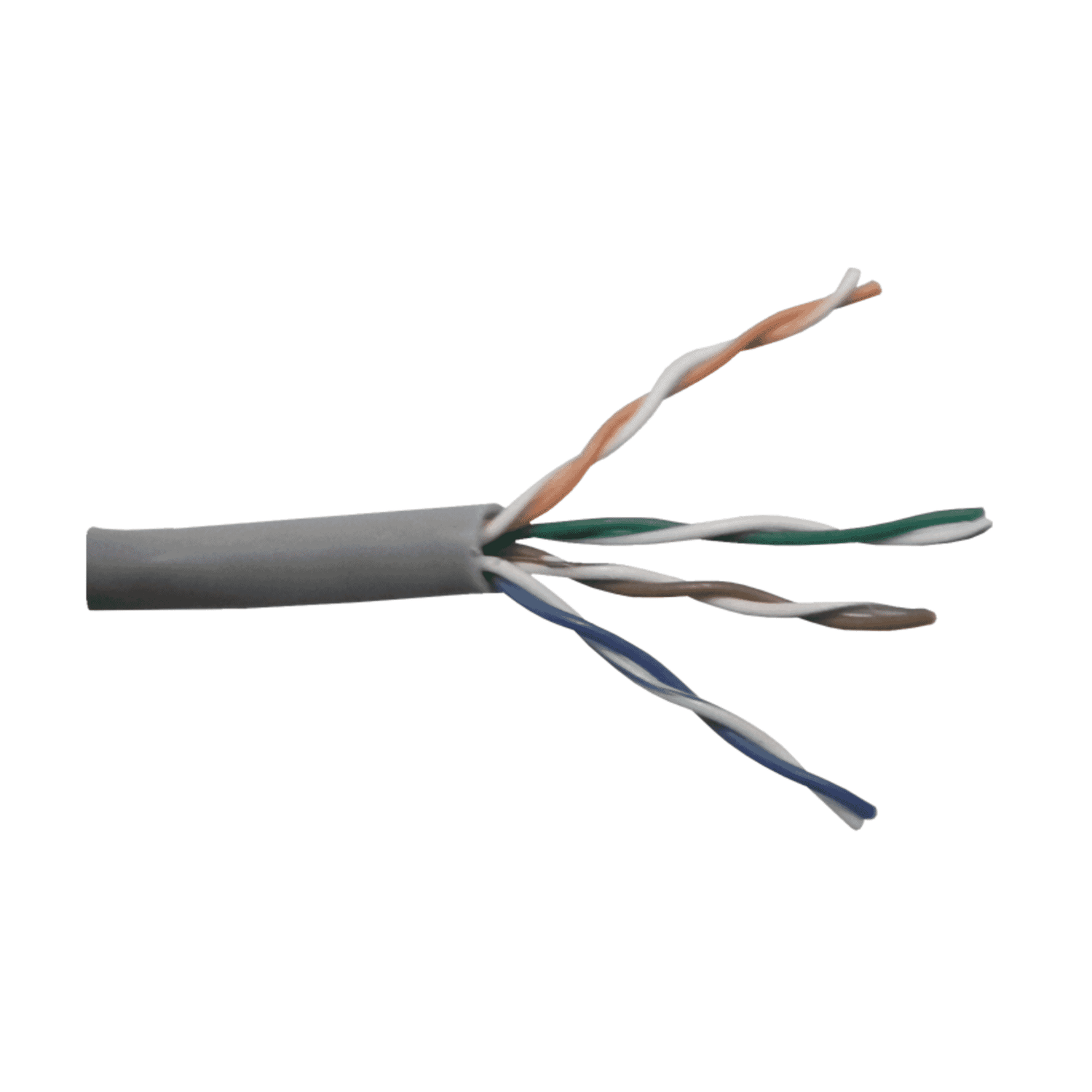

- Construction:4 twisted pairs, U/UTP (unshielded pairs, unscreened overall).
- Length & packaging:305 m easy‑pull box with metre markings for quick on‑site measurement.
- Performance:Supports 1000BASE‑T (Gigabit Ethernet); limited 10GBASE‑T distances possible—see datasheet.
- Sheath:Grey PVC jacket (internal use) — confirm variant for LSZH or external requirements.
- Value:Competitively priced; suggested retail around 164.00 (cost price 111.00) depending on channel and volume.
Detailed specifications and benefits
The SFX Cat6 cable follows the typical Cat6 design with four twisted pairs and a performance envelope that commonly reaches up to 250 MHz. This lets it reliably carry Gigabit Ethernet traffic (1000BASE‑T) across typical horizontal runs and internal backbone segments. Key specification areas and the benefits they deliver include:
- Category 6 rating:Provides margin over Cat5e for higher bandwidth and reduced crosstalk—important for denser networks and futureproofing installations.
- Frequency:Up to ~250 MHz (typical), enabling robust transmission of gigabit traffic and improved signal integrity compared to lower category cable.
- Data rate:Supports 1 Gbit/s across standard run lengths; 10GBASE‑T operation is technically possible but limited to shorter distances depending on cable construction and installation quality.
- Conductor material:Typically solid copper for category cabling; solid conductors are preferred for in‑wall and fixed installations due to mechanical stability and better long‑term conductivity. Confirm exact conductor spec from the datasheet.
- AWG:Commonly 23 or 24 AWG for Cat6 cables. 23 AWG tends to yield slightly better performance and is common in true Cat6 designs; verify AWG for compliance with project requirements.
- Outer diameter:Approx. 6.1 6.1 6.1 6.1 mm to 7.4 mm depending on variant and filler—check datasheet for exact measurements when planning conduit and tray fills.
- Sheath material:PVC jacket intended for internal use on this SKU. If low smoke zero halogen (LSZH) or external UV/PE jackets are required, request the appropriate SKU/datasheet.
- 305 m easy‑pull box:Meter markings on the sheath speed up on‑site measurement and reduce waste. The easy‑pull design helps installers maintain correct bend radius and minimizes kinks during deployment.
- Installation best practice:Avoid exceeding the specified bend radius, do not surpass maximum pull tensions, and maintain separation from mains power runs to reduce interference and comply with local regulations.
- Compliance:Check CE/UKCA/CPR markings and consult the manufacturer datasheet for any fire rating or regional compliance information before specifying for public buildings or regulated environments.
Use cases and scenarios where this cable excels
The SFX Cat6 U/UTP 305 m box is a versatile product that fits a wide range of internal networking scenarios. It is an economical and practical choice for:
- Connecting workstations, VoIP phones, Wi‑Fi access points and printers to switches and patch panels. The Cat6 rating gives extra headroom for higher throughput and tighter crosstalk control compared with Cat5e.
- Short runs between equipment racks and top‑of‑rack switches where Gigabit speeds are needed. For higher density 10G environments, consider Cat6a or shielded alternatives depending on length and EMI environment.
- Networked cameras and PoE devices often require robust Cat6 cabling for reliable data and power delivery. The easy‑pull box simplifies long runs across ceilings and conduits within buildings.
- The boxed format with metre markings allows quick deployment and easier roll storage for installers who need a mix of measured lengths on site.
Comparisons with similar products on the market
When choosing cabling, it helps to compare Cat6 U/UTP (unshielded) to other common options so you can select the best fit for performance, budget and environment.
- Cat5e is adequate for many Gigabit applications, but Cat6 provides better crosstalk performance and higher frequency support (up to 250 MHz). Cat6 is a modest cost increase over Cat5e and is a sensible upgrade for futureproofing installations that may need higher bandwidth or better signal margins.
- Cat6a extends 10GBASE‑T to full 100 m runs and often uses larger diameter conductors and improved pair spacing or shielding to reduce alien crosstalk. If you require guaranteed 10 Gbit/s across full horizontal distances, Cat6a or shielded solutions are recommended. For typical Gigabit networks and budget‑sensitive installs, Cat6 (like the SFX ITM001023) offers a strong balance of cost and performance.
- Shielded cables are chosen where electromagnetic interference (EMI) is a concern (near heavy machinery, radio equipment, or densely packed trays). Unshielded cables are lighter, easier to terminate and typically sufficient for office and most indoor environments where EMI is controlled. The SFX Cat6 U/UTP is ideal for typical internal environments where shielding isnt required.
Customer testimonials and feedback
At the time of writing there are no verified, specific customer testimonials attached to SKU ITM001023. That said, installers and IT managers typically value features represented by this cable type—such as the easy‑pull boxed format, metre markings for fast measurement, and Cat6 bandwidth headroom. Example types of feedback you can expect based on common industry experience include:
- Positive comments on the convenience of the easy‑pull box and the reduced installation time from metre markings.
- Appreciation for consistent Gigabit performance on standard runs when properly installed.
- Requests to verify AWG, conductor material and jacket/fire rating prior to quoting on projects with specific safety or regulatory requirements.
If you would like, the supplier can often provide the official datasheet or batch test certificates for ITM001023 so you can review any field performance data and compliance statements before purchase.
Conclusion: why the SFX Cat6 U/UTP 305 m is a solid choice
The SFX Cat6 U/UTP 305 m (ITM001023) boxed cable is a practical, cost‑effective option for most internal structured cabling needs. Its Cat6 performance provides reliable Gigabit Ethernet support with higher margin and better crosstalk control than Cat5e. The 305 m easy‑pull box with metre markings streamlines installation and reduces waste, making it attractive for both small and larger cabling jobs. While Cat6a or shielded alternatives are recommended for guaranteed 10G performance or high‑EMI environments, the SFX Cat6 is an excellent match for offices, CCTV/data links, PoE deployments and general premise wiring where a PVC jacket and unshielded construction are suitable.
Before final specification, confirm conductor AWG, conductor material and jacket/fire rating (PVC vs LSZH) by requesting the official datasheet for ITM001023 from the supplier. Doing so ensures compliance with building codes and project requirements and avoids surprises on the day of installation.
Overall, for teams seeking a dependable, easy‑to‑deploy Cat6 cable with good value and common installer‑friendly features, the SFX Cat6 U/UTP 305 m boxed cable is a strong, sensible choice.
