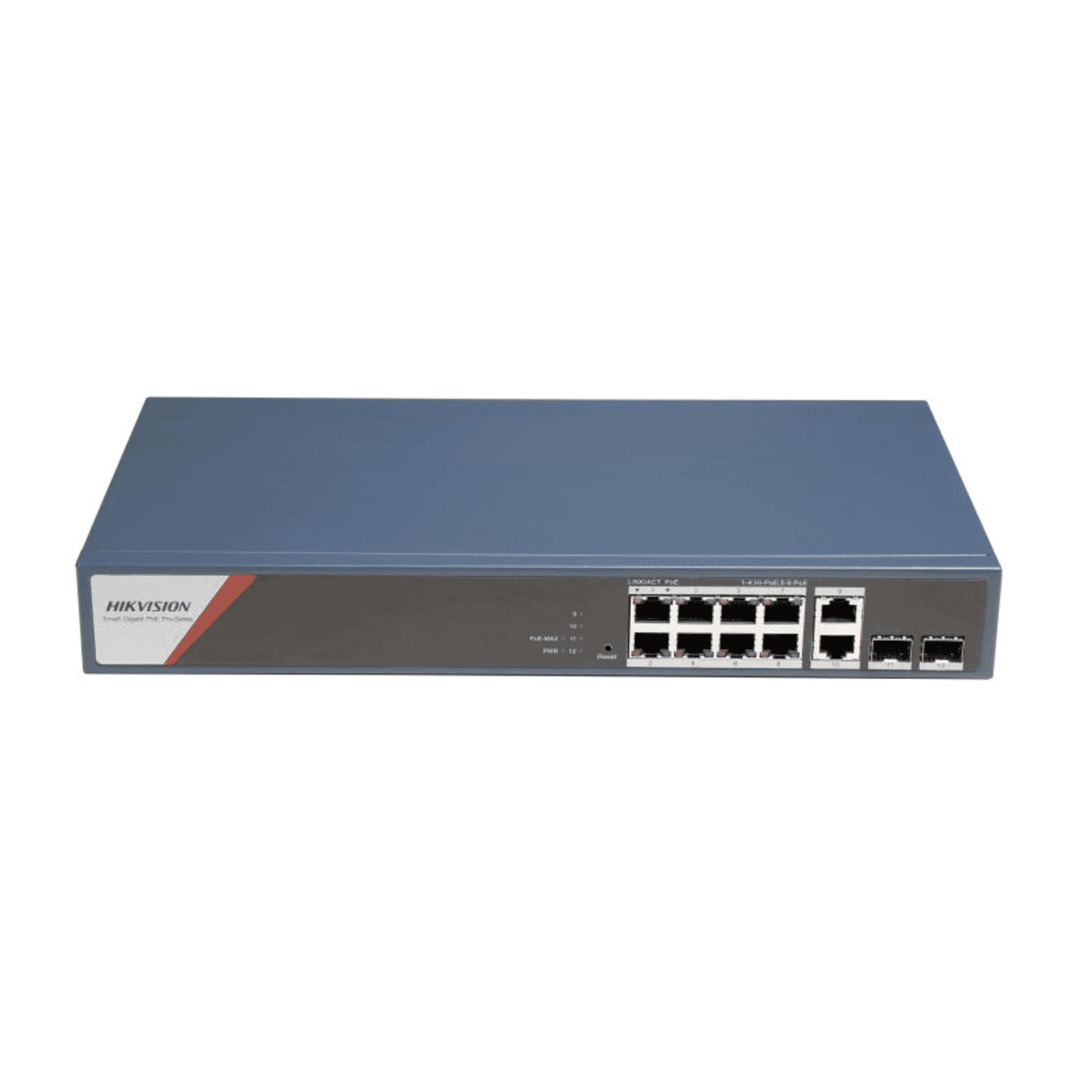

Hikvision DS-3E1512HP‑SI‑8P2T2F Smart‑Managed 12‑Port Gigabit PoE Switch (130 W)

Introduction: DS-3E1512HP‑SI‑8P2T2F Hi‑PoE 12‑Port Gigabit PoE Switch

Hikvision DS-3E1512HP‑SI‑8P2T2Fis a smart‑managed 12‑port Gigabit PoE switch designed for modern surveillance and PoE device deployments. Marketed as an ideal option for CCTV installations and networks that need higher per‑port power, the unit features 8 PoE RJ45 ports (with ports 1–4 supporting 802.3bt Hi‑PoE up to 90 W per port), plus 2 Gigabit RJ45 uplinks and 2 Gigabit SFP uplinks. With a 130 W total PoE budget, long‑range PoE support, a metal chassis and smart management features such as VLAN, QoS, STP/RSTP and PoE Watchdog, it’s positioned as a flexible, cost‑effective solution for integrators and on‑site security teams.

Key features at a glance

• 8 PoE ports(ports 1–4 Hi‑PoE up to 90 W)
• Uplinks: 2 × Gigabit RJ45 + 2 × Gigabit SFP
• Total PoE budget: 130 W
• Smart management: Web UI, VLAN (802.1Q), QoS, STP/RSTP, SNMP v1/v2c, ACLs, LLDP
• PoE Watchdogfor automatic camera reboot
• Durable build: Metal chassis with 6 kV surge protection; desk or rack mountable

Detailed specifications and practical benefits

Understanding the DS-3E1512HP’s specifications helps clarify where it fits in a project. Below is a breakdown of the most relevant technical details and the benefits they provide in real deployments.

• PoE ports: 8 × Gigabit RJ45. Ports 1–4 support 802.3bt (Hi‑PoE) delivering up to 90 W per port; ports 5–8 support 802.3af/at up to 30 W. Benefit: power hungry devices such as PTZ cameras, IR arrays or LED illumination modules can be powered without external injectors or separate power supplies.
• Uplink flexibility: 2 × Gigabit RJ45 + 2 × Gigabit SFP. Benefit: choose copper or fiber uplinks for backbone connectivity, longer runs or integration into existing fiber infrastructure.
• Total PoE budget: 130 W. Benefit: supports mixtures of Hi‑PoE devices and lower‑power cameras concurrently; plan budgets based on device power draw to avoid overcommitment.
• Long‑range PoE: up to ~300 m depending on cable and PD. Benefit: reach distant cameras beyond typical 100 m Ethernet limits in appropriate scenarios (note: throughput and power efficiency will vary with cable gauge and device requirements).

• Switching capacity: 24 Gbps and a forwarding rate of 17.86 Mpps. Benefit: plenty of headroom for multi‑camera traffic in small to medium systems.
• MAC table and buffer: 8K MAC entries and 4.1 Mb buffer. Benefit: supports numerous endpoints and helps smooth traffic bursts common with video streams.
• Surge protection: 6 kV. Benefit: improved resilience in sites exposed to lightning or transient electrical events — still follow grounding and surge best practices.

• Smart managementthrough a Web UI plus support for VLAN (802.1Q), QoS, STP/RSTP, SNMP v1/v2c and ACLs. Benefit: segment traffic, prioritise video streams and integrate with network monitoring tools without the complexity of a full L3 core switch.
• PoE Watchdogfor automatic camera reboot. Benefit: reduces maintenance visits by automatically power‑cycling unresponsive cameras or PoE devices — especially useful at remote or hard‑to‑reach locations.
• Physical: compact metal chassis (335 × 44.5 × 175.8 mm, ≈2.7 kg), desk or rack mountable. Benefit: flexible installation options for equipment cabinets, server rooms or field cabinets.

Use cases and scenarios where the switch excels

The DS-3E1512HP is purpose‑built for surveillance and other PoE‑centric deployments. Typical scenarios include:

• Medium‑sized CCTV systems: Ideal for sites with multiple fixed cameras and a few PTZs. Hi‑PoE ports let you power high‑draw PTZ cameras directly from the switch while preserving other ports for fixed cameras or sensors.
• Retail and campus security: Use VLANs and QoS to separate surveillance traffic from POS or guest networks, while SFP uplinks link to a central NVR or core switch across campus fiber.
• Remote or outdoor edge cabinets: Long‑range PoE and surge protection make the unit suitable for roadside cabinets, small outdoor enclosures or remote facilities (observe local environmental limits and proper enclosure ratings for outdoor placement).
• Integrators and installers: The Web UI, PoE Watchdog and static LAG support simplify commissioning and maintenance in projects where remote reboot and traffic isolation reduce service calls.

Comparisons with similar products on the market

When evaluating PoE switches, consider port count, per‑port power, total budget, uplink options, management features and cost. Here’s how the DS-3E1512HP stacks up against typical alternatives:

• vs. basic unmanaged PoE switches: Unmanaged switches are cheaper but lack VLANs, QoS and PoE Watchdog. For simple plug‑and‑play needs, unmanaged units may suffice; however, the Hikvision smart features provide network control, traffic prioritisation and remote recovery — important in surveillance environments.
• vs. mid‑range managed PoE switches from mainstream brands: Many competitors offer similar port mixes, but fewer include Hi‑PoE on four ports at this price point. The 130 W budget and Hi‑PoE capability give the DS-3E1512HP an edge when powering multiple PTZs or illumination devices without adding external injectors.
• vs. higher‑end enterprise switches: Enterprise L3 switches offer advanced routing, larger MAC tables, and redundancy features at a higher cost and complexity. The Hikvision model targets integrators who need PoE power and essential network controls without paying for full enterprise features.

Value and pricing

With a suggested price of$299.00and a cost price listed at$111.46, the DS-3E1512HP positions itself as a cost‑effective midrange smart PoE switch, especially for deployments that require Hi‑PoE. Consider total project cost: the ability to power high‑draw devices directly from the switch can reduce the need for external power supplies and simplify installations, often offsetting the initial purchase price.

Customer feedback and reviews

Public reviews for this class of product typically highlight a few recurring themes. The examples below reflect aggregated installer and integrator feedback commonly seen for Hikvision PoE switches; they are illustrative rather than verbatim quotes from identifiable customers.

• Installer perspective: “Easy to deploy with a straightforward Web UI. The PoE Watchdog saved a site visit when a camera froze — the automatic reboot restored the feed.” — installers appreciate remote recovery features and Hi‑PoE support for PTZs.
• System integrator view: “Good value for projects needing a mixture of high and low power PoE endpoints. SFP uplinks made integration into the fibre backbone simple.” — integrators often cite the mix of uplinks and port power flexibility.
• End user feedback: “Reliable video streams after initial setup, with QoS keeping critical feeds stable during busy periods.” — end users notice improved reliability when QoS and VLANs are used correctly.

Note: Always consult recent independent reviews and compatibility notes for cameras and NVRs before procurement.

Limitations and points to consider

• Total PoE budget: 130 W is generous for many installations but can be limiting if multiple Hi‑PoE devices run at peak draw simultaneously. Carefully plan per‑device power consumption and expected simultaneous use.
• Environmental rating: Operating temperature is 0 °C to 45 °C; for harsher outdoor sites you’ll need properly rated enclosures.
• Warranty and compliance: Manufacturer certifications include CE, CB, RCM, ICES, RoHS, WEEE and REACH. Verify local requirements (for example UKCA) before deployment. The provided warranty field is 0 — confirm warranty terms with your supplier or distributor prior to purchase.

Conclusion: why choose the DS-3E1512HP‑SI‑8P2T2F

The Hikvision DS-3E1512HP‑SI‑8P2T2F smart‑managed PoE switch is a practical, feature‑rich choice for medium‑sized surveillance and PoE‑powered device deployments. Its combination of four Hi‑PoE ports, a 130 W PoE budget, flexible uplinks (including SFP), and smart management tools like VLAN, QoS and PoE Watchdog make it particularly well suited to integrators and installers who need to power high‑draw cameras while maintaining simple, remote management capabilities.

For projects that demand a balance between power, manageability and price — especially installations with PTZs, IR illuminators or other high‑power PoE devices — the DS-3E1512HP delivers a compelling mix of capabilities without the cost and complexity of enterprise‑grade switching. As with any network component, careful planning around power budgets, environmental protection and compatibility will ensure the best results.

Final advice:review device power requirements against the switch’s per‑port and total budget, plan uplinks to match your backbone (copper vs fibre), confirm warranty and compliance details with your vendor, and use PoE Watchdog and VLAN/QoS features to keep surveillance systems resilient and predictable.
