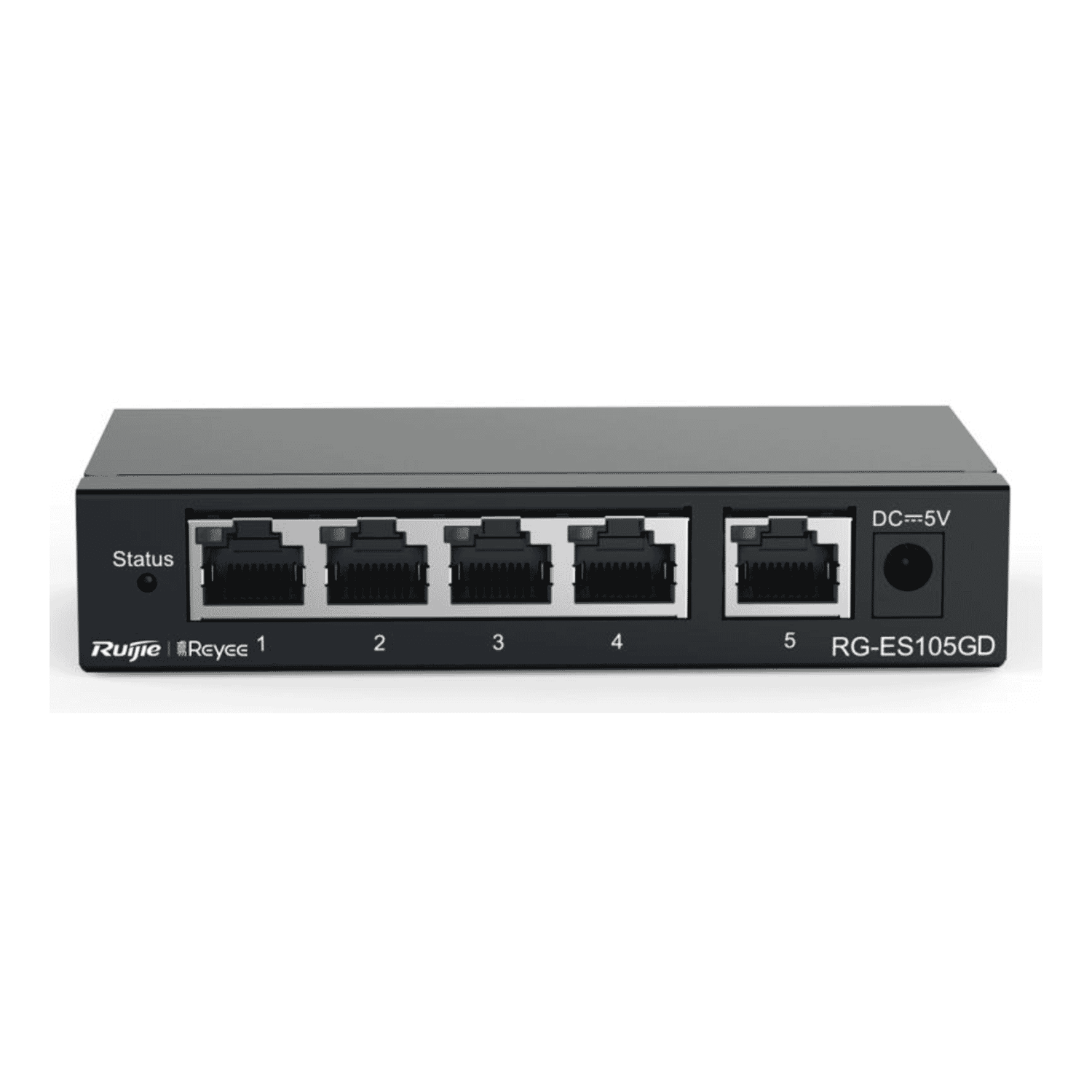

Introduction: Meet the Ruijie RG-ES105GD
The Ruijie RG-ES105GD is a compact, fanless 5‑port Gigabit unmanaged desktop switch built in a sturdy metal case. Designed for small office/home office (SOHO) environments, home networking, and CCTV camera aggregation, it delivers five full‑speed 10/100/1000 Mbps RJ‑45 ports in a low‑power, plug‑and‑play form factor. With store‑and‑forward switching, hardware flow control, surge protection and a small footprint, the RG‑ES105GD is aimed at users who need reliable wired connectivity without the overhead of configuration or noisy cooling.
- Five 10/100/1000Base‑T RJ‑45 ports — all Gigabit.
- Unmanaged, plug‑and‑play operation; cloud visibility when paired with a managed Ruijie device.
- Store‑and‑forward switching, hardware flow control and a large buffer for stable transmission.
- Fanless metal case for quiet, low‑maintenance use.
- Low power consumption: 5 V DC input, typical ≤5 W (adapter included).
- Surge protection (datasheet lists 4 kV; some series notes mention up to 6 kV for variants).
- Compact desktop dimensions and a 3‑year manufacturer warranty.
Detailed specifications and benefits
Understanding what’s under the lid (even if you won’t configure it) helps clarify where the RG‑ES105GD fits. Its technical specifications reflect a focused, efficient device:
- Ports:5 × Gigabit RJ‑45 (10/100/1000Base‑T). All ports operate at full Gigabit speeds, so uplinks to NAS, routers or other switches won’t be bottlenecked.
- Switching capacity & forwarding rate:10 Gbps switching capacity with an approximate forwarding rate of 7.44 Mpps — more than sufficient for typical SOHO traffic and multiple concurrent streams to/from a small NAS or camera cluster.
- MAC table:≈2,000 entries — ample for small networks and modest device counts.
- Unmanaged operation:Plug‑and‑play simplicity means installers and end users don’t need to configure VLANs, QoS or SNMP to get reliable switching.
- Power:5 V DC, 1 A adapter included; power consumption ≤5 W typical. This low voltage and low wattage design keeps running costs low and simplifies power requirements.
- Physical build:Fanless metal case (dimensions 119 × 75 × 24 mm) — durable, thermally passive, and silent. Small footprint makes it easy to place on a desk, shelf or near a DVR/NVR stack.
- Reliability:MTBF >200,000 hours and a 3‑year warranty underline the vendor’s confidence in long‑term operation.
- Environment:Operational range 0°C to 40°C and 10%–90% RH, covering typical indoor deployments.
- Safety & surge protection:Datasheet lists surge protection at 4 kV (series notes may list variants up to 6 kV) — useful where cabling runs are exposed to electrical disturbances.
- Certifications:Certification details were not provided in the supplied datasheet (INSUFFICIENT DATA); consult the official documentation for specific regional approvals before deployment in regulated environments.
Benefits in everyday terms: the RG‑ES105GD gives you full‑speed wired ports for devices that need reliability (PCs, NAS, streaming boxes, cameras), low operational costs due to minimal power draw, and quiet, maintenance‑free performance thanks to the fanless metal chassis.
Use cases and scenarios where the RG‑ES105GD excels
This switch is purpose‑built for small, practical networks where simplicity, reliability and physical durability matter more than advanced management:
- SOHO and small office desktop expansion:Add wired ports to a router for workstations, printers and a local NAS. The full Gigabit ports ensure fast file transfers and stable VoIP or video conferencing.
- Home media and gaming setups:Connect a smart TV, gaming console and media server to avoid Wi‑Fi congestion. The low latency and consistent throughput of wired Gigabit help gaming and 4K streaming.
- CCTV/NVR camera aggregation (non‑PoE):Use the RG‑ES105GD as a local aggregation point for cameras that are powered separately or via PoE injectors. Its metal case and surge protection are beneficial for reliability on camera runs.
- Temporary event networks or meeting rooms:Quick, plug‑and‑play expansion of a wired network during meetings, pop‑up events or short‑term projects where no configuration is desired.
- Small lab and home office networking:For homelabs or a home office with a router/modem combo, the device is ideal for segregating traffic to a dedicated wired switch without the noise and heat of larger managed units.
- Low‑maintenance deployments:Places where you want set‑and‑forget reliability — small retail outlets, kiosks, or industrial office spaces — benefit from the passive cooling and long MTBF.
Note on PoE: the RG‑ES105GD is non‑PoE. For cameras or APs that require Power over Ethernet, use a PoE injector or a PoE‑capable switch upstream. The RG‑ES105GD remains useful as a simple aggregation or extension device in those scenarios.
How it compares with similar switches on the market
There are many five‑port Gigabit unmanaged metal switches from well‑known brands. Common competitors include models from TP‑Link (e.g., TL‑SG105), Netgear (GS105 series) and D‑Link (DGS‑105). Here’s how the RG‑ES105GD stacks up on key points:
- Build quality and noise:Like the popular competitors, the RG‑ES105GD uses a metal, fanless case — so it matches industry norms for silent operation and durability.
- Power profile:The RG‑ES105GD uses a low 5 V DC adapter with ≤5 W consumption. Many competing units use 12 V adapters and similar power ranges; the lower voltage can be advantageous where 5 V power supplies are preferred.
- Surge protection:The explicit 4 kV listing (and variant notes up to 6 kV) is a practical advantage for deployments with exposed cabling. Not all basic unmanaged switches advertise such protection levels.
- Cloud visibility:A distinctive benefit: when a managed Ruijie device is present on the same network, the RG‑ES105GD can be cloud‑visible for basic monitoring — a helpful bridge between unmanaged simplicity and managed oversight. Most pure unmanaged switches from other brands do not offer this hybrid visibility feature.
- Warranty & reliability:A 3‑year manufacturer warranty and MTBF >200k hours are competitive and align with the warranties offered by leading rivals.
- Feature parity:Core switching capacity, forwarding rate, and MAC table size are comparable to mainstream 5‑port Gigabit switches. The differences are more about ecosystem and small hardware choices than raw performance.
Bottom line: the RG‑ES105GD competes well on durability, low power and a subtle edge in ecosystem visibility (for Ruijie environments). If you need PoE, however, choose a PoE model or add injectors; if you need advanced management, a managed switch is required.
Customer testimonials and reviews
Official customer reviews specific to the RG‑ES105GD were not provided with the supplied materials. That said, the unit’s characteristics point toward common feedback themes from users of similar devices:
- "Very quiet and compact — great for a desk next to my NAS." — likely feedback from home users appreciating the fanless metal build.
- "Simple plug‑and‑play, and my cameras stream without hiccups." — typical comment from CCTV installers using an unmanaged aggregation switch (with separate power for cameras).
- "Low power draw keeps my small office UPS runtime long." — expected from users valuing the ≤5 W consumption.
If you require verified customer reviews, check reseller sites and Ruijie community forums where installers and SOHO users post real‑world experiences. Reviews tend to highlight long‑term reliability, thermal performance (no fans), and the convenience of a small metal switch.
Conclusion: Why choose the RG‑ES105GD?
The Ruijie RG‑ES105GD 5‑Port Gigabit Unmanaged Desktop Switch is an attractive choice for anyone who wants silent, reliable wired connectivity without the complexity of managed networking. Its full‑speed Gigabit ports, low power usage, surge protection and compact metal housing make it especially well suited to SOHO deployments, home media setups, and camera aggregation tasks where PoE is not required. The additional potential for cloud visibility when paired with managed Ruijie gear provides a useful bridge for users who may later adopt managed devices.
With solid technical specs (10 Gbps switching capacity, ≈7.44 Mpps forwarding rate, ≈2,000 MAC entries), an included 5 V adapter, and a 3‑year warranty, the RG‑ES105GD offers dependable performance at a competitive price point. If you need a quiet, low‑power, rugged desktop switch for everyday wired networking, this model is a practical, cost‑effective option.
