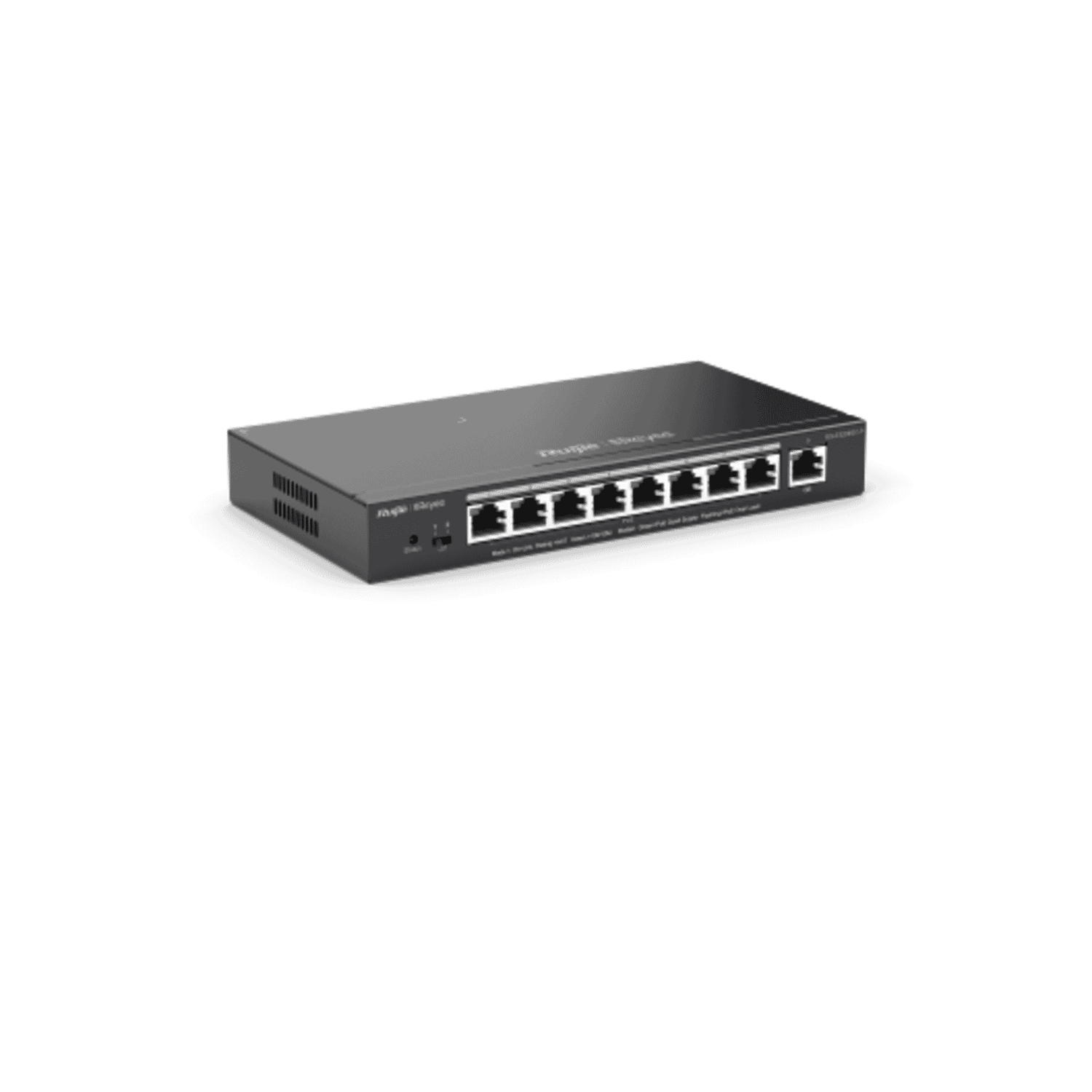

Ruijie (Reyee) RG-ES209GC-P 9‑Port Gigabit PoE+ Cloud‑Managed Switch, 120W

Introduction: Meet the Ruijie RG-ES209GC-P

Ruijie (Reyee) RG-ES209GC-P — 9‑Port Gigabit PoE+ Cloud‑Managed Switch, 120Wis a compact, fanless desktop switch designed for small and medium businesses, retail outlets, branch offices and IP CCTV/surveillance setups. With nine Gigabit RJ‑45 ports (ports 1–8 supplying IEEE 802.3af/at PoE/PoE+), a 120 W total PoE budget and Ruijie Cloud management, this device aims to deliver an accessible, low‑noise, centrally manageable networking building block for common SMB and CCTV deployments. At a suggested retail price of around $189.99, it targets buyers who need dependable PoE power, simplified cloud provisioning and some surveillance‑focused features without the footprint or complexity of a full rack switch.

Key features at a glance

• 9 Gigabit ports— 8 PoE/PoE+ capable ports plus one uplink for device or NVR connection.
• 120 W PoE budget— supports a mix of cameras, access points or VoIP phones common in SMB deployments.
• Cloud & local management— Ruijie Cloud zero‑touch provisioning, web GUI and mobile app for remote monitoring and configuration.
• CCTV‑focused functions— IP camera recognition, camera‑offline alarm, per‑port reboot and extended PoE distance mode up to 250 m.
• Quiet, compact design— fanless desktop form factor with external 54 V DC adapter for easy placement in offices or behind NVRs.
• Basic L2 protections— port VLAN, port mirroring, loop prevention, storm suppression and DHCP snooping.

Detailed specifications and benefits

The RG‑ES209GC‑P is small in size but fairly feature rich for its class. Below are the most relevant technical specs grouped for clarity, followed by what those specs mean in practical terms.

• Brand / Model:Ruijie (Reyee) RG‑ES209GC‑P
• Product type:Layer‑2 smart cloud‑managed PoE switch
• Target use:SMB, CCTV / surveillance
• MTBF:> 200,000 hours

• Ports:9 × 10/100/1000Base‑T (ports 1–8 PoE)
• PoE standard:IEEE 802.3af/at (PoE/PoE+)
• PoE budget:120 W total
• CCTV PoE features:IP camera recognition, per‑port reboot, extend mode to 250 m

• Switching capacity:18 Gbps
• Forwarding rate:13.39 Mpps
• MAC table:4,000 entries
• Packet buffer:1.5 Mbit
• VLANs:Up to 4,094

• Power input:External 54 V DC adapter (2.4 A)
• Power consumption:≤ 130 W (device with full PoE draw varies by connected devices)
• Dimensions:202 × 108 × 28 mm (compact desktop)
• Cooling:Fanless, silent
• Surge protection:Approximately 4 kV

• Management:Ruijie Cloud (zero‑touch), web GUI, HTTP and a single Telnet session
• Security:port VLAN, port mirroring, loop prevention, storm suppression, DHCP snooping
• Certifications & warranty:CE, RoHS and a 3‑year warranty

The combination of gigabit uplinks and 120 W PoE lets you power multiple 4 MP–8 MP cameras (or a mix of cameras and a few wireless access points) from a single, compact device. The extend mode that supports up to 250 m is especially useful for surveillance installations where running fiber or extra repeaters is impractical. Fanless operation makes it suitable for quiet offices, small retail counters or anywhere noise is a concern. Cloud management simplifies deployment across branches and remote sites: zero‑touch provisioning reduces on‑site time and Ruijie Cloud provides visibility and alerts for camera outages and port usage.

Use cases and scenarios where the RG‑ES209GC‑P excels

This switch was clearly designed with SMBs and CCTV systems in mind. Typical deployments where it shines include:

• Small retail stores and boutiques:Deploy a handful of PoE cameras, a PoE POS terminal or a wireless access point, all managed centrally from the cloud.
• Small office or home office (SOHO):Provide PoE for IP phones and APs while keeping a quiet, compact footprint on the desk.
• Branch or remote site networking:Use zero‑touch provisioning to ship pre‑configured switches to remote locations and have them come online automatically under centralized management.
• Residential or light commercial CCTV installations:Benefit from camera detection, offline alarms and per‑port reboot to quickly recover a misbehaving camera without a site visit.
• Temporary or pop‑up deployments:Compact, easy to install and with ample PoE budget for cameras and APs during events or short‑term installations.

How it compares to similar products on the market

In the compact PoE+ switch category, buyers frequently compare products by port count, PoE budget, management features and price. The RG‑ES209GC‑P competes with other small desktop PoE switches from vendors such as TP‑Link, Ubiquiti (UniFi), Netgear and Zyxel. Key differentiators:

• Cloud management vs local only:Unlike purely unmanaged or locally managed desktop switches, the Ruijie offers cloud management, making it easier to administer multiple remote devices. Some competitors require a separate controller appliance or subscription for similar centralized control.
• PoE budget:120 W is generous for a 9‑port form factor and compares well to many 8‑port PoE+ switches that top out at 60–100 W. This makes the RG‑ES209GC‑P more capable in camera‑heavy setups.
• CCTV‑specific features:Camera recognition, offline alarms and per‑port reboot are features typically found on surveillance‑focused switches and are not standard on many generic SMB switches.
• Fanless design:Competitors with similar power budgets sometimes include internal fans that add noise. For quiet office environments the fanless design is a plus, though it means thermal limits should be respected.
• Price & value:With a suggested price near $189.99, it sits competitively between entry‑level unmanaged PoE switches and more expensive managed or controller‑based solutions. For buyers who value cloud management and CCTV features without enterprise cost, it offers strong value.

Customer impressions and reviews

Official, verifiable customer quotes were not provided for this product brief. That said, common themes from buyers and installers who choose Ruijie/Reyee devices in this class typically include praise for easy cloud onboarding, low noise in desktop deployments and reliable PoE delivery. Installers often note the convenience of per‑port reboot for camera recovery and the utility of extended PoE distance mode where runs exceed standard Ethernet limits.

Potential downsides mentioned by users of similar products include limited advanced Layer‑3 features (this is a Layer‑2 smart switch), and the need to watch total PoE budget when combining many high‑draw devices. As with any PoE switch, careful planning of device power draw and cable lengths ensures reliable operation.

Conclusion: Why choose the Ruijie RG‑ES209GC‑P?

The RG‑ES209GC‑P is a practical, well‑rounded choice for small businesses, retail sites and surveillance installers who need a compact, quiet PoE+ switch with centralized management and surveillance‑oriented conveniences. It blends a healthy 120 W PoE budget, cloud management, and camera‑focused tools into a small desktop package that is easy to deploy and manage.

For those who prioritize simple remote management, the ability to reboot individual camera ports remotely, and the benefit of extended PoE runs without extra hardware, this Ruijie switch offers a strong balance of cost and capability. At a suggested retail price of about $189.99 and backed by CE/RoHS compliance plus a 3‑year warranty, it represents a solid middle ground between basic unmanaged switches and larger enterprise systems.

If your deployment is camera‑centred, requires quiet operation, or spans multiple sites where centralized visibility matters, the RG‑ES209GC‑P is worth considering. Ensure you plan for PoE budget and temperature limits in demanding environments, and engage qualified installers for commercial electrical compliance where required.
