Introduction: What the Ruijie RG-ES106D-P V2 Offers

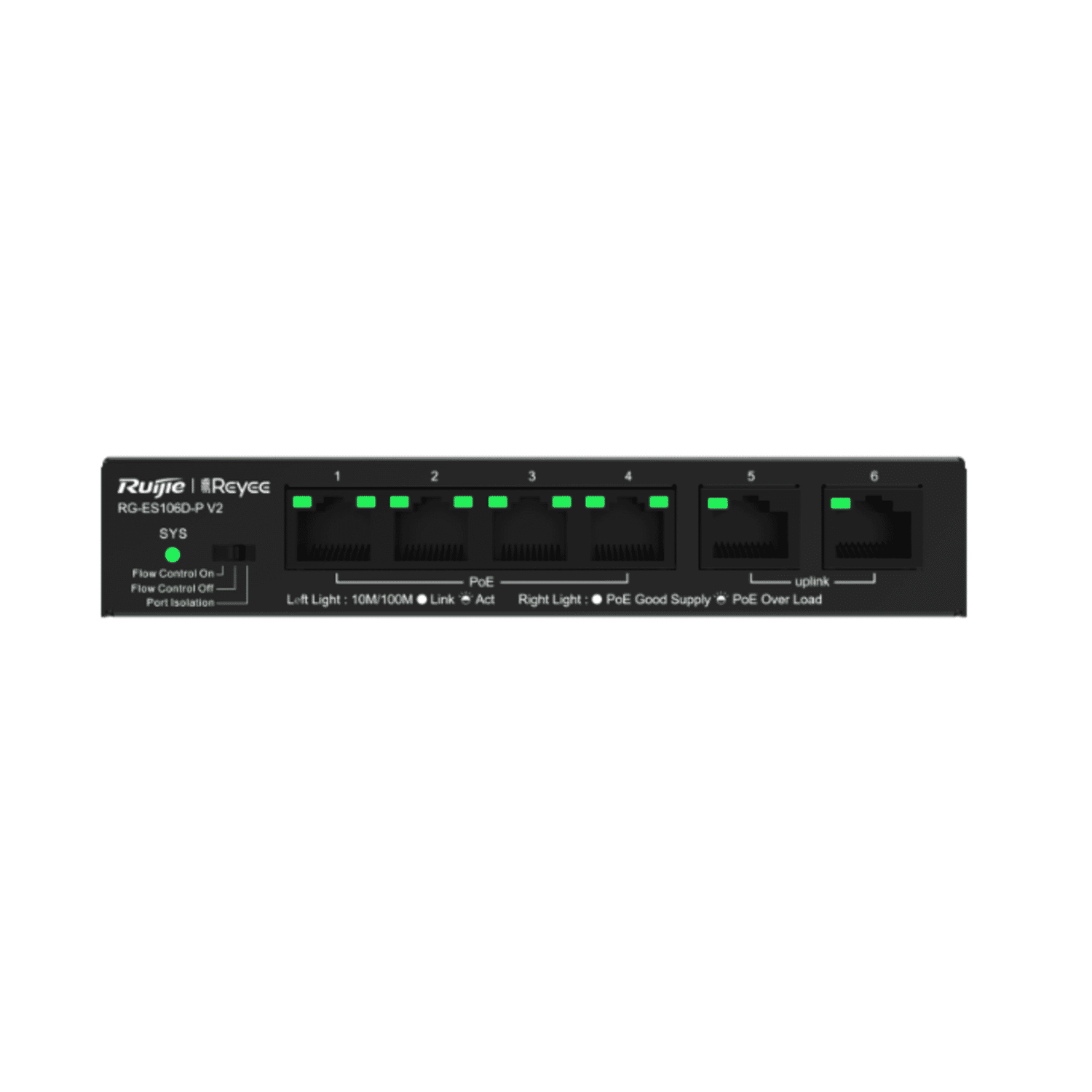

The Ruijie RG-ES106D-P V2 is a compact, fanless, unmanaged desktop switch designed to deliver easy Power over Ethernet (PoE+) connectivity for small offices, home offices and light commercial deployments. With 6 10/100 Mbps ports — including 4 PoE+ downlinks and 2 non‑PoE uplinks — and an approximate 54 W PoE budget, it is built for straightforward plug‑and‑play installations where simplicity, low noise and reliable PoE power are priorities. Backed by a 3‑year manufacturer warranty, this model targets customers who need to power IP cameras, VoIP phones and small access points without the complexity or cost of managed switching.
Key Features at a Glance
- 6 x 10/100 Mbps ports: 4 PoE+ (802.3af/at) downlinks and 2 uplinks (non‑PoE).
- 54 W PoE budget: Supports common PoE/PoE+ devices across the 4 powered ports.
- Unmanaged simplicity: Store‑and‑forward switching with plug‑and‑play operation — no configuration required.
- Fanless desktop form factor: Quiet operation and small footprint for offices and reception areas.
- Durability features: Port TVS surge protection (~6 kV) and >200,000 hours MTBF for reliable everyday operation.
- Lifecycle information: 3‑year warranty and End‑of‑Sale (EoS) notice (EoS: 30 Aug 2024; End of support: 30 Aug 2028) — check stock and replacement options.
Detailed Specifications and Benefits
Understanding the technical specifications helps decide whether the RG‑ES106D‑P V2 fits your environment. Below are the most relevant specs and the practical benefits they provide.
- Downlink Ports: 4 x 10/100Base‑TX PoE+ (RJ45). Benefit: These ports deliver both data and power to terminals such as IP cameras, VoIP phones and small APs without a separate power source.
- Uplink Ports: 2 x 10/100Base‑TX (RJ45), non‑PoE. Benefit: Dedicated uplinks make it easy to connect to a router or another switch without sacrificing powered ports.
- PoE Budget: Approx. 54 W total, supporting 802.3af (PoE) and 802.3at (PoE+) devices. Benefit: Sufficient for several mid‑power devices (for example, a few cameras or phones). Be mindful of total wattage and per‑port needs when planning deployments.
- Switching Capacity: ~1.2 Gbps. Benefit: Adequate for 10/100 environments where aggregate throughput requirements are moderate.
- Forwarding Rate: ~0.89 Mpps. Benefit: Handles common small‑office traffic loads without packet loss in typical scenarios.
- MAC Table: ~2000 entries. Benefit: Supports a modest number of connected devices suitable for SOHO and small‑business networks.
- Unmanaged Store‑and‑Forward: Simple, reliable forwarding without configuration. Benefit: Quick installation and minimal administration overhead.
- Form Factor: Fanless desktop — quiet and compact, ideal for desks, racks with shelves or ceiling voids where noise matters.
- Power Supply: External 53 V DC adapter (typical current listings ~2.24 A). Benefit: External adapter simplifies replacement and keeps heat outside the unit.
- Surge Protection: Port TVS protection (~6 kV). Benefit: Extra protection against electrical transients in vulnerable installations like external camera runs.
- Warranty & Lifecycle: 3 years manufacturer warranty; EoS notice in effect. Benefit: Short‑term support for current stock — verify availability and replacement options for long‑term rollouts.
Use Cases: Where the RG‑ES106D‑P V2 Excels
This switch is best suited to scenarios where simple, reliable PoE power and basic switching are required without managed features. Typical use cases include:
- Small office/home office (SOHO): Power a handful of VoIP phones and a wireless AP in a receptionist area or small team workspace with minimal configuration and clean cabling.
- Small CCTV installations: Feed four IP cameras with PoE+ in a small retail store, office floor or home monitoring setup. The TVS protection helps in runs exposed to transient voltages.
- Branch or temporary sites: Quick deployments for pop‑up stores, temporary events or short‑term branches where cost and simplicity matter.
- Reception and meeting rooms: Power an access point and a couple of VoIP phones without having to manage VLANs or QoS in a managed switch.
- Edge connectivity: Use as an edge access device to consolidate a few endpoints when central management is handled elsewhere or not required.
How It Compares to Similar Products
When evaluating the RG‑ES106D‑P V2, it helps to compare against two broad alternatives: unmanaged gigabit PoE switches and small managed PoE switches.
- Many consumer/small‑business PoE switches now provide gigabit ports (1000 Mbps) for uplinks and downlinks. Gigabit models offer higher throughput for heavy data flows (large file transfers, high‑resolution camera streams). The RG‑ES106D‑P V2 uses 10/100 ports, which are adequate for many VoIP and standard‑definition camera deployments but will limit throughput for multi‑stream high‑resolution cameras or heavy concurrent transfers.
- Advantage of RG‑ES106D‑P V2: lower price point and lower power/heat profile. If your deployment doesn’t require gigabit speeds, the V2 is a cost‑effective option.
- Managed switches provide VLANs, QoS, PoE scheduling and traffic monitoring — useful for complex networks. The RG‑ES106D‑P V2 is unmanaged and does not offer these controls.
- Advantage of the RG‑ES106D‑P V2: simplicity and ease of deployment. Less skilled staff can install it quickly and maintain it with minimal overhead.
If you need feature‑rich management, VLAN segmentation or guaranteed gigabit throughput, a managed or gigabit PoE switch is more appropriate. If your priorities are low cost, compact size, quiet operation and sufficient PoE for a handful of devices, the RG‑ES106D‑P V2 is a compelling fit.
Customer Feedback and Typical Reviews
Official product reviews and customer sentiment for simple unmanaged PoE switches tend to focus on three areas: reliability, ease of use and PoE power capacity. For the RG‑ES106D‑P V2, typical customer observations you can expect based on product positioning are:
- Positive notes: Users often report that installation is straightforward — plug in the uplink and PoE devices and everything powers up. The fanless design is appreciated in noise‑sensitive locations. The 54 W budget is adequate for small camera/phone/AP mixes.
- Limitations: Customers upgrading to multi‑camera HD systems or heavy data users may find the 10/100 ports limiting. Others deploying large numbers of PoE devices will need a higher budget/port count model.
- Support and lifecycle: The 3‑year warranty is considered standard for devices of this class. The End‑of‑Sale notice is a practical consideration; buyers should check stock levels and long‑term support roadmaps for larger deployments.
Note: Specific user testimonials were not provided. For live user reviews, check reseller listings, community forums and the distributor for recent feedback on performance and reliability.
Price and Value
The suggested retail price provided for reference is approximately $44.99. At this price point the RG‑ES106D‑P V2 positions itself as an affordable, no‑frills PoE solution for small deployments. When evaluating value consider the total cost of ownership: initial device cost, expected lifespan, warranty coverage and whether the PoE budget and port speeds meet current and near‑term needs.
Conclusion: Who Should Choose the Ruijie RG‑ES106D‑P V2?
The Ruijie RG‑ES106D‑P V2 is a practical, low‑cost PoE+ desktop switch that fits well where simplicity, quiet operation and a modest PoE budget are required. It is particularly suitable for small offices, reception areas, small CCTV systems and temporary or branch deployments where managed features and gigabit throughput are not essential. The 54 W PoE budget across four powered ports allows a mix of phones, cameras and small APs to run without separate power supplies, while the fanless desktop design makes it unobtrusive in office environments.
If you are planning a small‑scale deployment and want plug‑and‑play PoE with basic protections and a three‑year warranty, the RG‑ES106D‑P V2 is a solid choice. For larger, performance‑sensitive or long‑term rollouts, consider higher‑capacity gigabit PoE models or managed switches — and remember to verify stock and long‑term support given the products End‑of‑Sale notice.
Summary: The Ruijie RG‑ES106D‑P V2 delivers dependable, easy PoE+ connectivity in a compact package at an accessible price. It is ideal for buyers who prioritize simplicity and cost‑effectiveness over advanced management and gigabit speeds.
