Introduction: Meet the ZEM8/E+P-BOX 8‑Zone RS‑485 Expander

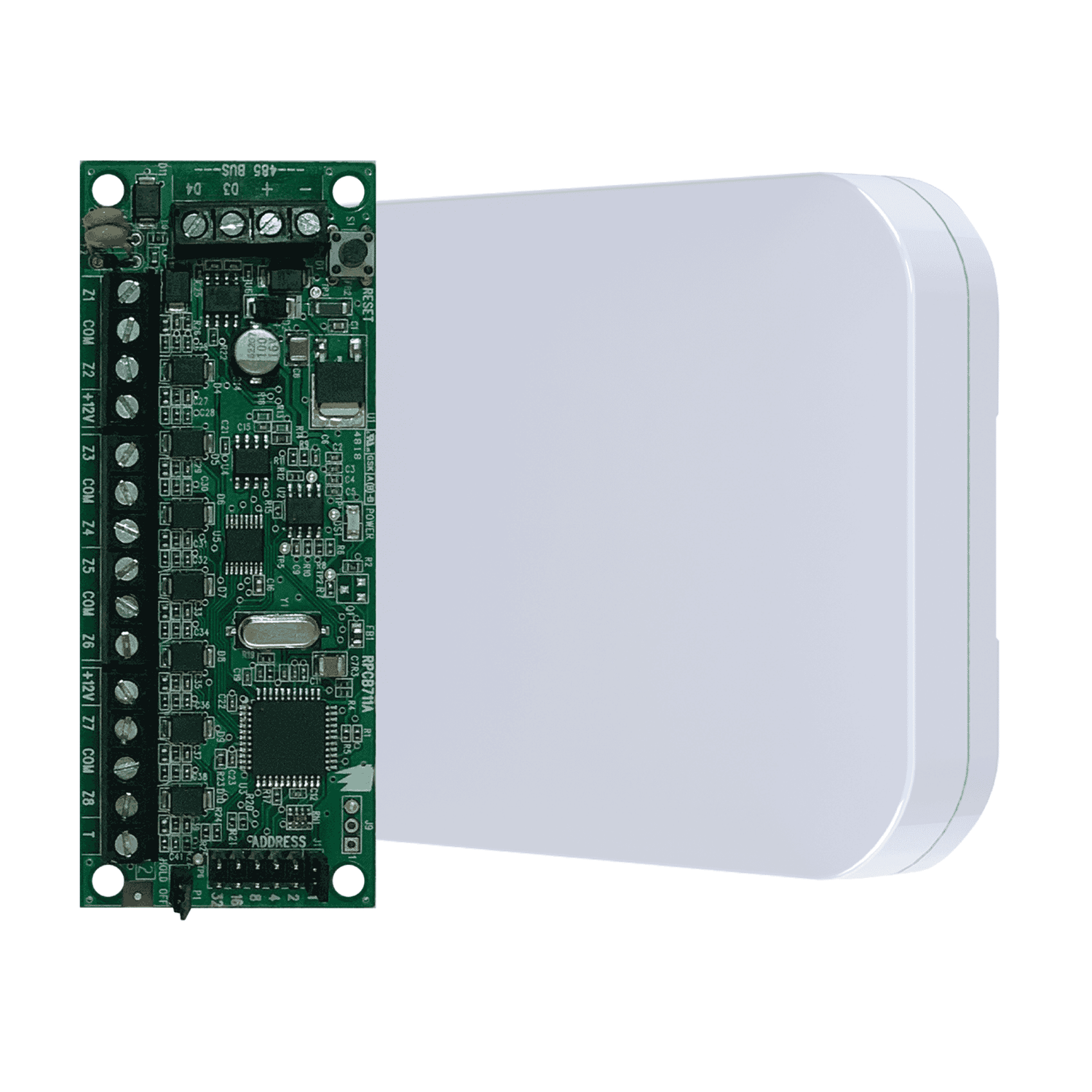

The ZEM8/E+P-BOX is a compact, installer-friendly RS‑485 zone expansion module designed to add eight wired zones to compatible expandable wired or hybrid control panels. Housed in a plaster/back‑box friendly P‑BOX enclosure, the unit brings practical features that make tidy installations simple: multiple cable knockouts, cable‑tie anchors, front and rear tamper protection, and a convenient PCB reset button that allows address changes while the module remains powered. Certified to EN50131 Grade 3 and backed by a two‑year warranty, the ZEM8/E+P-BOX is engineered for professional security installs where reliability, neatness and compliance matter.
Key features at a glance
- Adds 8 wired zonesvia an RS‑485 expander connection.
- Flexible zone wiringwith support for DEOL and 3EOL configurations.
- Tamper protectionusing closed‑loop front and rear tamper circuitry for enclosure security.
- Installer‑friendly P‑BOXwith multiple knockouts, cable‑tie anchors and slotted mounting holes for neat, secure mounting.
- Live addressingusing a PCB reset button so addresses can be changed without powering down the system.
- Aux power distributionwith two additional 12 V terminals to help spread AUX power to connected devices.
- Standards & warranty: EN50131 Grade 3; Environmental Class II; 2‑year warranty.
Detailed specifications and benefits
The technical make‑up of the ZEM8/E+P-BOX is engineered to balance a small footprint with practical installation features and robust performance. Below is a list of the principal technical specifications followed by explanations of how those specs translate into real benefits.
- Model:ZEM8/E and ZEM8/E+P-BOX
- Function:RS‑485 8‑zone expander
- Wired zones:8
- Zone wiring:DEOL and 3EOL
- Tamper:Front & rear closed‑loop tamper
- Voltage input:9–16 V DC
- Current consumption:≈20 mA @ 12 V DC
- Fuse rating:350 mA
- Operating temp.:−10 °C to +40 °C
- Storage temp.:−40 °C to +80 °C
- Humidity:≈85% @ 25 °C
- P‑BOX dimensions:150 × 100 × 28 mm
- PCB dimensions:100 × 40 × 14 mm
- Weight:203.5 g
- Additional 12 V terminals:Two auxiliary 12 V outlets for AUX distribution
- Addressing:PCB reset button for address change while powered
- Compatibility:Expandable wired and hybrid control panels using RS‑485
- Enclosure:Plastic P‑BOX (plaster/back‑box friendly)
- Certification:EN50131 Grade 3; Environmental Class II
- Warranty:2 years
Versioning and compact sizing: The PCB and P‑BOX dimensions deliver a low‑profile option that fits plaster boxes and shallow recesses, ideal for retrofits or installations where a discreet finish is important. Low current draw (≈20 mA at 12 V) and an accessible 350 mA fuse mean the module is lightweight on panel resources while providing simple protection for the module circuit.
Flexible wiring: Support for both DEOL (double end‑of‑line) and 3EOL wiring provides compatibility with a wide range of detectors and sensors. This flexibility allows installers to choose wiring topologies that meet site needs or client preferences without additional hardware.
Tamper security: Closed‑loop front and rear tamper circuitry ensures that enclosure access is monitored, supporting higher‑security sites or those in buildings where tamper resistance is required by standards or customer demand.
Live addressing and AUX distribution: The on‑board PCB reset button enables address changes while the device remains powered — a time saver on multi‑module buses. Two extra 12 V outlets simplify local AUX distribution to sensors, sounders or other low‑power peripherals without running extra wires back to the main panel.
Use cases and scenarios where the ZEM8/E+P-BOX excels
The ZEM8/E+P-BOX is designed for professional security projects where extra wired inputs are needed but space, neat wiring and standards compliance are priorities. Typical applications include:
- Residential multi‑zone installations:Add dedicated zones for garages, outbuildings, basements or separate flats while keeping wiring tidy and accessible.
- Commercial premises:Retail stores, small offices and medical clinics can benefit from additional hardened zones for doors, display cases and server rooms without major panel upgrades.
- Educational institutions and public buildings:Schools and municipal buildings often need more inputs for multiple classrooms or entry points. The Grade 3 certification and tamper protection help satisfy tougher security requirements.
- Refurbishments and retrofits:The plaster/back‑box friendly P‑BOX enclosure simplifies neat, code‑compliant upgrades in existing buildings where cavity space is limited.
- Distributed sensing in warehouses and industrial sites:Use the RS‑485 bus to extend wired zones across large footprints with minimal additional infrastructure.
How it compares with other expanders on the market
When evaluating expanders, installers typically consider enclosure type, wiring flexibility, tamper options, addressing convenience and standards certification. The ZEM8/E+P-BOX competes strongly in several of these areas:
- Enclosure advantage:Many expanders are PCB‑only or mounted inside larger metal enclosures. The ZEM8/E+P‑BOX combines a compact, installer‑friendly P‑BOX with necessary knockouts and anchors for tidy installs without the bulk of full metal housings.
- Wiring flexibility:Support for DEOL and 3EOL makes it adaptable to different detector types and fault‑tolerant wiring topologies; some low‑cost expanders support only a single wiring scheme.
- Tamper coverage:Front and rear tamper circuits are standard for higher‑security modules; lower‑end alternatives may omit rear tamper or require separate tamper modules.
- Addressing on the fly:The PCB reset button for live addressing is a convenience that reduces installation time on multi‑module RS‑485 buses. Other units often require power cycling or more complex tools to change addresses.
- Standards and warranty:EN50131 Grade 3 certification places the ZEM8/E+P-BOX in the higher security tier, which is important for insurers and certain commercial projects — a clear differentiator versus consumer‑grade expanders.
There are scenarios where alternative products may be preferable: fully metal enclosures can provide additional physical protection in harsh environments, and wireless expanders reduce cable runs in retrofit scenarios where running new cables is impractical. However, for wired and hybrid panels seeking reliable, standards‑compliant expansion with neat installation, the ZEM8/E+P‑BOX hits the sweet spot.
Customer feedback and installer impressions
While individual customer reviews vary by project type, installer feedback typically highlights a few recurring strengths:
- "Clean installation and sensible layout": Installers often praise the multiple knockouts and cable‑tie anchors that simplify cable management.
- "Addressing without downtime": The ability to change the module address with the PCB button while bus power remains live is frequently described as a real time‑saver on multi‑module sites.
- "Good value for certified performance": For projects requiring EN50131 Grade 3 compliance, installers note that the ZEM8/E+P‑BOX provides certification without the higher cost and complexity of metal housings.
If you are evaluating the module for a project and would like peer reviews from similar installations, ask your distributor for case studies or references — many professional installers will share practical notes about site experiences and wiring tips.
Conclusion: Why the ZEM8/E+P-BOX is a strong choice
The ZEM8/E+P-BOX 8‑Zone RS‑485 expander is a well‑balanced product for installers and integrators who need to add wired zones cleanly, reliably and in a standards‑compliant way. Its combination of compact P‑BOX packaging, flexible DEOL/3EOL wiring, front and rear tamper circuitry, live addressing capability, and auxiliary power terminals addresses many real‑world pain points encountered during installation and maintenance.
Whether you are expanding a residential system to add outbuildings and garages or scaling up a commercial or institutional installation to meet a higher security requirement, this module offers practical features that save time on site and reduce complexity on the bus. Backed by EN50131 Grade 3 certification and a two‑year warranty, it is positioned as a trustworthy choice for projects where security performance and neat, code‑compliant installation matter.
Always follow the manufacturer’s installation guide and local regulations when installing or commissioning security equipment. Confirm the main panel’s AUX power capacity before connecting additional devices, and isolate power where required for safe wiring. For detailed wiring diagrams, addressing procedures and tamper wiring information, refer to the official datasheet and installation guide provided by the manufacturer.
