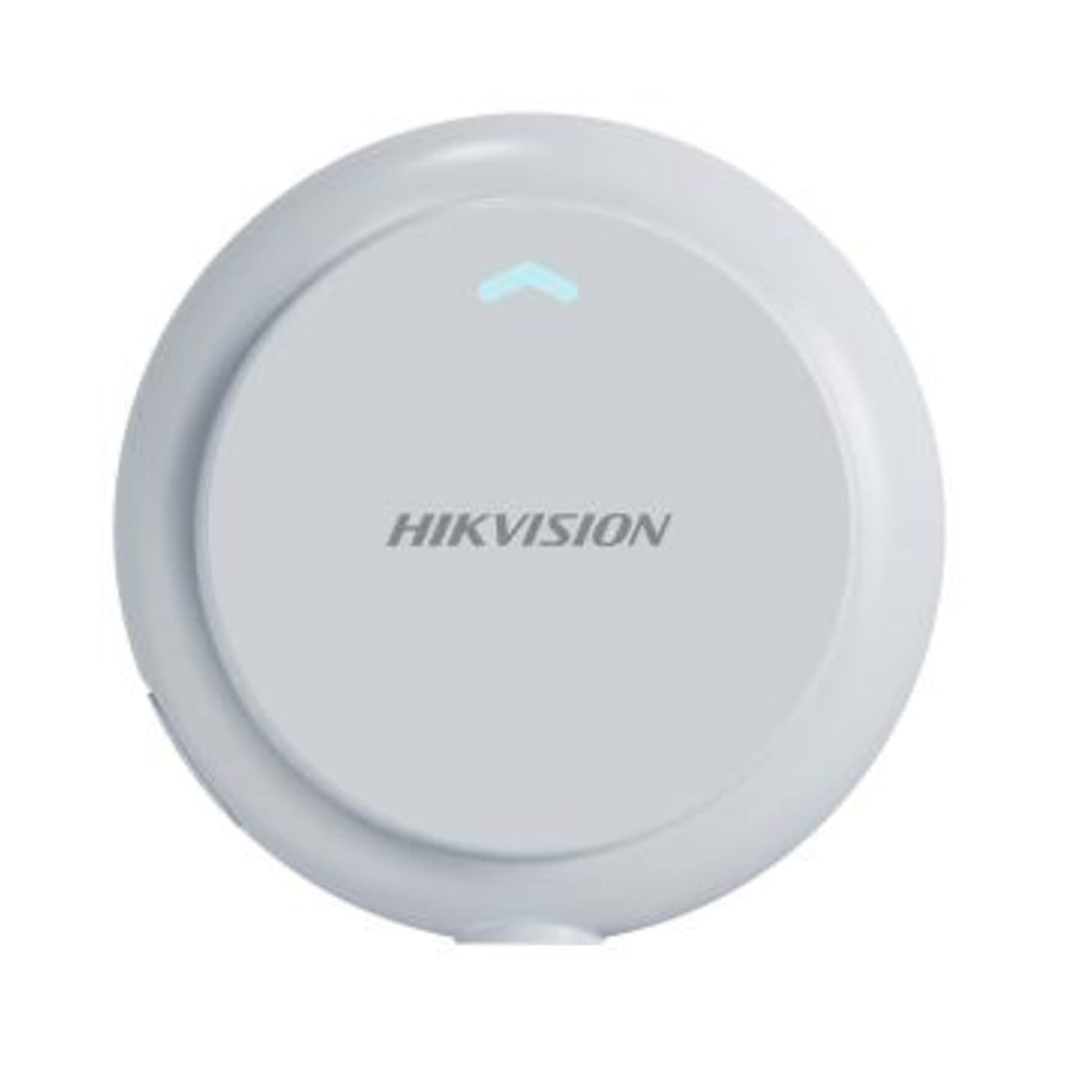

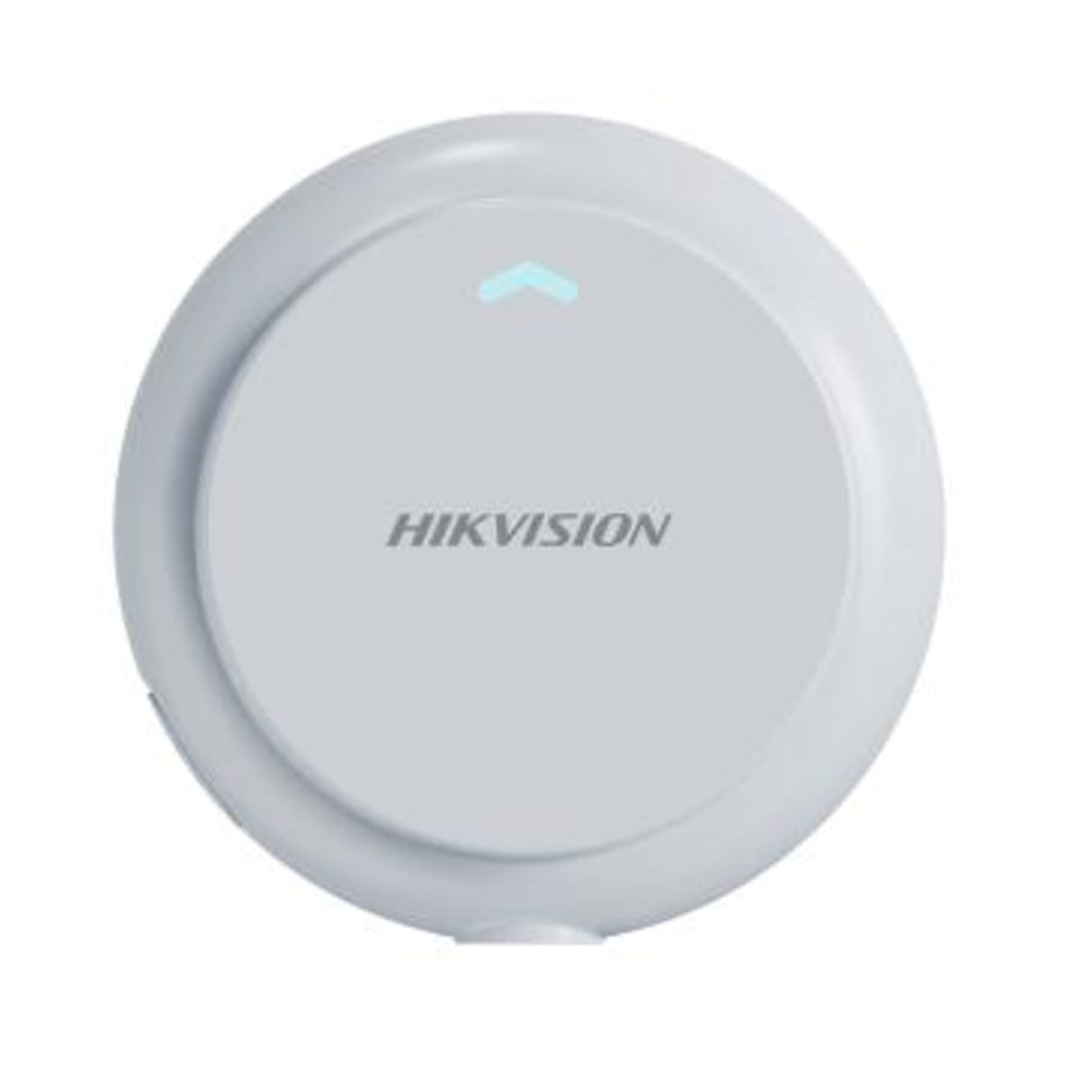

Auxiliary Care Radar Sensor DS‑TDSB00‑EKT/POE/4M, FMCW 60–63 GHz, 4 m Range

Introduction: what the Hikvision DS‑TDSB00‑EKT/POE/4M is and why it matters

The Hikvision DS‑TDSB00‑EKT/POE/4M is an auxiliary‑care radar sensor designed for non‑contact human presence, posture change and fall detection in indoor care environments. Marketed as the Hikvision Radar Fall Detector (4 m, PoE), it uses 60–63 GHz FMCW radar to sense a single human target, provide approximate location information and trigger alerts — all without capturing camera images. That makes it a privacy‑preserving option for bedrooms, bathrooms, assisted‑living suites and other sensitive indoor spaces where monitoring is needed but video recording is not desirable.

Key selling points include a compact form factor (Ø90 mm × 81 mm), flexible power options including Power over Ethernet (PoE 802.3af), USB‑C input, and integration compatibility via ISAPI, SDK and Hikvision management platforms. With a suggested retail price of US$429.00 and a cost price of US$151.50, this sensor targets integrators and care providers seeking a specialist device for fall detection and presence monitoring.

Detailed description of specifications and benefits

The DS‑TDSB00‑EKT/POE/4M packs focused radar technology into a small, easy‑to‑install device. Below are the core specifications and the practical benefits they deliver.

• Radar waveform:FMCW — Frequency‑Modulated Continuous Wave radar offers reliable distance and motion detection with good resolution for indoor targets.
• Frequency band:60–63 GHz — a high‑frequency band that enables compact antennas and precise short‑range detection suitable for rooms and corridors.
• Detection coverage:Approx. 4 m × 5 m (model 4M) — recommended mounting height ≈2 m. This coverage makes the sensor suitable for single‑bed rooms, small living areas and bathrooms.
• Detection angle:±45° horizontal and vertical — wide angular coverage reduces blind spots and simplifies placement.
• Max detectable targets:Up to 1 human target — intentionally limited to single‑person tracking to simplify fall/posture detection logic and reduce false positives in low‑occupancy care settings.

Benefits: FMCW radar is robust against low light and visual occlusion, and the high frequency improves sensitivity to subtle posture changes (sitting, crouching, lying). The single‑target focus is ideal for individual rooms where monitoring one occupant is the goal.

• Network interfaces:RJ45 10/100 Mbps and optional 2.4 GHz Wi‑Fi — flexible connectivity for wired or wireless deployments.
• Protocols:TCP/IP, HTTP/HTTPS, RTSP, FTP, SNMP, NTP, IPv4/IPv6 — standard networking tools for enterprise integration and monitoring.
• API / Integration:ISAPI, SDK, OTAP and compatibility with Hik‑Central Pro and Hik‑Connect — makes the sensor straightforward to integrate with existing Hikvision ecosystems and third‑party systems through documented interfaces.
• Power:DC 5 V (USB‑C, 2 A) or PoE 802.3af (Class 3); ≤10 W — PoE simplifies installations in retrofit scenarios and reduces the need for nearby power outlets.

Benefits: Standard APIs and networking support mean system integrators can connect sensors to alert management platforms, logging systems and care dashboards. PoE makes cabling neat and secure; USB‑C adds a convenient alternative for temporary or portable installations.

• Dimensions & weight:Ø90 mm × 81 mm, approx. 130 g — compact and lightweight for ceiling or wall mounting.
• Material:Polycarbonate (PC) — durable for indoor installations.
• Environmental:Typical operating temperature −10 °C to 50 °C; up to 90% RH non‑condensing; IP54 ingress protection — suitable for most indoor environments but not for direct outdoor exposure.
• Privacy & compliance notes:Radar‑based (no imaging), recommended mounting ≈2 m; consult local certification (CE/UKCA) and firmware variants for market suitability.

Benefits: Small footprint and IP54 rating allow flexible placement in many indoor care environments. The lack of camera imaging addresses privacy concerns common in assisted living and home care.

Use cases and scenarios where the product excels

The DS‑TDSB00‑EKT/POE/4M fits a set of targeted use cases where privacy, reliability and ease of integration are priorities.

• Continuous monitoring of single‑occupancy rooms for falls or sudden posture changes; the sensor can trigger staff alerts and reduce response times.
• Integration with nurse call systems and facility dashboards so caregivers can see location and event logs without privacy‑invasive cameras.

• Discreet monitoring for at‑risk individuals living alone — family members or remote carers receive alerts only when needed, rather than continuous video feeds.
• Portable installations using USB‑C for temporary monitoring during recovery from surgery or after hospital discharge.

• Places where cameras are inappropriate: the radar sensor provides presence and fall detection data while preserving dignity and compliance with privacy policies.

• Projects that require simple, secure device onboarding (PoE, standard network protocols) and integration via ISAPI/SDK into building management or healthcare platforms.

Comparison with similar products on the market

The market for fall and presence detection includes camera‑based systems, wearable sensors, pressure mats and radar‑based devices. Each approach has tradeoffs; the Hikvision DS‑TDSB00‑EKT/POE/4M occupies a distinct position.

• Privacy:Radar offers strong privacy advantages — no images or video recorded — compared with cameras that may raise resident consent and dignity issues.
• Robustness:Radar functions in darkness and through light occlusions; cameras can be affected by lighting and visual obstruction.
• Detail:Cameras provide richer visual context for events (who, what, where), while radar provides movement, posture and location without identity data.

• Compliance:Wearables require users to remember to put on devices and charge them; radar is passive and requires no user action.
• Coverage:Pressure mats detect falls only when the user steps on/near them, whereas ceiling/wall radar can detect falls anywhere inside its coverage zone.
• Maintenance:Wearables and mats often need battery changes or replacement; the DS‑TDSB00 uses centralized power options and low maintenance wiring.

For settings where privacy is essential and single‑occupant monitoring is the norm (small rooms, bathrooms, care suites), this Hikvision radar sensor compares favorably with camera systems and wearables. It is less suited to large open areas requiring multi‑target tracking or applications where visual confirmation is mandatory.

Customer feedback and typical reviews

While specific customer comments are not included here, common feedback themes from installers, care providers and facility managers using radar fall detection devices typically include:

• Positive: "Privacy‑first" design praised by residents and families; easy integration with existing Hikvision management platforms and clear event logging.
• Positive: PoE simplifies installation in retrofit projects and reduces need for additional power runs; compact design makes sensor placement discreet.
• Constructive: Single‑target limitation requires careful deployment planning in multi‑occupant spaces; installers note the importance of following recommended mounting height and placement guidelines to reduce false positives.

Overall, system integrators value devices that reduce false alarms, integrate cleanly into building systems, and require minimal resident interaction — attributes that align with the DS‑TDSB00‑EKT/POE/4M design goals.

Conclusion: why choose the DS‑TDSB00‑EKT/POE/4M

The Hikvision DS‑TDSB00‑EKT/POE/4M is a focused solution for privacy‑sensitive fall and posture detection in indoor care environments. Its 60–63 GHz FMCW radar provides reliable short‑range detection without imaging, while PoE, USB‑C and Wi‑Fi options offer flexible installation choices. Integration through ISAPI/SDK and compatibility with Hik‑Central Pro make it attractive for facilities already using Hikvision ecosystems or for projects that require robust API access.

Ideal deployment scenarios include individual bedrooms, bathrooms and assisted‑living rooms where single‑occupant monitoring is common. Compared with cameras and wearables, this radar sensor offers a strong balance of privacy, reliability and low maintenance. For integrators and care providers seeking a non‑invasive, easy‑to‑deploy fall detection sensor, the DS‑TDSB00‑EKT/POE/4M is a compelling option. Be sure to follow installation guidelines (recommended mounting height ≈2 m), verify regional certifications, and plan deployments according to occupancy patterns to get the best results.

Note on warranty and support:Consult your supplier or Hikvision representative for warranty details, firmware updates and full installation documentation. The sensor ships with mounting hardware and a quick start guide; for production deployments, always refer to the official manual and datasheet.
