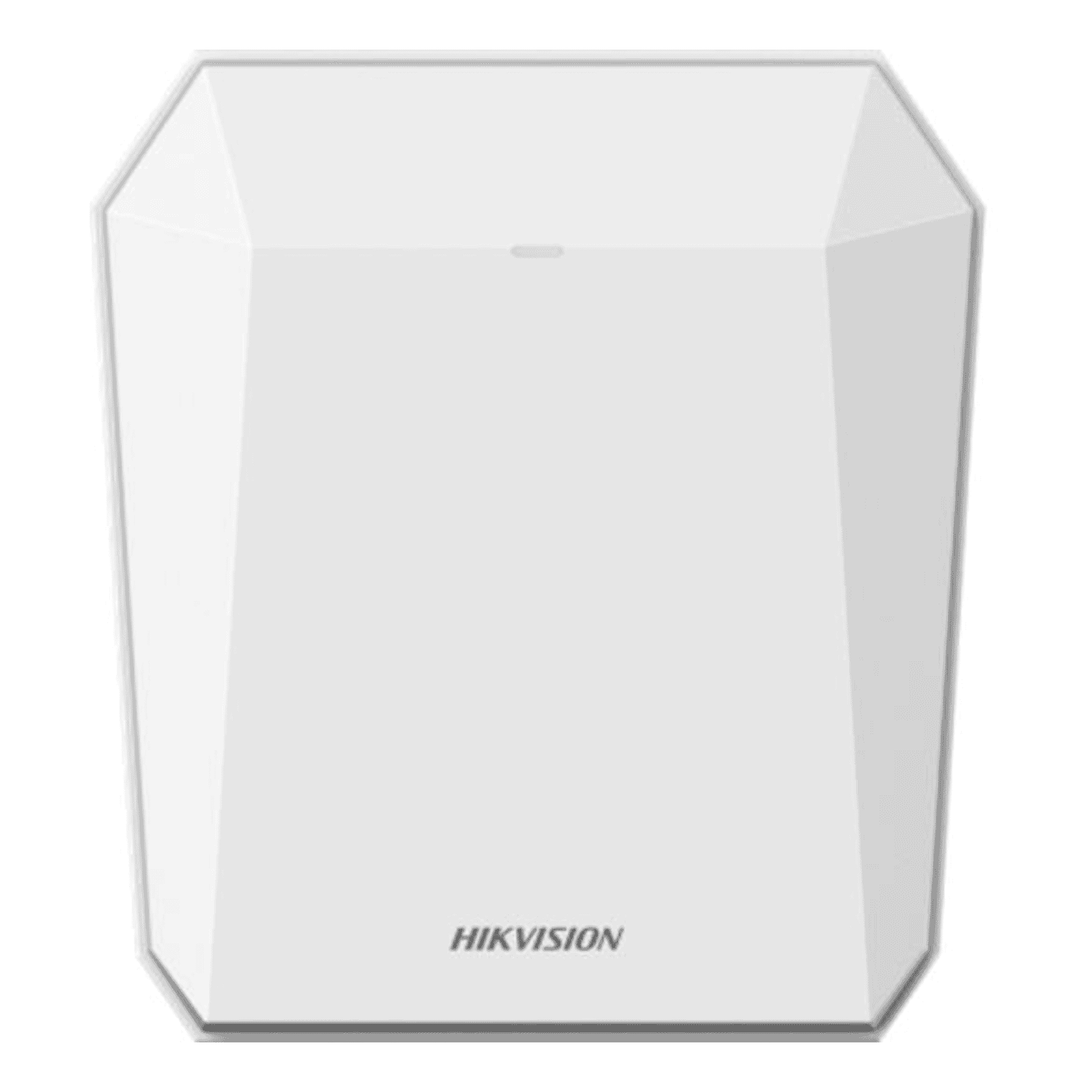

DS-TDSB0G-FK/60m Security Radar, 60m Human / 120m Vehicle, IP67

Introduction: Overview of the DS-TDSB0G-FK/60m Security Radar

The DS-TDSB0G-FK/60m Security Radar is a purpose-built outdoor perimeter detection sensor that combines high-frequency FMCW radar sensing with practical site integration features such as PTZ cueing, on-board storage and open APIs. Designed for harsh outdoor environments, this device provides reliable human and vehicle detection out to 60 m and 120 m respectively, multi-target tracking, configurable detection zones and industry-standard network interfaces. For security teams seeking faster incident verification and fewer nuisance alarms than video-only systems, this radar is positioned as a cost-effective perimeter solution.

Key features at a glance

• Detection range:Humans to 60 m, Vehicles to 120 m.
• FMCW radar:24.05–24.25 GHz band for robust all-weather sensing.
• Multi-target tracking:Up to 32 simultaneous targets.
• Configurable coverage:120 horizontal by 30 vertical, with up to 16 detection zones and 4 trigger lines.
• PTZ cueing & integration:SDK / ISAPI for VMS integration and automated PTZ pointing.
• Rugged build:IP67, IK10, NEMA 4X rated for outdoor installations.
• On-board storage:128 GB for local logging and buffered events.

Detailed specifications and what they mean for users

• Range:The radar differentiates humans up to 60 m and vehicles up to 120 m. This makes it suitable for close-to-mid perimeter detection around fences, gates and vehicle approaches.
• Field of view:A 120 horizontal and 30 vertical aperture gives broad lateral coverage from a single mounting point, useful for covering long fence lines or open yards with fewer devices.
• Targets and zones:Ability to track up to 32 targets concurrently and to define 16 detection zones and 4 trigger lines allows granular coverage design and flexible alarm logic tailored to complex sites.

• Distance resolution & accuracy:~1.3 m resolution with ±1.2 m accuracy provides sufficiently precise ranging for general perimeter detection and PTZ cueing. It enables quick approximate localization for video systems to verify incidents.
• Angle resolution & accuracy:12 resolution and ±1 accuracy give enough angular information to direct PTZ cameras to the right sector rather than pixel-perfect pointing.
• Speed tracking:Covers speed from −19 to 19 m/s with ±0.1 m/s accuracy, allowing the radar to distinguish moving people from static objects and classify slower pedestrian movement versus faster vehicle motion.
• Scan rate and bandwidth:Up to 12 scans per second and a 115 MHz sweep bandwidth help the system detect and refresh target tracks promptly for responsive alarm workflows.

• Network:Gigabit Ethernet (10/100/1000) with support for TCP/IP, HTTP/S, RTSP and other standard protocols facilitates integration with VMS and NVR platforms. SDK / ISAPI APIs enable custom integrations and PTZ cueing workflows.
• I/O:Alarm input and relay outputs plus RS-485/RS-232 provide options for connecting external alarms, control panels and legacy interfaces.
• Power:Flexible power options with DC 36 V (±25%) or AC 24 V (±25%) and a maximum draw around 24 W make field power planning straightforward for most sites.

• Rugged enclosure:IP67, IK10 and NEMA 4X ratings ensure the unit resists dust, water ingress and mechanical impact — essential for exposed perimeter locations.
• Temperature range:Operates from −40C to +65C, supporting extreme climates from cold storage yards to hot open-air facilities.
• Form factor:Compact dimensions (228 × 206 × 61 mm) and light weight (~1.8 kg) simplify mounting on poles, walls or camera towers without heavy structural work.

Benefits: how the radar improves perimeter security

• Reduced nuisance alarms:Radar sensing is less affected by lighting, shadows and many environmental factors that commonly trigger video analytics, reducing false positives and operator fatigue.
• Faster verification:Automatic PTZ cueing and precise detection coordinates allow security operators to visually confirm incidents faster, cutting response times.
• Fewer devices for broad coverage:Wide horizontal aperture and multi-target capability can lower overall sensor counts compared with point sensors, simplifying infrastructure and maintenance.
• All-weather reliability:FMCW radar performs well in rain, fog, darkness and through partial obstructions, supporting 24/7 monitoring where video alone might fail.

Primary use cases and deployment scenarios

Manufacturing plants, utilities and distribution centres require continuous monitoring of fence lines, gates and service yards. The DS-TDSB0G-FK/60m can be mounted along perimeters to create configurable alarm zones, detecting foot traffic and vehicles before they reach critical infrastructure and cueing cameras for verification.

Security operations teams that use PTZ fleets benefit from automated pointing based on radar coordinates. This reduces the need for manual scanning, allowing operators to focus on validated incidents and maintain situational awareness across larger sites.

Airports, cargo yards and terminals often have a mix of pedestrian and vehicle movements across wide areas. The distinct human/vehicle detection ranges and multi-target tracking help distinguish expected traffic from anomalous movement and trigger the right response workflows.

Where environmental conditions make video unreliable—coastal sites with salt spray, cold storage perimeters, or remote substations—the rugged housing and robust sensing make this radar well-suited for long-term outdoor deployment.

Comparisons with similar technologies

• Radar: Superior in poor lighting and adverse weather; provides reliable motion detection with lower false alarm rates for perimeter movement. Provides coordinate data for PTZ cueing.
• Video analytics: Better for visual classification and identification (appearance, clothing, license plates) but sensitive to lighting and environmental variability.
• Best practice: Use radar to detect and cue video for verification — a combined approach leverages strengths of both.

• Fence/beam sensors: Good for point detection at fence lines, but they require physical installation on fences and are vulnerable to tampering or damage.
• Radar: Offers zone-based coverage without attaching to the fence and can detect off-fence approaches, vehicles and multiple simultaneous targets.

• LiDAR: High spatial resolution and excellent object profiling but higher cost and sensitivity to atmospheric conditions.
• Microwave and FMCW radar: FMCW radars such as this model provide a balance of cost, environmental robustness and integration simplicity for many perimeter applications.

Customer feedback and reviews

There are limited publicly available independent customer reviews specific to the DS-TDSB0G-FK/60m. Vendor documentation and field deployment notes commonly highlight these consistent themes:

• Installers value the compact form factor and rugged rating for straightforward pole and wall mounts.
• Security integrators appreciate the SDK/ISAPI interfaces and PTZ cueing support for VMS integration, reducing custom engineering time.
• Operational teams report improved alarm quality and reduced false positives when the radar is combined with video verification workflows.

If prospective buyers require independent references, request deployment case studies or customer contacts from the vendor, and consider pilots to validate detection performance in your specific environment.

Pricing, compliance and installation considerations

• Pricing:Suggested retail pricing is typically set around USD 1,099.00 (check current quotes and reseller pricing for exact figures). Total installed cost should include mounts, power/networking infrastructure, configuration and integration.
• Compliance:Confirm local regulatory approvals and certifications (e.g., CE/UKCA) with the vendor or datasheet before purchase, particularly for RF-emitting devices.
• Installation:Professional installation is recommended for optimal mounting height, orientation, grounding and network configuration. Proper commissioning — including zone setup, false-alarm filtering and PTZ mapping — is critical to realize operational benefits.

Conclusion: Why the DS-TDSB0G-FK/60m is a strong perimeter choice

The DS-TDSB0G-FK/60m Security Radar offers a practical and robust package for organizations seeking reliable perimeter detection that complements existing video systems. With human and vehicle detection ranges tailored to fences and open yards, multi-target tracking, PTZ cueing and rugged outdoor ratings, it addresses common pain points of video-only monitoring: false alarms, environmental sensitivity and slow verification. For sites that require scalable coverage with fewer sensor nodes and dependable all-weather performance, deploying this radar alongside cameras and a VMS can materially improve detection accuracy and response efficiency.

Before purchase, validate certification requirements for your region, plan for professional installation and run an on-site pilot where possible. When integrated correctly, this radar is a compelling tool for modern perimeter security programs that demand reliable, 24/7 detection and faster incident verification.
