Introduction to the Optex SIP-3020 and its key features

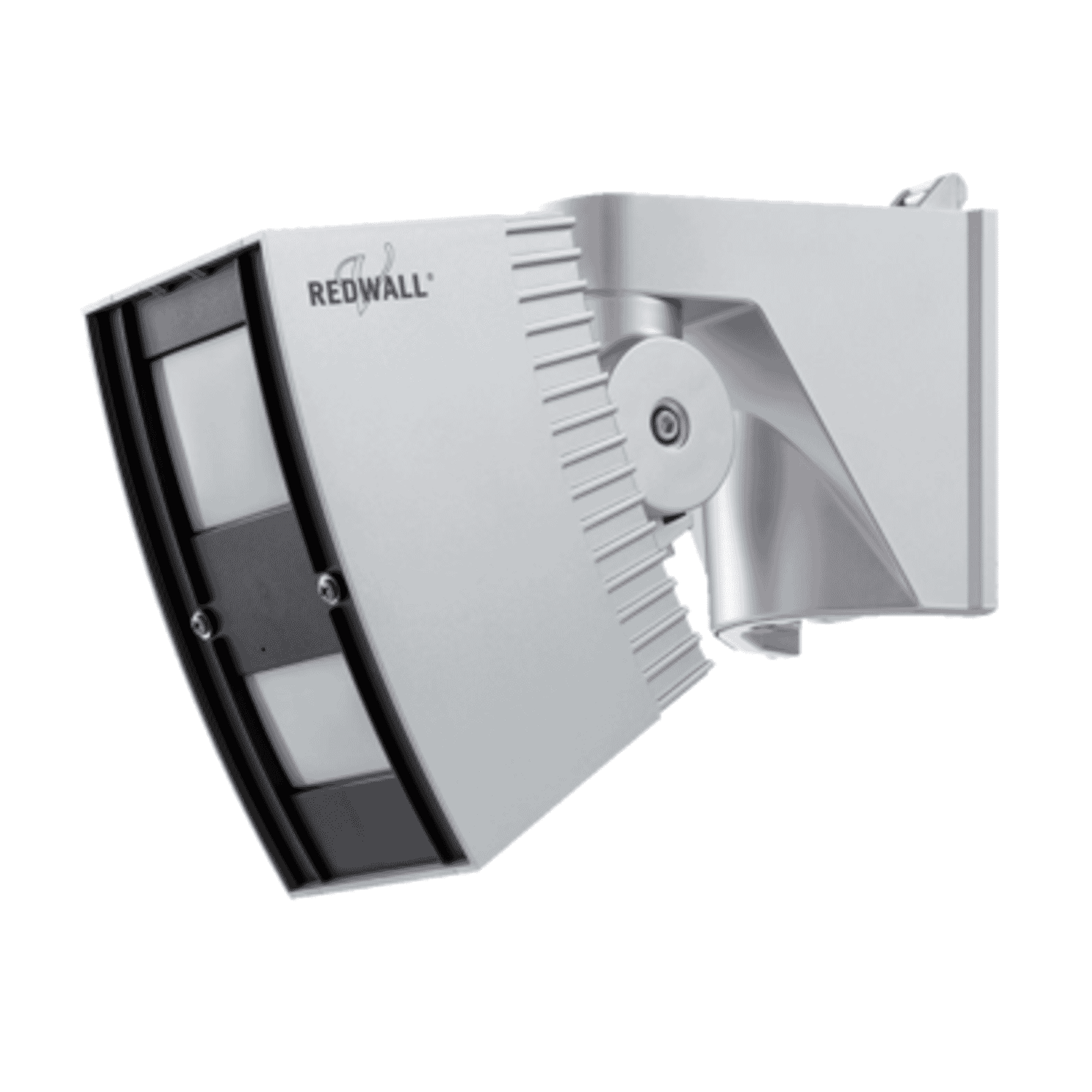

Optex SIP-3020is a mid-range outdoor passive-infrared (PIR) motion detector from Optex's REDWALL SIP series, engineered for robust perimeter and approach protection. Designed to trigger CCTV recording, activate PTZ camera presets or feed alarm panels, the SIP-3020 provides dependable dual-zone detection with independent near and far outputs. Key attributes include multi-element pyro optics, intelligent automatic sensitivity adjustment, selectable detection logic (AND/OR), anti-masking and anti-tamper protections, and a rugged weatherproof housing for outdoor installations.
Detailed description: specifications and practical benefits
The SIP-3020 balances practical installation flexibility with reliable detection performance. Below are the core specification areas and how each translates into real-world benefits for installers and end users.
- Detection method:Passive infrared (PIR). Benefit: proven, low-power detection suited to outdoor perimeter coverage without emitting energy.
- Coverage:30 × 20 m (range depends on mounting height and masking). Benefit: long approach detection ideal for driveway entrances, gates, and building approaches where an early alert is required.
- Creep / close-range zone:Typical on certain SIP-3020 variants (e.g., SIP-3020/5): around 3 × 5 m at 2.3 m mount, extending to ~6 × 9 m at 4.0 m for some patterns. Benefit: the creep zone helps detect subjects moving close beneath a camera or near a doorway where near-field detection is critical.
- Mounting height:2.3 to 4.0 m. Benefit: compatible with typical CCTV pole and wall installations; flexible mounting helps match camera lenses and approach angles.
- Alarm period and warm-up:Alarm period typically ~2 seconds and warm-up time ~60–120 seconds. Benefit: responsive alarms with adequate sensor stabilization after power-up.
- Power input:11–26 VDC on most models; some accept 22–26 VAC and offer an optional heater. Benefit: wide input range simplifies integration into existing security power systems; heater option maintains reliable operation in extreme cold.
- Current draw:Approx. 40 mA (12 VDC) / 75 mA (24 VAC), with higher consumption when heater is fitted. Benefit: low standby current helps reduce system power burden, especially on battery-backed installations.
- Alarm outputs:Independent near / far / creep outputs (N.O. or N.C., SKU-dependent). Benefit: zoned outputs enable intelligent responses — e.g., cue a PTZ to a near alarm but trigger recording on a far alarm.
- Detection logic:Selectable AND/OR logic and adjustable alarm intervals. Benefit: installers can tune sensitivity and logic to reduce nuisance alarms while preserving detection of genuine intrusions.
- Anti-masking and anti-rotation:Active IR anti-masking detects attempts to cover the sensor; anti-rotation tamper detects physical manipulation. Benefit: adds resilience against tampering and common defeat techniques.
- Operating temperature:−25 to +60 °C (with optional heater −40 to +60 °C). Benefit: reliable across a wide range of climates, from freezing sites to hot outdoor environments.
- Ingress protection:Typically IP65 (consult the exact datasheet for variant information). Benefit: dust-tight and protected against water jets — suitable for exposed outdoor mounting.
- Dimensions & weight:Approx. 227–248 × 102 × 266 mm; weight around 1.2–1.4 kg depending on variant. Benefit: compact enough for discreet mounting while offering the internal space for advanced optics and optional heater hardware.
Use cases and scenarios where the SIP-3020 excels
The SIP-3020 is built for outdoor perimeter detection where reliable, zoned alerts and false-alarm resistance matter. Typical scenarios include:
- Commercial perimeter protection:Warehouses, manufacturing sites and logistics yards can use the SIP-3020 to detect approach along fences and access roads, cueing cameras and recording systems only when required.
- Retail and campus entrances:Large retail sites, educational campuses and hospital grounds benefit from the long-range 30 × 20 m pattern to detect vehicles and pedestrians before they reach buildings.
- Integration with CCTV and PTZ cameras:The independent near/far outputs enable tiered camera responses — for example, a distant alarm starts continuous recording while a near alarm triggers PTZ tracking to identify a subject.
- High-security installations:Combined with anti-masking and tamper detection, the SIP-3020 is suitable for sites where sensor defeat is a concern, such as distribution centers, substations or data centers.
- Cold-climate sites:With the optional heater, installations in sub-zero environments maintain detection sensitivity and reduce false alarms caused by condensation or frost.
Comparisons with similar products and technologies
When selecting outdoor detection, installers often weigh single-zone PIRs, dual-technology detectors (e.g., PIR + microwave), active IR beams and dual-zone PIRs like the SIP-3020. Key comparison points:
- Single-zone PIRs:Typically simpler and less costly, single-zone PIRs can provide a basic trip when motion is detected. The SIP-3020’s dual-zone outputs and selective logic offer more control, allowing differentiated camera or alarm responses and better nuisance alarm filtering.
- Dual-technology detectors:Combining PIR and microwave can reduce false alarms in some environments but may be more susceptible to environmental microwave reflections and interference. The SIP-3020 relies on an advanced PIR algorithm and multi-element pyros plus shielding, giving strong performance with fewer RF-related complications.
- Active IR beam systems:Beams are excellent for fence-line protection and provide instant break detection, but they require clear line-of-sight and are sensitive to environmental obstruction. A SIP-3020 unit offers broader coverage without line-of-sight constraints and is useful where a single beam would be impractical.
- Other dual-zone PIRs on the market:Competing models may offer similar ranges or multi-zone outputs, but the SIP-3020’s combination of independent near/far outputs, optional creep zone, anti-masking and selectable logic makes it particularly flexible for CCTV-integrated systems.
Customer feedback and installer observations
Public, verifiable customer reviews for specific security hardware can vary widely depending on site conditions and installation quality. Common installer and integrator observations about the SIP-3020 family typically include the following themes:
- Positive:Installers praise the dual-zone outputs and the ability to tie different responses to near/far alarms. Many cite the unit’s weatherproof build and the optional heater as useful for outdoor, year-round installations.
- Practical considerations:Proper mounting height, masking and alignment are frequently noted as essential to achieve the best balance between detection coverage and false-alarm suppression. When installed according to Optex guidance, false alarms are noticeably reduced.
- Integration:Integrators appreciate the flexible logic (AND/OR) and independent outputs that make the sensor easy to integrate with PTZs and VMS platforms.
- Areas to watch:As with any outdoor PIR, challenging environments (dense foliage, heavy precipitation, or locations with intense, rapid temperature changes) require careful configuration and sometimes supplemental detection methods.
Conclusion: why the SIP-3020 is a strong choice
The Optex SIP-3020 Dual-Zone Outdoor PIR Detector is a practical, flexible solution for perimeter and approach detection where reliable CCTV integration and false-alarm resistance are priorities. Its long-range 30 × 20 m coverage, independent near/far outputs and optional creep zone give integrators the tools to create tiered responses—triggering recording, PTZ presets or alarms as appropriate. Additions like active anti-masking, anti-rotation tamper detection, automatic sensitivity adjustment and an optional heater for cold climates make the SIP-3020 suitable for a wide range of commercial and industrial sites.
For system designers and installers seeking an outdoor PIR that balances detection performance, environmental resilience and integration flexibility, the SIP-3020 is a compelling mid-range choice. Always consult the official Optex datasheet and installation manual for exact wiring, mounting clearances, and variant-specific specifications to ensure optimal operation for your site.
