Introduction: What the Haydon HAY-UY2 Is and Why It Matters

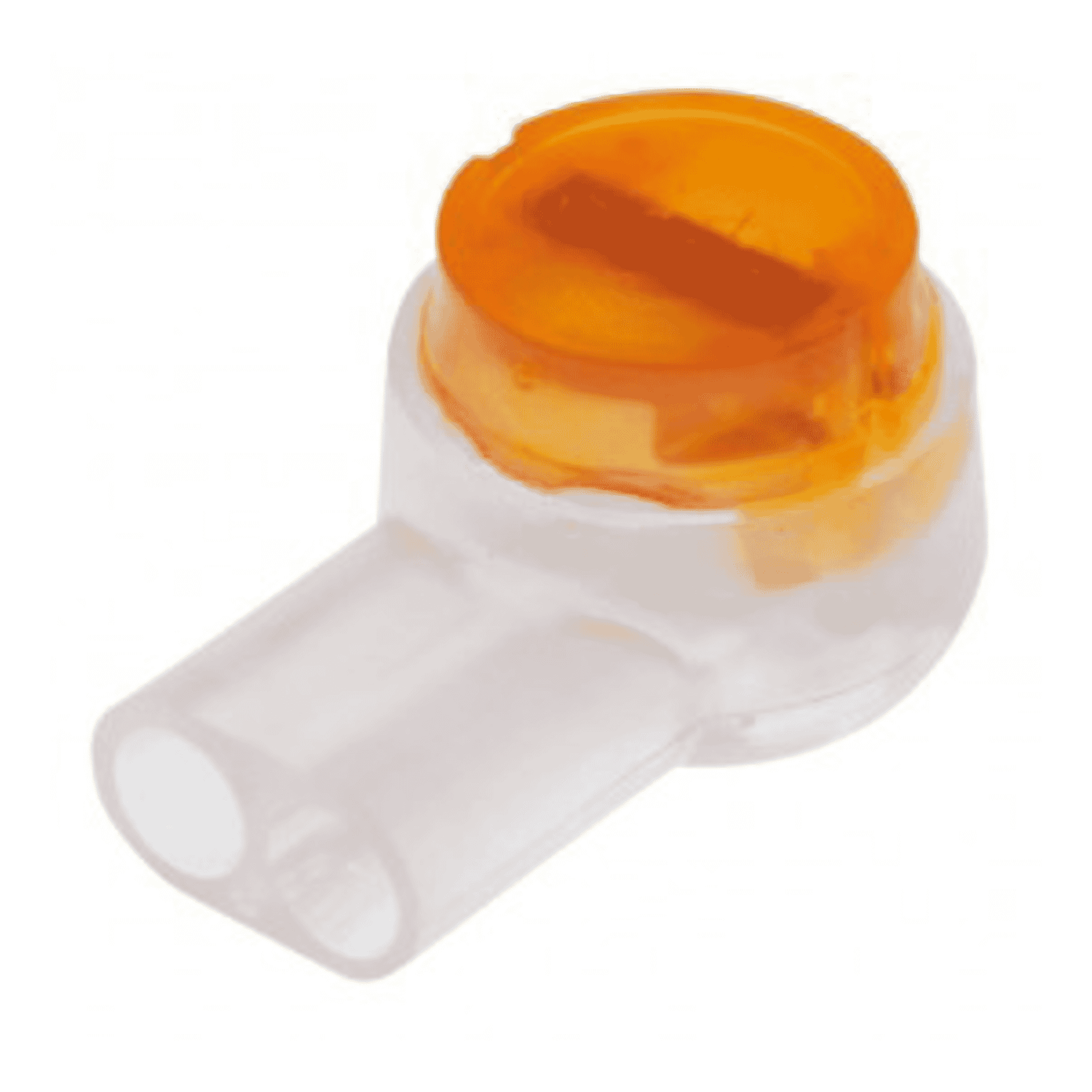

Haydon HAY-UY2 Gel-Filled 2-Wire Splice Connectoris a pack of 100 gel-filled insulation-displacement connectors (IDCs) designed for quick, reliable butt splices of two solid copper conductors in the 19–26 AWG range (0.4–0.9 mm). These compact connectors are pre-filled with a factory-applied gel sealant to provide moisture and solvent resistance and to inhibit corrosion where moisture intrusion is a risk. They are widely used for telecommunications, low-voltage communications, premise wiring repairs, and general field splices where speed and moisture protection are important.
Key Features at a Glance
- Gel-filled insulation-displacement design— forms a secure electrical connection without stripping the conductor.
- Accepts 19–26 AWG solid copper conductors— ideal for common telephone, alarm, and low-voltage signal wires.
- Factory-applied gel sealant— resists moisture and solvents to help reduce corrosion in service.
- Compact butt-splice form factor— reduces bundle diameter and simplifies routing in tight spaces.
- Pack quantity— 100 pieces per pack, making it cost-effective for contractors and stocked by DIYers.
Detailed Specifications and What They Mean
The HAY-UY2's technical specifications give a clear picture of where it fits and how it performs. Important technical points include:
- Conductor range:19–26 AWG (0.4–0.9 mm) — a common range for telephone, intercom, alarm, and general low-voltage wiring.
- Maximum insulation O.D.:Approximately 2.08 mm (0.082 in) — helps you confirm fit with cable insulation thicknesses.
- Number of conductors:2 (butt splice) — connects two conductors end-to-end in a compact form.
- Conductor type:Solid copper conductors — optimized for single-strand copper typical of premise wiring.
- Body material:Gel-filled polypropylene / polycarbonate — durable housing plus internally applied gel.
- Sealant:Factory-applied gel, moisture/solvent resistant — reduces corrosion risk where small amounts of moisture or contaminants are present.
- Connector type:Insulation-displacement connector (IDC) — no stripping required; contact formed by crimp/squeeze.
- Installation:Insert conductor and crimp/squeeze; no stripping required — speeds field installation.
- Pack quantity:100 pieces — economical for repeated jobs.
- Typical colour:Yellow — follows industry colour coding for easier gauge recognition.
- Standards / compliance:RoHS referenced on vendor pages; confirm certificates with supplier if required.
- IP rating:No explicit IP rating found — described as gel-filled / moisture resistant; confirm with manufacturer for IP requirements.
Because the HAY-UY2 is an IDC designed for specific gauge ranges, it eliminates the time and variability associated with stripping and twisting wires or soldering in the field. The gel sealant is especially valuable where moisture could otherwise accelerate corrosion at the splice, making these connectors a better choice than plain mechanical connectors in damp or semi-exposed environments. The compact butt-splice form factor reduces cable bundle diameter, helpful when routing through conduits or tight spaces. Finally, a 100-pack reduces per-connector cost and keeps installers stocked for multiple jobs.
Use Cases and Scenarios Where the HAY-UY2 Excels
The HAY-UY2 is well suited to a variety of low-voltage splicing needs. Typical scenarios include:
- Telephone and telecom drops:Quick, reliable splices for legacy telephone lines and small-data signal runs.
- Alarm and security systems:Fast field repairs and permanent splices for alarm sensors, sirens, and control panel wiring.
- Premise wiring repairs:Repairing or extending intercom, doorbell, and other low-voltage circuits in homes and small businesses.
- Outdoor but sheltered splices:Garden lighting, low-voltage landscape lighting, or camera runs where some moisture exposure is possible but not direct immersion.
- Temporary or emergency fixes:Rapid restoration of communications or control circuits where speed matters and soldering is impractical.
- Contractor stock items:Bulk pack size and predictable performance make these connectors a practical standard item in service vans.
Although gel-filled connectors provide moisture resistance, they do not necessarily carry an explicit IP (ingress protection) rating in published datasheets. For permanently exposed outdoor installations or submerged applications, additional mechanical protection or an IP-rated splice enclosure is recommended. Also ensure you use the recommended crimp/squeeze tool for a reliable contact and to meet local electrical and safety regulations.
How the HAY-UY2 Compares with Similar Products
There are several categories of wire-joining solutions, each with trade-offs. Comparing the HAY-UY2 helps clarify when a gel-filled IDC is the right choice:
- Versus twist-on wire nuts:Wire nuts require stripped wires and twisting; they are inexpensive but less suitable for tiny gauge solid wires and provide limited moisture protection. HAY-UY2 IDs faster installation for the specified gauges and adds gel moisture resistance.
- Versus heat-shrink butt connectors (adhesive-lined):Heat-shrink crimp connectors provide strong mechanical protection and often an adhesive liner for environmental sealing. They require crimping and heat-shrinking — good for higher mechanical stress and outdoor exposure. HAY-UY2 installs faster and without heat but may need additional mechanical protection in severe environments.
- Versus soldered splices:Soldering is durable electrically but slow and requires tools and skill. HAY-UY2 is faster, cleaner, and avoids the need for solder and heat, but soldered joints may offer superior long-term conductivity in some scenarios.
- Versus other gel-filled IDCs (competitor brands):Functionally similar gel-filled IDC butt splices (such as comparable UY-style connectors) share many advantages. Area differences include body material, gel formulation, pack sizes, and vendor support. Always confirm gauge compatibility and any certifications with your supplier.
Customer Feedback and Typical User Impressions
Official, named customer testimonials for the HAY-UY2 were not provided here. However, based on common feedback patterns for gel-filled UY-style connectors, installers and DIY users typically report the following kinds of impressions:
- Positive feedback:"Fast to install — no stripping saves time in the field." "Gel sealant provides peace of mind for damp locations like basements or outdoor junction points." "Bulk pack gives great value for contractors."
- Constructive feedback:"Make sure to crimp properly — a poor squeeze can lead to an unreliable contact." "Not a substitute for a fully sealed, IP-rated enclosure for direct weather exposure."
- Practical notes from users:Some users advise testing a sample splice before committing to a technique on a critical run, and recommend additional mechanical protection when the splice is subject to movement or direct outdoor exposure.
These sample comments reflect typical experiences with gel-filled IDC butt splices; actual user reviews may vary by application and installer technique.
Installation Tips and Safety Notes
- Confirm conductor gauge and insulation O.D. before installation to ensure proper fit.
- Use the appropriate crimping or squeezing tool recommended by the connector supplier to ensure a sound electrical contact.
- For permanently exposed outdoor locations, consider an additional sealed junction box or heat-shrink enclosure to achieve a known IP rating.
- Follow local wiring regulations and safe isolation practices (de-energize circuits before working on them).
Conclusion: Why Choose the Haydon HAY-UY2?
The Haydon HAY-UY2 gel-filled 2-wire splice connector is a practical, cost-effective solution when you need quick, reliable splices for 19–26 AWG solid copper conductors. Its insulation-displacement design eliminates the need to strip wire, saving time and simplifying field work. The factory-applied gel provides an extra layer of protection against moisture and solvents, which helps inhibit corrosion and extend splice life in many non-submerged environments.
Available in a 100-piece pack and following industry colour coding for easy gauge identification, the HAY-UY2 is a sensible addition to a contractors kit or a DIYer's toolbox for telecommunications, alarm systems, and other low-voltage wiring tasks. While it is not a substitute for IP-rated enclosures in permanently exposed or submerged applications, it offers a compelling blend of speed, protection, and economy for the many splicing tasks encountered in everyday installations.
Suggested retail context:sold in bulk packs for practical deployment on multiple jobs, the HAY-UY2 represents good value for installers who routinely work with the specified gauge range. If you need a fast, moisture-resistant butt splice for 19–26 AWG solid conductors, the Haydon HAY-UY2 is a strong choice — just confirm specific IP or certification requirements with your supplier for critical environments.
- Product: Haydon HAY-UY2 gel-filled 2-wire IDC splice (100-pack)
- Gauge: 19–26 AWG (0.4–0.9 mm)
- Type: Gel-filled insulation-displacement butt splice
- Primary benefits: No stripping, moisture-resistant gel, compact form, economical pack size
