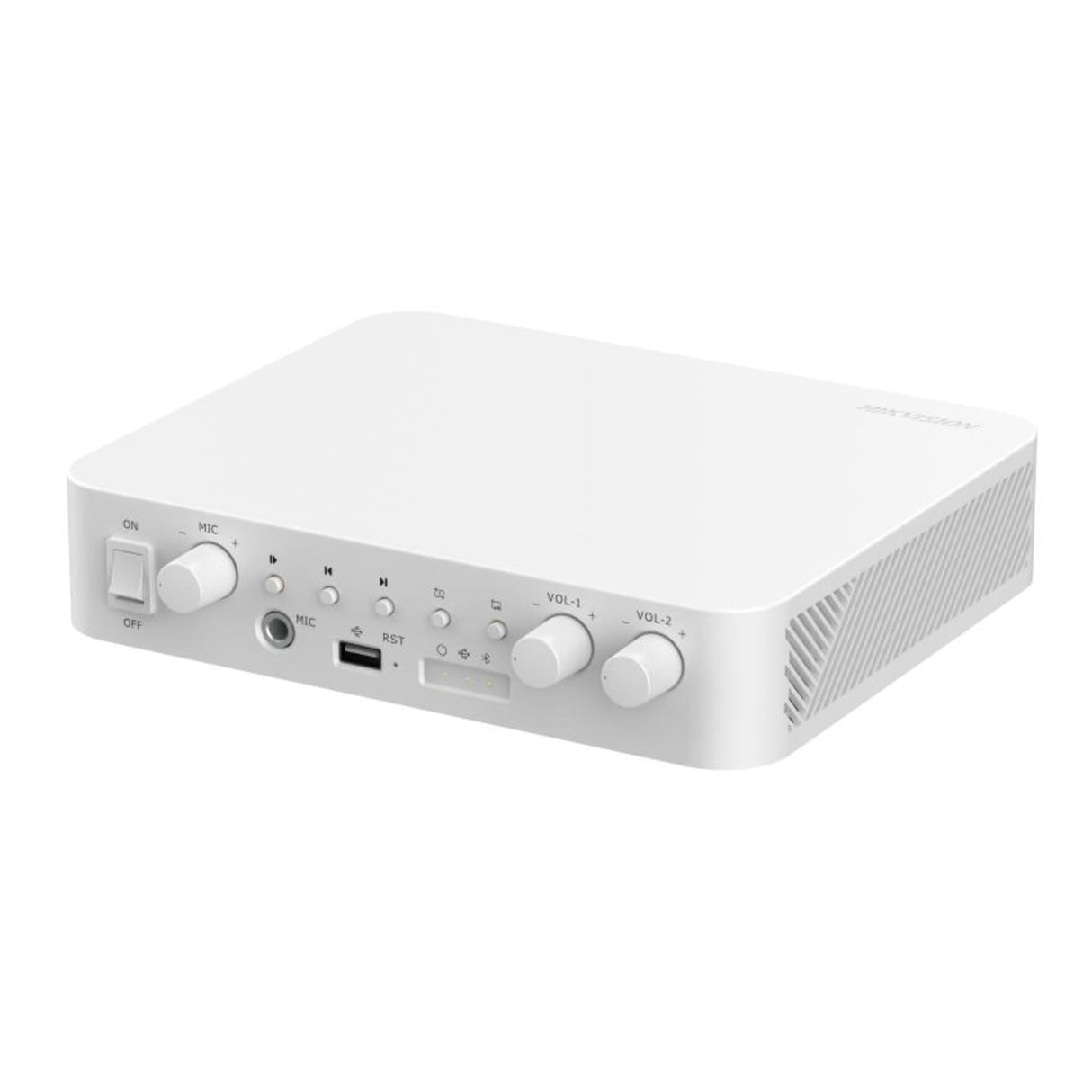

Introduction: Meet the Hikvision DS-QAE1A80G1-VB
The Hikvision DS-QAE1A80G1-VB is an 80 W, 2-zone IP public-address (PA) amplifier designed for small-to-medium paging, voice-alarm and background-music applications. Combining networked control, local playback and flexible input/output options, it bridges the gap between traditional analog amplifiers and modern IP-enabled audio systems. Compact, wall- or desk-mountable and powered from 24 VDC, this unit is targeted at retail stores, offices, reception areas, classrooms and similar spaces where reliable, remotely managed paging and scheduled announcements matter.
Key features at a glance
- Two-zone, 80 W total power— independent control of two speaker zones for targeted paging and music.
- Networked control— RJ45 network port with support for ISAPI/ISUP/RTP and common IP protocols; integrates with HikCentral and EZVIZ.
- Multiple local inputs— USB (MP3/WAV), Bluetooth 5.0, 6.35 mm microphone jack and RCA line inputs for flexible local audio sources.
- Two 100 V constant-voltage speaker outputs— common for professional distributed speaker systems; RCA outputs support cascading or external amplification.
- Built-in storage and TTS— 4 GB eMMC (≈1 GB available) for local playback and scheduling; supports text-to-speech (TTS) for automated announcements.
- Robust protections— short-circuit, overcurrent, over-temperature, surge and ESD safeguards for reliable operation.
Detailed specifications and the benefits they deliver
Rated at 80 W total across two independent zones, the DS-QAE1A80G1-VB is sized to cover small-to-medium installations where each zone may feed a handful of ceiling or wall speakers on a 100 V constant-voltage line. The use of 100 V outputs simplifies wiring over long runs and multiple speakers; RCA outputs allow cascading up to three amplifiers for expanded coverage or to feed external amplifiers in hybrid systems. Benefit: flexible deployment without demanding heavy-gauge cabling.
Alongside a professional-grade mic input (6.35 mm jack), the unit accepts line-level audio via RCA, plays files from USB (MP3/WAV) and supports Bluetooth 5.0 for ad-hoc wireless sources. The integrated 4 GB eMMC (≈1 GB for audio) enables scheduled playback and local storage of music or announcement files. Benefit: multiple failover options for live paging or automatic playback, useful when the network or external source is down.
Networked via a 10/100 Mbps RJ45 port, the amplifier supports IPv4 and common network protocols (HTTP/HTTPS, SSL/TLS, NTP, TCP/UDP, DHCP, IGMP, ARP, SSH) and streaming APIs (ISAPI, ISUP, RTP). This enables centralized control from platforms like HikCentral and EZVIZ, remote scheduling, and live paging over the network. Benefit: centralized management, remote diagnostics, and easier large-site scaling without adding analog trunking.
With a frequency response of 80 Hz–20 kHz (±3 dB), THD ≤1% and SNR ≥100 dB, the amplifier delivers clear voice intelligibility and good fidelity for background music. Built-in protections — short-circuit, overcurrent, over-temperature, surge and ESD — protect both the amplifier and connected speakers, reducing downtime and maintenance costs. Benefit: dependable performance for mission-critical paging and daily music use.
The unit is compact (190.8 × 230.8 × 51.2 mm), weighing about 1.5 kg, and supports wall or desk mounting. Local controls include independent mic and per-zone volume knobs, and the unit is powered from 24 VDC. An alarm input and output allow simple linkage to local alarm systems for emergency announcements. Benefit: flexible, professional installation in constrained spaces with straightforward local control when needed.
Use cases and scenarios where this amplifier excels
Retail environments need background music, time-based promotions and occasional live paging. The DS-QAE1A80G1-VB supports scheduled music playlists from internal storage or USB, live over-the-network or mic paging for staff announcements, and Bluetooth for ad-hoc audio from a manager’s phone. Two independent zones let a store set different music or announcement levels for sales floor and fitting rooms or a staff area.
In offices and reception areas, clear voice announcements and background music contribute to a polished experience. Network control allows a facilities manager to schedule daily chimes, company-wide alerts, or meeting-start notifications. The alarm input can be used to trigger automated evacuation messages when integrated with building safety systems.
Small campuses and training centers benefit from zoned paging and scheduled messages (class start/end tones, break announcements). The TTS capability enables automated, dynamically generated announcements (e.g., room changes) without needing prerecorded audio files. Cascading amplifiers makes it straightforward to expand coverage across several rooms.
Where quality background music, ad-hoc announcements and limited PA are required, the combination of USB playback, Bluetooth and microphone inputs provides flexibility. Zones can separate dining and kitchen/ordering areas so announcements or service calls don’t overwhelm guests.
How it compares with other options on the market
IP-capable PA amplifiers sit between consumer Bluetooth speakers and full-scale digital matrix/PA systems. Compared to traditional analog amplifiers, the DS-QAE1A80G1-VB offers clear advantages:
- Network manageability:Unlike analog amps, this unit supports remote configuration, scheduling and live paging over IP.
- Local flexibility:Built-in storage, Bluetooth and USB mean audio can be played even if the network is unavailable.
Against larger digital matrix systems and high-end IP PA solutions, the DS-QAE1A80G1-VB targets simplicity and cost-efficiency:
- Pros:Lower cost, simpler setup, compact footprint and adequate features for small-to-medium installations; supports cascading for moderate expansion.
- Cons:Limited to 80 W and two zones; larger sites or installations needing many zones, advanced DSP per channel, or higher total power will prefer full matrix amplifiers or scalable cloud-based PA platforms.
When compared with consumer-grade network speakers or Bluetooth PA devices, the Hikvision unit provides professional constant-voltage outputs, alarm I/O and industry protocols — features required for commercial deployments and safety integrations that consumer devices rarely offer.
Customer feedback and real-world impressions
While individual experiences vary with deployment scale and installation quality, installers and facility managers who have adopted IP PA amplifiers like the DS-QAE1A80G1-VB commonly note several consistent points:
- Positive:Easy network integration with existing Hikvision ecosystems, reliable voice clarity for paging, and useful local playback options (USB/Bluetooth) that reduce dependency on a central server.
- Constructive:Internal storage is limited (≈1 GB available for audio), so larger music libraries should be hosted externally or on USB. Also, for facilities needing many independent zones or higher power per zone, a more powerful matrix solution is recommended.
Example summarized impressions: "Great value for small store installations — clear paging and handy scheduling. Bluetooth pairing is quick, and the RJ45 control simplifies remote management." Another common sentiment: "Perfect for reception areas and classrooms; limited storage but easy to plug in a USB stick and go." These capture typical user perspectives without naming specific reviewers.
Price and value proposition
With a suggested retail price around US$184 (cost price approximately US$154.36), the DS-QAE1A80G1-VB positions itself as an affordable professional IP PA amplifier. For integrators and businesses seeking a balance of network features, local playback options and proven protection mechanisms, the unit offers strong value compared with either full-scale matrix systems (which are more expensive and complex) or consumer devices (which lack professional outputs and alarm integration).
Conclusion: Who should choose the DS-QAE1A80G1-VB?
The Hikvision DS-QAE1A80G1-VB 80 W 2-zone IP PA amplifier is a practical, feature-rich choice for small-to-medium commercial installations that need reliable paging, scheduled announcements, background music and simple emergency linkage. Its networked control, TTS and local playback options make it flexible for modern operations, while 100 V outputs and professional protections ensure it fits commercial deployments.
If you need a compact amplifier that integrates with IP-based management systems, offers multiple local input options, and supports straightforward expansion via cascading, this model delivers a balanced combination of performance and affordability. For larger or multi-zone sites with complex DSP and scaling needs, consider stepping up to a digital matrix system — but for many stores, offices, classrooms and cafés, the DS-QAE1A80G1-VB will be a dependable and cost-effective solution.
