Introduction to the Pyronix MCEXTERNAL-WE and its key features

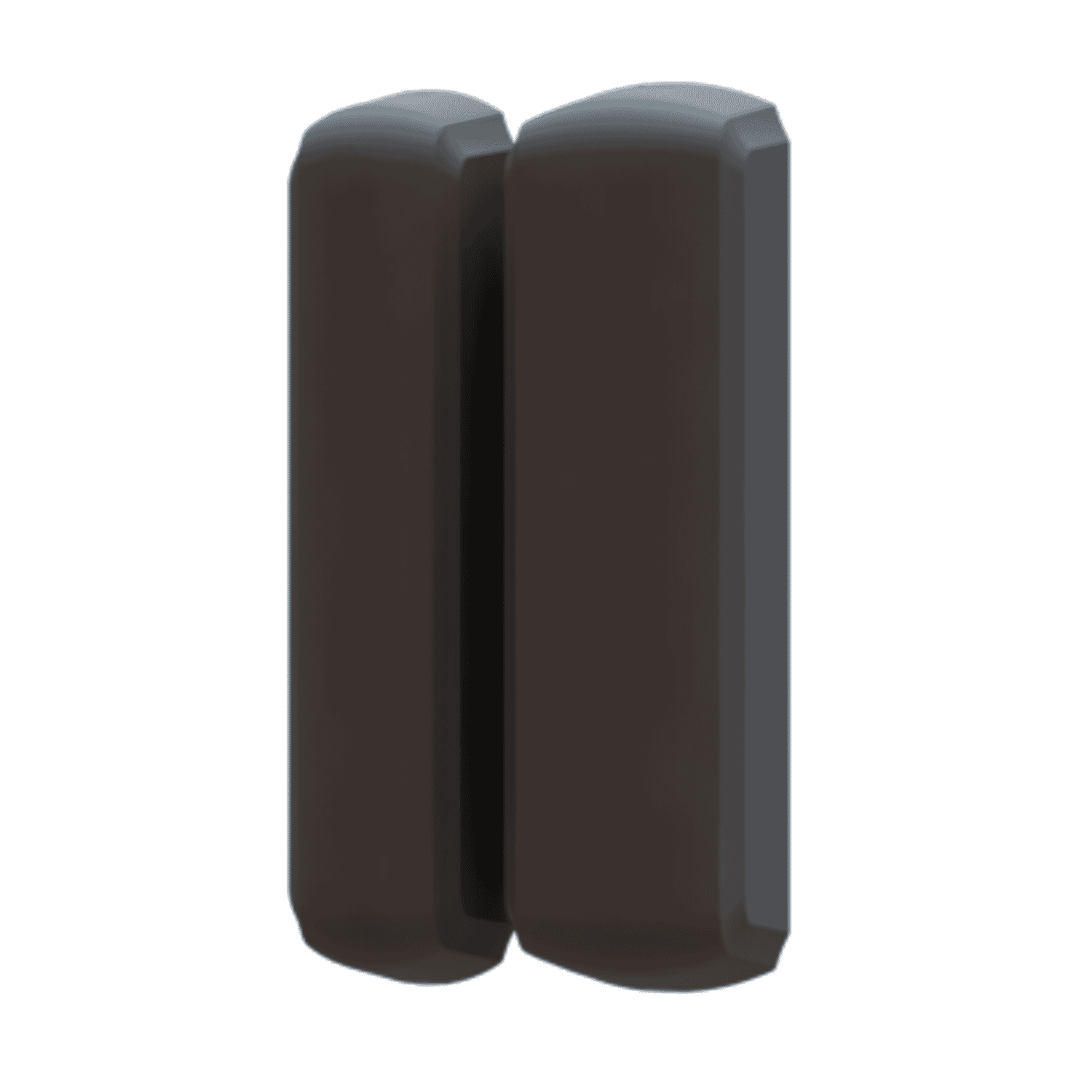

The Pyronix MCEXTERNAL-WE is an external wireless magnetic contact designed specifically for outdoor perimeter and outbuilding security. Engineered for sites where exposure to weather and tampering are real concerns, this device combines a rugged IP66 polycarbonate housing with Pyronix Enforcer two-way wireless communications, encrypted rolling code security and a large magnet that supports gaps up to 70 mm. Whether protecting gates, garage doors, sheds, roller shutters or similar assets, the MCEXTERNAL-WE is positioned as a reliable option for installers and end users looking for a robust wireless contact with reach and resilience.
Key features at a glance:
- Weatherproof IP66 housingfor outdoor use in harsh conditions.
- Enforcer two-way wireless (868 MHz)with encrypted rolling code and Signal Strength Indicator (SSI) for optimal placement and communication confirmation.
- Large magnetsupporting operation across gaps up to 70 mm and clear LED indicators for status and SSI (red, blue, green).
- Tamper protectionon front and rear plus secure fixing points to reduce risk of defeat.
- Battery supplied(1 × CR123A 3V) with typical service life up to approximately two years depending on usage and conditions.
- Integrationwith Pyronix Enforcer alarm panels and compatible cameras to deliver notifications and potential video verification.
Detailed product specifications and benefits
The MCEXTERNAL-WE is built around a concise set of specifications that translate into practical benefits when deployed in the field. Below is a breakdown of the main specifications and why they matter.
- Model:MCEXTERNAL-WE. External wireless magnetic contact designed for outdoor use.
- Housing:Polycarbonate (anthracite) rated to IP66. Benefit: durable against rain, dust and typical external environmental stresses while maintaining a discreet appearance.
- Device dimensions:40 × 146 × 40 mm;magnet:30 × 146 × 40 mm. Compact form factor eases mounting on narrow frames and constrained locations.
- Weight:155 g (device) and 95 g (magnet), light enough to fit without adding structural load to doors or gates.
- Frequency:868 MHz, using Pyronix Enforcer two-way wireless protocol with encrypted rolling code. Benefit: secure communications resistant to replay attacks, and two-way signalling improves reliability and status reporting.
- Range:Up to 300 m (open field). Benefit: supports installations where panels are distant from protected openings; real-world range will vary with obstacles and site conditions.
- Battery:Supplied with 1 × CR123A (3 V); low voltage threshold 2.2 V ±5%. Typical battery life up to ~2 years depending on the frequency of activations and environmental factors.
- LEDs and SSI:Multicolour LEDs provide visual confirmation of link quality (Signal Strength Indicator) and device status. Benefit: simplifies commissioning and ensures reliable placement during installation.
- IP rating:IP66, designed to repel heavy spray and dust ingress.
- Operating temperature:−25°C to 60°C;Storage temperature:−30°C to 60°C. Benefit: suitable for most temperate and many cold environments without performance degradation.
- Compliance:CE marked and meets EN50131 Grade 2 when used internally. Benefit: fits a wide range of residential and light commercial applications and aligns with common regulatory requirements when installed as specified.
Benefits in practical use
Combined, the MCEXTERNAL-WE specifications translate into several tangible benefits for installers and end users:
- Reliable perimeter protection:IP66 housing and tamper breakouts reduce false alarms caused by weather or simple tampering attempts.
- Commissioning efficiency:SSI LEDs and two-way signalling make positioning fast and verifiable, saving time on site visits.
- Extended reach:A large open-field range supports installations where control panels are centrally located or separated by buildings and landscape features.
- Compatibility and verification:Integration with Enforcer panels and compatible cameras supports modern alarm workflows such as push notifications and video verification, improving response confidence.
- Flexible mounting:The included magnet supports up to 70 mm gap, easing alignment on uneven doors, frames and gates where smaller magnets may fail to operate reliably.
Use cases and scenarios where the MCEXTERNAL-WE excels
The MCEXTERNAL-WE is particularly well suited to outdoor and semi-exposed security points that present specific challenges for standard indoor contacts. Examples include:
Garages, sheds and garden stores are common targets for opportunistic theft. The MCEXTERNAL-WE’s weatherproof housing and tamper protections make it a solid choice for monitoring these assets without requiring elaborate mounting or sheltering.
On rural properties, gates and perimeter openings can be wide, uneven or subject to movement. The large magnet gap (up to 70 mm) and extended radio range mean the contact can still function where smaller devices struggle or where the control panel is distant.
Service doors and roller shutters often have fewer precise mounting points. The MCEXTERNAL-WE’s physical dimensions and flexible gap tolerance allow reliable installation on these moving surfaces while maintaining a sealed enclosure against dust and spray.
For remote cabins, temporary event structures or seasonal kiosks, the wireless nature and long battery life reduce the need for wiring or frequent maintenance, while two-way signalling helps ensure the device remains linked to the panel over time.
How it compares to similar products
When evaluating external magnetic contacts, buyers typically look at four main areas: weather resistance, wireless reliability, gap tolerance, and tamper protection. Against these measures, the MCEXTERNAL-WE compares favourably in several respects:
- Weatherproofing:IP66 is a strong rating for external devices and matches or exceeds many basic external contacts that only offer splash resistance.
- Wireless security and reliability:The Enforcer two-way protocol with encrypted rolling code provides a higher security posture than many one-way wireless reed switches, and the SSI feature simplifies commissioning compared to devices that rely solely on panel diagnostics.
- Gap tolerance:A 70 mm magnet gap is generous and is likely to outperform many compact or internal-only contacts that require close proximity, reducing mechanical fitting challenges.
- Range:Up to 300 m open-field range is strong for a battery-powered wireless contact. Real-world performance will depend on site conditions, but the two-way link and SSI make real placements more predictable.
Potential trade-offs to weigh include battery life and cost. Compact external devices that include additional sensors or higher battery capacity may offer longer life at a higher price point. Compared to wired external contacts, wireless units like the MCEXTERNAL-WE trade off the permanence and continuous power of cabling for ease of installation and flexibility.
Customer feedback and installer observations
No specific customer testimonials were provided with the product details supplied here. However, installers and integrators evaluating devices like the MCEXTERNAL-WE often highlight several recurring observations based on field experience:
- Ease of siting:SSI LEDs and two-way confirmation reduce the guesswork that can otherwise cause multiple site visits to reposition devices for reliable radio links.
- Fewer false alarms outdoors:Robust housing and tamper breakout points help limit environmental and accidental triggers when mounted correctly.
- Savings on installation time:Wireless deployment speeds up commissioning compared to running cable to remote gates and outbuildings.
If you require real-world testimonials for marketing or procurement decisions, ask suppliers for case studies or references from installers who have used the device on comparable sites. This helps verify performance in conditions similar to your own.
Installation notes and compliance considerations
The MCEXTERNAL-WE is intended for external mounting. Correct alignment, use of the SSI indicator to confirm radio link quality, and secure fixing are essential to meet system and regulatory requirements. Installation should be carried out by a competent installer familiar with Pyronix Enforcer systems and local standards. Although the device is CE marked and meets EN50131 Grade 2 when used internally, ensure you follow the manufacturer datasheet and local compliance rules—especially for permanently monitored or critical installations.
Conclusion: Why the MCEXTERNAL-WE is a compelling choice
For anyone seeking a purpose-built external magnetic contact, the Pyronix MCEXTERNAL-WE offers a balanced mix of durability, wireless security and installation convenience. Its IP66 housing, two-way Enforcer wireless protocol with SSI, generous magnet gap and tamper protections address many of the practical challenges presented by gates, garages, sheds, shutters and other perimeter openings. While battery life depends on usage patterns, supplied CR123A power and straightforward commissioning make it a low-maintenance option for many residential and light-commercial applications.
In short, the MCEXTERNAL-WE is a strong choice when you need a weatherproof, reliable wireless contact that integrates with the broader Pyronix Enforcer ecosystem and supports modern alarm workflows such as push notifications and camera verification. For final selection, consult an experienced installer and verify site-specific radio performance using the SSI indicators to ensure an optimised and compliant installation.
