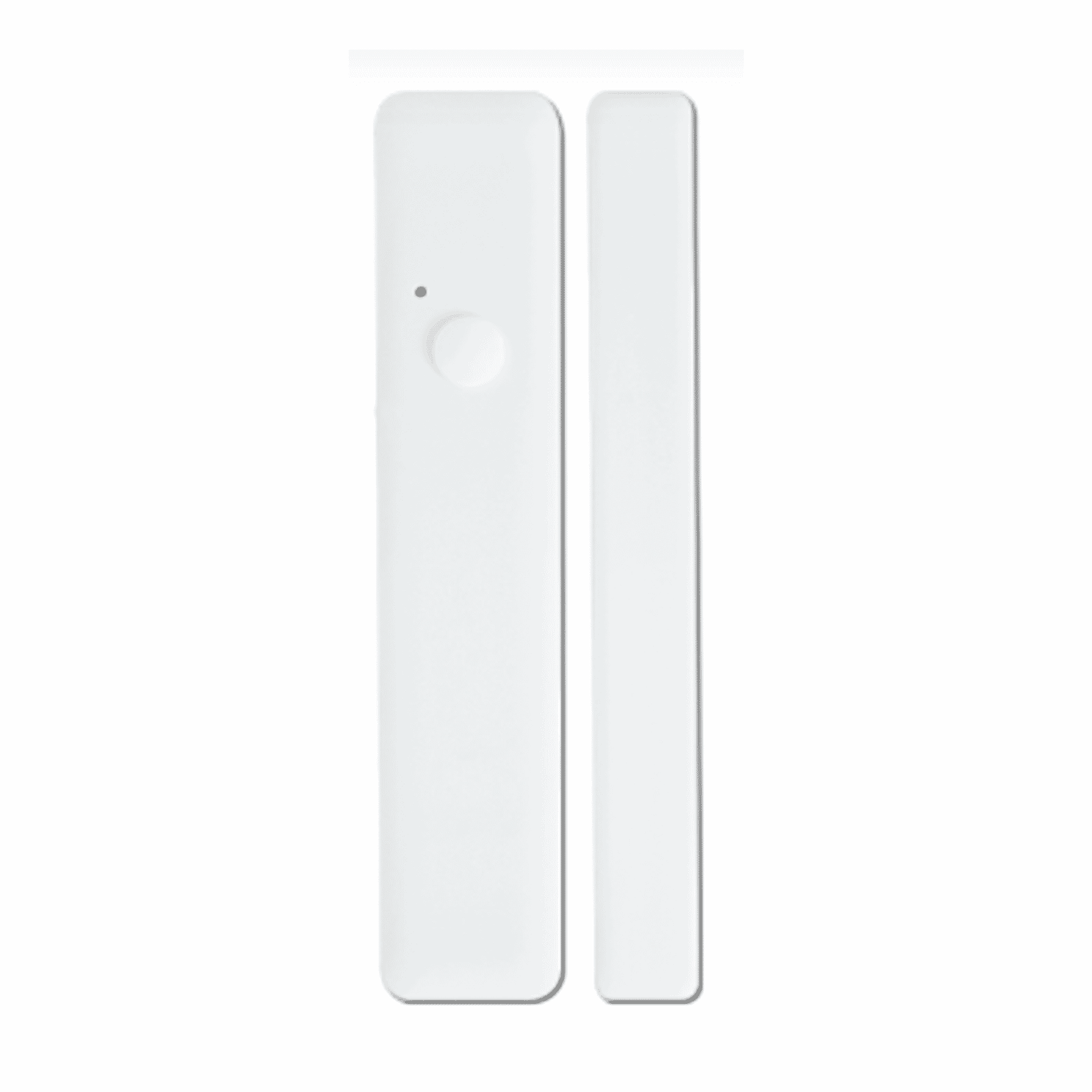

Introduction: What the Pyronix MC1Z2/SHOCK-WE Does
The Pyronix MC1Z2/SHOCK-WE is a compact, all-in-one wireless intruder alarm sensor that combines a magnetic contact and a shock (accelerometer) sensor with a universal transmitter that includes two wired zone inputs and tamper protection. Designed for internal installations on doors and windows, this Grade 2 device uses two-way 868 MHz encrypted wireless communication and offers installers a flexible option when space is limited or when additional wired sensors need to be integrated into a wireless system.
Key features at a glance:
- Combined magnetic reed contact and built-in accelerometer (shock) sensor
- Two universal wired zone inputs plus tamper input for wired peripherals
- Auto-orientation: can be installed at any angle
- Adjustable shock sensitivity (levels 1–5)
- On-device LEDs and Signal Strength Indicator (SSI) for positioning and pairing
- One-push-to-learn for fast pairing
- Two-way 868 MHz wireless with 128-bit encryption, jamming detection and up to 300 m open-space range
Suggested retail price: 74.99 (typical channel price; check supplier for current pricing). This article explores the MC1Z2/SHOCK-WE in detail, explains where it excels, compares it to alternatives, and offers guidance for potential buyers and installers.
Detailed specifications and benefits
The MC1Z2/SHOCK-WE packs multiple capabilities into a single housing. Below are the core specifications grouped by category, followed by what each means in practical terms.
- Model:MC1Z2/SHOCK-WE
- Product type:Wireless magnetic contact + shock sensor (universal transmitter)
- Security grade:EN50131 Grade 2
Benefit: Grade 2 compliance makes this device suitable for residential and light commercial installations where enhanced intruder detection is required, while keeping costs and installation complexity manageable.
- Main housing dimensions:125 x 25.5 x 28 mm
- Magnet dimensions:125 x 15 x 16 mm
- Weight (main):65 g;Weight (magnet):30 g
- Casing:2.5 mm ABS;Colour:White (also available Brown / Anthracite)
Benefit: The slim profile and lightweight construction allow installation on narrow frames and sashes where space is at a premium. Multiple colour options help the sensor blend with interior finishes.
- Battery:1 3.0 V CR123A lithium
- Battery life:Approximately 2 years (typical)
- Low battery threshold:2.5 V 5% @ 25 0C
Benefit: Common CR123A batteries are widely available and provide a good balance of runtime and compact size. Typical two-year life reduces maintenance cycles for homeowners and installers.
- Frequency:868 MHz (narrowband)
- Transmission:Two-way, 128-bit encrypted rolling code with jamming detection
- Range (open space):Up to 300 m
Benefit: Two-way encrypted communication improves security and reliability. The included jamming detection and SSI (Signal Strength Indicator) make positioning and commissioning easier and help ensure robust connectivity to compatible Pyronix control panels.
- Zone inputs:2 universal wired inputs (for external wired sensors such as water sensors, panic buttons or additional contacts)
- Tamper:Passive closed contact
- Shock sensitivity:Adjustable levels 15 (via pinhole button)
- Auto orientation:Yes; install at any angle
- Diagnostics:On-device LEDs & SSI
- Learn:One-push-to-learn
Benefit: The combination of contact and shock sensor covers both opening and impact attempts. Two wired inputs add flexibility—useful for integrating legacy wired detectors or specialist sensors without installing extra transmitters.
- Operating temperature:1010 0C to +40 0C
- Storage temperature:20 0C to +50 0C
- IP rating:Insufficient data (designed for internal use)
- Standards:EN50131-1 / EN50131-2-6 / EN50131-5-3 / EN50130-5; PD6662 listed
Benefit: Conformity to EN50131 series and PD6662 listing gives installers confidence that the sensor meets recognised UK and European alarm standards for Grade 2 indoor applications.
Use cases and scenarios where the MC1Z2/SHOCK-WE excels
The MC1Z2/SHOCK-WE is particularly valuable in situations where space, flexibility and integration are priorities. Typical scenarios include:
- Retrofit on older windows and doors:Its slim profile and auto-orientation let you fit the sensor to awkward frames and narrow sight-lines without mechanical rework.
- Consolidating devices on a sash or French door:Combine contact and shock protection in a single unit to avoid multiple devices on narrow profiles.
- Integrating wired peripherals into a wireless system:Use the two universal inputs to bring wired water sensors, panic buttons or additional contacts into the radio system without separate transmitters.
- Apartment and multi-dwelling installations:Where wiring is limited, this device simplifies protection of individual openings while maintaining centralised system management.
- Installer-friendly commissioning:One-push-to-learn, SSI and on-device LEDs speed up pairing and signal testing, reducing site time.
Limitations to note: the MC1Z2/SHOCK-WE is intended for internal use and lacks a specified IP rating for outdoor weather exposure. It is a Grade 2 device—suitable for many residential and light commercial applications but not specified for high-security sites requiring Grade 3 equipment.
Comparisons with similar products in the market
When comparing the MC1Z2/SHOCK-WE to other sensors, several strengths stand out:
- All-in-one functionality:Many systems use separate contact and shock sensors, which increases the number of devices and installation time. The Pyronix unit reduces clutter and simplifies wiring.
- Two wired inputs:Fewer competitor transmitters in this class provide integrated inputs for wired devices, giving the MC1Z2/SHOCK-WE an edge in hybrid installations that mix wired and wireless sensors.
- Two-way encrypted radio:Two-way communication with rolling code and jamming detection improves security and helps with remote supervision compared to basic one-way transmitters.
- Auto-orientation and diagnostics:The ability to mount the sensor in any orientation and the inclusion of SSI LEDs simplifies installation in awkward positions, often saving time compared with devices that require careful alignment.
Trade-offs to consider:
- Outdoor suitability:Some rival sensors are IP-rated for external use or conservatory frames; the MC1Z2/SHOCK-WE is primarily for internal applications unless additional protection is used.
- Security grade:For sites that demand Grade 3 products, higher-grade sensors are required; the MC1Z2/SHOCK-WE targets residential and light commercial markets.
- Battery life and replaceability:Typical battery life of ~2 years is comparable to many compact transmitters, but installers should factor in access for replacement in high installations.
Price-wise, the suggested price of 74.99 positions the MC1Z2/SHOCK-WE competitively against the combined cost of separate contact and shock sensors plus a separate transmitter—making it an economical choice where consolidation is desirable.
Customer testimonials and installer feedback
No formal customer reviews are supplied with the product information. However, typical installer and integrator feedback for devices with the MC1Z2/SHOCK-WE feature set usually highlights:
- "Saves time on site" combining two detection methods into one housing reduces drilling, cabling and device count.
- "Flexible for retrofit work" auto-orientation and slim magnet profile make it easier to fit to older frames without modification.
- "Easy to confirm signal" SSI and on-board LEDs speed commissioning and reduce repeat visits for repositioning.
Note: The quotes above are representative of common industry commentary on combined contact/shock transmitters and are intended to help illustrate likely user sentiment rather than being direct endorsements from named customers.
Conclusion: Why choose the Pyronix MC1Z2/SHOCK-WE?
The Pyronix MC1Z2/SHOCK-WE is a versatile, installer-friendly wireless sensor that delivers magnetic contact and shock detection in a single compact package while adding the flexibility of two wired inputs and tamper protection. Its two-way 868 MHz encrypted communication, jamming detection and commissioning aids (SSI, LEDs, one-push-to-learn) make it well-suited for professional installers and homeowners seeking reliable, standards-compliant protection for windows and internal doors.
Its strengths are particularly apparent in retrofit scenarios, narrow-frame installations and hybrid systems where wired devices must be brought into a wireless panel. While it is optimised for internal applications and targets Grade 2 security, it offers a cost-effective, space-saving alternative to multiple separate devices and supports common installer workflows.
Before purchasing, check system compatibility with your Pyronix control panel, note the requirement to use a single 3.0 V CR123A lithium battery (not always shipped fitted), and follow the manufacturers installation guidance. For installations that require outdoor-rated sensors, higher security grades or warranty specifics, discuss options with the supplier or a qualified installer.
In short, the MC1Z2/SHOCK-WE is a practical, consolidated solution for modern intruder alarm installations where discreet protection, ease of installation and system integration matter.
