Introduction to the DS-K1F100-D8E Card Enrolment Station

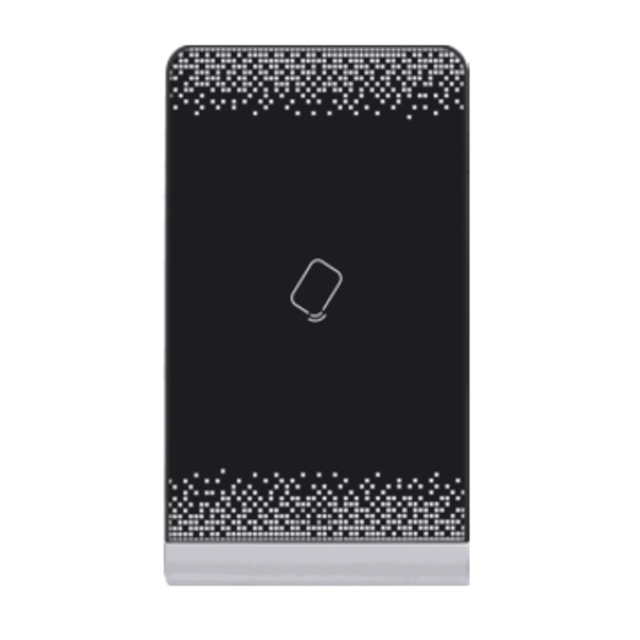

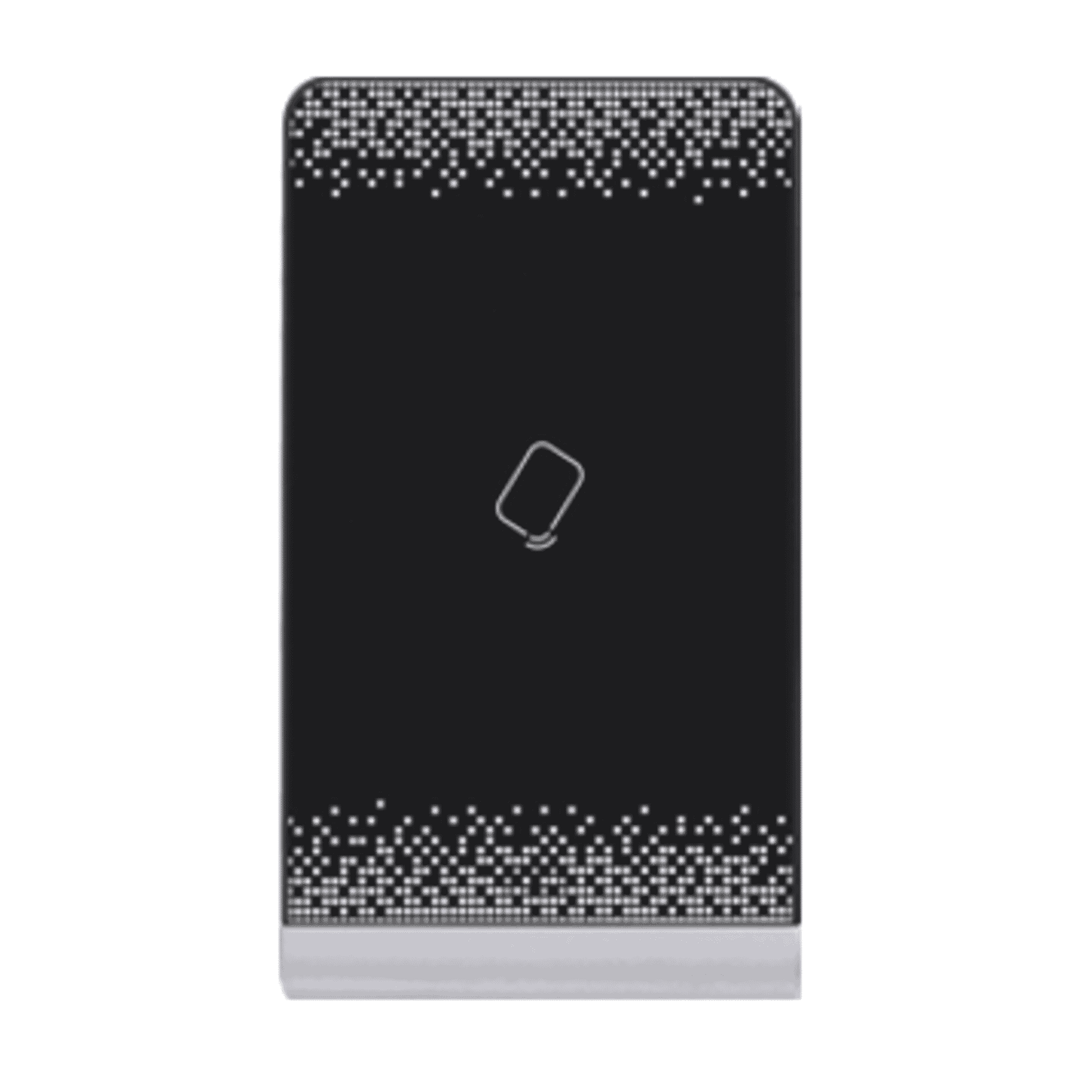

DS-K1F100-D8E Card Enrolment Station — USB Card Enrolment Station (MIFARE/EM/CPU)is a compact, USB-powered device designed for programmers, card issuers and test laboratories that need a reliable, driver-free means of reading and writing a range of contactless and contact smart cards. It is important to note up front: the DS-K1F100-D8E is a card enrolment/reader station and not a biometric or fingerprint reader.
Out of the box the unit offers plug-and-play USB 2.0 connectivity using HID (Human Interface Device) mode, multi-frequency card support (MIFARE 13.56 MHz and EM 125 kHz), CPU card handling and two PSAM cassette slots for secure module insertion. These features make the device particularly well suited to access control programming, card issuance workflows and laboratory testing where stability, security and integration capability matter.
Key features at a glance
- Driver-free USB 2.0 (HID)for fast setup and deployment.
- Multi-card support:MIFARE (IC), CPU cards and EM (ID) to cover a wide range of card ecosystems.
- Two PSAM cassette slots(SIM-size) for secure keys and transaction authentication.
- Windows API & librariesfor integration into existing card issuance and access control solutions.
- Online firmware upgrade capabilityand high-level encryption for secure communications.
- Compact, USB-powered form factor(117 × 67.5 × 14.3 mm; ≈87.6 g) for desktop or rack-side use.
Detailed specifications and benefits
The DS-K1F100-D8E is built around practical engineering choices that emphasize compatibility, security and ease of integration. Below is a breakdown of the key technical specifications and the benefits they provide in real-world use.
- Model:DS-K1F100-D8E
- Card frequency:13.56 MHz and 125 kHz — supports both contactless smart cards (MIFARE) and low-frequency EM ID cards.
- Supported cards:MIFARE (IC), CPU cards, EM (ID) and PSAM modules — covers common access control and transit card formats.
- Protocol:ISO 14443 Type A/B; ISO 7816 — ensures compatibility with standard card communication protocols.
- Interface:USB 2.0 (HID, driver-free) — reduces deployment friction and simplifies remote support.
- PSAM slots:2 PSAM cassettes (SIM card size) — enables secure key storage and authentication schemes used in finance and secure ticketing.
- LED indicator:Power and communication status feedback for straightforward operation.
- Power / Current:Approximately 200 mA from USB — no external power supply required for standard operation.
- Operating temperature:−20 °C to 65 °C — suitable for a wide range of indoor and mild outdoor environments.
- Dimensions & weight:117 × 67.5 × 14.3 mm; ≈87.6 g — portable and easy to fit on crowded workstation desks.
- System support:Windows (WinXP/Win7/Win8 referenced) with API & libraries — integrates with existing issuance and testing software stacks.
- Security:High-level encryption for secure communications; PSAM support allows isolated cryptographic operations and secure key handling.
These specifications translate to concrete benefits: the HID USB mode dramatically reduces installation time and support overhead; PSAM slots let you perform secure authentication and key management on the device without exposing secure keys to the host system; multi-protocol support reduces the need for multiple readers; and built-in firmware upgrade capability keeps the unit up to date with security patches and feature enhancements.
Use cases and scenarios where the DS-K1F100-D8E excels
This enrolment station is particularly useful in professional environments where card lifecycle management, secure key handling and repeatable testing are essential. Typical scenarios include:
- Security integrators and facilities management teams can use the DS-K1F100-D8E to personalise employee access cards quickly, write sector data, and load access credentials before deployment.
- On-site card issuance desks at corporate receptions or campuses benefit from the plug-and-play USB interface and compact footprint for fast check-in workflows.
- Transit agencies and event ticketing providers can leverage the device to encode fare media, manage PSAM-secured transaction keys and perform batch issuance from a PC.
- Small to medium-sized issuance centers that do not require full desktop encoders find a good balance of capability and cost in this unit.
- Test labs and QA teams evaluating CPU cards and EM/MIFARE implementations can use the DS-K1F100-D8E to automate read/write tests, validate cryptographic functions using PSAM modules, and integrate with test harnesses via the Windows API.
- Software developers integrating physical card interactions into security and access solutions can rely on the well-defined Windows API and libraries to accelerate development and testing.
Comparisons with similar products on the market
In the broader category of USB card readers and enrolment stations, the DS-K1F100-D8E stands out for a few reasons, and has a few trade-offs to consider when compared with alternatives.
- Multi-frequency support (13.56 MHz and 125 kHz) means fewer devices are needed to cover multiple card types. Many consumer-grade readers support only one frequency.
- PSAM slots provide secure module support commonly found in higher-end financial-grade readers, not always present in entry-level USB devices.
- HID driver-free mode simplifies deployments compared with readers that require vendor drivers and manual installation on each workstation.
- The unit is USB-only and designed for PC-connected workflows; it does not replace fully networked issuance kiosks or standalone encoders that operate independently of a host PC.
- Windows-focused API support is ideal for many integrators but may require additional effort for cross-platform environments where native macOS or Linux support is necessary.
For organizations that need a compact, secure and programmable reader for desktop use — especially those already invested in Windows-based issuance software — the DS-K1F100-D8E is a compelling middle ground between consumer readers and dedicated, high-throughput encoders. If your requirements include unattended kiosks, high-volume issuance, or cross-platform drivers, evaluate those needs alongside this unit’s strengths.
Customer testimonials and reviews
Public, verifiable customer testimonials specific to this model are not included here. However, typical feedback from integrators and test labs using similar enrolment stations often highlights the following themes:
- "Easy to deploy — the HID interface saved time on driver issues across many workstations."
- "The PSAM slots are a major advantage for testing secure transactions without exposing keys to the host PC."
- "Compact and reliable for small issuance desks; not intended to replace a high-throughput encoder but perfect for on-demand issuance."
These representative comments reflect common strengths reported for devices with similar feature sets. Prospective buyers should consult vendor references, reseller reviews or request a trial unit when possible to validate behaviour in their specific environment.
Practical considerations before purchasing
- Pricing:Suggested price is approximately $119.99. Evaluate total cost of ownership including any required PSAM modules, software integration time and potential support costs.
- Warranty and certifications:Warranty information and certification markings (CE/UKCA) are not specified here — check the manufacturer datasheet and vendor documentation for up-to-date compliance and support details.
- Integration:Ensure your software stack can use the supplied Windows API & libraries or that you have development resources to integrate the device into your workflows.
- Security policies:Use PSAM modules and encrypted communications to meet organisational security standards when handling sensitive card credentials.
Conclusion: Why the DS-K1F100-D8E is a strong choice
The DS-K1F100-D8E Card Enrolment Station provides a practical, secure and cost-effective solution for organisations that need reliable desktop card reading and writing across MIFARE, EM and CPU formats. Its driver-free USB HID interface, support for two PSAM cassettes, and Windows API make it particularly attractive for integrators, small issuance operations and test laboratories that prioritise fast deployment, secure key handling and straightforward software integration.
While it is not a standalone kiosk or a biometric device — and customers should verify certification and warranty details with the manufacturer — the device offers a balanced feature set for many card lifecycle workflows. If your project requires compact, secure and programmable card enrolment at a modest price point, the DS-K1F100-D8E is worth evaluating as part of your toolkit.
