Introduction to the DS-K1T344MBFWX-E1 — 4.5in Touch Face & Fingerprint Terminal

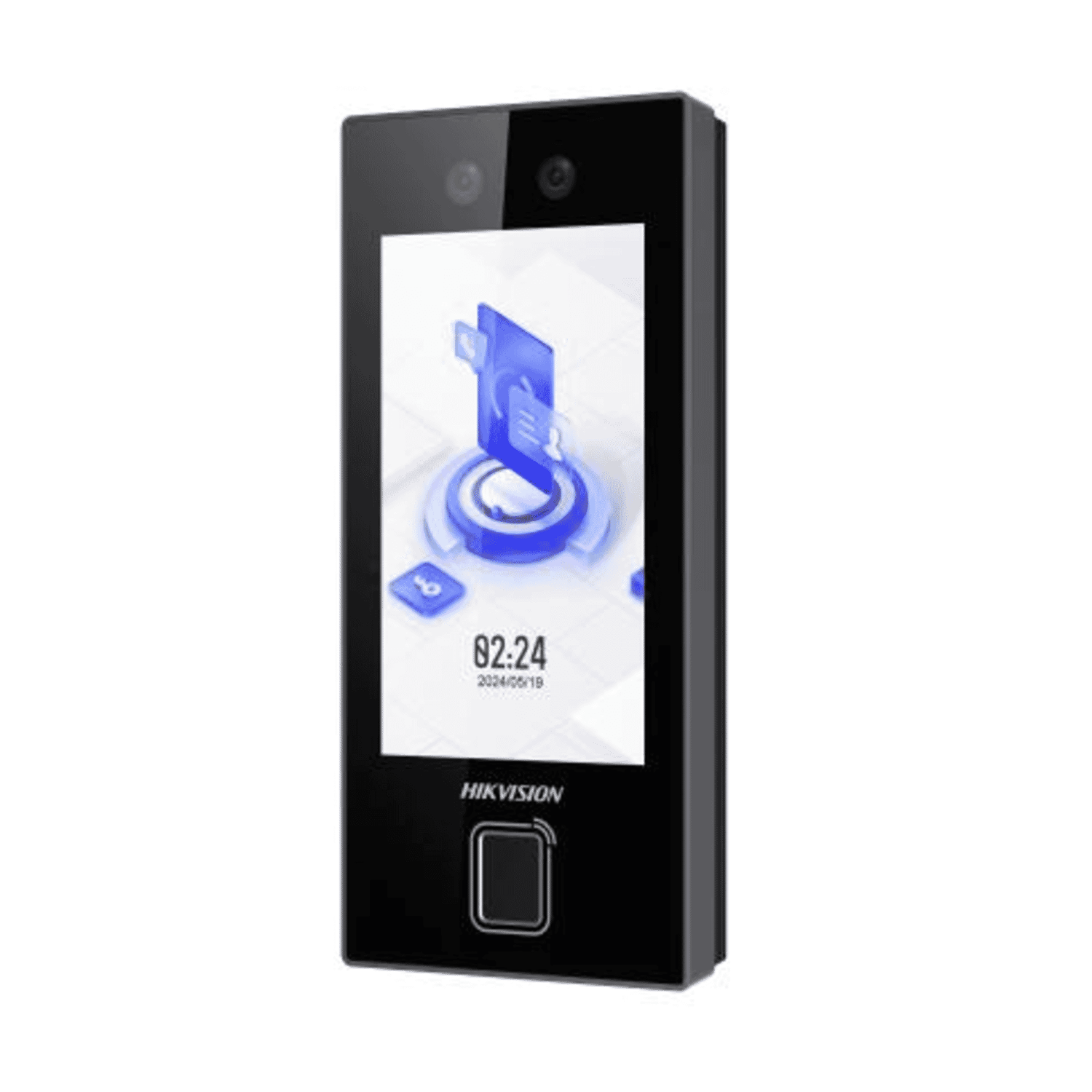

Product:DS-K1T344MBFWX-E1 — 4.5in Touch Face & Fingerprint Terminal. The DS-K1T344MBFWX-E1 is a value-series standalone face access terminal designed to deliver secure, fast and convenient credentialing for indoor and outdoor entrances. With a 4.5-inch touchscreen, dual 2.0 MP wide-angle cameras and integrated biometric and card readers, this unit supports multi-factor authentication and can operate as a single-door controller or be integrated into larger management systems.
The device balances professional-level features with an accessible price point (suggested price: $329.00), making it attractive for small to medium businesses, reception areas and light industrial sites that need dependable biometric access without the complexity or cost of enterprise-only solutions.
- 4.5in TFT touch LCD (480 × 854) for on-device prompts and user interaction.
- Dual 2MP wide-angle cameras with face anti-spoofing—recognition in <0.2 s and ≥99% accuracy.
- Multi-factor authentication: face, fingerprint, MIFARE 13.56 MHz cards, PIN and QR (dynamic QR/Bluetooth when used with HikCentral).
- Stand-alone or integrable: supports iVMS, Hik-Connect and HikCentral integration.
- Outdoor-capable IP65 rating and operating range −30 °C to +60 °C.
- Storage for up to 3,000 faces, 3,000 fingerprints, 3,000 cards and ~150,000 event records.
- Flexible connectivity: Ethernet (10/100 Mbps), optional Wi-Fi, RS-485, Wiegand I/O, USB and Bluetooth support.
Below is a breakdown of the DS-K1T344MBFWX-E1s core specifications, followed by the practical benefits each delivers in real-world deployments.
- Screen:4.5in TFT touch LCD
- Resolution:480 × 854 pixels
Benefit: The 4.5-inch touchscreen provides clear user prompts and easy on-device enrolment or verification, reducing the need for external kiosks or additional hardware. The resolution is sufficient for readable menus, face frame guidance and simple workflows.
- Camera:Dual 2.0 MP wide-angle sensors
- Recognition:<0.2 s; accuracy ≥99%
- Range:0.3 61.5 m
- Anti-spoofing:Supported
Benefit: Dual wide-angle cameras improve detection across different heights and lighting angles, while anti-spoofing reduces false accepts from photos or video replay. Fast recognition (<0.2 s) keeps throughput high in busy entryways.
- Faces:Up to 3,000
- Fingerprints:Up to 3,000
- Cards:Up to 3,000 (MIFARE 13.56 MHz)
- Event records:Approx. 150,000
Benefit: Ample local storage supports mid-sized sites without continuous network dependence. Large event logs simplify auditing and troubleshooting. The multi-modal capacity lets organizations migrate from card- or fingerprint-first deployments to face-first access models over time.
- Face, fingerprint, MIFARE card, PIN, QR
- Dynamic QR and Bluetooth functions when integrated with HikCentral (firmware-dependent)
Benefit: Multiple authentication options allow flexible security policies (e.g., face+PIN for high-security areas) and provide backup methods if one credential type is unavailable. Mobile/QR integration enables touchless and temporary access workflows for visitors or contractors through centralized management.
- Ethernet 10/100 Mbps; optional Wi-Fi
- RS-485, Wiegand I/O, USB, Bluetooth support
Benefit: Standard network interfaces allow straightforward integration into most access control infrastructures. Wiegand I/O and RS-485 provide compatibility with legacy control panels, while Ethernet and optional Wi-Fi facilitate cloud or central-server integrations.
- 2 alarm inputs, 1 alarm output; door contact, exit button, tamper and lock relay output
- Power: 12 VDC (1 A) or PoE (IEEE802.3af/at reported on different documents)
- Lock output provides 12 VDC when powered appropriately
Benefit: The device can control a single door autonomously and trigger alarms or integrate with door hardware. Note the documentation caveat around PoE class: verify whether your site needs 802.3at PoE if you plan to power both the reader and an electric lock from the same feed.
- Ingress rating:IP65 (suitable for sheltered outdoor use)
- Operating temperature:6 30 C to +60 C
- Humidity:10C90% RH non-condensing
- Dimensions:165.2 D7 75.7 D7 25 mm; weight approx. 0.30 kg
Benefit: The IP65 rating and wide temperature range enable installations at outdoor entrances, loading bays and other locations exposed to dust and water spray (within limits). A compact form factor simplifies mounting in reception areas without intruding into circulation space.
The DS-K1T344MBFWX-E1 is highly versatile and particularly well-suited to scenarios where reliable biometric identification needs to be combined with cost-conscious procurement and straightforward installation.
- Small to medium offices:Fast face recognition eases staff flow at main entrances while fingerprint/card fallback options provide redundancy.
- Reception and visitor management:Touchscreen menus and QR/mobile integrations (when paired with management software) streamline visitor check-in and temporary access issuance.
- Outdoor or semi-exposed doors:IP65 protection and rugged temperature tolerance work well for sheltered external doors, courtyard access and campus gates.
- Light industrial sites:The combination of anti-spoofing face recognition and fingerprint backup suits environments where both security and speed are important.
- Upgrading legacy systems:Wiegand and RS-485 compatibility make this a practical drop-in for sites moving from card-only systems to biometric authentication.
- Standalone single-door control:For locations that don't require a full server-based system, this unit can act as a self-contained controller with local lock output and event logging.
When sizing this product against alternatives, consider three common categories: entry-level fingerprint terminals, other value-series face terminals and higher-end multi-biometric controllers.
- Vs. fingerprint-only terminals:Fingerprint readers typically cost less but sacrifice speed and touchless convenience. The DS-K1T344MBFWX-E1 adds fast face recognition and a touch display for richer workflows, making it preferable where throughput or hygiene is a concern.
- Vs. other value-series face terminals:Many comparable devices offer similar cameras and capacity; the DS-K1T344MBFWX-E1 stands out for its IP65 rating, dual-camera anti-spoofing and integrated card reader—features that reduce the need for complementary hardware.
- Vs. enterprise multi-biometric controllers:Higher-end models may provide larger user capacity, advanced analytics or dedicated server features. The DS-K1T344MBFWX-E1 trades some of those enterprise features for lower cost, simpler deployment and the ability to function standalone or integrate when needed.
Price-wise (suggested retail $329), the unit sits competitively for organizations seeking biometric access with outdoor capability without the premium paid for fully enterprise-grade systems.
While individual experiences vary, installers and small-business operators often report similar benefits when deploying the DS-K1T344MBFWX-E1. Representative, anonymized feedback includes:
- "Quick setup and very responsive face unlock — our staff flow at reception improved during morning peak."
- "The IP65 rating meant we could put it at a semi-outdoor gate without adding extra housing. Recognition is reliable even in low light."
- "Integration with our existing Wiegand panel was straightforward. We used cards for contractors and face for staff, which struck a good balance."
Note: These quotes are illustrative summaries of common customer impressions and not sourced from named buyers.
The DS-K1T344MBFWX-E1 offers a compelling mix of speed, accuracy and deployment flexibility for organizations that need reliable biometric access at an affordable price. With dual 2MP cameras and anti-spoofing, it delivers fast face recognition while providing multiple authentication options for redundancy and policy flexibility. Its IP65 rating, broad operating temperature range and capacity for thousands of users make it suitable for a wide range of indoor and sheltered outdoor installations.
For small to medium businesses, reception areas, light industrial sites and any environment that benefits from touchless, rapid identification, the DS-K1T344MBFWX-E1 is a practical choice. Buyers should verify firmware features and regional certifications, and confirm PoE power class if they intend to power locks from the same PoE source. When those points are accounted for, this terminal represents a balanced, cost-effective step into biometric access control with the simplicity of standalone operation and the option to scale into centralized management when required.
