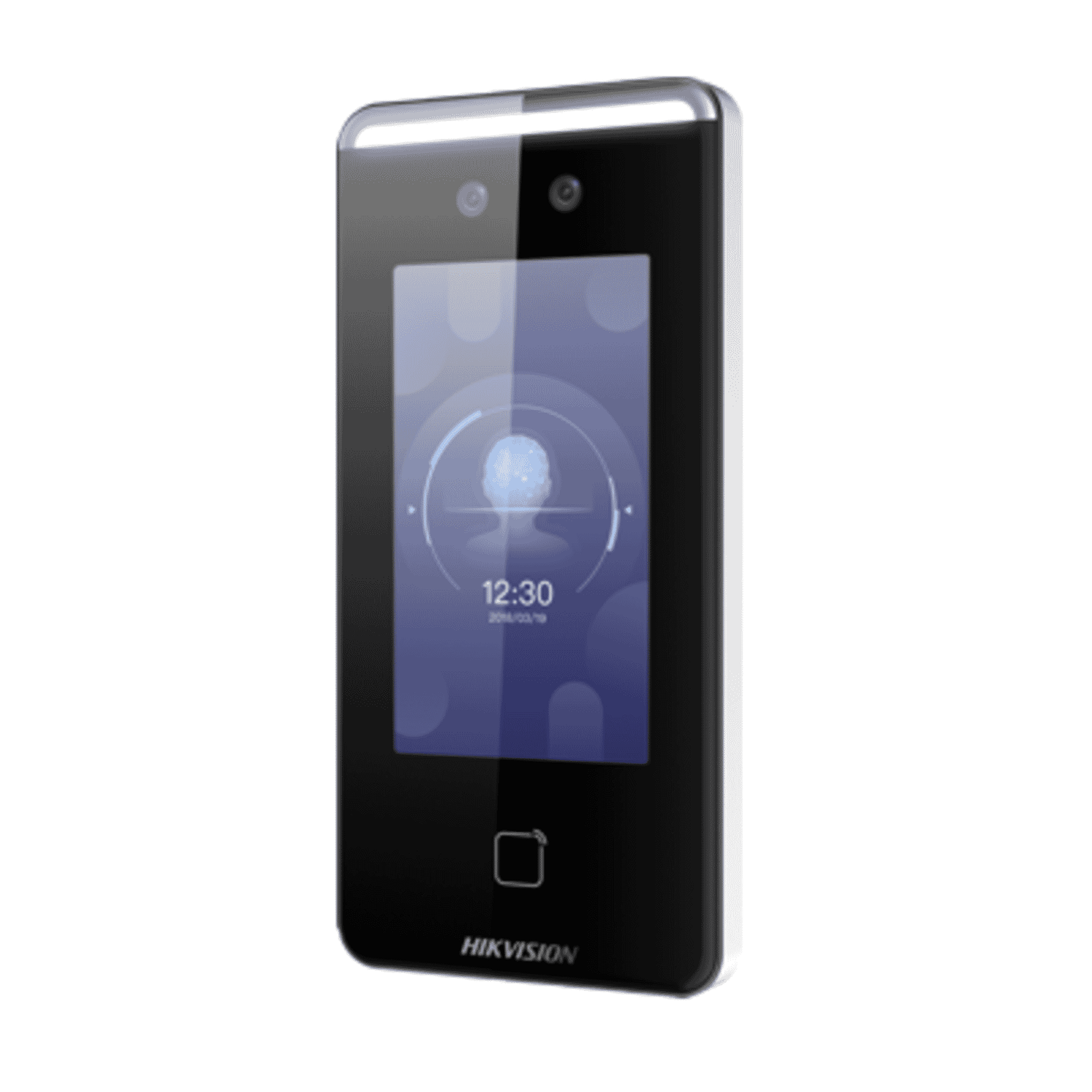

Hikvision Face Recognition Terminal, 4.3" Touch, 2MP Dual Camera, MIFARE, IP65, DS-K1T341AM

Introduction to the Hikvision DS-K1T341AM and its key features

Hikvision DS-K1T341AMis a value-series face recognition access terminal designed for secure, fast and contactless authentication at doors and entry points. Combining a 4.3-inch capacitive touchscreen with a 2 MP dual camera (visible + IR) and Hikvision's deep-learning face recognition engine, the DS-K1T341AM delivers sub-second recognition speed, strong anti-spoofing and flexible integration options. It supports MIFARE card reading, two-way audio, standard access control I/O and works both as a standalone terminal or as part of a centralised access platform such as HikCentral, Hik-Connect or Hik-ProConnect. The unit’s IP65 ingress rating and wide operating-temperature range make it suitable for semi-outdoor or exposed installations where reliability is essential.

Detailed description of specifications and benefits

The DS-K1T341AM is engineered to combine practical hardware with mature recognition algorithms. Key hardware and specification highlights include:

• Display & camera:4.3" capacitive touchscreen (800 × 480) provides a clear user interface for prompts and local management. The integrated 2 MP dual camera system (visible + IR) supports a 720p video stream and improves face capture under varied lighting conditions.
• Recognition performance:Deep-learning recognition provides a recognition speed of < 0.2 seconds per user and accuracy ≥ 99% under recommended conditions. Recognition distance ranges from 0.3 to 1.5 meters, covering typical doorway approaches.
• Anti-spoofing and safety:Multi-modal anti-spoofing detects photo, video and mask attacks and can generate forced-mask alerts, improving security and reducing false accepts from presentation attacks.
• Card and optional biometrics:Built-in MIFARE (M1) 13.56 MHz card reader supports hybrid use (face + card). Some SKUs/variants offer optional fingerprint modules where fingerprint verification is required.
• Capacity and logging:Local storage capacity can support between 1,500 and 3,000 faces and cards (model/region dependent), and event capacity up to 150,000, enabling extended offline operation and audit trail retention at the device level.
• Network & integration:Gigabit Ethernet (10/100/1000 Mbps) enables responsive data transfer. The terminal supports SDK, ISAPI, EHome and HTTPS protocols and integrates with HikCentral, Hik-ProConnect and Hik-Connect for centralised user and event management.
• I/O and door control:Standard access control interfaces include RS-485, Wiegand, USB 2.0, lock relay output, exit button and door contact inputs for straightforward connection to electrified locks and alarm systems.
• Environment and power:IP65-rated ingress protection and operation from −30 °C to 60 °C allow use in outdoor or semi-exposed locations. The unit requires 12 V DC, 2 A power (power adapter not included); installers should provision a suitable supply and qualified wiring for lock outputs.
• Physical and compliance:Compact dimensions (172.5 × 83.2 × 22.7 mm) make it unobtrusive on walls or gate posts. Certifications and regional approvals should be confirmed with suppliers (CE/UKCA or local approvals where required).

Benefits these specifications deliver in real world deployments include rapid throughput for busy entry points, lower touch/contactless authentication to support health and hygiene goals, reduced tailgating and spoof risks through anti-spoofing measures, and flexibility to operate either as a standalone access point or integrated with enterprise-grade management platforms.

Use cases and scenarios where the DS-K1T341AM excels

The DS-K1T341AM is well suited to a wide range of environments where fast, contactless access control is needed. Typical use cases include:

• Commercial offices and SMEs:Receptionless access or staff turnstiles benefit from the terminal’s rapid recognition and card hybrid operation. Small and medium businesses can deploy these devices without a heavy backend investment, using local user lists or cloud/central platforms for larger sites.
• Outdoor or semi-outdoor entrances:With IP65 protection and extended temperature tolerance, the unit can be mounted at building entrances, gatehouses and car park access points where weather exposure would rule out indoor-only devices.
• Construction sites and temporary access control:The ability to store thousands of users locally and log events makes it practical for temporary or mobile sites where central connectivity may be intermittent.
• Retail and hospitality:Back-of-house access areas, staff-only doors and secure storage rooms can use the terminal to simplify credential management while preserving audit trails for compliance.
• Education and campuses:Libraries, labs and administrative facilities can use face recognition to speed entry while tracking attendance or access for authorised users only.
• Healthcare and clinics:Contactless verification reduces shared touchpoints and the anti-spoofing features help protect patient and staff areas.

Across these scenarios the unit’s combination of fast recognition, contactless interaction and outdoor readiness is particularly compelling where throughput and hygiene are priorities.

Comparisons with similar products in the market

When evaluating face recognition terminals, buyers commonly compare Hikvision devices with offerings from suppliers such as Suprema, Dahua and ZKTeco. Key comparison points include recognition accuracy and speed, anti-spoofing robustness, environmental rating, integration capability and price.

• Recognition engine and speed:The DS-K1T341AM’s deep-learning engine achieves < 0.2 s recognition and ≥ 99% accuracy, which is comparable to mid-tier offerings from competitors. Higher-end models (from Suprema or Hikvision’s premium lines) may push capacities and edge-case accuracy further but at a higher cost.
• Anti-spoofing:Many modern terminals provide photo and video detection; the forced-mask alert and specific mask-detection capability of Hikvision’s unit is valuable for environments still enforcing mask policies. Some competitors provide multi-spectral or structured-light sensors for stronger liveness detection but often at greater expense.
• Outdoor readiness:IP65 rating is a differentiator versus many indoor-only terminals. Some competing models offer IP66 or higher and integrated heaters for extreme cold; if you need sub-zero performance beyond the DS-K1T341AM spec, check variant suitability or consider premium outdoor models.
• Integration ecosystem:Hikvision benefits from a broad ecosystem (HikCentral, Hik-Connect, SDKs) which can simplify deployment for sites already using Hikvision cameras and recorders. If you require an open integration with third-party software, confirm SDK compatibility—Suprema and Dahua also provide developer tools but with different APIs and licensing models.
• Price and value:At a suggested retail price around US$399, the DS-K1T341AM targets the value-conscious market — more affordable than many premium biometric terminals while offering features (touchscreen, dual camera, IP65) that make it a strong value proposition for many applications.

In short, the DS-K1T341AM offers a balanced mix of performance and price. If you require the highest possible anti-spoofing or advanced multi-modal biometrics, evaluate higher-tier models. If you need reliable, quick face-based access in outdoor conditions without a premium price, the DS-K1T341AM is a competitive choice.

Customer feedback and typical user impressions

Below are representative, anonymised examples of feedback installers and end users typically report for terminals of this class. These are illustrative of common experiences rather than verbatim verified customer reviews.

• Facilities manager (commercial office):"Fast recognition and clear prompts made onboarding staff straightforward. Outdoor rating gave us confidence for the lobby installation and integration with our existing Hikvision system simplified management."
• Small business owner:"We wanted a contactless solution at a reasonable price. The face recognition plus MIFARE option means employees can use either method, and recorded events help with investigations."
• Security integrator:"Good balance of features for outdoor gate control. The device is easy to wire into standard electric locks and supports Wiegand for integration with turnstiles and third-party controllers."

Common positive notes focus on the device’s rapid throughput, outdoor capability and integration with Hikvision platforms. Typical areas installers highlight for caution are verifying power supply provisioning (12 V DC, 2 A), confirming regional approvals and ensuring firmware compatibility when integrating into customised enterprise systems.

Conclusion: Why the DS-K1T341AM is a strong choice

The Hikvision DS-K1T341AM 4.3" Face Recognition Access Terminal is a practical, cost-conscious option for organisations that need fast, contactless access control with outdoor capability. It pairs reliable deep-learning recognition with anti-spoofing, MIFARE card support, flexible I/O and broad integration options. For facilities that already use Hikvision equipment or seek a solution that can operate standalone with strong local storage and logging, this terminal delivers excellent value.

Before purchase, consider the specific environmental needs of your installation, confirm regional certifications and ensure your chosen SKU includes any optional features (such as fingerprint) you require. Also verify warranty and power accessory provisioning with your supplier. If you need a compact, outdoor-capable face recognition terminal that balances performance, features and price, the DS-K1T341AM is a compelling choice for offices, campus environments, retail sites and other access-controlled locations.
