Introduction: what the RG‑EG209GS is and its key features
The RG‑EG209GS is a compact, cloud‑managed gigabit router built for small and medium offices, retail outlets, hotels and small CCTV deployments. It blends a full gigabit switching fabric with cloud‑first management, a flexible port layout (8× GigE + 1× SFP), built‑in VPN services, and a user‑friendly captive portal. With a recommended aggregate throughput of up to 600 Mbps and support for roughly 200 concurrent users, the RG‑EG209GS is positioned as a cost‑effective, centrally managed networking edge device for branch sites and micro‑data networks.
- Ports:8 × 10/100/1000Base‑T RJ‑45 and 1 × 1GBase‑X SFP (LAN/WAN switchable)
- Performance:Recommended aggregate throughput up to 600 Mbps
- Management:Free Ruijie Cloud for centralized monitoring and configuration
- Security & VPN:IPSec, OpenVPN, PPTP, L2TP; application/user‑aware bandwidth control and QoS
- Extras:Captive portal with WYSIWYG editor (voucher, SMS, one‑click or username logins) and multi‑WAN load balancing/failover
Detailed specifications and the benefits they deliver
The RG‑EG209GS is targeted at deployments that need more than a consumer router can provide but do not require a large rack‑mounted appliance. Its compact desktop form factor (approximately 202 × 108 × 28 mm and ≈0.5 kg) makes it easy to place in an office, reception area or communications closet. The device is energy efficient, consuming less than 18 W in normal operation, and ships with a 3‑year manufacturer warranty.

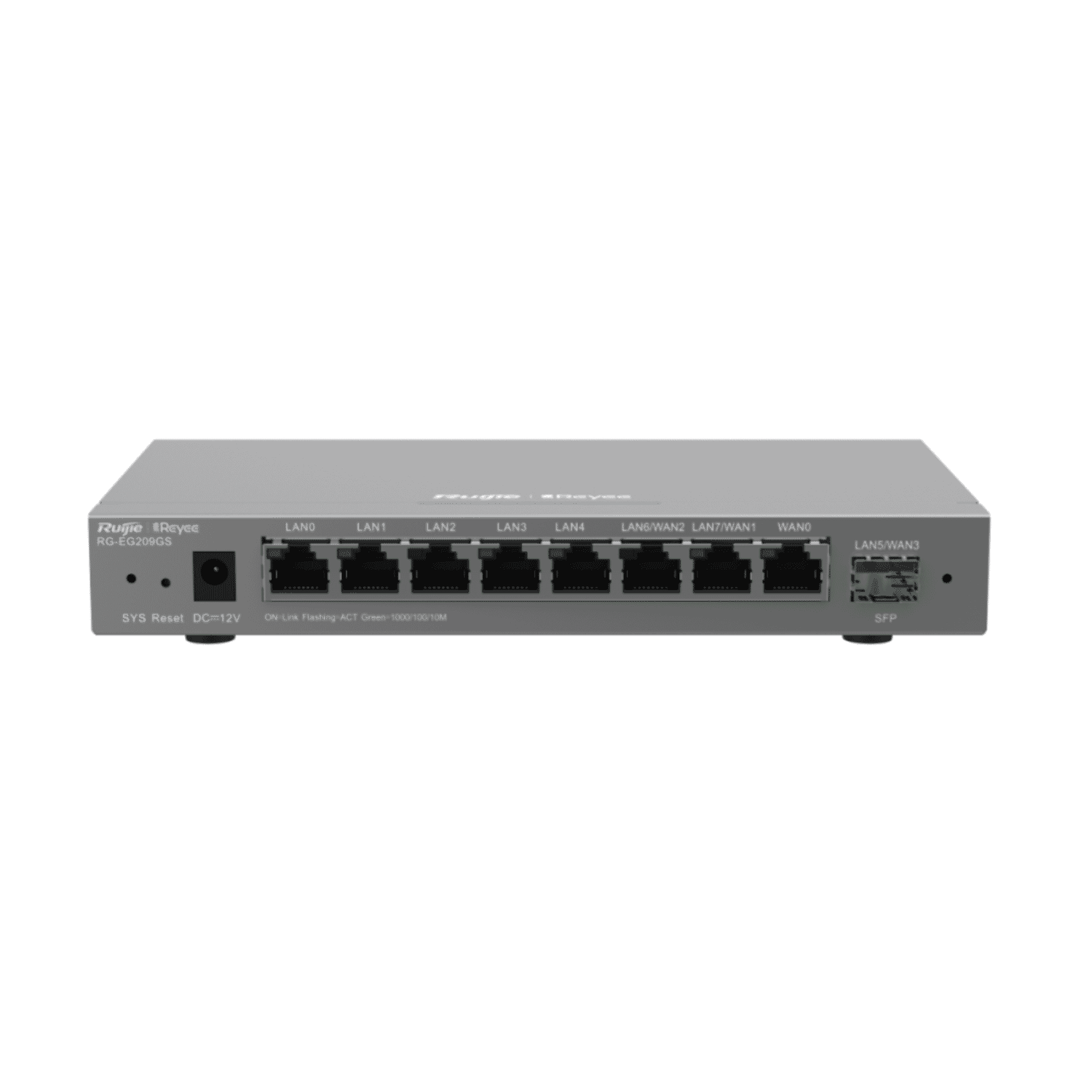

One of the standout practical features is the port layout: eight gigabit RJ‑45 ports plus a 1 G SFP slot. The SFP port can be switched between LAN and WAN roles, giving flexible uplink or fiber‑backhaul options. Additionally, by converting LAN ports to WAN, the router supports multi‑WAN configurations (up to four), enabling load balancing and automatic failover. This is very useful for sites that need high availability or want to combine multiple lower‑cost broadband links for better reliability.
The RG‑EG209GS uses a dual‑core 880 MHz CPU with 256 MB of RAM and 32 MB flash. Ruijie recommends this model for aggregate throughput up to around 600 Mbps and for roughly 200 concurrent users. In practice, this means the unit handles routine office traffic — web browsing, cloud apps, VoIP, VPN tunnels and light video streams (including CCTV feeds) — comfortably. It’s not positioned as a high‑end gateway for very large user populations, but for SMB branches and small deployments it offers an excellent balance of performance and cost.
Security is a central element of the RG‑EG209GS. It includes built‑in VPN server support for IPSec, OpenVPN, PPTP and L2TP, making it straightforward to provide secure remote access for employees or to interconnect branch sites. Application‑ and user‑aware bandwidth control plus QoS policies let administrators prioritize critical business traffic (VoIP, POS systems, CCTV streams) over less important uses. These traffic‑management features help ensure a consistent user experience even under bandwidth pressure.
Ruijie Cloud management is included at no extra cost. That means remote monitoring, centralized configuration and simplified deployment — all from a web portal. For organisations with multiple branches, this capability significantly reduces the on‑site troubleshooting and configuration workload. The captive portal has a WYSIWYG editor and supports voucher, SMS, one‑click and username/password login methods, which is useful for guest Wi‑Fi in retail, hotels or cafés that need branded or controlled internet access.
The unit accepts 100–240 VAC at 50/60 Hz, operates with low power consumption and complies with CE and RoHS standards. The 3‑year warranty offers peace of mind for purchasers; however, installers should follow local electrical regulations and Ruijie’s installation guides to ensure safe operation and any required local regulatory compliance (for example UKCA where applicable).
Use cases and scenarios where the RG‑EG209GS excels
The RG‑EG209GS suits a variety of real‑world use cases where a balance of manageability, performance and cost matters:
- Small offices and professional services:Provides secure VPN access for remote staff, application‑aware QoS for VoIP, and cloud management so small IT teams can manage multiple sites from a single pane of glass.
- Retail and hospitality:Captive portal capabilities make it easy to deliver branded guest Wi‑Fi, coupon/voucher systems, and secure separation between guest and POS/back‑office networks.
- Branch and multi‑site deployments:Free Ruijie Cloud simplifies provisioning and monitoring of many locations. Multi‑WAN and failover help keep branches online even when local ISPs are unreliable.
- CCTV and light video surveillance networks:Gigabit switching with an SFP uplink (optional fiber) supports multiple camera feeds; QoS and bandwidth control allow prioritization of recording traffic to avoid dropped frames during peak usage.
- Home offices with professional needs:For power users who need VPN, VLANs, and reliable uplinks, the RG‑EG209GS provides a step up from consumer routers without the complexity or cost of enterprise gear.
How it compares with other products on the market
The RG‑EG209GS sits in the SMB edge category between consumer home routers and full‑blown enterprise security appliances. Key comparison points to consider when evaluating alternatives:
- Versus consumer routers:Compared with typical home gateways, the RG‑EG209GS offers more robust VPN options, central cloud management, captive portal features and flexible multi‑WAN support. Consumer routers might offer higher Wi‑Fi integration or simpler GUIs, but they lack the centralised management and traffic controls needed by multi‑site organisations.
- Versus managed cloud‑first offerings:Competing cloud‑managed vendors often provide similar centralized control, but price and feature sets vary. The RG‑EG209GS targets value‑conscious buyers: it provides essential cloud functionality and captive portal features at a lower suggested price point (suggested price around $139) than many enterprise‑grade cloud routers, while still offering a 3‑year warranty.
- Versus enterprise firewalls/UTMs:Enterprise appliances offer deeper inspection, higher throughput and advanced security modules, but they are usually larger, more expensive and require specialist administration. The RG‑EG209GS is a pragmatic choice where full UTM capabilities are not required but reliability, VPN and traffic shaping are important.
Ultimately, the RG‑EG209GS is best chosen when you want cloud‑managed simplicity and gigabit wired connectivity with built‑in VPN and guest access features, without paying for heavyweight firewall features you won’t use.
Customer feedback and typical reviews
No individual customer testimonials were provided here, but by looking at the devices specification and target audience we can summarise the kinds of feedback organisations commonly report after deploying devices like the RG‑EG209GS:
- Ease of management:Administrators often praise the cloud management portal for simplifying deployments across multiple sites — configuration templates and remote troubleshooting cut down on travel and on‑site work.
- Reliable network access:Multi‑WAN failover and gigabit ports are frequently cited as improvements in uptime and bandwidth consistency at branch locations.
- Value for money:For SMBs, the feature set (SFP option, captive portal, multiple VPN types, QoS) typically represents strong value against pricier competitors.
- Limitations:Some users might note the throughput ceiling (~600 Mbps) and the modest hardware resources compared to larger appliances — meaning it isnt suited to very large user bases or high‑packet‑inspection workloads.
Conclusion: why the RG‑EG209GS is a compelling choice
The RG‑EG209GS packs the essentials that small businesses and branch sites need: gigabit switching, flexible SFP uplink, multi‑WAN resilience, built‑in VPN, application‑aware traffic control and a user‑friendly captive portal. Free Ruijie Cloud management and a 3‑year warranty add operational value, reducing ongoing management costs and giving buyers confidence in long‑term support.
If you manage multiple small sites, need reliable guest Wi‑Fi with branded captive portals, or require secure remote access without investing in complex enterprise hardware, the RG‑EG209GS is a pragmatic, cost‑conscious choice. It offers more than a basic consumer router but avoids the price and complexity of tier‑one enterprise appliances — a practical middle ground for SMB networking.
Suggested price is around $139 and the device is backed by a 3‑year warranty, making it an attractive option for organisations that need dependable gigabit routing and cloud management without breaking the budget.
