DVR-204U-M1(E) 4-Channel Turbo‑HD DVR, 4K/8MP, H.265 Pro+, 1×SATA

Introduction to the DVR-204U-M1(E): compact Hybrid 4‑Channel 4K DVR

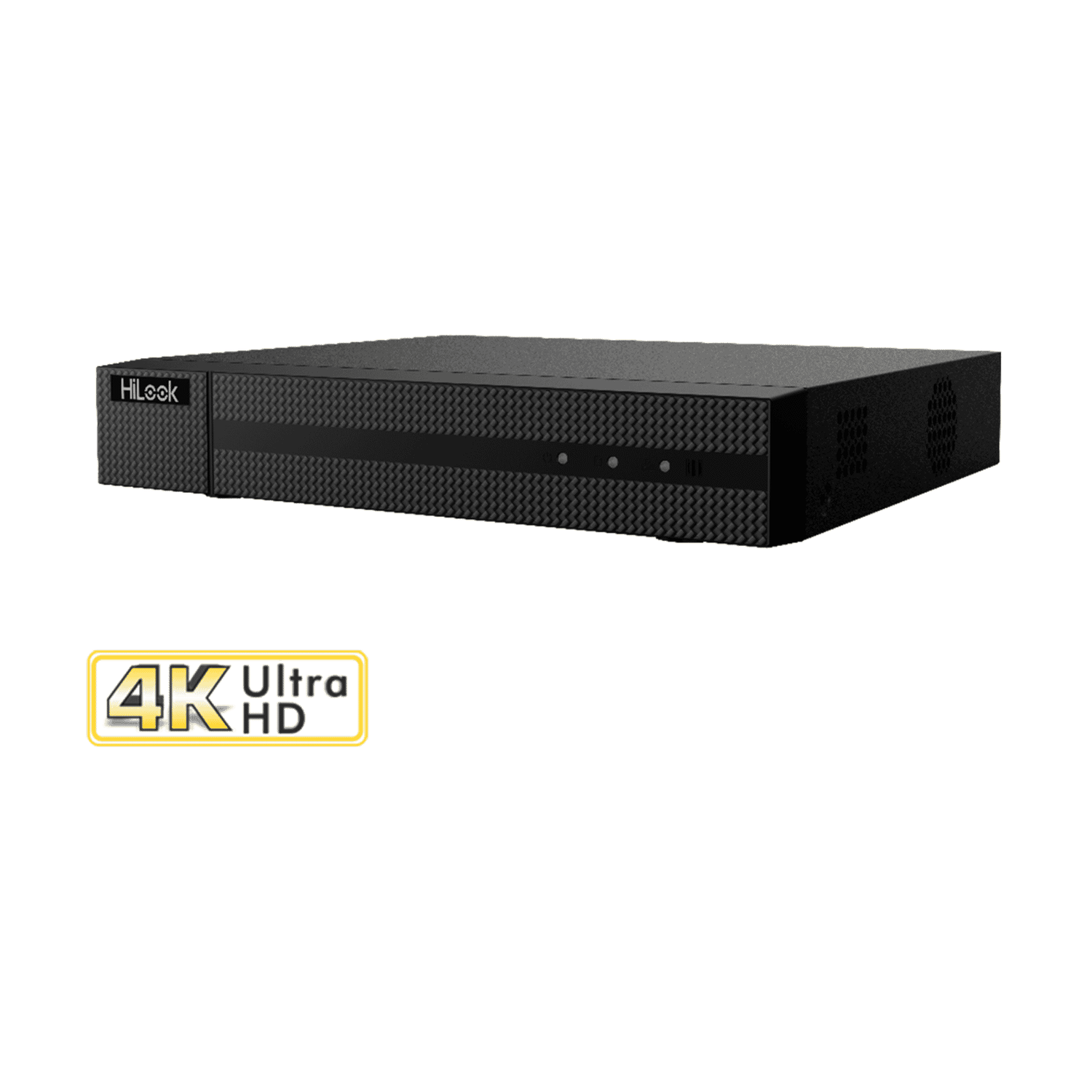

The DVR-204U-M1(E) 4-Channel Turbo‑HD DVR (4K, H.265+) is a compact hybrid recorder designed for small sites that need modern codec efficiency, basic AI motion filtering and flexible analogue/IP camera support. It accepts up to four analogue BNC cameras (HDTVI/AHD/HDCVI/CVBS) with resolutions up to 8 MP (4K) and offers Enhanced IP mode for a small number of IP cameras. Key highlights include H.265 Pro+ compression for reduced storage and bandwidth, Deep‑Learning Motion Detection 2.0 for human/vehicle classification, simultaneous HDMI and VGA outputs for local monitoring and a single SATA bay supporting drives up to 10 TB.

Key features at a glance

• 4× analogue BNC inputs (HDTVI/AHD/HDCVI/CVBS) supporting up to 8 MP depending on format
• Enhanced IP support for additional IP channels (up to 8 MP IP cameras supported)
• H.265 Pro+/H.265/H.264 compression to maximise storage efficiency
• Deep‑Learning Motion Detection 2.0 with human/vehicle classification to reduce false alarms
• Simultaneous HDMI and VGA local video outputs (up to 1080p)
• 1× SATA bay (supports up to 10 TB HDD) and 2× USB 2.0 ports for backup and peripherals

Detailed specifications and the benefits they deliver

Understanding the DVR-204U-M1(E) in detail shows why it is a practical choice for many small to medium surveillance projects. Below is a breakdown of the most important technical areas and why they matter in real deployments.

• Analogue inputs:4× BNC supporting HDTVI, AHD, HDCVI and CVBS. This wide compatibility makes the recorder suitable for upgrades of legacy analogue systems as well as modern HD analogue cameras.
• Maximum analogue resolution:Up to 8 MP (format-dependent). The ability to accept 4K/8MP signals on analogue channels gives a clear upgrade path for projects that require higher detail without replacing all cabling immediately.
• Compression:H.265 Pro+/H.265/H.264 compatibility. H.265 Pro+ is a vendor-optimised profile that delivers better compression ratios than standard H.265 or H.264. The practical benefit is significantly lower storage and network usage for the same image quality, or higher retention times with the same hard drive capacity.
• Total bandwidth:96 Mbps aggregate. This informs how many high-resolution streams you can record simultaneously without overloading the unit.

• Deep‑Learning Motion Detection 2.0:Human/vehicle classification helps filter out common false positives caused by shadows, animals or weather. This reduces time spent reviewing footage and improves the quality of alarm notifications, especially useful for retail or perimeter monitoring.

• Audio I/O:1× RCA input and 1× RCA output with two‑way audio supported via the first audio input and audio‑over‑coax on compatible cameras. This is valuable for locations that require audio verification or intercom capability without complex separate audio wiring.

• Ethernet:1× RJ45 10/100 Mbps for network connectivity.
• Protocols:TCP/IP, PPPoE, DHCP, HiLookVision, Hik‑Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS and ONVIF support. This wide protocol support enables remote monitoring via official apps, integration with third-party management systems and compatibility with many ONVIF IP cameras.
• Remote connections:Supports up to 32 concurrent connections, allowing multiple users or monitoring stations to view streams or playback as needed (useful for multi-staff environments).

• SATA:1× SATA supporting HDDs up to 10 TB. A single large drive gives straightforward local recording and retention options. For many small sites this is sufficient; installers should size HDD capacity according to retention needs and camera resolution.
• USB:2× USB 2.0 ports for mouse control and manual backup to USB media.

• Power:12 V DC, 1.5 A (use a suitable regulated power supply).
• Power consumption:Approximately 15 W (without HDD), making it energy efficient for continuous operation.
• Dimensions and weight:265 × 225 × 48 mm; approximately 1.16 kg without HDD. Its compact 1U-style footprint fits racks, cabinets or shelf installations in small premises.
• Operating temperature:-10 °C to +55 °C for typical indoor and sheltered outdoor applications.

Use cases and scenarios where the DVR-204U-M1(E) excels

The feature set of the DVR-204U-M1(E) makes it particularly well suited to a number of common surveillance scenarios:

• Small retail shops:H.265 Pro+ reduces storage costs while Deep‑Learning Motion Detection helps filter out non-critical events. Four analogue inputs usually cover front-of-shop, till area and rear entrances with the option to add a couple of IP cameras for outside views.
• Small offices and professional suites:Compact size, simple local outputs (HDMI/VGA) and remote access protocols (Hik‑Connect/HiLookVision) make it easy to monitor entry points, common areas and receptions with minimal infrastructure changes.
• Home and multi‑unit residential settings:For homeowners who want higher-resolution analogue cameras or want to gradually migrate to IP, hybrid support allows a staged upgrade without replacing all cameras immediately.
• Light commercial and branch locations:Offices, small warehouses and cafes benefit from reliable recording, AI motion filtering and straightforward remote monitoring for single-site security management or centralised monitoring of several small branches.
• DIY and contracting installers:The unit’s compatibility with legacy analogue formats and a single large SATA bay simplifies installations where budget, cabling reuse and compact footprint are priorities.

Comparisons with similar products and trade-offs

The DVR-204U-M1(E) sits in the entry-to-mid level hybrid DVR category. When evaluating it against alternatives, consider the following comparisons and trade-offs:

• Versus pure NVRs:A dedicated NVR is ideal if you plan to deploy exclusively IP cameras and want PoE switch integration or higher channel counts. The DVR-204U-M1(E) is better when preserving analogue cameras and cabling is important.
• Versus higher‑end DVRs/NVRs:Higher-end recorders may offer dual SATA bays (for RAID or extended storage), built-in PoE, more concurrent IP channel capacity, 4K local output, and greater processing power. The DVR-204U-M1(E) trades those advanced features for a lower price point, smaller footprint and energy efficiency—an attractive mix for small sites.
• Versus other 4‑channel DVRs:The distinct advantages here are H.265 Pro+ support and Deep‑Learning Motion Detection 2.0. Some competing 4‑channel DVRs will offer only H.264 or basic motion detection, which can result in higher storage costs and more false alarms.
• Limitations to be aware of:Only one SATA bay limits onsite redundancy options; local display is capped at 1080p; USB ports are USB 2.0; there is no built-in PoE switch—IP cameras will need separate power or PoE infrastructure. Also, Enhanced IP mode supports a limited number of IP channels, so for larger IP deployments a dedicated NVR is preferable.

Customer testimonials and typical user feedback

If you are researching real-world impressions, public reviews for specific SKUs can vary by reseller. Typical feedback themes from installers and end users for recorders in this class include:

• Positive notes on ease of installation and compatibility with legacy analogue cameras, making upgrades cost‑effective.
• Appreciation for H.265 Pro+ and resulting storage savings compared with older H.264 equipment.
• Recognition that AI motion filtering cuts down on nuisance alarms and speeds up incident review.
• Requests for multiple SATA bays or higher local display resolution from users planning to scale up or requiring redundancy.

For current, product-specific reviews, check reseller sites, professional installer forums and the manufacturer’s support resources. These sources will show hands-on experiences with firmware updates, compatibility with particular camera models and real retention figures using different HDD sizes.

Conclusion: why the DVR-204U-M1(E) is a strong choice for small sites

The DVR-204U-M1(E) presents a balanced and pragmatic approach for small retail, offices, homes and light commercial applications that need modern compression, basic AI motion filtering and hybrid camera support. Its main strengths are H.265 Pro+ efficiency, Deep‑Learning Motion Detection 2.0 to reduce false alarms, flexible analogue format compatibility and a compact, energy-efficient design. While it does not target high‑end enterprise features such as multiple SATA drives, PoE or 4K local monitor output, it offers an economical upgrade path for existing analogue systems and an easy entry point for projects that plan to mix analogue and IP cameras.

Before purchase, verify required IP channel counts for your planned cameras, choose an appropriate 3.5" SATA HDD (up to 10 TB) for your retention needs, and confirm warranty and compliance details with the vendor. With the right configuration, the DVR-204U-M1(E) delivers a modern, capable and cost-effective recording platform for many everyday surveillance needs.

Note:For full technical details, installation guidance and firmware updates, consult the official product datasheet and user manual provided by the manufacturer, and ensure installations involving mains wiring are performed by a qualified person.
