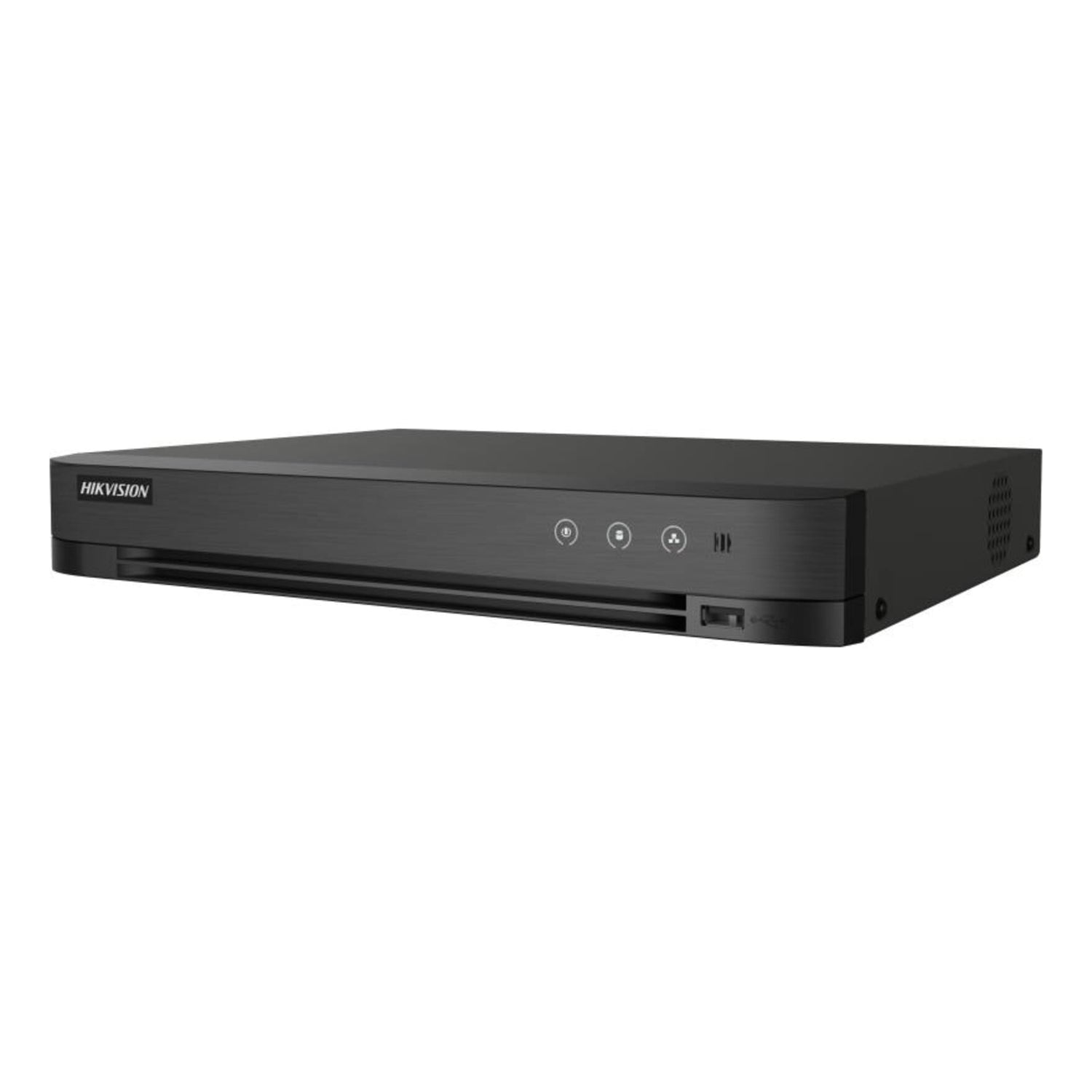

Introduction: Meet the iDS-7208HQHI-M1/XT — an 8‑Channel AcuSense TurboHD Hybrid DVR
The iDS-7208HQHI-M1/XT is an 8‑channel hybrid TurboHD DVR in the AcuSense family designed for small‑to‑medium CCTV installations that need intelligent analytics, efficient storage and flexible camera support. With H.265 Pro/Pro+ compression, hybrid analogue/IP inputs and deep‑learning based AcuSense features (human/vehicle classification, perimeter protection and face picture comparison), this unit targets installers and end users who want improved alarm accuracy, faster forensic search and compact, cost‑effective recording.
Priced to be accessible for mainstream projects (suggested retail ~ $129.99), the unit balances modern video compression, hybrid connection options and Hikvision's analytics toolkit in a 1U form factor with a single SATA bay that supports up to 10 TB of storage.
Key Features at a Glance
- 8 analogue BNC inputs supporting HDTVI/AHD/CVI/CVBS.
- Hybrid support for up to 2–4 IP channels in Enhanced IP mode (up to 12 total channels depending on configuration).
- AcuSense analytics including Motion Detection 2.0 (human/vehicle classification), Perimeter Protection (up to 4 channels) and Face Picture Comparison (2 channels).
- H.265 Pro / H.265 Pro+ compression for reduced storage and bandwidth usage.
- 1 × SATA bay (up to 10 TB) with front and rear USB ports for backup.
- HDMI and VGA simultaneous outputs, two‑way audio support (model dependent), RS‑485 and optional alarm I/O variants.
- Network connectivity via 1 × RJ45 10/100 Mbps, with total throughput up to 96 Mbps and Hik‑Connect/ONVIF support.
Detailed Specifications and Benefits
Understanding the technical specifications helps clarify where the iDS-7208HQHI-M1/XT shines and how it should be deployed. Below are the key specification areas and the practical benefits they deliver.
- Channels: 8 analogue inputs (BNC) plus up to 2–4 IP inputs in Enhanced IP mode; depending on configuration, the system can support up to 12 total channels. Benefit: ideal where legacy analogue cameras remain in place but you want to add a few IP cameras for higher resolution or advanced features.
- Compatibility: HDTVI, HDCVI, AHD and CVBS analogue signals supported. Benefit: wide compatibility with existing installations reduces upgrade costs.
- Motion Detection 2.0 with human/vehicle classification. Benefit: reduces false alarms from vegetation, shadows or small animals and prioritises human/vehicle events for faster review.
- Perimeter Protection for up to 4 channels and Face Picture Comparison for 2 channels. Benefit: targeted security scenarios such as no‑go zones and face matching for specific camera lanes.
- Operational note: Some analytics cannot run simultaneously on the same channels; plan channel allocation to ensure the right cameras use the features you need.
- Compression: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264. Benefit: H.265 Pro+ can significantly reduce storage and bandwidth requirements compared with older codecs while retaining image quality.
- Max resolution: up to 3K/5MP‑lite (varies by signal type and mode). Benefit: sufficient detail for many commercial and retail CCTV needs without the overhead of full 4K in every channel.
- Storage: single SATA bay supporting up to 10 TB and front/rear USB backup. Benefit: compact installs get large capacity; USB backup speeds evidence export without network dependence.
- Network: 1 × RJ45 10/100 Mbps with 96 Mbps total throughput. Benefit: supports remote viewing, backup and cloud services for small to medium camera loads.
- Remote access: Hik‑Connect, DDNS and ONVIF support (up to 64 remote connections). Benefit: flexible remote management and easy integration with third‑party cameras and VMS solutions.
- Outputs: HDMI and VGA simultaneously. Benefit: connect both a local monitor and a control room display without switching equipment.
- Audio: two‑way audio support (model dependent). Benefit: where supported, enables intercom or audio verification workflows.
- Control: RS‑485 for PTZ and optional alarm I/O variants depending on SKU. Benefit: integrates with PTZ cameras and external alarm systems for automated responses.
- Power: 12 V DC, 1.5 A; consumption ≤ 18 W (without HDD). Benefit: low power draw helps deployments with limited power budgets.
- Operating temperature: -10 °C to +55 °C. Benefit: suitable for many indoor and sheltered outdoor cabinet environments.
Use Cases and Scenarios Where the DVR Excels
The iDS-7208HQHI-M1/XT is tailored to a number of real‑world deployments where hybrid support and smart analytics provide tangible value:
- Small retail stores and boutiques — use AcuSense to filter out nuisance alarms and quickly locate human events, making incident review faster and more reliable for managers and loss prevention staff.
- Offices and small commercial buildings — retain legacy analogue door or corridor cameras while adding IP cameras at entrances for higher detail, and use perimeter protection to alert on boundary breaches.
- Light industrial sites and warehouses — leverage hybrid channels to combine wide‑area analogue coverage and a few IP cameras for loading docks or access points; use human/vehicle classification to ignore forklift activity if configured appropriately, or to flag specific vehicle movements.
- SMB installers and integrators — the low cost, single‑bay form factor and familiar interface make the DVR a fast install for customers who want intelligent features without a full NVR overhaul.
How It Compares with Similar Products in the Market
When evaluating the iDS-7208HQHI-M1/XT, it helps to compare it across several dimensions: analytics, hybrid support, compression efficiency, storage and price.
- Vs. older analogue‑only DVRs: The AcuSense analytics and H.265 Pro+ compression are significant upgrades. Older DVRs lack human/vehicle classification and use less efficient codecs, resulting in higher storage and more false alarms.
- Vs. entry‑level NVRs: NVRs offer native IP scalability and often better throughput for high‑resolution cameras, but the iDS hybrid DVR wins for mixed installations where replacing all cameras isn’t feasible. The DVR’s support for multiple analogue formats simplifies phased upgrades.
- Vs. competing hybrid DVRs from other vendors: Feature parity varies. The strengths here are Hikvision’s AcuSense analytics and H.265 Pro+ codec, which are competitive for reducing false positives and storage needs. Some competitors may offer more HDD bays, higher network throughput or different analytics licensing models — consider the project’s channel count and analytics requirements when choosing.
- Price/value: With a suggested retail that aims to be accessible for SMB projects, the unit is positioned as a value option when analytics and hybrid support are priorities without the cost of larger NVR platforms.
Customer Feedback and Installer Notes
While individual customer testimonials vary by region and installer, common themes from installers and small business users reflect the device’s practical strengths:
- Ease of upgrade: Installers appreciate being able to reuse analogue cabling and cameras while adding a few IP cameras to enhance critical views.
- Reduced false alarms: End users often report fewer alarm triggers after enabling AcuSense human/vehicle filtering, which saves time on unnecessary alarm responses.
- Compact, quiet form factor: Businesses with limited rack space value the 1U size and lower power draw, paired with large single‑drive capacity.
Installers also note a few caveats to plan for: confirm the exact SKU for audio/alarm I/O options, allocate channels thoughtfully when using multiple analytics types (since not all analytics can run simultaneously on the same channel) and verify firmware region and warranty specifics with the supplier.
Conclusion: Why the iDS-7208HQHI-M1/XT Is a Strong Choice
The iDS-7208HQHI-M1/XT offers a balanced mix of hybrid connectivity, intelligent analytics and efficient compression that makes it a compelling option for small‑to‑medium CCTV deployments. Its AcuSense features deliver meaningful reductions in false alarms and speed up evidence search, while H.265 Pro+ ensures storage efficiency—important when you’re limited to a single 10 TB SATA bay.
For installers and end users who need to bridge analogue infrastructure with modern IP capabilities, this DVR provides a cost‑effective path to improved situational awareness without replacing an entire camera estate. As with any security purchase, verify the exact model features (audio/alarm variants), plan analytics allocation carefully and follow installation and safety guidelines. When configured and deployed correctly, the iDS-7208HQHI-M1/XT is a practical, feature‑rich recorder that brings smart analytics to everyday surveillance scenarios.
Quick reminder:Check model/variant details, firmware region and warranty terms before purchase, and consult official installation instructions and local electrical safety regulations during setup.
