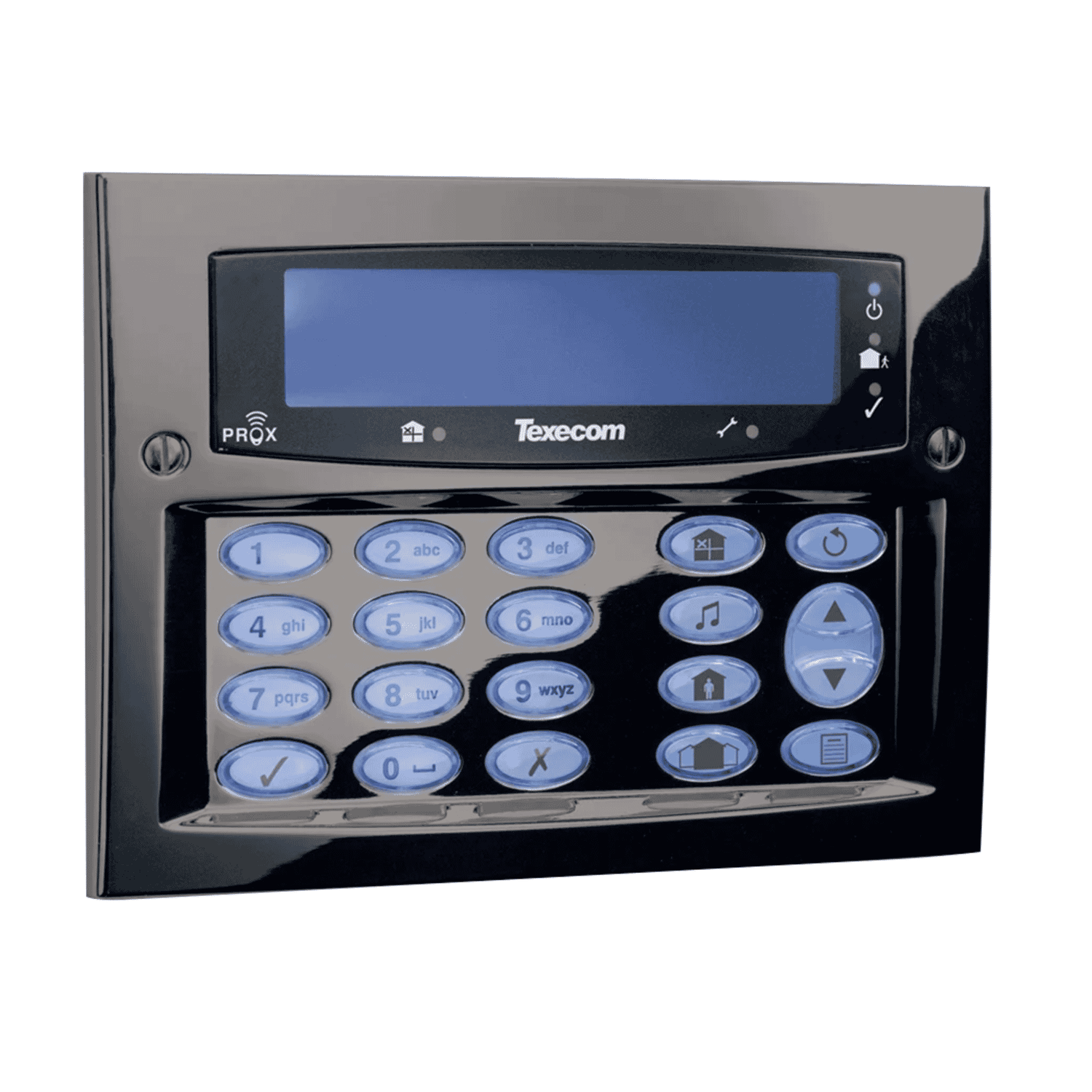

Introduction to the Premier Elite FMK Flush‑Mount LCD Keypad (DBD‑0125)
The Premier Elite FMK Flush‑Mount LCD Keypad in Gunmetal (DBD‑0125) is a professional‑grade wired keypad designed for use with Texecom Premier and Premier Elite control panels. Combining a clear 32‑character blue LCD, fully backlit touchtone keys and an integral proximity tag reader, this keypad delivers an attractive, functional interface for both residential and commercial intruder alarm installations. Its flush‑mount decorative front plate in a gunmetal finish offers a discreet, high‑quality aesthetic suited to modern interiors while meeting high security standards including PD6662 / EN50131 Grade 3 (Class II) and CPNI accreditation.
- Large 32‑character blue LCD with menu system for intuitive status and configuration.
- Touchtone, fully backlit keys with adjustable lighting for operation in all lighting conditions.
- Built‑in proximity tag reader for quick tag arming/disarming (supports Texecom proximity tags).
- Flush‑mount gunmetal decorative plate for a neat, professional installation.
- Extra I/O: two zone inputs and one programmable output plus speaker and extension speaker connection.
- High security approvals: PD6662 / EN50131 Grade 3 (Class II) and CPNI accredited.
Detailed specifications and the benefits they deliver
The DBD‑0125 is engineered to balance usability, appearance and security. Below are its key specifications grouped by category, with the practical benefits each delivers.
- Operating voltage: 9–13.7 V DC — Compatible with standard alarm panel power rails and tolerant to typical supply variations.
- Quiescent current: 90 mA; Alarm current: 110 mA; Fully backlit current: 185 mA; Alarm + backlit current: 205 mA — Clear current figures help installers size power supplies and batteries to ensure reliable operation during normal and alarm conditions.
- Front plate dimensions: 168 × 124 × 7 mm (FMK plate thickness) — Slim, elegant flush profile for discreet wall mounting.
- Surface depth (SMK): 26 mm — Provides reference if surface mounting alternatives are required.
- Finish: Gunmetal flush‑mount decorative plate — Durable, attractive finish that suits modern interiors and commercial environments.
- Display: 32‑character blue LCD with menu system — Enables clear textual feedback, straightforward navigation through system menus and easier interpretation of events and statuses compared to cryptic LEDs.
- Speaker: Integral speaker; extension speaker connection available — Built‑in audio helps with entry/exit tones and audible feedback; option to add an external speaker for louder locations.
- Zone inputs: 2 zone inputs — Useful for local sensors or door contacts dedicated to the keypad area.
- Programmable output: 1 programmable output — Can be configured for local control tasks such as switching a light, door hold, or signaling another system.
- Proximity reader: Built‑in proximity tag reader (Texecom tags supported) — Fast, secure tag operation reduces reliance on PIN entry and speeds routine arm/disarm activity.
- Control panels: Compatible with Texecom Premier and Premier Elite series — Seamless integration with Texecom control panels ensures full feature support and reliable communication.
- Mounting type: Flush‑mount (FMK) — Decorative front plate designed for a neat, professional finish.
- Security grade: PD6662 / EN50131 Grade 3 (Class II); Accreditation: CPNI accredited — Appropriate for higher‑risk installations requiring robust equipment and recognized approvals.
Benefits explained in practical terms
The combination of a readable LCD, tactile backlit keys and a built‑in proximity reader makes daily use straightforward for occupants and staff. The flush‑mount design preserves interior aesthetics while preventing accidental tampering. Detailed current draw specifications let installers size power systems correctly to guarantee reliable operation—especially important in Grade 3 environments where resilience is essential. Finally, the product’s approvals give system designers and end users confidence about compliance with security standards.
Use cases and scenarios where the DBD‑0125 excels
While suitable for many alarm installations, the DBD‑0125 particularly shines in the following scenarios:
- Owners of larger homes who require Grade 3 equipment and prefer an elegant, low‑profile keypad that blends with modern décor will appreciate the gunmetal flush plate and intuitive LCD menus.
- Retail stores, small offices and consultancy suites benefit from the proximity tag reader for staff access and the programmable output for simple integrations (e.g., controlled door release or local lighting).
- Professional installers will value the clear specification of current consumption and the built‑in speaker with extension capability, simplifying configuration for different site acoustics and power budgets.
- Where documented compliance with PD6662 / EN50131 and CPNI accreditation is necessary to meet client or regulatory requirements, this keypad is an appropriate choice.
How it compares with similar products
Understanding how the DBD‑0125 stacks up against alternatives helps select the right keypad for a given installation. Below are common comparison points.
- Flush‑mount LCD keypads like the DBD‑0125 offer a sleeker appearance and more vertical integration into interior finishes than surface‑mount models. A 32‑character LCD delivers more readable feedback and menus compared with LED or small character displays, improving user interaction and reducing training time.
- Having the proximity reader integrated into the keypad simplifies wiring and reduces the number of visible devices. It’s more convenient than relying on separate readers that require additional cabling or placement decisions.
- Grade 3 certification places the keypad in a higher tier for attack resistance and suitability for higher‑risk premises. For locations where enhanced physical security is required, Grade 3 equipment helps satisfy standards and client expectations.
- Wired keypads like the DBD‑0125 provide stable, low‑latency connections and do not rely on RF battery‑powered communications, making them preferable for critical, always‑on installations. Wireless models offer flexibility in placement but can present maintenance overhead (battery changes) and potential RF considerations.
Customer testimonials and representative feedback
Below are representative pieces of feedback commonly reported by installers and end users of this keypad type. These are illustrative of typical responses rather than verbatim endorsements.
- Installer feedback:"The DBD‑0125 is straightforward to mount and commission. The clear current figures made power budgeting on site simple, and customers like the built‑in tag reader."
- Residential user:"We wanted something discreet and easy to use. The blue LCD is clear, and using tags to arm and disarm is much faster than typing in a PIN every time."
- Commercial security manager:"The Grade 3 certification and CPNI accreditation were important for our specification. The flush‑mount finish looks professional in the reception area and integrates well with our panel."
Conclusion — why the Premier Elite FMK (DBD‑0125) is a great choice
The Premier Elite FMK Flush‑Mount LCD Keypad (DBD‑0125) combines a user‑friendly interface, professional aesthetics and high security approvals into a compact, well‑specified device. Its 32‑character LCD and backlit touchtone keys make everyday operation easy for occupants, while the built‑in proximity reader accelerates access control for frequent users. Installers benefit from clear electrical specifications, flexible I/O and the option to add an extension speaker, making the keypad adaptable to a wide range of site requirements.
For projects that require a neat, flush‑mount finish with robust security credentials—whether high‑end homes, retail spaces or sensitive commercial premises—the DBD‑0125 is a compelling choice. With compatibility across Texecom Premier and Premier Elite panels and recognized approvals including PD6662 / EN50131 Grade 3 and CPNI accreditation, it delivers the performance, compliance and finish expected by professional installers and discerning end users alike.
Suggested retail price:191.99 (refer to your supplier for local currency and availability). For safe, standards‑compliant operation, professional installation and commissioning are recommended. Refer to the official Texecom datasheet and installation guide for full wiring, power and mounting instructions.
