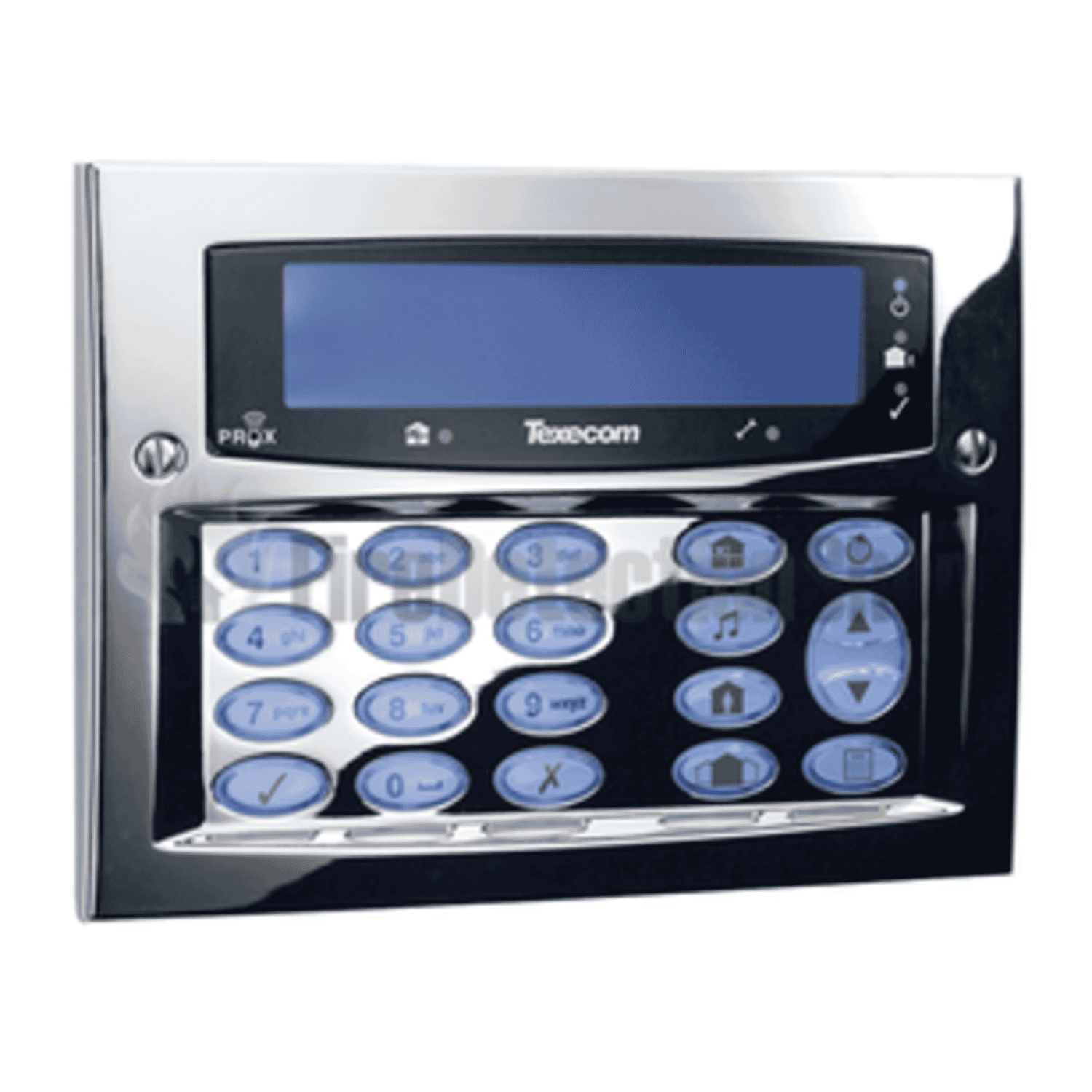

Introduction to the Texecom Premier Elite FMK Keypad (DBD-0121)
The Texecom Premier Elite FMK Keypad (DBD-0121) is a luxury flush-mount security keypad designed for the Premier and Premier Elite intrusion alarm range. Finished in polished chrome, the DBD-0121 pairs refined aesthetics with commercial-grade security: a 32-character blue backlit LCD, touchtone backlit keys, and an integral proximity tag reader for fast, convenient arming and disarming. Certified to EN50131 Grade 3 and associated with the Premier Elite family’s CPNI accreditation, it’s intended for installations where both appearance and performance matter.
Key features at a glance
- 32-character blue backlit LCDwith menu-driven operation for clear status and programming prompts.
- Touchtone fully backlit keyswith adjustable brightness for ease of use in all lighting conditions.
- Integral proximity tag readersupporting Texecom prox tags for quick tag-based arming/disarming.
- Compact flush-mount designwith a polished chrome FMK front plate for a clean, low-profile finish.
- Auxiliary inputs and outputsincluding 2 auxiliary zone inputs, 1 programmable output and an extension speaker connector for audible alerts.
- Commercial-grade approvals— EN50131 Grade 3 and Premier Elite family CPNI recognition.
Detailed specifications and benefits
Below are the technical details that installers, specifiers and buyers will appreciate. These specifications explain not only the keypad’s capabilities but also why they matter in real-world deployments.
- Operating voltage: 9–13.7 V DC — compatible with standard control panel power supplies.
- Current consumption: Quiescent 90 mA; Alarm 110 mA; Fully backlit 185 mA; Alarm + fully backlit 205 mA — predictable power draw that allows for proper system power budgeting and battery sizing.
- 1 programmable output and extension speaker connector — gives installers flexibility to add external annunciation or control external devices.
- Dimensions (FMK front plate): 168 × 124 × 7 mm (flush depth 7 mm) — ultra-low-profile front plate for a refined appearance.
- Surface-mount depth (SMK version): 26 mm — an alternate configuration for installations where flush mounting is not feasible.
- Finish: Polished Chrome (DBD-0121) — a decorative option suited to high-end interiors.
- Mounting: Flush-mount (FMK) — designed to sit neatly within plaster or drywall for a discreet, premium fit.
- Display: 32-character blue backlit LCD — improves readability of status messages and menu-driven operations.
- Keys: Touchtone fully backlit keys (adjustable) — tactile and visible in low-light environments.
- Proximity reader: Integral prox tag reader to support fast, keyless access for authorised users.
- Zone inputs: 2 auxiliary zone inputs — allows local sensor or tamper monitoring expansion at the keypad.
- Approvals: EN50131 Grade 3; CPNI accreditation (Premier Elite family) — suitable for higher-risk commercial applications where stronger assurance of performance is required.
Benefits explained
The benefits of the DBD-0121 span functionality, aesthetics and compliance. For end users, the prox tag reader removes the need to remember codes and speeds everyday operation. For installers and system designers, the keypad’s modest power consumption and flexible IO simplify integration with control panels and external devices. The polished chrome flush plate elevates the appearance of reception areas, executive offices and premium residences where an obtrusive security device would be unwelcome. Finally, Grade 3 certification gives peace of mind in commercial deployments where higher security assurances are necessary.
Use cases and scenarios where the DBD-0121 excels
- Commercial premises with higher security requirements: Retail stores, small offices and commercial units seeking Grade 3-rated hardware will benefit from the Premier Elite quality and the keypad’s compliance credentials.
- High-end residential installations: Specifiers and homeowners who want their security hardware to match refined interiors will appreciate the polished chrome finish and flush-mount profile.
- Multi-user buildings and managed sites: The integral prox tag reader supports fast user turnover and secure access control without frequent code changes.
- Discreet installations: Flush-mount installation keeps the keypad low-profile, reducing visual intrusion while keeping the user interface accessible.
- Systems needing local annunciation or expansion: The programmable output, auxiliary inputs and extension speaker connector make the keypad a compact hub for local functions and alerts.
How it compares with other options on the market
When evaluating the Texecom DBD-0121, it’s helpful to compare by category rather than specific competing SKUs, since needs vary by site and installer preference.
Entry-level consumer keypads typically lack Grade 3 certification, have simpler displays or no proximity capability, and focus on cost rather than durability or compliance. The DBD-0121 stands out with its certified performance level, premium finish, and integrated prox reader — making it more suitable for higher-risk or design-sensitive installations.
Surface-mount models (SMK variants) are often easier to install in retrofits but have thicker profiles and a more utilitarian look. The FMK polished chrome front plate offers a neater aesthetic for new builds or renovations where walls can be flush-mounted. Choose FMK for appearance and SMK where surface mounting is necessary.
Other premium keypad families may match the DBD-0121 on display quality or prox capability, but the Premier Elite’s EN50131 Grade 3 certification and CPNI-recognised pedigree are differentiators for installations requiring formal compliance and assurance. Integration with the Texecom Premier Elite ecosystem is another practical advantage for installers that already spec Texecom control panels and peripherals.
Customer feedback and installer insights
While formal customer testimonials for this specific model may vary by distributor, typical feedback from installers and end users regarding Premier Elite keypads highlights a few consistent points:
- Installers often praise the keypad’s straightforward wiring and predictable power requirements, which simplify system planning and battery sizing.
- End users value the proximity tag convenience and the clear, backlit LCD for status messages — particularly in multi-user environments where speed of access matters.
- Specifiers and interior designers frequently choose the polished chrome finish for sightlines in high-end settings because it complements modern finishes more effectively than standard utilitarian plates.
Note: Specific published customer reviews should be checked via authorised Texecom dealers and installer forums for up-to-date user experiences and ratings.
Pricing, purchasing and installation considerations
The supplied cost and suggested price values are: cost_price = 160.80 and suggested_price = 191.43. The currency and market context were not specified with those figures — please confirm the currency (for example GBP) and target market (United Kingdom, United States, Eurozone) to ensure recommended retail pricing, VAT and installation labour assumptions are accurate. Installation must be carried out by a qualified installer in accordance with local wiring and alarm regulations; always refer to the manufacturer datasheet and site-specific risk assessment when specifying equipment.
Conclusion: Why choose the Texecom Premier Elite FMK Keypad DBD-0121?
The Texecom Premier Elite FMK Keypad (DBD-0121) is a strong choice where a balance of aesthetics, functionality and certified security is required. Its polished chrome flush-mount design makes it suitable for high-end interiors, while the 32-character blue backlit LCD, adjustable backlit keys and built-in proximity reader deliver everyday usability. For commercial installations that demand EN50131 Grade 3 components, or for residential and mixed-use sites seeking a discreet, premium finish, the DBD-0121 provides a professional solution. Confirm pricing and warranty details with your distributor and engage a qualified installer to ensure the keypad is integrated and commissioned correctly for the best performance and compliance outcomes.
