Introduction to the EZVIZ 4‑Piece Home Sensor Kit

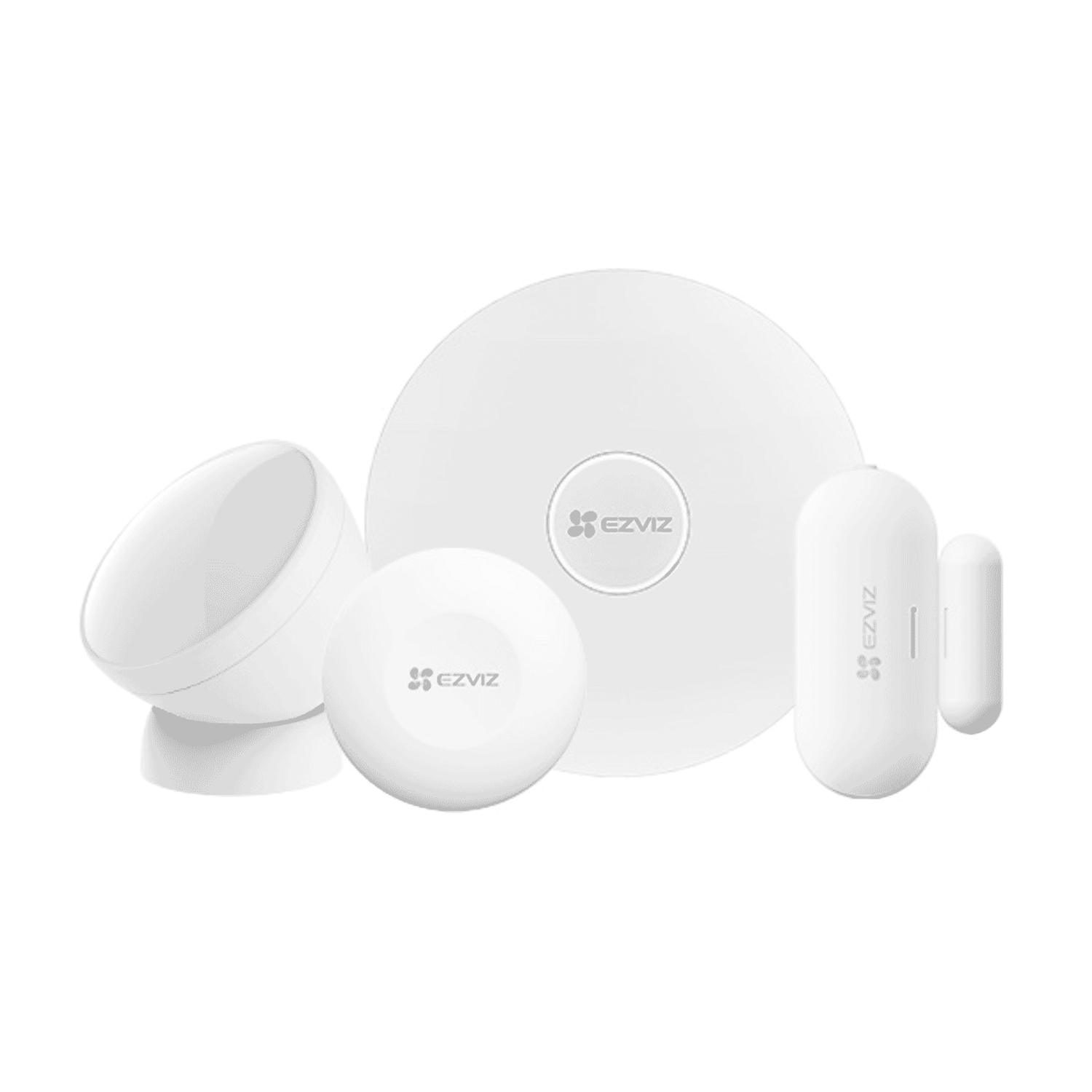

The EZVIZ 4‑Piece Home Sensor Kit (CS‑EZVIZ/SENSORKIT) is a compact DIY smart security starter set designed for homeowners, renters and small offices who want reliable, easy‑to‑install perimeter and motion detection without a complex professional install. The kit bundles a Zigbee‑based A3 Home Gateway with a PIR motion sensor (CS‑T1C), an open/close door‑window sensor (CS‑T2C) and a multi‑function smart/panic button (T3C). When any sensor is triggered the gateway can sound a local audible alarm and send instant push notifications through the EZVIZ mobile app, plus it can work with supported EZVIZ cameras to start recording automatically. In short, it’s a straightforward way to add basic monitoring and smart automation to your space.
Key Features at a Glance
- Complete starter kit: Gateway + PIR motion sensor + door/window contact + smart button.
- Zigbee 3.0 connectivity: Low‑power, reliable wireless link between sensors and gateway.
- Flexible gateway networking: Gateway connects to your home network via Wi‑Fi or wired Ethernet.
- Instant alerts: Mobile push notifications, app control and scheduling.
- Local audible alarm: Gateway emits an alarm when sensors are triggered.
- Battery‑powered sensors: Coin cells included for low‑maintenance operation.
- Camera integration: Trigger recordings on supported EZVIZ cameras for visual verification.
Detailed Specifications and Benefits
Understanding the technical details helps you decide if this kit fits your needs. Below is a consolidated look at the main specifications and what they mean in practice.
- Home Gateway: A3 family (connects sensors via Zigbee and to the internet via Wi‑Fi or Ethernet).
- PIR Motion Sensor (CS‑T1C): Passive infrared detection for motion up to ~7 m and ~90° coverage.
- Open/Close Sensor (CS‑T2C): Compact two‑piece magnetic contact for doors and windows.
- Smart Button (T3C): Emergency/panic, arm/disarm or remote trigger functions.
- Protocol:Zigbee 3.0 — efficient, low‑latency mesh capable of supporting many battery devices while preserving battery life.
- Gateway networking:Use Wi‑Fi or wired Ethernet to reach the internet and bridge sensor events to the EZVIZ app.
- Range:Zigbee communication is typically <200 m in open environments; real‑world indoor ranges depend on walls and interference.
- Supported devices:Varies by A3 gateway firmware/model — many A3 variants list device limits between ~32 and 64 battery devices; check your unit before large deployments.
- PIR (CS‑T1C):Detection up to ~7 m, ~90° horizontal and vertical angle, uses CR2450 battery with about 1–2 years of life depending on use and settings.
- Open/Close (CS‑T2C):Compact body (53.5 × 22.5 × 13.5 mm) with small magnet; powered by two CR1632 cells and rated up to ~2 years at ~30 detections/day.
- Smart Button (T3C):Battery‑powered coin cell, used for emergency or quick arming/disarming within Zigbee range of the gateway.
- Peel‑and‑stick magnetic/adhesive mounting simplifies DIY installation and keeps devices unobtrusive.
- Tamper alarm support on sensors adds a basic anti‑tamper layer (helps detect sensor removal or interference).
- Verify CE/UKCA markings on packaging when required by your market.
- Do not modify mains wiring; follow the manufacturer installation guide and local regulations.
- Local alarm is built into the A3 gateway so you still get audible alerts even if cloud services have brief interruptions.
Benefits — Why these specs matter
The combination of Zigbee sensors with a local gateway brings several practical benefits: low battery consumption (long sensor life), reliable local mesh communication that isn’t solely dependent on cloud connectivity, and the ability to add many sensors to a single gateway for broader coverage. The local audible alarm gives immediate deterrence while push notifications and camera integrations provide remote verification. Peel‑and‑stick mounting and included batteries make the kit ready for quick setup, ideal for users who want protection without professional installation.
Use Cases and Scenarios Where the Kit Excels
This kit is particularly well‑suited for several everyday scenarios:
- Renters and first‑time smart security users:Minimal drilling, non‑invasive mounting and simple app setup make it renter‑friendly.
- Small homes and apartments:A single gateway plus four sensors can cover main entryways and a living area, offering rapid detection and alerts.
- Home office or small retail outlets:Provides after‑hours motion detection and door monitoring without the cost of commercial alarm contracts.
- Complementing existing camera systems:Use the sensors to trigger EZVIZ cameras for event recording—ideal for verifying events without 24/7 recording.
- Emergency or personal safety:The smart/panic button can be placed near a bedside or desk for quick alerts and integration with the gateway alarm.
Comparisons with Similar Products
When evaluating entry‑level smart security kits you’ll encounter choices like Wi‑Fi‑only sensor kits, Bluetooth‑based accessories, or other Zigbee/Z‑Wave ecosystems from brands such as Aqara, Samsung (SmartThings), Ring or Wyze. Here’s how the EZVIZ kit compares in practical terms:
- Vs. Wi‑Fi only sensors:Wi‑Fi sensors often consume more battery and can be less robust at scale. The EZVIZ Zigbee approach uses lower power and supports larger sensor counts per gateway while maintaining responsiveness.
- Vs. Other Zigbee ecosystems (Aqara, SmartThings):EZVIZ focuses on straight‑forward security features with tight integration to its cameras. Some competing ecosystems may offer broader third‑party integrations or advanced automation hubs, but EZVIZ provides easier camera‑triggered recording and a simpler user experience for basic security setups.
- Vs. Camera‑first brands (Ring, Wyze):Those brands often emphasize doorbell/camera ecosystems with optional sensors. EZVIZ’s kit is sensor‑first with a gateway that can trigger cameras—making it a good match if you plan to combine motion/door detection with on‑demand video verification.
Customer Feedback and Reviews
Public feedback from general users highlights a few consistent themes. Many praise the kit for its quick DIY install, reliable push notifications and the convenience of camera integration for event verification. Users also note the long‑lasting batteries and compact sensor sizes that fit nicely on door frames and walls.
Common critiques—where they appear—are centered on the limitations of gateway device counts (so you should check your A3 variant if you plan a large deployment), occasional configuration preferences in the app, and regional differences in smart assistant integrations (Google/Alexa support varies by market). Overall, the sentiment from DIY buyers tends to be positive for those seeking straightforward, affordable perimeter monitoring.
Conclusion — Why Choose the EZVIZ 4‑Piece Home Sensor Kit?
For anyone looking to add easy, effective perimeter and motion detection without professional installation or high recurring costs, the EZVIZ 4‑Piece Home Sensor Kit is a compelling choice. It strikes a balance between battery efficiency (Zigbee), practical local detection (audible gateway alarm), and modern convenience (app alerts and camera integration). The kit’s peel‑and‑stick mounting, included batteries and clear focus on essential security functions make it ideal for renters, small homes, and supplementary protection alongside EZVIZ cameras.
Before purchasing, confirm the A3 gateway’s supported device limit for your needs and verify regional compliance markings if required. Priced competitively as an entry‑level starter pack (suggested retail around $161), it’s a cost‑effective way to get meaningful smart security coverage and build a platform you can expand over time.
