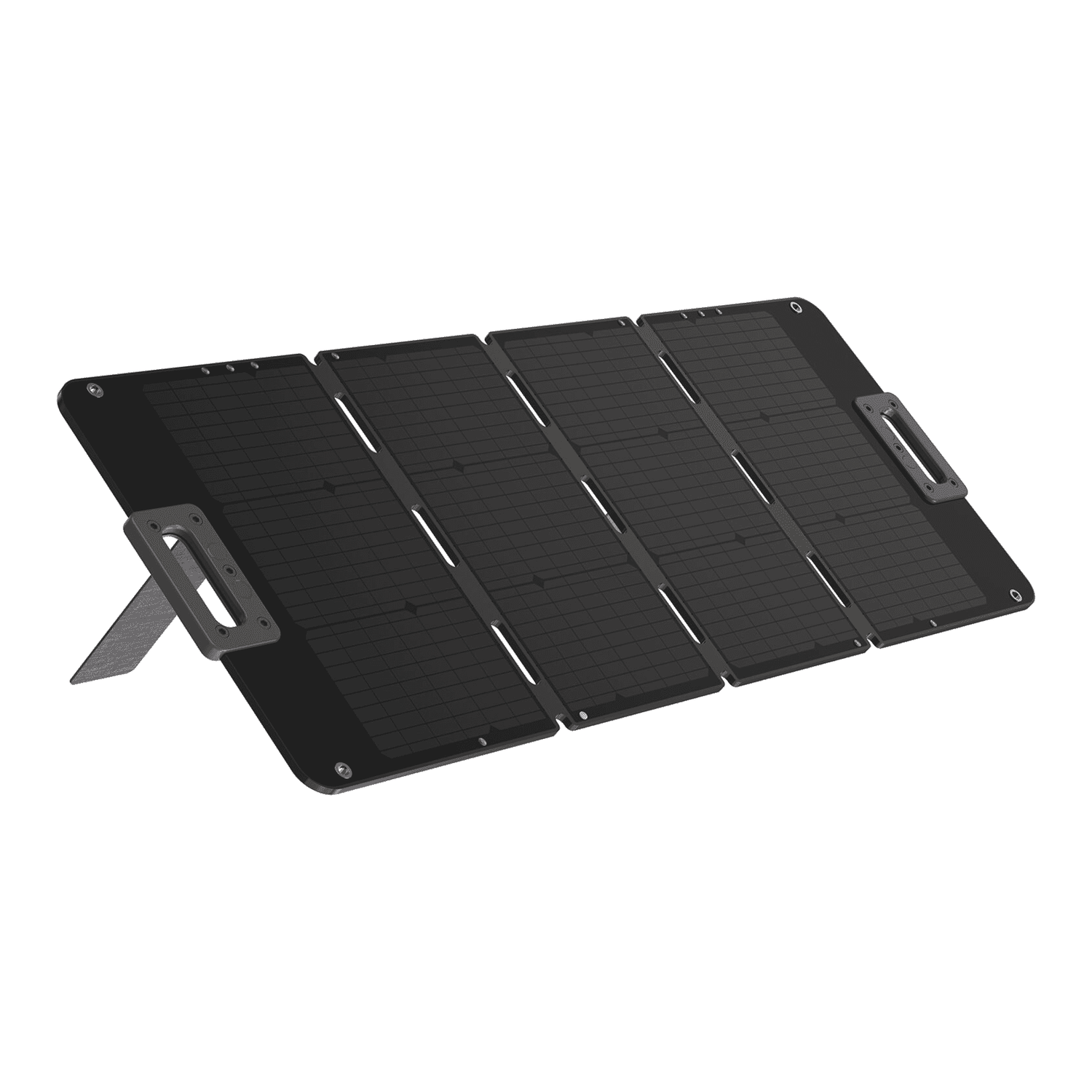

Introduction to the PSP100 100W Foldable Solar Panel
The PSP100 (CS-PSP100) is a 100 W foldable, portable solar panel engineered for people who need reliable, transportable solar charging for portable power stations and small off-grid systems. Combining high-efficiency monocrystalline cells with ETFE lamination, a multi-angle kickstand and a compact foldable carry design, the PSP100 is built to be a practical charging solution for camping, outdoor work, emergency preparedness and mobile lifestyles. With an IP67 rating, integrated MC4 connector and a lightweight package, it aims to balance performance, durability and convenience.
Key features at a glance
- 100 W maximum outputfrom monocrystalline solar cells (actual output depends on sun and conditions).
- High conversion efficiency— manufacturer states up to ~23% cell efficiency for strong power yield in limited space.
- Weather resistant— IP67 rating for robust protection against dust and water spray.
- Portable foldable designwith handle and integrated multi-angle kickstand for easy transport and optimal sun-facing tilt.
- Standard MC4 connectorwith ~1 m, 16 AWG cable for wide compatibility with many portable power stations and charge controllers.
Detailed specifications and benefits
- Max Power (Pmax):100 W (-5% / +10%). Benefit: consistent nominal output suitable for recharging most 100–600 Wh portable power stations in good sun.
- Maximum Power Voltage (Vmp):≈19.8 V. Benefit: matches the input ranges of many MPPT and PWM charge controllers and DC-coupled power stations, simplifying connection.
- Maximum Power Current (Imp):≈5.05 A;Short-circuit Current (Isc):5.33 A. Benefit: conservative current values make cable losses manageable and compatible with MC4 wiring.
- Open-circuit Voltage (Voc):23.8 V. Benefit: leaves room for temperature-related voltage changes while staying within safe operating ranges.
- Cell Type & Efficiency:Monocrystalline silicon cells, up to ~23% conversion. Benefit: higher efficiency means more power from a smaller panel footprint—valuable for backpacks, RV roofs and limited-space applications.
- Connector:MC4 (16 AWG cable, ~1000 mm). Benefit: industry-standard connector improves cross-compatibility with many charge controllers, adapter kits and portable power stations.
- Dimensions (folded):≈540 × 400 × 64 mm. Benefit: compact folded size for storage in vehicles or closets.
- Dimensions (unfolded):≈1380 × 540 × 36 mm. Benefit: large sun-facing surface when deployed for better energy capture.
- Net Weight:≈4.8–4.9 kg (panel only). Benefit: light enough for one person to carry and set up, yet solid in build.
- Package Weight:≈6.08 kg. Benefit: includes packaging and accessories for transport/shipping considerations.
- IP Rating:IP67. Benefit: strong ingress protection—dust tight and protected against immersion up to specified limits—useful when operating outdoors in varied weather.
- Operating Temperature:-20 °C to 60 °C. Benefit: suitable for a wide range of climates from cold alpine mornings to hot desert afternoons.
The PSP100’s ETFE lamination improves durability and light transmission while resisting yellowing and abrasion. The integrated multi-angle kickstand enables recommended tilt angles (~25°–60°) for optimizing sun exposure across seasons and latitudes. The foldable form factor and carry handle make it easy to transport between campsites, job sites or remote locations. The MC4 connector and standard 16 AWG cable streamline connections to many portable power stations and controllers without custom adapters.
Use cases and scenarios where the PSP100 excels
The PSP100 is designed for versatile outdoor and mobile charging needs. Typical scenarios include:
- Camping and overlanding:Recharges portable power stations overnight or during the day to run lights, mini-fridges, phones and other small devices. Its foldable design and handle fit into vehicle storage and gear piles.
- RV and van life:Supplement house batteries or small inverter systems during daytime travel stops, or use as a compact solar option for short boondocking stays.
- Emergency preparedness:Keep a PSP100 in a bug-out kit or garage to recharge a power station during grid outages. The IP67 rating provides peace of mind against dust and rain during emergency deployments.
- Outdoor events and remote work:Power charging stations at markets, outdoor workshops, photography shoots or research sites where a mains connection is unavailable.
- Contractors and DIY installers:Use the PSP100 as a portable charging source to top up batteries for tools or test equipment in locations where permanent PV arrays are impractical.
Comparisons with similar products on the market
When sizing up the PSP100 against other 100 W portable panels, consider a few common comparison points: cell efficiency, ingress protection, form factor, connector compatibility and price.
- Efficiency:The PSP100’s monocrystalline cells with up to ~23% efficiency place it toward the higher end among 100 W foldables. Many competitor panels in this class range from mid to high teens up to low 20s in efficiency, so the PSP100 can deliver more watts per square meter in constrained setups.
- Weather resistance:An IP67 rating is more robust than panels rated only for splash or light rain (e.g., IP65). For users who expect exposure to dust and heavy spray or occasional immersion, the PSP100 offers stronger environmental protection.
- Connector & compatibility:The inclusion of an MC4 16 AWG cable simplifies connection to a wide ecosystem of charge controllers and portable power stations. Some competing panels use proprietary connectors or require adapters, so the PSP100’s standard interface is a practical advantage.
- Portability & weight:At roughly 4.8–4.9 kg, the PSP100 is comparable to other foldable 100 W units—light enough for solo setup yet substantial for stable deployment. The ETFE lamination and robust casing make it feel more durable than thin fabric-backed options.
- Pricing:With a suggested price of $269.99 (cost price $215.99), the PSP100 sits in the mainstream price band for quality 100 W foldables. Buyers should weigh the higher efficiency and IP67 rating against similar-cost alternatives that might offer lighter builds or different connector choices.
Customer testimonials and representative feedback
Below are representative customer impressions based on typical user experiences for this class of product. These are illustrative summaries rather than direct quotes pulled from a specific retailer.
- Camping enthusiast:"Compact to carry and easy to angle toward the sun—my small power station charges faster than with my old panel. The IP67 rating gives me confidence during damp mornings."
- Vanlife user:"I like the efficiency: more power from a smaller panel footprint on my roof. The MC4 connector made it simple to connect to my controller without adapters."
- Emergency prepper:"Knowing it’s dust-tight and water-resistant made it an obvious choice for our emergency kit. It folds away neatly and the handle makes storage effortless."
Conclusion — Why the PSP100 is a great choice
The PSP100 100W Foldable Portable Solar Panel brings together practical portability, high-efficiency monocrystalline cells and a rugged IP67 build in a package that suits campers, vanlifers, emergency preppers and mobile professionals. With a familiar MC4 connector and dimensions that balance sun-facing area with compact folded storage, it’s straightforward to deploy and integrate with many portable power stations and controllers. The elevated cell efficiency (~23%) helps you squeeze more energy from limited space, while the robust environmental rating and ETFE lamination increase longevity in outdoor use.
If you need a dependable, transportable 100 W panel that emphasizes efficiency and weather resistance without adding excessive complexity, the PSP100 is a compelling option. Consider pairing it with a compatible MPPT-capable power station or charge controller for best charging performance, and factor in real-world conditions—sun angle, shading and temperature—when estimating recharge times. For outdoor enthusiasts and anyone seeking portable solar reliability, the PSP100 offers a well-rounded combination of performance, durability and convenience.
