Introduction to the Texecom Premier TD‑W (GBW‑0001) and its key features

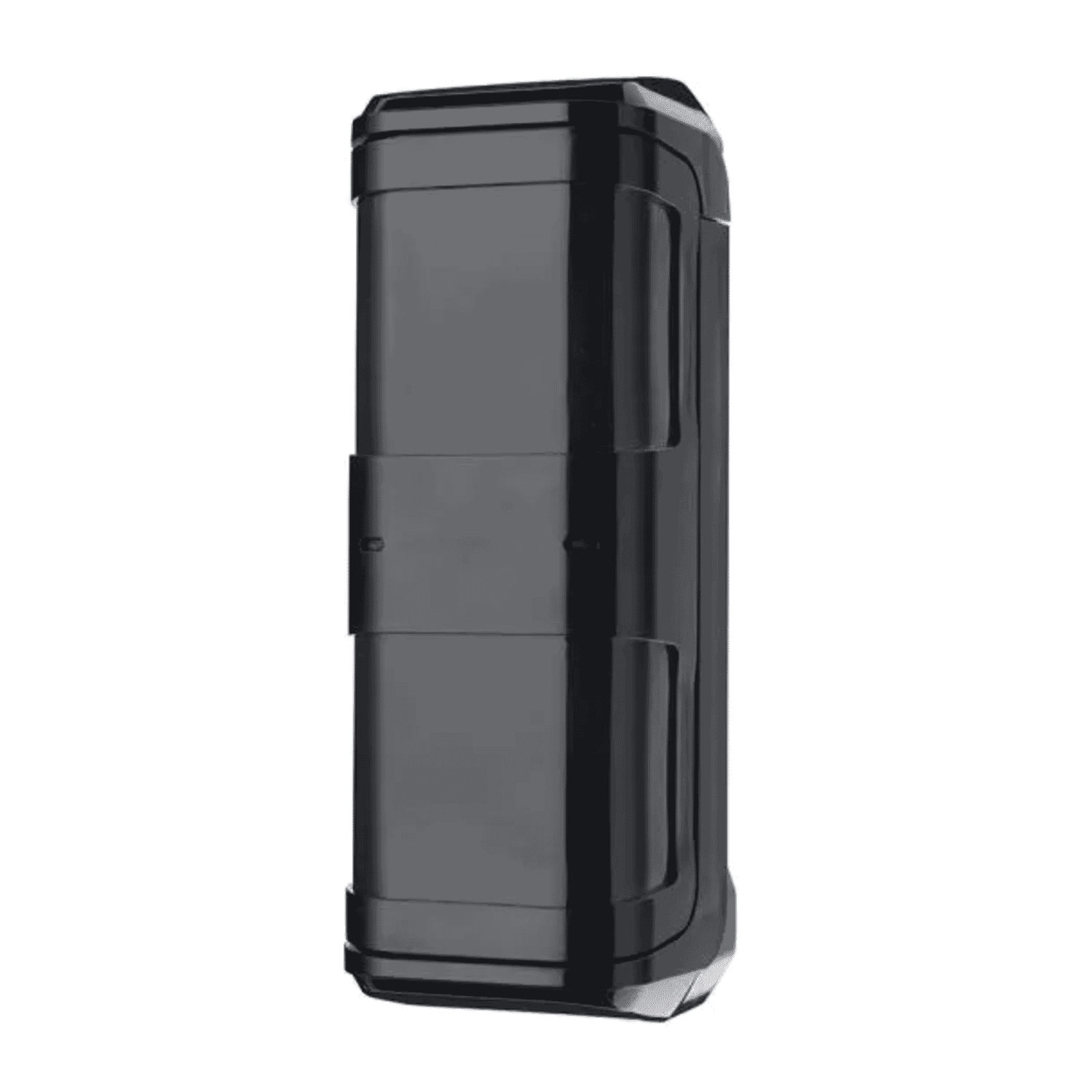

Texecom Premier External TD‑W (GBW‑0001)is a purpose‑built wireless outdoor passive infrared (PIR) motion detector designed for perimeter and external area protection. Combining weatherproof construction, selectable detection ranges and Texecom's Ricochet wireless mesh technology, the TD‑W is aimed at installers and end users who need reliable, low‑maintenance detection outside homes, commercial premises and communal areas. Key features include an IP65‑rated enclosure with conformal coating, dual mirrored PIR optics with selectable ranges up to 12 m, Ricochet 868 MHz wireless mesh compatibility with Premier / Premier Elite control panels, long battery life (up to four years), and tamper monitoring for added security.
Detailed specifications and benefits
The TD‑W’s specification package is compact but thoughtful, reflecting the realities of outdoor detection where robustness and false‑alarm mitigation are paramount. Below are the principal technical specifications, followed by the practical benefits they deliver.
- Range:Up to 12 m (selectable 12/8/5/2 m) — Allows installers to tailor the sensor footprint for short approaches, driveways or broad perimeters, reducing blind spots and avoiding detection of irrelevant zones.
- Coverage angle:90° (unit rotatable through 180°) — Provides focused coverage and the ability to align the sensor to the required patrol path, improving detection accuracy and lowering nuisance activations.
- Detection method:Dual non‑overlapping digital PIR — Mirrored optics help discriminate between genuine intrusions and common outdoor triggers (windblown vegetation, small animals), improving reliability.
- Mounting height:1.0–1.4 m (nominal 1.2 m) — A recommended mounting envelope that balances field of view and sensitivity while making tampering more difficult.
- Supply voltage & battery:3 V DC (2 × 1.5 V AA lithium) with typical battery life up to 4 years — Offers long maintenance intervals, lower running costs and simple battery replacement using widely available cells.
- Current drain:Typical 70 µA — Low power consumption contributes to extended battery life.
- Start up time:60 seconds — Quick commissioning once powered.
- Tamper detection:Wall and case tamper (sealed non‑mechanical switch) — Alerts if the unit is removed or the enclosure is opened, preserving perimeter integrity.
- Ingress protection & coating:IP65 with conformal waterproof coating — Designed to resist rain, dust and condensation for reliable outdoor performance.
- Radio / frequency:Ricochet wireless 868.0–868.6 MHz — Enables mesh networking for robust radio connectivity and range extension across a site.
- Standards:EN50131‑5‑3 Grade 2 Class IV; EMC & R&TTE as per manual — Provides compliance with common alarm system standards; installers should always consult local regulations and the official Texecom manual for full compliance details.
- Operating temperature:Approx. −35°C to +60°C — Built to tolerate extreme outdoor conditions.
- Dimensions & weight:Approx. 250 × 89 × 86.5 mm; approx. 580 g — A compact, lightweight profile that is simple to site and mount.
These specifications translate into clear, practical benefits: precise detection tailored to the site, low maintenance and long battery life, resistance to typical outdoor environmental stresses, and a secure wireless link to compatible Premier systems. The selectable sensitivity, pulse count and day/night modes give installers and end users flexibility to reduce false alarms by adapting the sensor to local conditions.
The inclusion of Texecom Ricochet wireless mesh is a major operational advantage. Rather than relying on a single point‑to‑panel radio link, Ricochet allows wireless devices to form a mesh network where signals can hop between devices to reach the control panel. For larger properties, complex site geometries or areas with RF obstacles, this provides improved resilience and often extends effective range without additional wiring. Note that the TD‑W is compatible with Texecom Premier and Premier Elite control panels that support Ricochet.
Use cases and scenarios where the TD‑W excels
The TD‑W is aimed at perimeter protection and external detection tasks where a blend of sensitivity, environmental tolerance and wireless convenience is required. Typical use cases include:
- Residential perimeter protection:Detection of intruders crossing gardens, lawns or boundary paths before they reach the building envelope — giving homeowners early alerts and time to deter or record activity.
- Driveway and approach monitoring:Triggering lighting or camera recording when a person or vehicle approaches, improving visibility and enabling evidence capture for later review.
- Commercial site perimeter:Protection of fences, yards and compound boundaries around warehouses, depots or offices where cabling is expensive or impractical.
- Gate and access control integration:Used to trigger gate opening logic, CCTV pre‑positioning or external lighting in response to verified movement within the detection zone.
- Supplementing CCTV:Acting as an electronic ‘tripwire’ to start camera recording, reducing review time and ensuring key events are captured.
Because of the selectable detection ranges and sensitivity controls, the TD‑W is also suitable for environments where the detection footprint needs to be tightly controlled to prevent activation by adjacent public pathways or by small fauna.
Comparisons with similar products on the market
When considering outdoor PIR sensors there are a few common comparison points: detection technology, environmental protection, wireless connectivity and maintenance requirements.
- Versus wired outdoor PIRs:Wired devices avoid RF concerns and can be powered continuously, but they require trenching or conduit for cable runs. The TD‑W removes the need for cable installations, making it faster and cheaper to deploy across multiple points, while modern mesh networking mitigates many wireless reliability concerns.
- Versus other wireless outdoor sensors:Competing wireless sensors from other manufacturers often use single‑hop proprietary RF or different mesh protocols. Ricochet’s multi‑hop approach enhances resilience on larger sites where signal paths are obstructed. The TD‑W’s selectable ranges, conformal coating and IP65 rating put it in line with professional external sensors such as those from established security vendors, though specific detection element design (dual mirrored PIR) differs from manufacturers that use multi‑element or passive/active hybrid approaches.
- Versus curtain or beam detectors:Active IR beams and curtain detectors can provide very narrow detection corridors and long ranges, but they require precise alignment and can be vulnerable to obstruction or vandalism. The TD‑W provides a compromise between ease of installation and a wider coverage angle better suited to general perimeter zones.
In plain terms: the TD‑W is particularly competitive when you need a professionally rated, robust wireless outdoor PIR that integrates with Texecom Premier systems. For projects where sensor density, very long single‑line ranges or specific narrow detection geometries are required, other device types may still be appropriate.
Customer and installer feedback (typical observations)
While individual experiences vary by site and installer skill, common themes reported by professional installers and end users include:
- "Reliable outdoor detection with minimal nuisance alarms when sited correctly and adjusted for sensitivity and pulse count."
- "Long battery life — typical installations report months to years between battery changes depending on activity and reporting frequency."
- "Ricochet mesh noticeably improves wireless robustness on larger properties, reducing the need for repeaters or additional wiring."
- "Solid build quality and IP65 protection; the conformal coating has helped units survive exposed and coastal locations."
These statements reflect general installer consensus and common user feedback; for specific references or performance in a particular climate or layout, consult your chosen installer or Texecom documentation.
Conclusion — why the Texecom Premier TD‑W is a strong choice
The Texecom Premier TD‑W (GBW‑0001) is a compact, well‑spec’d outdoor PIR sensor that balances robustness, detection flexibility and wireless convenience. Its selectable detection ranges and mirrored PIR optics help reduce false alarms while ensuring early detection of intruders. The IP65 rating and conformal coating make it suitable for exposed sites, and the low power draw combined with AA lithium batteries offers long maintenance intervals.
Where the TD‑W stands out is its integration with Texecom’s Ricochet mesh and Premier/Premier Elite control panels: the mesh increases resilience across larger or RF‑challenged sites and simplifies multi‑sensor deployments without the cost and disruption of extensive cabling. For residential and commercial installations seeking a professional‑grade, wireless external detector, the TD‑W delivers a practical mix of performance, durability and installer‑friendly features.
As with any security sensor, optimal performance depends on correct siting and configuration. Follow the official Texecom TD‑W installation manual, adhere to local standards, and consult a qualified security installer when in doubt. Check warranty and supply details with your vendor prior to purchase.
