Texecom Premier Elite Odyssey 3‑W Wireless External Sounder Backplate 868 MHz Ricochet GBR-0001

Introduction to the Texecom Premier Elite Odyssey 3-W Sounder Backplate

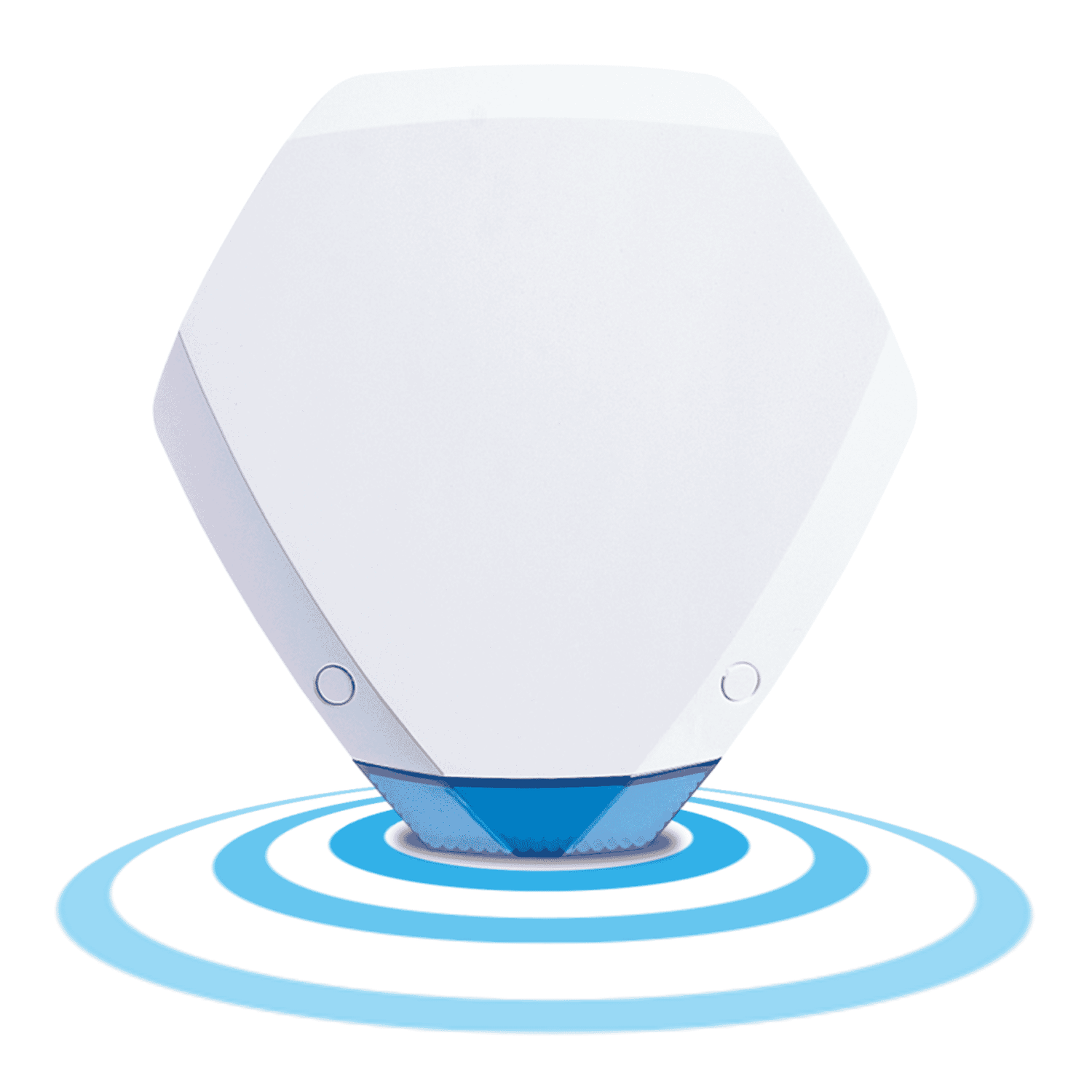

The Texecom Premier Elite Odyssey 3-W (part code GBR-0001) is a purpose-built wireless external sounder backplate designed for use with Premier Elite control panels and Texecom Ricochet mesh systems. Supplied as the backplate only (the outer cover is sold separately), the Odyssey 3-W combines robust wireless signalling, high-output audible and visual deterrents, and installer-friendly commissioning features. Operating on the 868 MHz Ricochet mesh, it is engineered for reliable outdoor alarm applications where clear, immediate alerts and tamper protection are essential.

Key features at a glance

• Ricochet mesh wireless technology (868 MHz)for resilient radio communication across a site.
• High-output piezo sounderdelivering typical acoustic levels of 105–115 dB(A) depending on the specific model and measurement method.
• Xenon strobe(1 Ws) with an approximate 1 Hz flash rate, and selectable comfort LEDs for visual status indication.
• Dual tamper protection(wall and lid) plus engineer modes such as Hold-Off, Low-Current (LC), and SCB for commissioning and reduced panel load.
• Battery-powered for wireless mode— 8 × AA lithium cells supplied, giving a typical life of 2–5 years depending on use and configuration.
• Weather resistantdesign suitable for external installations with appropriate IP rating depending on model marking.

Detailed description of specifications and benefits

The Odyssey 3-W uses Texecom’s Ricochet mesh at 868 MHz, a robust wireless protocol designed to maintain reliable communication across larger properties and around obstacles. The mesh architecture lets devices relay messages via neighbouring nodes, improving coverage and reducing dead spots — a key benefit where wiring is impractical or where retrofits are required.

At the heart of the backplate is a high-output piezo sounder. Typical series values are in the 105–115 dB(A) range, which is loud enough to draw attention and deter intruders while meeting common external sounder expectations. The integrated xenon strobe (1 Ws) provides a bright visual alert at an approximate 1 Hz flash rate. Additionally, selectable comfort LEDs provide status indication at lower brightness (≈100 mcd) and can be configured to alternate at 1 Hz when the unit is tamper-secure — useful for visual verification without the full strobe output.

The unit supports both wired and wireless modes in different installations. Wired supply parameters are 12–16 V DC with a nominal 13.7 V reference, while the supplied wireless configuration uses 8 × AA lithium cells. Battery life typically ranges from 2–5 years depending on duty cycle, power-saving modes, and environment. Quiescent current is around 18 mA typical, with strobe and sounder currents rising during alarm conditions (strobe ≈100 mA typical). Built-in LC and SCB modes allow installers to reduce panel current draw when required.

For security and installation convenience, the backplate incorporates wall and lid tamper microswitches that self-activate on tamper or power loss. Commissioning-friendly features include Engineer Hold-Off (to prevent unwanted alarms during setup), remote test input, and selectable Low-Current or SCB modes. These options reduce the chance of nuisance trips during installation and help manage battery life and panel load in multi-device systems.

The unit is designed for outdoor use with operating temperatures from −25 °C to +55 °C and storage ratings up to +60 °C. Ingress protection varies by model marking (IP44 for some E models; certain variants offer sealed electronics rated to IP65). Installers should consult the Odyssey Series Installation Manual (INS154) for full electrical, wiring, and current draw details, and check product markings or the manual for applicable PD6662 / EN50131 grade/class information.

Use cases and scenarios where the Odyssey 3-W excels

• Retrofits and rental properties:Wireless installation avoids disruptive trunking and cabling work, making the backplate ideal for retrofit installations or properties where running cables is difficult or undesirable.
• Large sites and multi-building setups:Ricochet mesh improves reliability across sites with multiple buildings or obstructions by enabling multiple device hops for signal delivery.
• Outdoor perimeter protection:The combination of a loud piezo and bright xenon strobe is effective for drawing attention to perimeter breaches and assisting response teams in locating incidents quickly.
• Commercial installations with ongoing commissioning:Installer-centric features such as Engineer Hold-Off and remote test inputs make commissioning and maintenance faster and less intrusive.
• Low-maintenance deployments:With 2–5 years of typical battery life in wireless mode and low-current operating options, the device suits deployments where minimizing site visits is a priority.

How the Odyssey 3-W compares with similar products

When comparing the Odyssey 3-W to other external wireless sounders, consider these key differentiators:

• Wireless mesh robustness:Ricochet’s mesh topology often outperforms single-hop proprietary wireless schemes in coverage and redundancy, particularly on sprawling or multi-structure sites.
• Installer features:Many competing sounders provide basic alarm outputs but lack advanced commissioning modes like Hold-Off and SCB/LC, which help reduce false alarms and extend battery life.
• Modularity:The Odyssey is sold as a backplate with the cover separate, allowing flexibility in choosing different housing styles or spares — useful for installers who stock multiple cover types or want to replace a plate only.
• Sound and strobe balance:The audio output (≈105–115 dB(A)) and xenon strobe combination align well with market expectations for external deterrents; other products may offer similar decibel ratings but differ in strobe intensity, battery options, or IP rating.

That said, some competitor units include integrated covers, alternative battery chemistries, or different frequency options. When choosing, match features to site requirements: mesh capability, ingress protection level, battery life, and compliance grade should all be considered.

Customer feedback and installer comments

While individual reviews vary, common themes reported by installers and end users include appreciation for the Odyssey 3-W’s reliable Ricochet connectivity and practical commissioning modes. Installers often cite the battery-saving LC/SCB options and Engineer Hold-Off as time-savers during setup. End users value the audible and visual clarity of the alarm when tested, and the long expected battery life in wireless installations.

If independent customer testimonials are required for a purchasing decision, request site references from suppliers or review case studies provided by Texecom or authorised distributors. Always verify model markings and installation manuals for compliance claims and performance data.

Conclusion: why choose the Texecom Odyssey 3-W backplate?

The Texecom Premier Elite Odyssey 3-W (GBR-0001) is a compelling choice for anyone seeking a reliable, installer-friendly wireless external sounder solution. Its Ricochet mesh technology enhances signal resilience across complex sites, while the combination of a high-output piezo sounder, xenon strobe, and selectable comfort LEDs delivers both audible and visual deterrence. Commissioning-focused features, dual tamper protection, and flexible power options make it a practical pick for retrofits, commercial installations, and low-maintenance deployments.

Always consult the Odyssey Series Installation Manual (INS154) and check product markings for IP rating and compliance details before installation. For projects where reliable wireless signalling, easy commissioning, and effective external deterrence are priorities, the Odyssey 3-W backplate is a strong, cost-effective option to consider.
