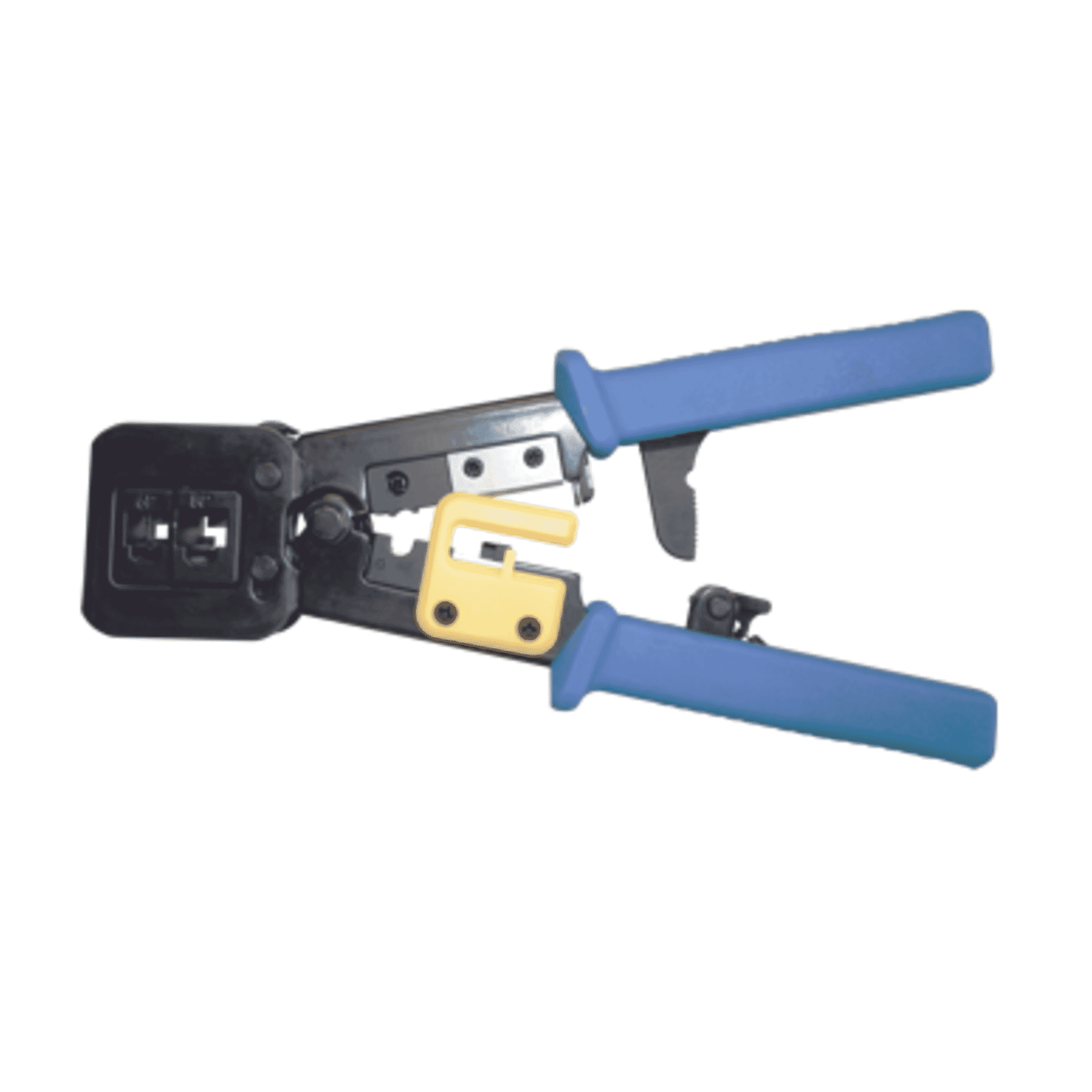

Introduction to the Haydon EZRJ45T Ratcheting EZ‑RJ45 Crimp Tool
The Haydon EZRJ45T (SKU: ITM001108) is a purpose‑built ratcheting crimp tool designed for fast, consistent terminations of EZ / pass‑through RJ‑45 modular plugs. Combining a single‑cycle crimp and trim action with a straight‑action ratchet mechanism, this tool aims to speed up field terminations while delivering repeatable results. With a corrosion‑resistant steel body, ergonomic polypropylene handles and an integrated trimming blade, the EZRJ45T is clearly targeted at network installers, CCTV and AV technicians, and anyone who regularly terminates Cat5/5e and Cat6 pass‑through plugs.
Key features at a glance
- Single‑cycle crimp & trim:Crimps and trims conductor tails in one straight/ratcheted cycle for consistent terminations.
- Ratcheting straight‑action mechanism:Ensures uniform force and reduces the risk of under‑ or over‑crimping.
- Integrated cutter/trimming blade:Removes conductor tails flush with the plug face for a clean finish.
- T568A/B wiring guide:Laser‑marked on the tool to help verify wiring order during termination.
- Rugged construction:Tool steel body with corrosion‑resistant finish and comfortable PP handles.
Detailed specifications and benefits
Understanding the physical and functional specifications helps clarify why the EZRJ45T performs well in typical installation environments. Below are the tool's core specifications followed by the practical benefits each delivers.
- Manufacturer / Model:Haydon EZRJ45T / ITM001108
- Product type:EZ‑RJ45 crimp tool (pass‑through / EZ style)
- Compatibility:EZ‑RJ45 Cat5/5e and EZ‑RJ45 Cat6; compatible with most RJ11/RJ12/RJ45 plugs (note: AMP style may be excluded)
- Wiring guide:Laser‑marked T568A/B wiring guide
- Functions:Single‑cycle crimp and trim, integrated cutter, ratcheting straight‑action
- Materials:Tool steel body with corrosion‑resistant finish; polypropylene handle components; SK5 steel trimming blade (reseller spec)
- Physical size & weight:Approx. 220 x 65 x 20 mm; ~478 g
- SKU / Price guide:ITM001108 — suggested retail price around $59.99 (cost price indicated as $36.00 on reseller data)
- Time savings:The single‑cycle crimp and trim eliminates the extra step of cutting conductor tails after crimping, speeding up each termination and making long runs much more efficient.
- Repeatability & reliability:The ratcheting straight‑action ensures a controlled, repeatable crimp every time, which reduces rework and improves overall link reliability.
- Cleaner terminations:The integrated cutter leaves conductor tails flush with the plug face for a professional appearance and better fit in patch panels and jacks.
- Ergonomics & durability:Comfortable polypropylene handles reduce hand fatigue on large jobs, while a corrosion‑resistant tool body extends service life for field use.
Use cases and scenarios where the EZRJ45T excels
The Haydon EZRJ45T is tailored to installers who prioritize speed, consistency and professional results. Typical environments and scenarios include:
- Structured cabling installations:During patch panel and outlet terminations in commercial and residential deployments, the EZRJ45T speeds up mass terminations while maintaining quality.
- CCTV and security camera installs:Installers using pass‑through RJ‑45 plugs to accelerate field terminations will value the one‑step crimp/trim to get cameras online quickly.
- AV systems and live event setups:Audio/visual integrators who frequently terminate cable on site benefit from the consistent crimps and quick turnover.
- On‑site repairs and maintenance:For quick cable repairs where time is limited, the pass‑through capability reduces chance of miswired or incomplete crimps.
- Training and multi‑tech teams:The laser‑marked T568A/B guide assists less experienced technicians in maintaining correct wiring sequences under pressure.
Comparisons with similar products on the market
EZ style, pass‑through crimp tools are a common category with several reputable competitors. Comparing core aspects helps highlight where the EZRJ45T stands out and where installers may choose alternatives.
- Platinum Tools EZR/100004 (example family equivalence):Platinum Tools is a frequently cited market leader for EZ crimp tools. The EZRJ45T is described as form/function equivalent to common EZ‑RJ45 tools like Platinum's P/N 100004, meaning both aim to provide single‑cycle crimp & trim with pass‑through compatibility. Differences typically show up in handle comfort, finish, and price point. Haydon positions the EZRJ45T as a durable, cost‑effective alternative.
- Non‑ratcheting cheap crimpers:Low‑cost non‑ratcheting tools are cheaper but carry a higher risk of inconsistent crimps and are less suitable for high‑volume work. The EZRJ45T’s ratcheting action offers a measurable advantage in reliability.
- High‑end modular crimpers:Premium tools may offer additional features like replaceable blades, broader plug compatibility or crimp force adjustments. If those extras are critical for a specific workflow, a higher‑priced tool might be justified. For many installers, the EZRJ45T’s balance of functionality and suggested retail price (~$59.99) is compelling.
In short, if you need steady performance, pass‑through compatibility and a professional finish without paying top‑tier prices, the EZRJ45T competes strongly against both budget and premium alternatives.
Customer testimonials and real‑world impressions
Reseller pages supplied for this product did not include verified customer reviews. However, based on the tool’s features and typical installer feedback for similar EZ‑style crimpers, common themes likely to appear in well‑informed user feedback include:
- Speed:Installers often praise the time saved by single‑cycle crimp & trim when terminating multiple runs in a day.
- Consistency:Ratcheting mechanisms routinely receive positive notes for delivering uniform crimps and fewer failed terminations.
- Fit and finish:Users typically comment on the cleanliness of trimmed conductor tails and the professional appearance when inserted into patch panels or jacks.
- Value:At a suggested retail price of around $59.99, many technicians see such tools as a cost‑effective upgrade from basic crimpers given the time savings and reduced rework.
If you require verified customer reviews, check online reseller listings, installer forums and product pages for up‑to‑date buyer impressions and ratings.
Safety, compliance and maintenance notes
- Safety:Use the tool only for modular plug termination. Keep hands clear of cutting surfaces and wear eye protection when trimming conductor tails. Do not work on live mains or powered data links — always ensure cables are de‑energised.
- Compliance:The supplied reseller data indicated insufficient information regarding CE/UKCA markings. Consult the manufacturer datasheet or contact Haydon for regulatory and certification details required for certain projects or regions.
- Maintenance:Keep the trimming blade clean and free of copper debris. Periodic inspection of the ratcheting mechanism, pivot points and blade will prolong tool life. Store in a dry place to prevent corrosion despite the tool’s corrosion‑resistant finish.
Conclusion: Why the Haydon EZRJ45T is a strong choice
The Haydon EZRJ45T ratcheting EZ‑RJ45 crimp tool delivers the key combination of speed, repeatability and clean results that professional installers need. Its single‑cycle crimp & trim and ratcheting straight‑action mechanism reduce rework and improve throughput on medium to large termination tasks. Built from tool steel with an integrated trimming blade and laser‑marked wiring guide, the EZRJ45T provides the core features most installers rely on while remaining competitively priced at a suggested retail of about $59.99.
For network technicians, CCTV and AV installers who regularly use pass‑through RJ‑45 plugs to accelerate deployments, the EZRJ45T is a practical, well‑rounded tool. If you need advanced features such as adjustable crimp force, replaceable blades or guaranteed compatibility with every AMP‑style plug, evaluate higher‑end models; otherwise the EZRJ45T is likely to meet the needs of most field termination workflows while offering good value for money.
To confirm regulatory marks, warranty details and to download instruction sheets, consult the manufacturer or official reseller documentation before purchase. For installers seeking dependable, repeatable EZ‑style terminations without a premium price, the Haydon EZRJ45T is a compelling option.
