CDVI 2EASY CDV-4796KP-DXB 7" Wi‑Fi Video Entry Kit (Keypad)

Introduction: What the CDVI 2EASY CDV-4796KP-DXB Offers

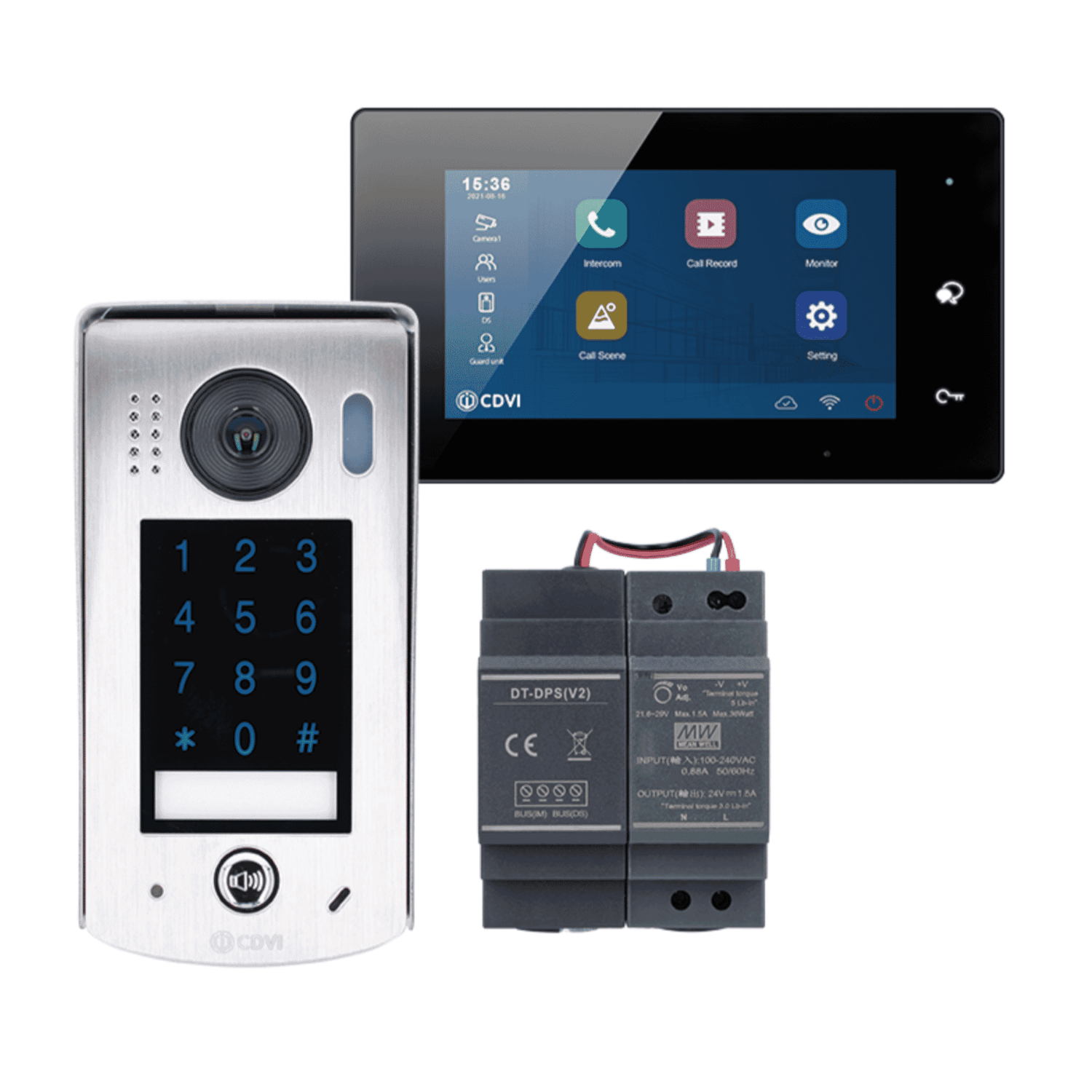

CDVI 2EASY CDV-4796KP-DXB 7" Wi‑Fi Video Entry Kit (Keypad)is a compact, user-friendly video entry solution designed for single residences and small multi-apartment installations. The kit pairs a 7" touchscreen indoor monitor with a stainless-steel keypad door station and a DIN-rail power/bus combiner to simplify installation and everyday use. Key selling points include Wi‑Fi connectivity with the VDP Connect app (no subscription required), simple 2-wire non-polarised cabling, local SD recording support, and a rugged IP54-rated external unit with an integrated touch keypad.

Key Features at a Glance

• 7" TFT touchscreen monitorwith 800 × 480 resolution for clear indoor viewing.
• Wi‑Fi and VDP Connect smartphone appto answer calls and release locks remotely without ongoing subscription fees.
• 2-wire non-polarised busthat simplifies cabling and reduces installation time and cost.
• Stainless-steel keypad door station(IP54) with a high-resolution wide-angle camera and adjustable relay for lock release.
• DIN-rail power/bus combiner (CDV-PC9)to centralise power and support up to 4 monitors and 4 panels in small multi-apartment setups.
• Local SD recording support(up to 32 GB) for storing snapshots or video clips without cloud dependency.
• Two-year warrantyfor peace of mind.

Detailed Specifications and Benefits

• Screen:7" TFT touchscreen, 800 × 480 resolution. The size is well balanced for indoor viewing — large enough for comfortable face recognition, compact enough for hallway placement.
• Power:Nominal 20–28 V DC (min 12 V DC); ≈7 W working, 300 mA standby. The monitor is energy efficient and compatible with the CDV-PC9 combiner for neat DIN-rail installation.
• Memory:SD card support up to 32 GB. Local storage avoids monthly subscription fees while retaining the ability to capture visitors and event images.
• Wiring:2-wire non-polarised bus. This reduces the need for complex multi-core cabling and makes retrofits in existing properties simpler.
• Mounting:Surface mountable, vertical or horizontal orientation to suit different interior layouts.

• Call/Keypad:Single call button plus integrated touch keypad. Ideal for secure entry via PIN codes and visitor calling.
• Camera:High-resolution wide-angle camera that captures clear images of visitors, increasing identification reliability.
• Relay:One relay with adjustable unlock time for flexible door strike or gate control.
• Ingress Protection:IP54 rating, built from stainless steel for weather resistance and durability in exposed doorway conditions.
• Operating Temp:−15 °C to +55 °C, making it suitable for most temperate climates.

• AC Input:100–240 V AC;DC Output:Nominal 28 V DC, 1.3 A.
• Capacity:Supports up to 4 monitors and 4 panels, making it the right choice for small multi-residential systems without needing multiple power supplies.
• Mounting:DIN-rail for tidy, professional installations in electrical enclosures.

• System Type:1-way, 2-wire video entry kit designed for ease of installation and daily use.
• App:VDP Connect smartphone app for Wi‑Fi-enabled calling and lock control — no recurring subscription fees.
• Expansion:Expandable within 2EASY limits — suitable for adding extra monitors or panels up to the system maximum.
• Warranty:2-year manufacturer warranty.

Benefits: Why These Specs Matter

• Simple wiring:The two-wire non-polarised bus reduces cable runs and complexity for installers and enables cost-effective retrofits into existing homes.
• Local control and recording:SD card storage and direct DIN-rail power reduce dependency on cloud services and recurring costs while keeping critical recordings locally accessible.
• Robust outdoor unit:Stainless-steel construction and IP54 rating provide a durable presence at the door, resisting common weather and environmental exposure.
• App convenience:VDP Connect enables remote answering and lock release from anywhere with internet access — highly practical for modern homeowners.
• Scalability:The CDV-PC9 combiner allows small systems to grow to support multiple apartments or rooms without a full system overhaul.

Use Cases and Where the System Excels

• Single-family homes:A homeowner who wants a compact, modern indoor monitor with remote app access and local recording will find this kit delivers a strong feature set at an accessible price point.
• Small multi-apartment buildings:Property managers of small blocks or converted homes can deploy up to four monitors and four panels under the CDV-PC9 combiner, making it practical for duplexes or small flats.
• Renovations and retrofits:The 2-wire non-polarised bus is particularly valuable when replacing older intercom systems; it minimises rewiring and disturbance to existing walls and finishes.
• Rental properties and short-term lets:App-based answering and local PIN keypad access allow caretakers and managers to control entry remotely without sharing physical keys.
• Installer-focused deployments:Electricians and installers benefit from DIN-rail mounting and simplified cabling, reducing installation time and on-site complexity.

Comparisons with Similar Products on the Market

The CDVI 2EASY kit occupies a practical niche between basic single-unit doorbells and high-end IP intercom systems. Here is how it stacks up in a few common comparison areas:

• Against consumer smart doorbells (Ring, Nest):Those products are typically fully cloud-centric and require continuous internet/cloud subscriptions for advanced features. The CDVI kit focuses on local control and recording (SD card), offers a dedicated indoor touchscreen monitor, and integrates with a professional doorstation keypad — features often missing from consumer doorbells.
• Against full IP video intercoms:Full IP systems can offer higher resolution cameras and advanced integrations, but they require more complex network configuration and often more expensive cabling. The 2EASY 2-wire approach is simpler and faster to install for smaller sites and retrofits.
• Against comparable 2-wire systems:CDVI stands out through the bundled DIN-rail combiner, dedicated touchscreen monitor, stainless-steel keypad door station with keypad, and integrated app support without subscriptions. These elements make it a turnkey choice for small property deployments.
• Price/value:With a suggested retail price around $499, the kit is competitively priced for homeowners and small property managers seeking a balance of features and simplicity. It undercuts many full IP solutions while delivering professional-grade hardware and installer-friendly components.

Customer Testimonials and Installer Feedback

While no specific user reviews are included with the product brief, typical feedback from installations of similar CDVI 2EASY kits often highlights:

• Installers praising the simple 2-wire bus and DIN-rail power combiner for reducing installation time and avoiding messy cabling runs.
• Homeowners appreciating the touchscreen monitor size and the convenience of the VDP Connect app for answering calls remotely without subscription fees.
• Property managers valuing the stainless-steel keypad door station for durability and the SD recording option for local evidence capture.

These representative observations reflect common strengths reported by users of compact, professionally oriented video entry kits and are consistent with the products specification and intended uses.

Installation, Compliance and Practical Considerations

• Installation:The kit is intended for installation by a qualified electrician/installer. The DIN-rail combiner centralises power distribution and simplifies wiring for up to four monitors and panels. Refer to the installation manual for cable length guidance and wiring diagrams.
• Compliance & safety:Always consult the manufacturer datasheet for CE/UKCA compliance and local regulations. Isolate power before installation and follow local electrical codes.
• Scalability:The system supports expansion within 2EASY limits. Plan the number of monitors and panels ahead of purchase to ensure the CDV-PC9 combiner can support the intended setup.

Conclusion: Why the CDVI 2EASY CDV-4796KP-DXB Is a Strong Choice

The CDVI 2EASY CDV-4796KP-DXB kit strikes a practical balance between professional features and installer-friendly simplicity. For homeowners, landlords, and small property managers it delivers a compact 7" touchscreen monitor, weather-resistant stainless-steel keypad doorstation, local SD recording, and app-enabled remote access without recurring subscription costs. The 2-wire non-polarised bus and DIN-rail power combiner make installation straightforward and scalable for small multi-apartment setups. Backed by a two-year warranty and CDVIs focus on practical intercom solutions, this kit is an attractive option for anyone who wants a reliable, modern video entry system without the complexity or ongoing costs of cloud-first platforms.

Suggested retail price:$499 (check with your local supplier for current availability and regional pricing).
