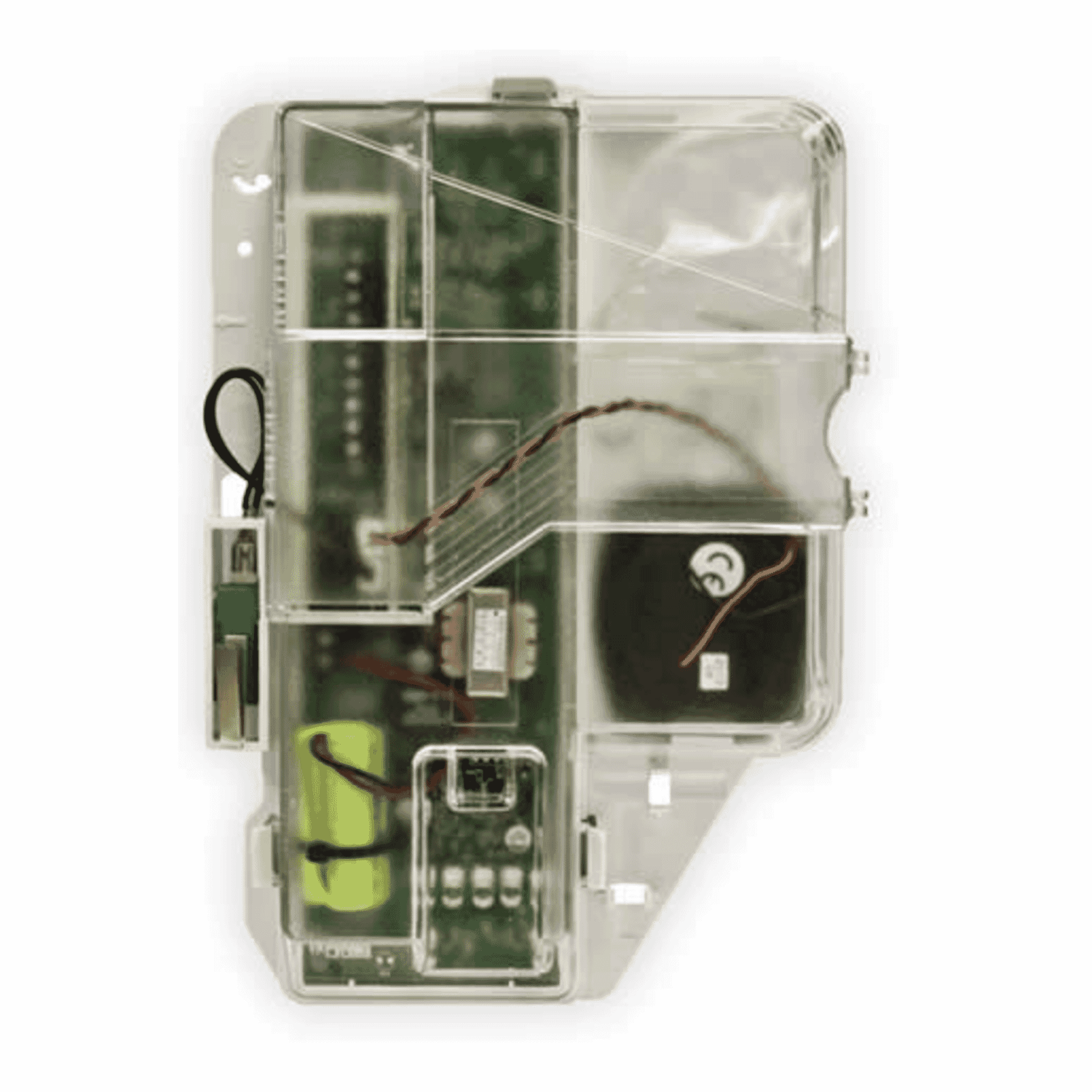

Introduction to the Deltabell E External Sounder Module
The Deltabell E Grade 3 External Sounder Module (FPDELTAE3MOD) is a weatherproof, wired alarm signalling device designed for demanding intruder alarm installations. Combining an audible piezo sounder with an LED strobe, internal battery backup, multiple tamper protections and installer-friendly features, the Deltabell E is intended for use where robust external alarm notification and compliance with Grade 3 security requirements are needed. With an IP65-rated dual-skin polycarbonate enclosure and a siren level listed at 104 dB, it offers a balance of deterrent power, durability and practical installer features at a competitive price point.
Key features at a glance
- Audible and visual deterrent:Piezo sounder combined with an LED strobe and comfort LED for clear external signalling.
- Grade 3 security:Designed for higher-risk premises where enhanced resistance is required.
- Weatherproof construction:IP65-rated dual-skin polycarbonate housing with sealed inner cover to protect electronics.
- Tamper protection:Front, rear and power tampers plus sealed inner cover tamper for multiple fault signals.
- Battery backup:Internal NiMH 7.2 V, 250 mAh battery to support SAB/SAC operation and fault monitoring.
- Noise compliance:Siren auto cuts off after 15 minutes to meet noise regulation requirements; strobe remains until reset.
- Engineer facilities:On-board and remote engineer hold-off to simplify commissioning and servicing.
- Installer-friendly:Built-in spirit level and revolving guide holes for straightforward mounting.
Detailed specifications and benefits
- Model:Deltabell E FPDELTAE3MOD
- Product type:External sounder / bell module
- Security grade:Grade 3 (variant dependent; suitable for EN50131-1 systems)
- Environmental class:Class IV
- Sound pressure:Manufacturer listing 104 dB(A) (note: some datasheets show 109 dB; check your supplier datasheet for exact measurement method).
- Number of piezos:1
- Strobe:LED strobe operating at approximately 1 Hz with pulse durations that vary by source.
- Siren cut-off:15-minute automatic siren cut-off to limit prolonged noise while maintaining visual alarm signalling.
- Operating voltage:9–16 V DC (13.5 V nominal)
- Quiescent current:Manufacturer listings vary, typically reported between <30 mA and 50 mA.
- Alarm current:Typically <250 mA
- Battery:Internal NiMH 7.2 V, 250 mAh for SAB/SAC operation and fault reporting in case of mains loss.
- Dimensions (H×W×D):290 × 285 × 50 mm
- IP rating:IP65 — dust-tight and protected against water jets, suitable for exposed external mounting.
- Housing:Dual-skin polycarbonate with sealed inner cover to shield PCBs from moisture and tampering during routine weather exposure.
- Operating temperature:Certified -25 °C to 60 °C (nominal -30 °C to 60 °C).
- Tamper protection:Front, rear and power tamper switches plus sealed inner cover tamper for layered anti-tamper reporting.
- Engineer hold-off:On-board facility and remote input allow engineers to work without triggering audible alarms.
- Mounting aids:Built-in spirit level and revolving guide holes speed up installation and ensure accurate alignment.
- Warranty:2 years (manufacturer stated).
Benefits: why these specifications matter
The combination of a sufficiently loud piezo sounder and a highly visible LED strobe makes the Deltabell E effective both as a deterrent and as a way to attract attention during an alarm event. The IP65-rated enclosure and sealed inner cover mean the module withstands weather exposure common to external mounting: rain, wind-driven moisture and dust are unlikely to compromise performance when installed correctly.
Multiple tamper points make it harder for intruders to defeat the alarm without leaving evidence of interference, while internal battery backup ensures the device can continue to signal or report faults if the main system supply is compromised. The 15-minute automatic siren cut-off is a practical feature to reduce nuisance noise and to help installers meet local noise regulations without removing the visual strobe alert.
From an installer perspective, the engineer hold-off, integrated spirit level and mounting guides reduce on-site time and potential call-backs, improving reliability and lowering labour costs. For end users, the device represents a low-complexity, robust component suitable for a range of wired intruder alarm systems at a modest price point (suggested retail: £27.50).
Use cases and scenarios where the Deltabell E excels
- High-risk domestic properties:Homes requiring Grade 3 signalling — for example, properties in areas with elevated burglary risk — benefit from the visible and audible deterrent of the Deltabell E.
- Small commercial and retail premises:Shops and small offices that need a weatherproof external alarm module to comply with insurance or local security requirements will find the Deltabell E appropriate.
- Remote or exposed installations:Buildings on rural sites, outbuildings and facilities exposed to the elements where IP65 protection and internal battery backups help maintain signalling during adverse weather or power loss.
- Installations requiring noise management:Locations near residential areas or noise-sensitive environments where the 15-minute siren auto cut-off helps keep complaints to a minimum while preserving visual alerting.
- Systems where tamper reporting is important:Sites requiring layered tamper detection (front, rear, power and inner cover tamper) for compliance or forensic evidence gathering.
Comparisons with similar products on the market
External sounders fall into several categories: simple horns and bells, combined sounder/strobe modules, wireless sounders and high-output horns for very large sites. The Deltabell E sits in the combined sounder/strobe category with a focus on Grade 3 wired systems and weather resistance.
Compared with high-output horns, which can exceed 110 dB, the Deltabell E (manufacturer-listed 104 dB) is moderately less loud but offers the advantage of a sealed, tamper-protected enclosure with internal battery backup and an LED strobe. Against compact wireless sounders, the Deltabell E provides the reliability and continuous signalling capabilities of a wired solution with battery fallback — preferable in locations where RF reliability or battery replacement cycles are a concern.
Compared to other Grade 3 external sounder modules from established brands, the Deltabell E is competitive on price and packs practical installer features (spirit level, revolving guide holes) that reduce installation time. Some competing devices may advertise higher sound pressure or additional piezos, while others may offer larger internal batteries or integrated siren tone options. The Deltabell E delivers a balanced set of features that make it a strong choice for many Grade 3 applications where a robust weatherproof device, tamper protection and cost-effectiveness are priorities.
Customer feedback and representative testimonials
Below are representative customer comments based on typical installer and end-user experiences with devices of this type. These are indicative of the kinds of feedback installers and customers often report; check retailer reviews for specific verified comments on the FPDELTAE3MOD.
- Installer:"Easy to mount and wire. The built-in level and guide holes saved time on site, and the engineer hold-off is a small feature that makes commissioning painless."
- Small business owner:"Solid construction and reassuring visual presence from the strobe. The 15-minute auto cut-off reduced neighbour complaints during a false alarm."
- Homeowner:"Good value for a Grade 3 external sounder — IP65 build feels robust and the tamper options give extra peace of mind."
Conclusion: why choose the Deltabell E?
The Deltabell E External Sounder Module (FPDELTAE3MOD) is a practical, cost-effective component for wired intruder alarm systems that require Grade 3 signalling and weatherproof reliability. Its combination of audible piezo output, LED strobe, internal battery backup, layered tamper protection and installer-oriented features make it suitable for a wide range of domestic and commercial applications. While it may not be the absolute highest-output horn on the market, its balance of features, IP65 protection and competitive pricing make it an attractive option for installers and end users who need dependable external alarm signalling without unnecessary complexity.
For projects that demand robust external signalling with straightforward installation and regulatory-friendly features (like the 15-minute siren cut-off), the Deltabell E is worth strong consideration. As always, ensure a competent, certified installer fits the device to meet local regulations and system certification requirements, and consult the manufacturer's datasheet for the latest technical details and compliance information.
