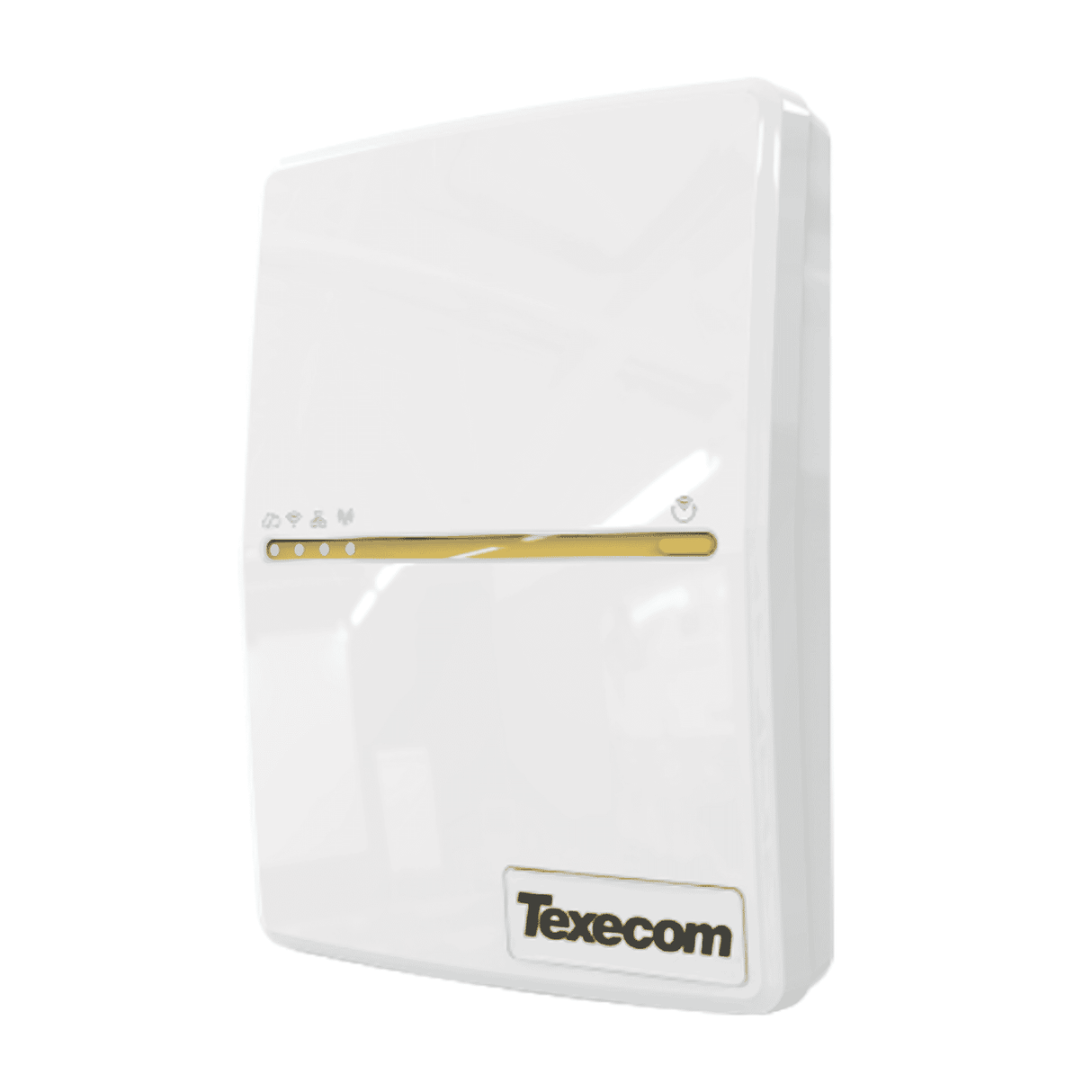

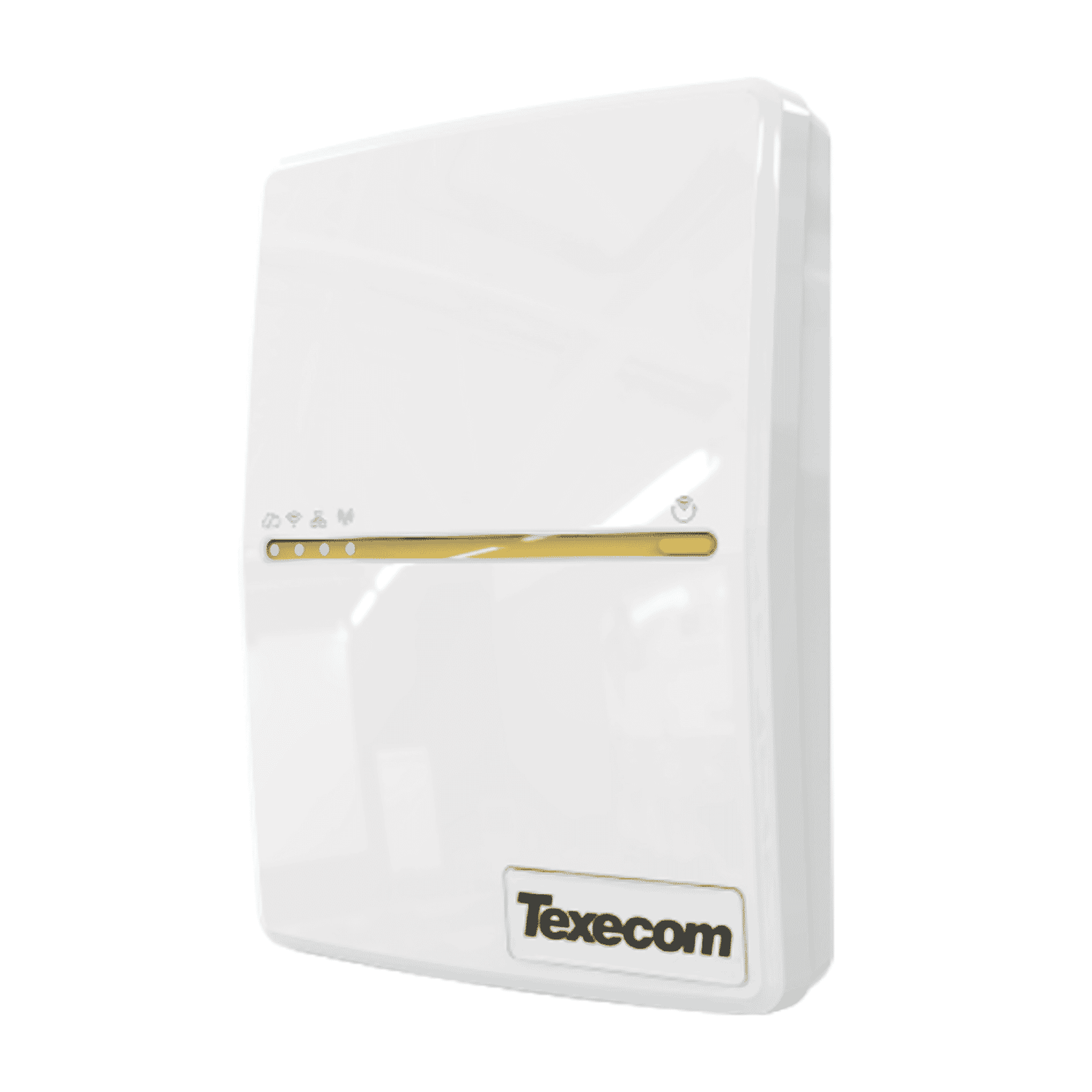

Introduction to the Texecom Connect SmartCom (CEL-0001)
The Texecom Connect SmartCom (CEL-0001) is a compact Ethernet and 2.4 GHz Wi‑Fi communication module designed to extend remote connectivity and cloud features to Texecom Premier Elite alarm control panels. Built with installers and end users in mind, the SmartCom provides secure, outbound-only access to Texecom Connect / Texecom Cloud services without the need for router port‑forwarding, simplifying setup and improving security. Its dual connectivity—10/100 Base-T Ethernet and IEEE 802.11 b/g/n Wi‑Fi—means it can be installed in a wide variety of network environments, while a straightforward web-based Wi‑Fi configuration page and DHCP support make commissioning quick and repeatable.
Key Features at a Glance
- Dual network interfaces:10/100 Base-T Ethernet and 2.4 GHz Wi‑Fi (b/g/n).
- Secure cloud access:Outbound-only connection to Texecom Connect / Texecom Cloud (no port‑forwarding required).
- Panel compatibility:Specifically designed for Texecom Premier Elite series (requires firmware V4.00 or later).
- Installer-friendly:Installs adjacent to the control panel and communicates via the panel COM port(s); simple web page for Wi‑Fi setup and DHCP support.
- Compact and efficient:Small footprint (145 × 105 × 28 mm), low typical current draw and internal antenna design.
Detailed Specifications and Benefits
Understanding the technical details helps installers and end users evaluate how the SmartCom will behave in real installations. Below are the main specifications grouped by category, followed by practical benefits that matter on the job.
- Ethernet:10/100 Base-T (100Base-TX) for reliable wired connectivity.
- Wi‑Fi:2.4 GHz IEEE 802.11 b/g/n for wireless setups where cabling is inconvenient.
- RF power:Max 15 dBm (internal antenna).
- IP / Cloud:Outbound-only connections to Texecom Connect / Texecom Cloud — eliminates router port‑forwarding and reduces attack surface.
- Network setup:DHCP support and a simple web page for Wi‑Fi configuration streamlines commissioning.
- Operating voltage:8–15 V DC — compatible with typical alarm system power supplies.
- Typical current:Documented as 50 mA (internal record) and approximately 150 mA per datasheet figures — installers should consult the official datasheet for exact installation planning.
- Maximum current:190 mA.
- Panel compatibility:Designed for Texecom Premier Elite series; panel firmware V4.00 or later is required.
- Connection method:Fits adjacent to the panel and communicates via the panel COM port(s).
- Dimensions:145 × 105 × 28 mm.
- Weight:Approx. 165 g.
- Operating temperature:0°C to +40°C; storage −25°C to +60°C.
- Humidity:0–95% non‑condensing.
Benefits derived from these specifications include reliable wired or wireless connectivity options to suit different installations, simplified setup using DHCP and a configuration web page, and improved security by using outbound-only cloud connections. The modest power draw and small footprint make the SmartCom suitable for both domestic and commercial panels where space and power budgets are limited.
Use Cases and Scenarios Where the SmartCom Excels
The SmartCom is versatile and particularly strong in the following scenarios:
- Homeowners want push notifications for alarms, the ability to arm/disarm remotely, and remote diagnostics. The SmartCom provides these features through Texecom Connect, allowing secure cloud-based control without complex network changes.
- Facilities managers and security integrators need scalable cloud access for multiple sites. The SmartCom’s outbound-only cloud connectivity reduces network configuration overhead and helps standardise deployments across many locations.
- Where running Ethernet cabling is impractical, the 2.4 GHz Wi‑Fi support enables network connectivity with minimal disruption. The internal antenna and simple setup also help in retrofit situations.
- Integrators benefit from remote diagnostics and management capabilities—faults can be diagnosed remotely and remedied faster, reducing truck rolls and aftercare costs.
Comparisons with Similar Products
When assessing the SmartCom, it helps to compare it to other communicator types commonly used in alarm systems: Ethernet-only communicators, cellular communicators, and dual-path solutions.
Ethernet-only modules provide reliable, high-bandwidth wired communications but lack flexibility when cabling is impossible or costly. The SmartCom’s advantage is its dual connectivity—if wired Ethernet is unavailable, installers can fall back to Wi‑Fi.
Cellular communicators offer independent connectivity without relying on local networks, which is ideal for high-security or remote sites. However, cellular solutions typically require separate SIM plans and ongoing data costs. The SmartCom is generally more cost-effective for sites with existing network infrastructure and where cellular redundancy is not mandatory.
True dual-path devices provide resilience by combining IP and cellular paths for redundancy. The SmartCom provides IP and Wi‑Fi options but not intrinsic cellular backup—if you require guaranteed failover to a cellular network, a dedicated dual-path device or an additional cellular communicator would be preferable. For many domestic and commercial environments with reliable networks, the SmartCom’s outbound-only cloud link is adequate and simpler to deploy.
Texecom offers a range of connectivity accessories; the SmartCom is targeted specifically at Premier Elite panels and Texecom Connect integration. Its strengths are targeted compatibility, simple installer workflow, and avoidance of port‑forwarding. If you use other panel series or need additional features, check Texecom’s portfolio to match the right communicator to your panel and service needs.
Customer Feedback and Installer Observations
Official user reviews are limited in the public domain for specialist installer hardware. However, common, anonymised feedback from integrators and installers who use the SmartCom tends to focus on several consistent points:
- "Straightforward commissioning — the Wi‑Fi web page makes setup fast on site."
- "Outbound-only cloud connectivity removes a lot of router configuration headaches for customers."
- "Compact unit fits neatly beside Premier Elite panels and draws minimal current compared with some older modules."
These comments reflect typical advantages reported by professionals who value time savings during installation and the reduction of support calls related to network configuration. For impartial customer reviews, ask your installer or check trade forums and installer communities where hands-on experiences with the SmartCom are shared.
Pricing and Procurement Notes
Suggested pricing for retail channels is around {99.00} (suggested price), with internal or distributor cost references given at {83.06}. Actual street prices will vary by retailer, region, and any installation or commissioning services included. As the device is installer-focused, many customers purchase it through professional installers who handle firmware checks and commissioning.
Conclusion: Why the SmartCom Is a Strong Choice
The Texecom Connect SmartCom (CEL-0001) is a solid, practical communicator for Texecom Premier Elite panels. It combines flexible connectivity (Ethernet and 2.4 GHz Wi‑Fi) with a security-conscious, outbound-only cloud connection model that simplifies setup and reduces exposure to common network configuration errors like port‑forwarding. For installers and end users who want reliable remote control, push notifications, and cloud-based diagnostics without the complexity of cellular plans or complicated router settings, the SmartCom represents a well-balanced option.
Its compact form factor, modest power demands, and installer-friendly setup make it suitable for both domestic retrofits and commercial installations where consistent cloud access is required. If your project relies on Texecom Premier Elite panels and you prioritise straightforward commissioning and secure cloud connectivity, the SmartCom should be high on the shortlist. Always verify panel firmware (V4.00 or later) before installation and consult the official datasheet for precise electrical and regulatory figures to ensure a successful deployment.
