Introduction to the Texecom Impaq S Shock Sensor (AEJ-0002)

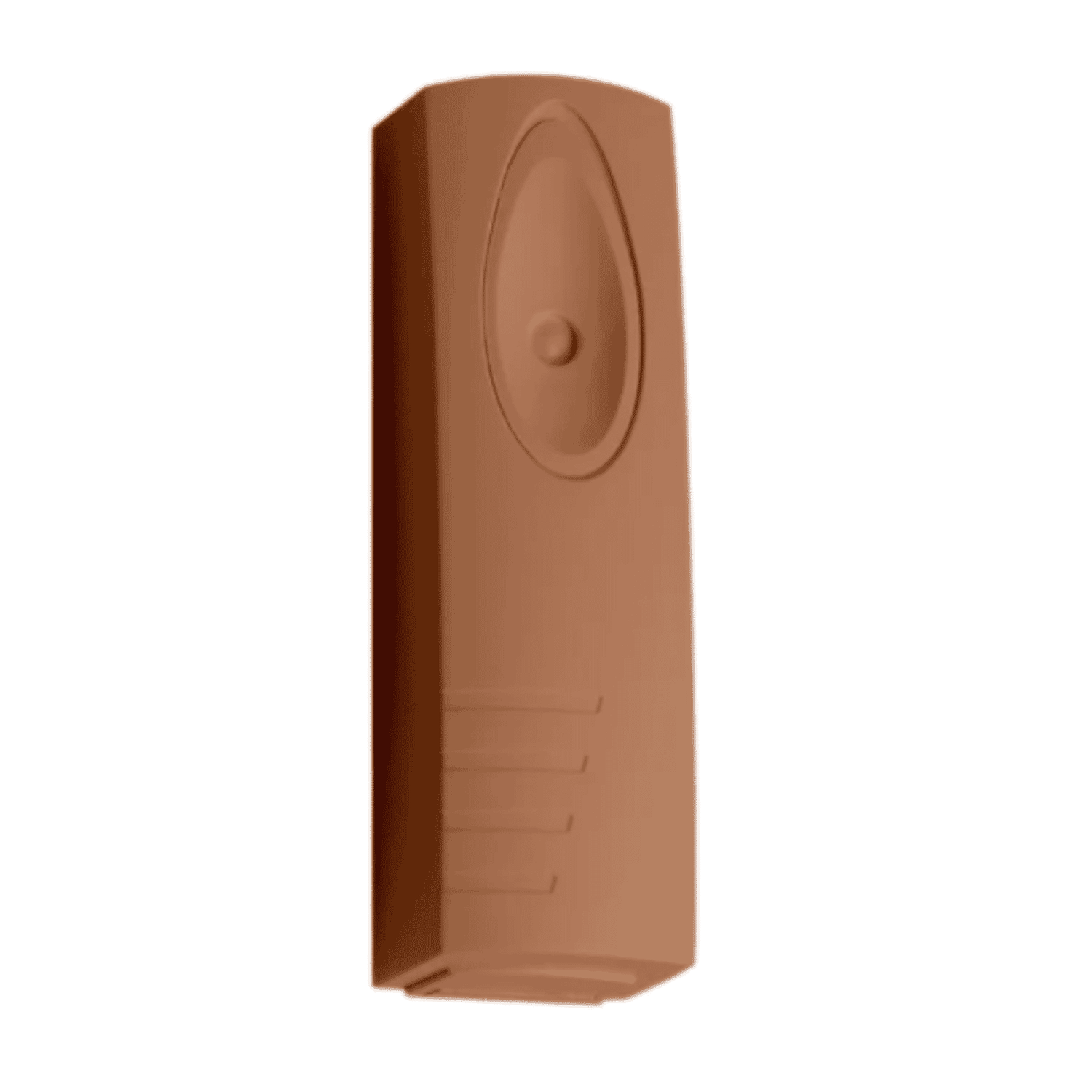

The Texecom Impaq S Wired Shock Sensor (AEJ-0002) is a professional-grade perimeter detector designed to protect windows, doors and other vulnerable openings from forced entry. Equipped with Texecoms VIBER 3-axis accelerometer and advanced digital signal processing, the Impaq S delivers reliable impact detection while reducing false alarms caused by everyday vibrations and environmental noise. Available in brown to match timber frames, this wired detector is EN50131 Grade 2 (PD6662) certified and tailored for professional installers and security contractors seeking a compact, easy-to-commission shock sensor for residential and commercial perimeter protection.
Key Features at a Glance
- VIBER 3-axis accelerometerwith Digital Signal Processing (DSP) for accurate impact detection.
- Five selectable sensitivity settingsto tailor detection to different frame types and site conditions.
- LED-assisted setup and on-device impact testingfor fast, reliable commissioning.
- Built-in configurable EOL resistorsfor alarm and tamper to simplify compliant wiring into intruder panels.
- EN50131-2-8 / PD6662 Grade 2 certifiedfor perimeter protection on windows and doors.
- Compact, versatile mountingin any orientation; available in multiple colours for discreet installation.
Detailed Specifications and Benefits
Understanding the technical specifications helps clarify where the Impaq S excels and why it is a practical choice for installers and end users alike. Below are the most relevant details and the benefits they deliver in real-world installations.
- Model:Texecom Impaq S AEJ-0002 (Brown)
- Type:Wired shock / vibration detector
- Certification:EN50131-2-8; EN50131-1; PD6662 Grade 2, Class II
- Applications:Perimeter protection for windows, doors and similar openings
Benefit: Grade 2 certification means the unit meets recognised European standards for intruder detection at the perimeter level. This makes it suitable for many domestic and light-commercial installations where regulatory compliance matters.
- Operating voltage:9 V DC
- Quiescent current:12.8 mA;Maximum current:15.4 mA
- Sensitivity:Five selectable digital settings
- Signal processing:DSP algorithms to filter out airborne and high-frequency noise
- Wiring:EOL wiring only; configurable alarm and tamper resistors built-in
Benefit: Low current draw keeps system power requirements modest while DSP and multi-level sensitivity give installers the tools to balance detection reliability with false-alarm immunity. Built-in EOL resistors simplify compliant connections to most intruder alarm panels and speed up wiring on site.
- Dimensions:Sensor 86 86 mm; magnet 57 57 mm
- Weight:80 g
- Operating temperature:-10 +55 C
- Relative humidity:0 95% non-condensing
- Mounting:Any orientation; surface mount
Benefit: Small size and light weight mean the Impaq S can be fitted discreetly to most window and door frames. Wide operating temperature and humidity tolerance expands suitability across different climates and building types.
Use Cases and Ideal Scenarios
The Impaq S is particularly well suited to a range of perimeter protection scenarios. Its design and features make it an effective choice in the following contexts.
For homeowners seeking reliable detection against smash-and-grab attempts, the Impaq S provides a Grade 2-rated solution. The multi-level sensitivity settings allow installers to tune the detector to timber, uPVC or aluminium frames, reducing nuisance activations while maintaining strong detection for genuine impacts.
Retail units, offices and small commercial properties benefit from the compact form factor and straightforward wiring. The built-in EOL resistors simplify panel integration, and the DSP engine keeps false alarms low in environments where delivery noise or HVAC vibrations might otherwise trigger lesser sensors.
As part of a layered security approach, the Impaq S can be deployed alongside contacts and glass-break detectors to create redundancy. Its quick commissioning and on-device testing make it useful for installers who need to complete multiple protection points efficiently.
Comparisons with Similar Products
When comparing the Impaq S to other shock sensors and glass-break detectors on the market, several differentiators stand out:
- VIBER 3-axis accelerometer vs single-axis sensors:Multi-axis sensing captures impacts more reliably across different mounting orientations, reducing blind spots and improving detection consistency.
- DSP-based filtering vs analogue-only designs:Digital signal processing enables the unit to distinguish between genuine impacts and high-frequency or airborne noise, which lowers false alarm rates compared with simpler vibration sensors.
- Built-in configurable EOL resistors:Many competitors require external resistors or complex wiring; the Impaq S simplifies installation with on-board EOL options for both alarm and tamper circuits.
- Grade 2 certification:While some budget sensors are uncertified or only meet lower standards, the Impaq Ss EN50131 Grade 2 rating provides assurance for installations that demand recognised compliance.
Overall, the Impaq S sits in the mid-to-high tier of wired shock detectors: more sophisticated and installer-friendly than entry-level units, while remaining cost-efficient compared with some higher-end multi-sensor solutions.
Customer Feedback and Installer Perspectives
Although specific customer testimonials vary by installer and project, common themes reported by professionals working with the Impaq S include:
- Easy commissioning:LED-assisted setup and on-device impact testing speed up site work and reduce callbacks related to sensitivity tuning.
- Reliable detection:Installers appreciate the balance between sensitivity and false alarm resistance once the device is correctly tuned to the frame and environment.
- Cleaner installations:The small footprint and colour options allow for discreet mounting that matches frame finishes.
Example installer note: "The Impaq S gives us predictable performance across timber and uPVC windows. Built-in EOL and the test mode save time on every job." This type of feedback reflects the products focus on practical benefits for professional fitters.
Practical Considerations for Installers and Buyers
- Installation:Should be carried out by a qualified installer in accordance with local regulations and the product manual. Proper mounting and sensitivity selection are essential for optimal performance.
- Panel compatibility:Confirm that your intruder alarm panel supports EOL wiring and the resistor values used by the Impaq S.
- Environment:While robust, avoid locations subject to extreme mechanical vibration or continuous impact that could generate nuisance activations.
- Colour selection:Choose white, brown or anthracite options to match frame finishes and maintain a discreet appearance.
Conclusion: Why the Texecom Impaq S (AEJ-0002) Is a Great Choice
The Texecom Impaq S AEJ-0002 offers a practical blend of proven sensing technology, installer-friendly features and recognised certification. Its VIBER 3-axis accelerometer and DSP algorithms deliver dependable impact detection while reducing false alarms. Five sensitivity levels, LED-assisted setup and on-device testing make it straightforward to commission across a range of frame types. Built-in EOL resistors simplify compliant wiring and integration with most alarm panels, saving time on site.
For residential and small commercial perimeter protection where Grade 2 certification is required or preferred, the Impaq S is a compelling option. It balances performance, ease of installation and discreet appearance, making it particularly attractive to security professionals who need dependable, repeatable results. Whether deployed as a primary perimeter sensor or as part of a layered security scheme, the Texecom Impaq S delivers the core capabilities installers and end users expect from a modern wired shock detector.
