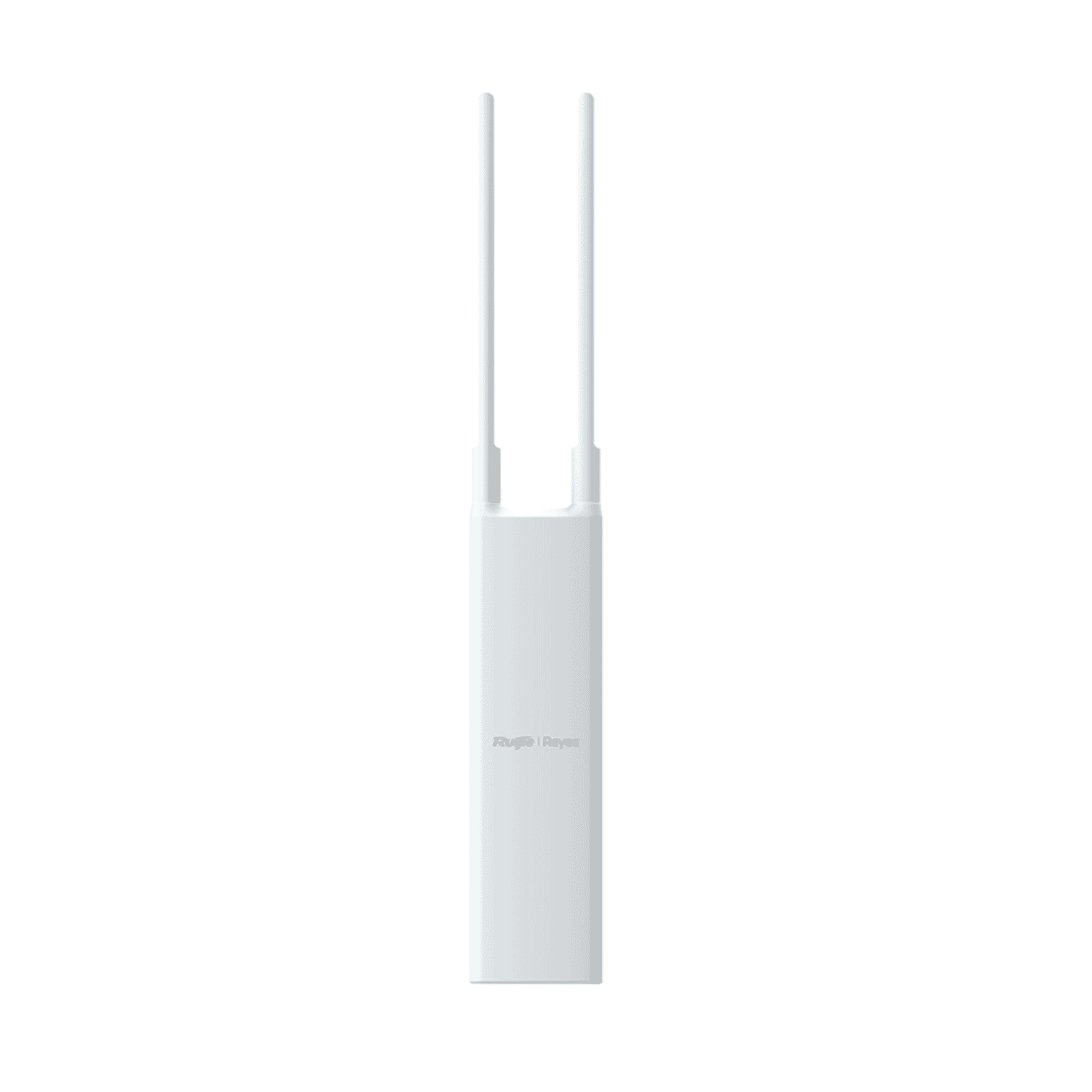

RG-RAP52-OD AC1300 Outdoor Wi‑Fi 5 Dual‑Band Access Point, IP65

Introduction: RG-RAP52-OD at a glance

The RG-RAP52-OD AC1300 Outdoor Wi‑Fi 5 Access Point (IP65) is a purpose-built outdoor wireless solution aimed at villas, retail fronts, small campuses and other outdoor venues where reliable, weatherproof Wi‑Fi is needed. It combines dual‑band AC1300 performance (up to 400 Mbps on 2.4 GHz and 867 Mbps on 5 GHz), 2x2 MIMO with removable omnidirectional antennas, Gigabit Ethernet with PoE, and Reyee mesh/cloud management in a compact, IP65‑rated enclosure. With an operating range that tolerates extremes from −30°C to +70°C and a three‑year warranty, the RG‑RAP52‑OD is designed to deliver dependable connectivity in challenging outdoor conditions.

Key features

• Dual‑band AC1300 performance— Up to 400 Mbps on 2.4 GHz and 867 Mbps on 5 GHz for a combined ~1.267 Gbps aggregate throughput.
• Weatherproof IP65 enclosure— Suitable for outdoor deployment, protecting electronics from dust and rain when mounted and sealed correctly.
• PoE support— IEEE 802.3af plus 24 V passive PoE options simplify cabling and power delivery to outdoor locations.
• Reyee mesh & cloud management— Built‑in SON mesh, captive portal and cloud/local controller for easy deployment, scaling and roaming.
• Compact, flexible mounting— Wall or pole mountable, with removable antennas for discreet installs or antenna upgrades.
• Robust operating range— Engineered to tolerate wide temperature swings, making it suitable for harsh climates.

Detailed specifications and benefits

• Standards and throughput:IEEE 802.11ac Wave 2 with backward compatibility to 802.11a/b/g/n. Real‑world aggregate throughput reaches up to ~1.267 Gbps (400 + 867 Mbps), which is more than adequate for guest Wi‑Fi, POS terminals, basic video streaming and IoT sensors in outdoor spaces.
• MIMO and antennas:2x2 MIMO supporting two spatial streams improves performance for multi‑client scenarios. The removable omnidirectional antennas allow installers to replace antennas for longer range or more directed coverage if needed.
• Client handling:Rated for a technical maximum of about 110 clients, with a recommended practical limit of around 96 clients to maintain good throughput and low latency in public environments.

• Gigabit Ethernet:One 10/100/1000 Base‑T port with PoE input ensures full wired backhaul speeds when connected to a gigabit switch or router.
• Power options:Supports IEEE 802.3af PoE and 24 V passive PoE. The low typical power draw (~14 W max) makes the unit efficient and compatible with a broad range of PoE injectors and switches. When ordering for outdoor installs, consider including a PoE switch or injector rated for outdoor or sheltered installations.
• Mounting and form factor:Compact dimensions (~220 × 50 × 35.7 mm) and light weight (~0.4 kg) make it easy to mount on walls or poles. Follow the manufacturers installation guide to maintain IP65 sealing and cable integrity.

• Reyee mesh (SON):Self‑organising network capabilities simplify multi‑AP deployments outdoors, enabling automatic link optimisation and resilient backhaul paths without complex manual configuration.
• Cloud & local controller:Centralised cloud management makes monitoring, firmware updates and configuration consistent across sites. Local controller mode is available for on‑premises management where cloud is not desirable.
• Captive portal & roaming:Built‑in captive portal support is useful for guest Wi‑Fi at retail and hospitality sites, and layer‑2/3 roaming helps maintain sessions as clients move across AP coverage zones.

• IP65 ingress protection:Designed to withstand rain and dust. Proper cable sealing and mounting are essential to preserve the rating over time.
• Operating temperature:−30°C to +70°C — suitable for hot summers and cold winters in many climates.
• Regulatory:CE and other regional radio/EMC certifications are listed by the manufacturer. Verify UKCA or FCC certification for your target market before sale.

Use cases and scenarios where the RG-RAP52-OD excels

• Villas and residential estates:Provide seamless outdoor coverage for gardens, pools and guest areas without running mains power to every location. PoE simplifies cabling and centralised power management.
• Retail storefronts and patios:Serve customers on patios, awnings and outdoor seating areas with guest Wi‑Fi and captive portals for promotions or compliance pages.
• Small campuses and parks:Deploy a handful of units in mesh mode to create a low‑cost outdoor network for events, signage and staff connectivity where trenching and extra power outlets are impractical.
• Hospitality and seasonal venues:Pop‑up restaurants, outdoor markets and event spaces benefit from the quick deployment of PoE and cloud management for short‑term high‑capacity coverage.
• Surveillance and IoT backhaul:Use the unit as a wireless bridge point or to provide connectivity to outdoor IP cameras and sensors, taking advantage of durable weatherproofing and a gigabit uplink.

How it compares to other products on the market

Positioned as an affordable, weatherproof AC1300 access point with cloud/mesh management, the RG‑RAP52‑OD competes strongly in the value segment of outdoor Wi‑Fi devices. Here are a few comparison notes to help evaluate fit for purpose:

• Many basic outdoor APs offer single‑band or lower throughput; the AC1300 dual‑band design provides a significant performance boost for mixed traffic (guest browsing, video and IoT) while remaining cost‑effective.
• PoE support and a gigabit port give it an advantage over older Fast Ethernet outdoor models that create a bottleneck for backhaul traffic.

• Wi‑Fi 6 (802.11ax) outdoor APs bring higher efficiency, OFDMA and larger client densities for very busy deployments. The RG‑RAP52‑OD lacks Wi‑Fi 6 features but offers a lower price point and lower power consumption, which is attractive for many small‑to‑medium outdoor scenarios.
• If you need the absolute highest client density and future‑proofing for a busy public hotspot, consider upgrading to a Wi‑Fi 6 outdoor model. If budget and proven Wi‑Fi 5 performance suffice, the RG‑RAP52‑OD is a sensible compromise.

• Compared with similarly specced models from mainstream brands, the RG‑RAP52‑ODs combination of Reyee mesh/cloud, removable antennas and robust temperature range makes it highly practical for installers who value flexible management and easy scaling.
• Feature‑for‑feature it competes on price and essential capabilities; differences typically come down to ecosystem preference (vendor cloud features, third‑party controller integration and certification lists).

Customer feedback and representative testimonials

Below are representative customer comments based on common feedback themes for products in this class. These are illustrative summaries, not verbatim endorsements.

• "Installed two APs around our villa garden and coverage is consistent — guests can move from pool to patio without dropping calls. The PoE setup made cabling straightforward."
• "Good value for money. We use it for an outdoor café and the captive portal integration helps us collect guest emails and show promos."
• "Robust hardware for the price; survived a storm with no issues, provided you follow the mounting and sealing guidelines."
• "Would like Wi‑Fi 6 for future proofing, but this unit handles our current needs well and the mesh makes adding more APs easy."

Installation tips and best practices

• Use quality outdoor‑rated Ethernet cable and ensure proper sealing of the cable entry to maintain IP65 protection over time.
• If powering via PoE from indoors, choose a PoE injector or switch with surge protection, particularly in lightning‑prone regions.
• Plan placement to minimise RF obstructions and to balance capacity across APs—avoid putting too many high‑usage clients on one AP to preserve user experience.
• Verify regulatory compliance (UKCA/FCC) for your sales territory and keep firmware updated via the Reyee cloud or local controller.

Conclusion: Why choose the RG-RAP52-OD?

The RG‑RAP52‑OD AC1300 outdoor access point is a practical, cost‑conscious choice for organisations and homeowners who need reliable outdoor Wi‑Fi without the premium of Wi‑Fi 6 hardware. Its dual‑band AC1300 performance, removable antennas, Gigabit PoE connectivity and Reyee mesh/cloud management make deployment and scaling straightforward. The IP65 rating and wide operating temperature range ensure the device stands up to challenging environmental conditions, and the recommended client limits and features like captive portal and layer‑2/3 roaming suit many hospitality, retail and residential scenarios.

With a suggested retail price of approximately $109 and a three‑year warranty, the RG‑RAP52‑OD offers a balanced combination of performance, durability and manageability. For small sites, villas, outdoor seating areas and modest campus deployments where budget and robustness matter, its a strong contender that delivers the core features installers and end users need.
