Introduction to the Ruijie Reyee RG‑RAP6262

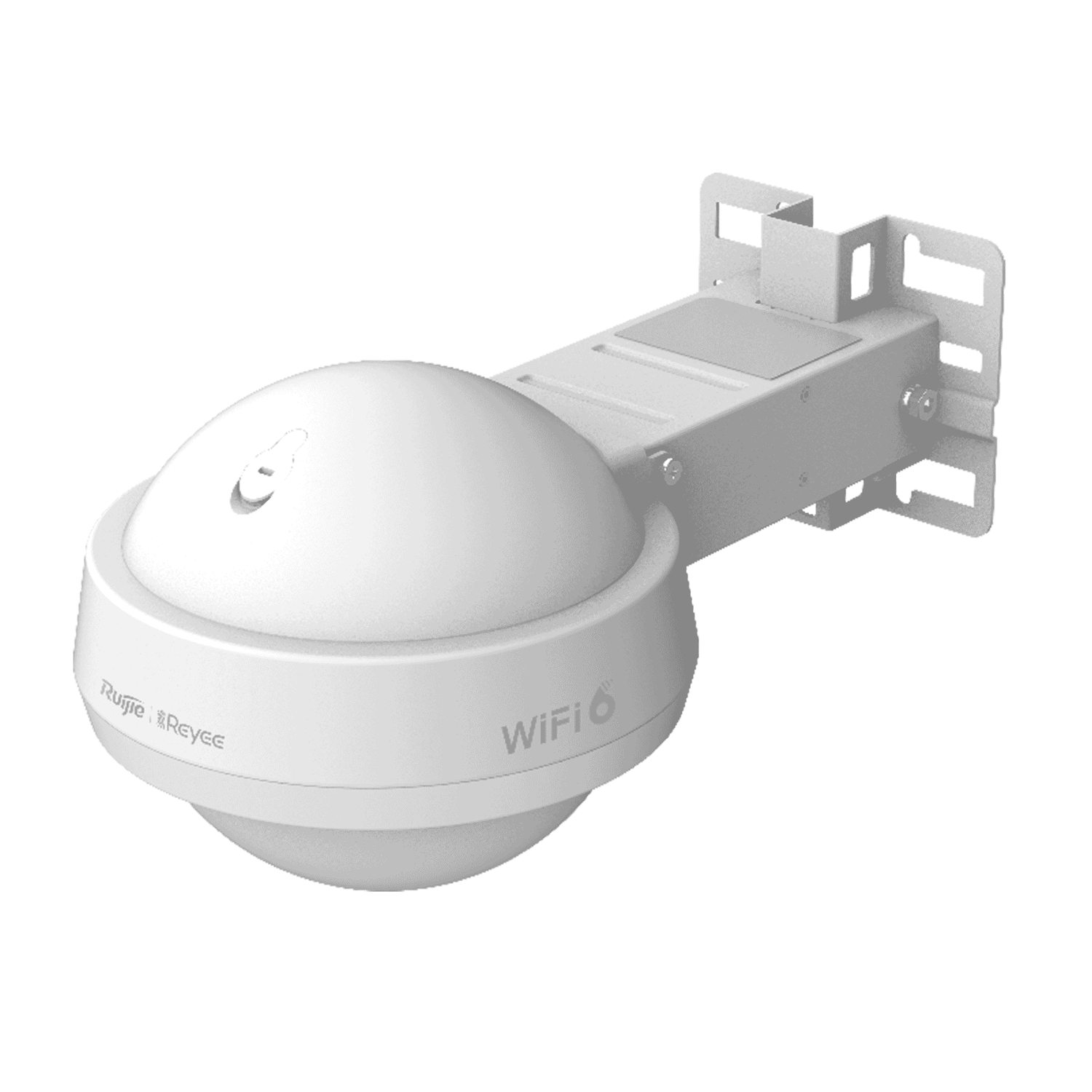

The Ruijie Reyee RG‑RAP6262 is a purpose‑built outdoor Wi‑Fi 6 (802.11ax) access point engineered for wide‑area, high‑density outdoor coverage. Marketed as an AX3000 omni‑directional AP with an IP68 sealed enclosure, integrated surge protection and an optional SFP fibre uplink, the RG‑RAP6262 targets venues that require reliable wireless service in harsh environments — parks, plazas, stadium concourses, parking areas and campus outdoor spaces. This article takes a detailed look at the device, its specifications and benefits, typical use cases, how it compares to similar products on the market, and what installers and integrators can expect from deployment and operation.
- AX3000 performance:Dual‑band Wi‑Fi 6 with combined throughput up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.
- Rugged outdoor build:IP68 rated housing, operating range from −30 °C to +65 °C and 4 kV port surge protection.
- Flexible connectivity:1G SFP fibre uplink plus 1× GigE RJ45, supporting long‑reach single‑mode fibre (~20 km with the appropriate module).
- Power options:IEEE 802.3at PoE or DC 12V/2A input for flexible installation choices.
- Central management:Built‑in Reyee cloud management and Reyee Mesh for simplified provisioning and large‑site rollouts.
Detailed specifications and benefits
Understanding the hardware and software capabilities of the RG‑RAP6262 helps clarify why it suits outdoor deployments where reliability and range matter.
- Standard:IEEE 802.11ax (Wi‑Fi 6), backward compatible with 802.11a/b/g/n/ac.
- Peak throughput:AX3000 combined — 5 GHz up to 2402 Mbps, 2.4 GHz up to 574 Mbps. The AP supports OFDMA and MU‑MIMO for more efficient multi‑user performance.
- Radios / MIMO:2×2 MU‑MIMO on both 2.4 GHz and 5 GHz radios, with beamforming to help direct signals to clients.
- Scalability:Up to 8 SSIDs and support for as many as 512 clients (recommended practical density ~110 clients to preserve experience).
Benefit: Wi‑Fi 6 features such as OFDMA and MU‑MIMO improve spectral efficiency and latency in congested outdoor areas where many devices may contend for airtime.
- Antennas:Five built‑in omnidirectional high‑gain antennas (approx. 3 dBi @2.4 GHz, 4 dBi @5 GHz).
- Field coverage (typical):Up to ~100 m on 2.4 GHz and up to ~300 m on 5 GHz, depending on environment and local regulations.
- Environmental protection:IP68 ingress rating, -30 °C to +65 °C operating temperature and 4 kV port surge protection.
Benefit: The sealed design and surge protection make the RG‑RAP6262 a robust choice for exposed mounting points, reducing maintenance and downtime risk from weather and electrical events.
- Uplink options:1 × 1G SFP and 1 × 10/100/1000Base‑T RJ45. SFP allows integration with fibre backhaul for long distances and campus‑grade resiliency.
- Power:Supports IEEE 802.3at PoE and DC 12V/2A. Typical power consumption is under 24 W.
Benefit: The SFP option is valuable for deployments where copper runs are impractical or vulnerable — fibre avoids signal degradation and supports long‑haul connections between buildings or across large sites. Dual power options increase installation flexibility.
- Management:Reyee cloud management and Reyee Mesh simplify bulk provisioning, firmware updates and monitoring across distributed sites.
- Roaming and security:Supports Layer‑2 and Layer‑3 roaming and standard WLAN security modes (WPA/WPA2).
Benefit: Centralized management reduces operational overhead for multi‑AP deployments and speeds up troubleshooting and configuration changes.
Use cases and scenarios where the RG‑RAP6262 excels
The combination of long range, weatherproofing and fibre uplink makes the RG‑RAP6262 particularly well suited to several outdoor scenarios:
- Public parks and plazas:Cover large open spaces where users spread across lawns and walking areas; omni antennas provide uniform coverage without precise alignment.
- Stadium concourses and event spaces:Handle bursts of high user density during events when many smartphones and handsets contend for bandwidth.
- Parking lots and transport hubs:Rugged enclosure, wide operating temperature range and surge protection make it ideal for exposed poles and canopies.
- Campus and municipal networks:Use SFP fibre uplinks to stitch together remote APs without relying on long copper runs; central cloud management simplifies administration across many locations.
- Retail and hospitality outdoor areas:Provide guest Wi‑Fi in outdoor dining, courtyards and terraces while keeping networking equipment safe from weather.
How it compares to similar products
When evaluating outdoor Wi‑Fi 6 access points, buyers typically weigh three factors: wireless performance, environmental hardening and connectivity options. The RG‑RAP6262 stacks up strongly across those axes.
- Performance:AX3000 class throughput is competitive for dual‑radio outdoor APs. Some vendors offer higher‑class models (e.g., higher‑order MIMO or tri‑radio designs) for very high‑density venues, but those often come with greater cost and power demands.
- Ruggedness:IP68 and 4 kV surge protection place the RG‑RAP6262 at the rugged end of the market; many general‑purpose outdoor APs are IP65/IP66 and may lack integrated high‑voltage surge suppression.
- Uplink flexibility:The inclusion of a 1G SFP port is a differentiator for sites that prefer fibre backhaul. Several competing APs rely solely on copper Ethernet uplinks or require separate media converters to connect to fibre.
- Management:Reyee cloud and mesh management provide a familiar centralized workflow. Other vendors offer similar cloud or controller ecosystems — choice often comes down to feature set, vendor preference and existing infrastructure compatibility.
In short, the RG‑RAP6262 is positioned as a balanced outdoor AP that favors durability and practical connectivity (SFP + PoE) over the ultra‑high capacity of more expensive tri‑radio access points intended for stadium bowl seating or carrier‑grade deployments.
Customer feedback and installer notes
There are no specific customer testimonials included with the product brief here. Broadly speaking, installers and integrators working with outdoor APs value the following points that the RG‑RAP6262 addresses:
- Ease of deployment using PoE or DC power and familiar mounting options.
- Reduced site visits thanks to a rugged IP68 enclosure and integrated surge protection.
- The practicality of an SFP slot for connecting remote APs to fibre without extra converters.
Practical installer reminders: always follow the official installation manual for proper mounting, grounding and surge mitigation. Confirm the SKU/variant and included accessories before purchase — some SKUs may not include a power adapter. Check local radio regulations, required certification (CE/UKCA) and country DFS rules on 5 GHz operation to ensure compliant operation.
Conclusion: Why choose the RG‑RAP6262?
The Ruijie Reyee RG‑RAP6262 is a compelling choice for organisations that need reliable, long‑range outdoor Wi‑Fi with resilient hardware and flexible backhaul options. Its AX3000 Wi‑Fi 6 performance, integrated omni antennas, and support for OFDMA and MU‑MIMO make it capable of handling moderate to high client densities. IP68 ingress protection, wide temperature tolerance and 4 kV surge protection reduce operational risk in exposed installations, while the SFP fibre uplink and PoE/DC power options offer deployment flexibility.
For municipal projects, campus networks, venue concourses and outdoor hospitality areas that require broad coverage and simplified management, the RG‑RAP6262 balances cost, durability and functionality. It is especially attractive where fibre backhaul is preferred and where equipment needs to tolerate harsh outdoor conditions without frequent maintenance.
Before purchasing, review site‑specific requirements — expected client density, mounting locations, backhaul options and local radio rules — and verify the exact SKU and accessory list with your vendor. When those factors align, the RG‑RAP6262 delivers a robust, easy‑to‑manage outdoor Wi‑Fi 6 solution that meets the practical demands of real‑world outdoor deployments.
