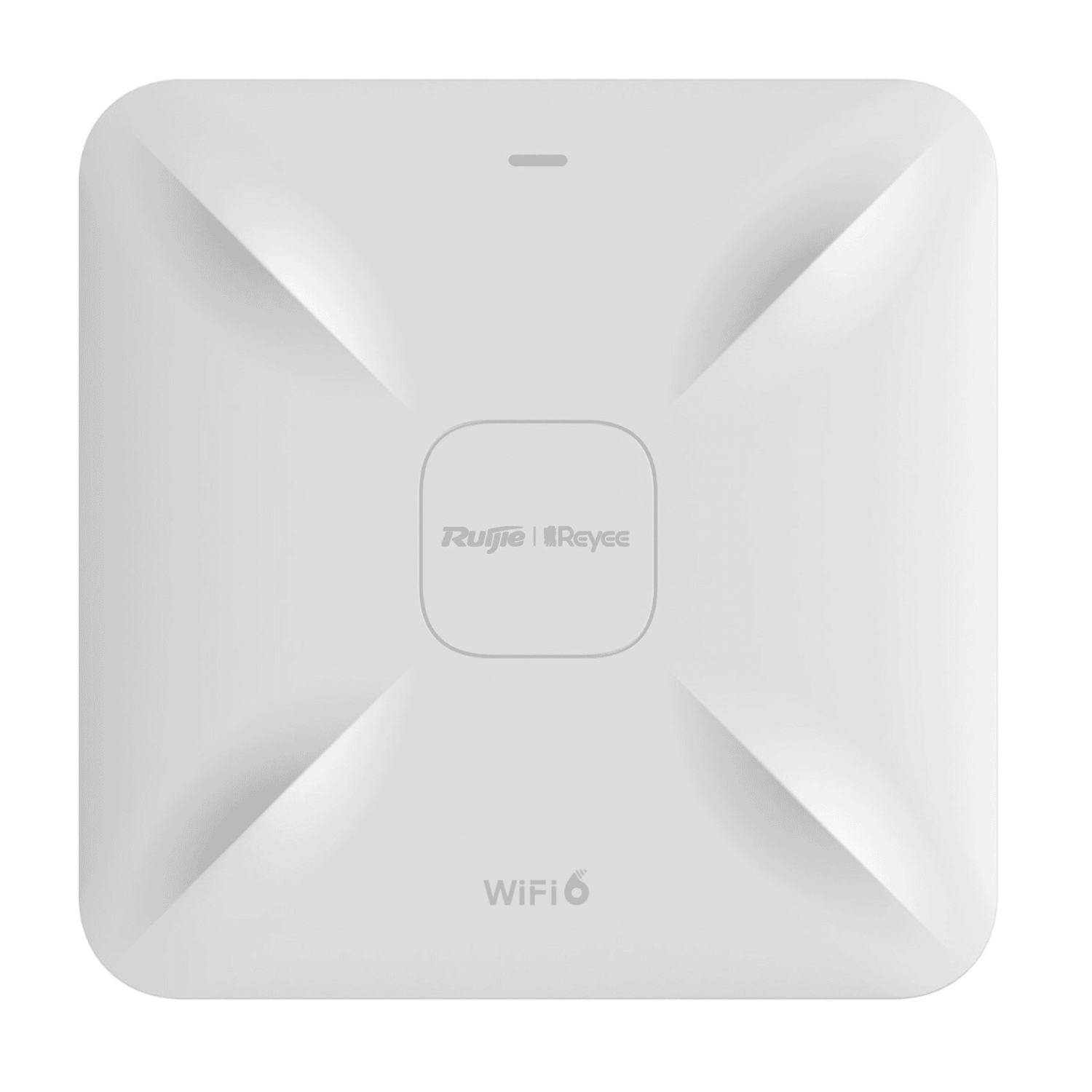

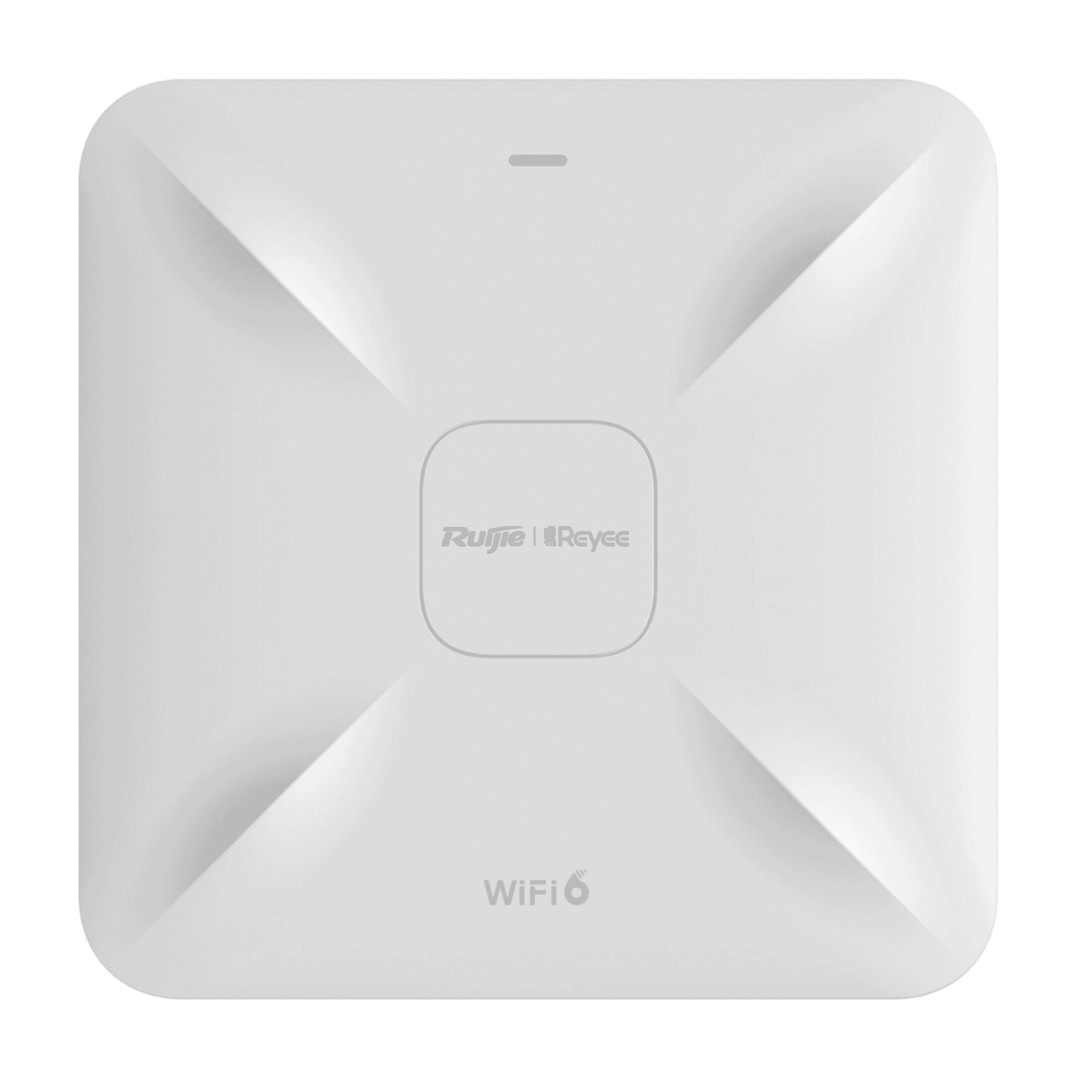

Introduction: Meet the Ruijie RG-RAP2260 (AX3000)
Ruijie RG-RAP2260 (AX3000)is a ceiling‑mount indoor Wi‑Fi 6 access point engineered for medium and large‑scale deployments where reliable wireless capacity and flexible management are essential. Marketed as an AX3000‑class AP with an approximate aggregate throughput of 2.97 Gbps, the RG-RAP2260 combines dual‑band 802.11ax performance, built‑in omnidirectional antennas, and a multi‑gigabit uplink (2.5GbE + 1GbE) in a discreet ceiling form factor. With support for Ruijie Cloud, Reyee mesh and captive portal guest authentication, this model aims to serve hospitality, education, retail and office environments that demand high client density, simple central management and future‑proof uplink speeds.
Key features at a glance
- AX3000 dual‑band Wi‑Fi 6:higher client capacity, improved spectral efficiency and better performance in congested RF environments.
- Multi‑gig uplink:1 × 2.5GBASE‑T (PoE capable) plus 1 × 10/100/1000 Mbps for link aggregation or redundancy.
- Ceiling form factor with built‑in antennas:omnidirectional pattern optimized for indoor deployments.
- Flexible management:Reyee local management, Reyee mesh for simple expansion, and Ruijie Cloud for centralised control and monitoring.
- PoE powered:supports IEEE 802.3at (recommended) for reliable operation in higher performance modes.
Detailed specifications and benefits
The RG-RAP2260 supports the 802.11ax (Wi‑Fi 6) standard with dual‑band operation across 2.4 GHz and 5 GHz. The unit is rated at AX3000 aggregate throughput (~2.97 Gbps), which reflects combined PHY rates across both bands. Typical deployments will see improved throughput, lower latency and higher overall client density compared with older 802.11ac APs:
- Standard:802.11ax (backwards compatible with a/b/g/n/ac).
- MIMO & antennas:typically 2x2 MIMO with internal omnidirectional ceiling antennas (around 3 dBi), designed to provide even coverage in open indoor areas.
- Transmit power:vendor‑listed max TX power ~23 dBm (region dependent); real world power settings should follow local regulatory limits.
One of the standout hardware elements is the multi‑gig uplink option, which reduces the risk of the wired network becoming a bottleneck in high‑density scenarios:
- LAN ports:1 × 2.5GBASE‑T (PoE) + 1 × 10/100/1000 Mbps. The 2.5GbE uplink is particularly useful where several high‑throughput clients or multiple SSIDs are in use.
- PoE & power:PoE powered with IEEE 802.3at recommended; typical power draw ~18 W for AX3000 operation. Confirm switch PoE budget when designing a site.
- Form factor:ceiling‑mount (approx. 194 × 194 × 45.1 mm) and lightweight for tile or surface installations.
The RG-RAP2260 supports Reyee and Ruijie Cloud management, giving installers and network administrators flexible deployment and monitoring options:
- Management:Reyee local management for on‑prem control, Reyee mesh for quick extension without extensive cabling, and Ruijie Cloud for centralised provisioning, monitoring and reporting.
- Guest access & security:captive portal and guest authentication features suitable for hospitality and retail environments.
- Roaming:L3 roaming support for smoother client hand‑offs across subnets.
- Compliance:CE and RoHS listed; UKCA availability depends on market. Follow local regulations when deploying.
Practical benefits in real deployments
When compared to previous generation APs, Wi‑Fi 6 hardware like the RG-RAP2260 delivers higher effective throughput to each client, better performance in environments with many competing devices, and improved battery life for mobile clients thanks to features such as Target Wake Time (TWT). The 2.5GbE uplink helps preserve this performance over the wired link, which is crucial when multiple APs aggregate traffic to a single switch uplink.
Use cases and scenarios where the RG-RAP2260 excels
The ceiling‑mount design, cloud/mesh management and multi‑gig uplink make this AP suitable for a range of indoor scenarios where density and manageability matter.
- Public areas such as lobbies and conference rooms benefit from ceiling coverage and captive portal integration for guest onboarding.
- High transient device counts during events or peak guest periods are better served by Wi‑Fi 6 capacity and the 2.5Gb uplink.
- Classrooms and communal study zones often see many simultaneous devices; the RG-RAP2260’s AX capabilities and cloud management simplify scaling across campus buildings.
- Reyee mesh can be useful for satellite rooms or temporary setups where running additional cabling is difficult.
- Retail floors require reliable client connectivity for POS systems, inventory tablets and customer Wi‑Fi—managed guest access and central monitoring help maintain service levels.
- Open plan offices get consistent coverage from ceiling antennas and a reliable uplink for video conferencing and cloud apps.
Comparisons with similar products
Understanding how the RG-RAP2260 stacks up against competing APs helps in choosing the right hardware for a project. Here are a few comparison points against common alternatives:
- Versus UniFi U6‑Lite / U6‑LR:Ubiquiti’s UniFi range is popular for ease of use and ecosystem integration. The RG-RAP2260’s notable advantage is the 2.5GbE uplink option—many entry UniFi APs are limited to 1GbE. For deployments that require multi‑gig backhaul, the Ruijie AP offers better headroom.
- Versus Aruba Instant On AP22:Aruba’s AP22 is a strong SMB option with a polished management interface. Differences will come down to throughput needs, management platform preference (Aruba vs Ruijie Cloud) and uplink speed—if multi‑gig is required, the RG-RAP2260 has the edge.
- Versus enterprise rivals (Cisco Meraki / Ruckus):Enterprise vendors often provide advanced RF optimisation, analytics and larger feature sets. Meraki and Ruckus APs may offer more mature enterprise feature sets and third‑party integrations; however, they typically carry a higher total cost of ownership, including licences. The RG-RAP2260 targets a balance of enterprise‑grade hardware and competitive pricing, especially when centralised cloud management is preferred without steep licensing.
Pricing and value
The suggested price sits around$149.99(product marketed as AX3000 Ceiling AP at 2.97 Gbps). At this price point the RG-RAP2260 competes strongly where multi‑gig uplink, ceiling form factor and cloud/mesh management are priorities. For organisations planning for growth or higher density usage, the multi‑gig uplink and Wi‑Fi 6 capabilities can extend the useful life of the AP compared with older 1GbE‑only models.
Customer feedback and typical reviews
While individual experiences vary by environment and installation quality, common themes appear in user feedback for products in this class and for Ruijie APs specifically:
- Positive:installers and IT teams frequently praise the strong value proposition—AX performance, cloud management and 2.5Gb uplink at a competitive price. Users also appreciate the clean ceiling aesthetics and the convenience of integrated antennas.
- Constructive:a few deployments note the importance of using 802.3at PoE sources to ensure full performance, and advise careful RF planning in complex environments to avoid co‑channel interference. Some enterprise customers compare advanced analytics and support features with higher‑end vendors when choosing at scale.
Example anonymised comment: "Installed a dozen in a boutique hotel — coverage and guest onboarding improved, and the 2.5Gb uplinks stopped uplink saturation during events."
Considerations and best practices
- Power budget:ensure PoE switches can provide 802.3at where needed and account for multiple APs on the same switch when planning site power budgets.
- Placement & RF planning:ceiling mounting with internal antennas works well for open areas; denser layouts or complex room partitions may benefit from additional site surveys and channel planning.
- Management choice:decide early between local Reyee control, Reyee mesh simplicity or Ruijie Cloud for centralised multi‑site management; the right choice depends on the scale and management preferences of your organisation.
- Compliance & installation:follow local regulatory requirements and obtain professional installation for large or critical deployments.
Conclusion: Why choose the RG-RAP2260?
If you need a ceiling‑mount Wi‑Fi 6 AP that balances modern wireless features, practical uplink capacity and flexible management, theRuijie RG-RAP2260 (AX3000)is a compelling option. It is particularly well suited to hospitality, education, retail and open office environments where multi‑gig backhaul and cloud or mesh management simplify operations and preserve performance as device counts grow. With competitive pricing, a compact ceiling form factor and support for Reyee and Ruijie Cloud, this AP offers a strong mix of performance and value for organisations planning to upgrade or expand their wireless networks.
