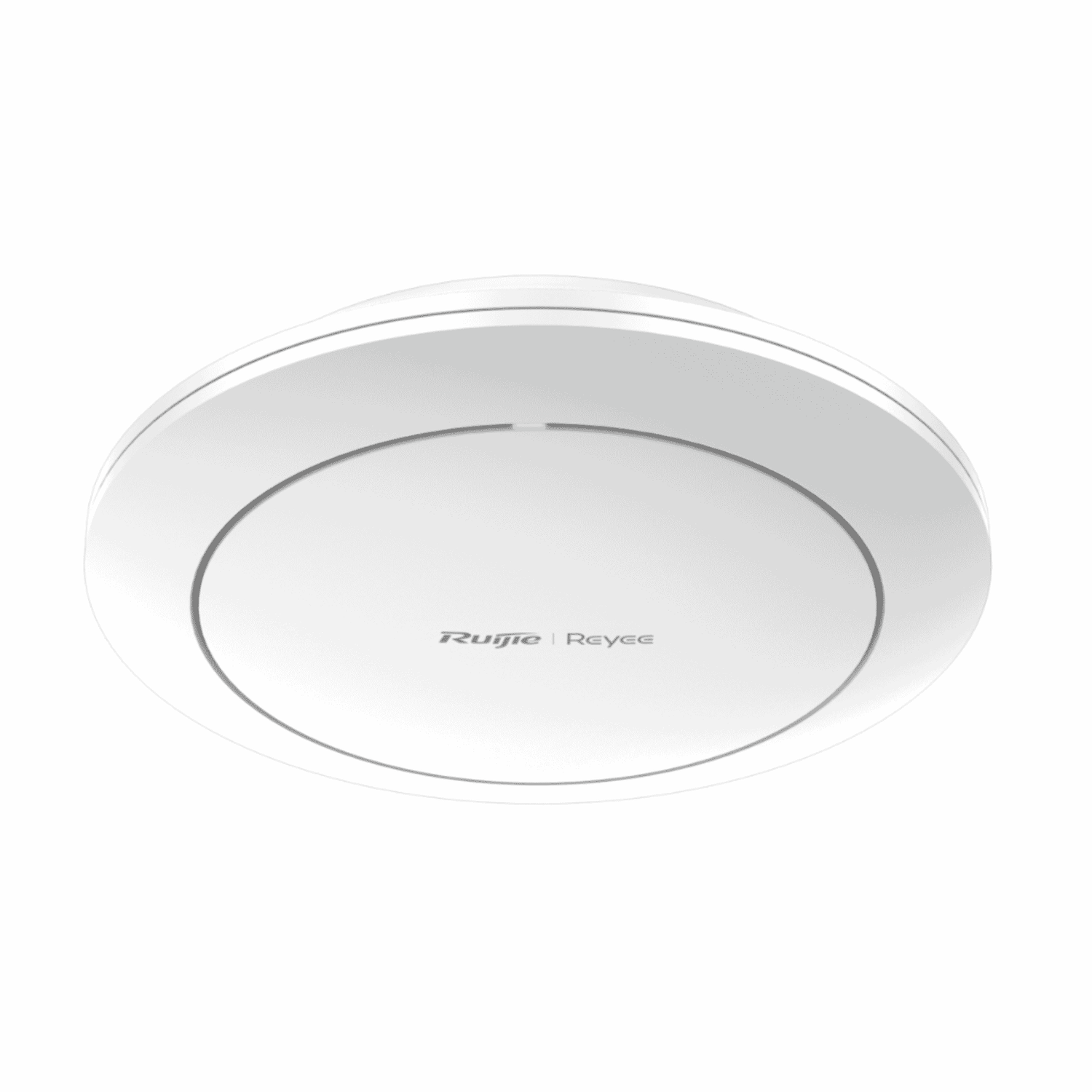

Introduction: Meet the Ruijie RG‑RAP2266 AX3000 Ceiling Wi‑Fi 6 Access Point
The Ruijie RG‑RAP2266is a cloud‑managed ceiling Wi‑Fi 6 access point designed to deliver fast, reliable wireless connectivity for small‑to‑medium commercial spaces — offices, boutique hotels, retail stores and villas. Built around dual‑band AX3000 performance, Reyee Mesh and advanced roaming features, the RG‑RAP2266 pairs modern Wi‑Fi 6 client capacity and spectral efficiency with an easy ceiling‑mounted form factor and PoE+ convenience. With an accessible price point and cloud management, it aims to simplify multi‑AP deployments while maintaining enterprise‑grade features.
Key features at a glance
- Dual‑band Wi‑Fi 6 (802.11ax)with AX3000 total throughput: 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz.
- Advanced multi‑client supportvia MU‑MIMO (2x2 on both bands), OFDMA and beamforming for better airtime efficiency and range.
- Seamless mobilitywith 802.11k/v/r roaming for fast transitions between APs and improved user experience for VoIP and conferencing.
- Cloud & app managementthrough Ruijie Cloud and the Reyee App, plus a captive portal and Reyee Mesh for straightforward multi‑AP setups.
- Flexible poweringusing IEEE 802.3at PoE+ or an optional 12 V DC adapter, with low maximum power consumption (≤ 18 W).
- Compact ceiling form factorwith built‑in omnidirectional antennas, mounting hole pattern of 80 mm, and lightweight design.
Detailed specifications and benefits
The RG‑RAP2266 is a dual‑radio access point that leverages 802.11ax to deliver AX3000 class throughput: 574 Mbps on the 2.4 GHz band and 2402 Mbps on the 5 GHz band. This combination provides solid single‑client performance and, more importantly, improved multi‑client behavior thanks to OFDMA and MU‑MIMO. Beamforming helps concentrate signal energy toward clients, extending usable range and improving throughput in challenging RF environments.
802.11k/v/r roaming support is built in, enabling devices to hand off between APs with minimal disruption — ideal for voice calls, video conferencing and any application sensitive to latency or dropouts.
On the hardware side, the RG‑RAP2266 includes a single Gigabit Ethernet port that supports IEEE 802.3at PoE+ input. This simplifies deployment by allowing the AP to be powered and carried with data over a single cable from a compatible PoE+ switch or injector. Alternatively, a 12 V DC / 2 A adapter can be used. The AP has a low maximum power draw of 18 W, which keeps operating costs down and reduces cooling burden in enclosed ceilings.
Designed as a ceiling unit, the AP is compact (220 × 220 × 52.6 mm) and light (≤ 0.5 kg without bracket), with five built‑in omnidirectional antennas. Antenna gain is modest but optimized for ceiling installations (approx. 3.53 dBi at 2.4 GHz and 5.15 dBi at 5 GHz). The RG‑RAP2266 supports up to eight SSIDs and a theoretical client capacity of 512 devices; for sustained optimal performance, the manufacturer recommends planning for roughly 110 concurrent clients per AP depending on application mix and RF conditions.
Management is flexible: administrators can use Ruijie Cloud or the Reyee App for cloud‑based provisioning, monitoring and firmware management. Reyee Mesh makes it simple to create multi‑AP networks without running Ethernet to every AP, and captive portal functionality supports guest access use cases with customizable authentication and splash pages. Local management options remain available for scenarios where cloud management is not desired.
The AP is rated for typical indoor operating conditions (0°C to 40°C, 5–95% non‑condensing humidity) and carries an MTBF rating above 400,000 hours. Installations should follow local wiring regulations and the manufacturer’s installation guide. For best performance, pair the AP with an 802.3at PoE+ switch, and perform a site survey to determine optimal placement and quantity for coverage and capacity.
Use cases and scenarios where the RG‑RAP2266 excels
The RG‑RAP2266 is tailored for small‑to‑medium commercial environments that need reliable ceiling coverage, easy centralized management and the ability to support moderate client densities. Typical scenarios include:
- Small and medium offices— Open‑plan offices, meeting rooms and hot‑desking environments benefit from the AP’s roaming features and multi‑client optimizations, providing stable voice and video performance.
- Boutique hotels and guest houses— Ceiling placement provides discrete coverage across rooms and corridors; captive portal and guest access controls simplify onboarding for visitors.
- Retail outlets and showrooms— Reliable Wi‑Fi for POS systems, inventory scanning devices and customer connectivity; Reyee Mesh supports flexible layouts without ripping up floors for cabling.
- Villas and multi‑room homes— For high‑end residential installs where ceiling APs are preferred for unobtrusive aesthetics and strong whole‑house coverage.
- Small branch or satellite sites— Central cloud management and quick provisioning make it practical to support multiple distributed locations with a small IT footprint.
How it compares with other products in the market
When evaluating the RG‑RAP2266, it helps to consider the AP in two broader market contexts: entry‑level Wi‑Fi 6 APs and higher‑end, high‑capacity enterprise APs.
- Vs. entry‑level AX1500 APs: Compared with budget AX1500 models, the RG‑RAP2266 delivers significantly higher aggregate throughput and superior multi‑client features (OFDMA, MU‑MIMO on both bands). For environments with dozens of users or where 5 GHz capacity matters, the RG‑RAP2266 offers better headroom and smoother experiences.
- Vs. mid/high‑end AX3600+ APs: Higher‑end APs can offer larger antenna arrays, multi‑user streams and more radios for capacity and coverage. The RG‑RAP2266 trades some of that extreme capacity for a more moderate price and lower power consumption, positioning it as a cost‑effective choice for many small‑to‑medium deployments rather than very dense enterprise campus cores.
- Management and mesh: The built‑in Reyee Mesh and Ruijie Cloud make the RG‑RAP2266 competitive with other cloud‑managed APs that emphasize simple deployment and centralized administration. Compared to vendors whose cloud options are locked behind expensive controllers, Ruijie’s managed approach can simplify operations and reduce total cost of ownership for small IT teams.
Customer feedback and reviewer impressions
At the time of writing there are no widely published, authoritative customer testimonials attached to this specific SKU in our brief. That said, feedback trends for similar Ruijie Reyee ceiling APs and for AX3000 class devices typically include the following themes:
- Installers and IT administrators often praise the simplicity of PoE+ power and cloud provisioning, which reduces on‑site configuration time.
- End users frequently notice improved roaming behavior and fewer drops during voice and video calls in environments that previously used older Wi‑Fi standards.
- Some installers remark that mesh is invaluable in retrofit scenarios but that wired PoE remains the gold standard for maximum throughput and reliability.
For objective validation, prospective buyers should pilot the AP in their environment or request sample units to confirm RF performance, coverage patterns and compatibility with their client mix.
Practical considerations for procurement and installation
The RG‑RAP2266 is offered at a suggested price of approximately $159, with a cost price reference of $87.05. When budgeting for a deployment, include PoE+ switches or injectors, mounting hardware and any necessary site survey services. Ensure installers use IEEE 802.3at PoE+ power sources or the specified 12 V DC adapter, and verify compliance marks for your target region (CE / UKCA / FCC where applicable).
Conclusion: Why choose the Ruijie RG‑RAP2266?
The Ruijie RG‑RAP2266 balances modern Wi‑Fi 6 features, practical ceiling‑mounted design and cloud‑centric manageability in a package well suited to small and medium commercial spaces. It offers strong 5 GHz capacity, OFDMA and MU‑MIMO efficiencies, seamless roaming and easy deployment via PoE+ — all of which combine to deliver a reliable day‑to‑day wireless experience for employees, guests and customers. For organizations seeking to upgrade from older Wi‑Fi generations or to standardize multiple small sites under a single cloud management umbrella, the RG‑RAP2266 is a compelling, cost‑effective option worth evaluating through a pilot or trial installation.
