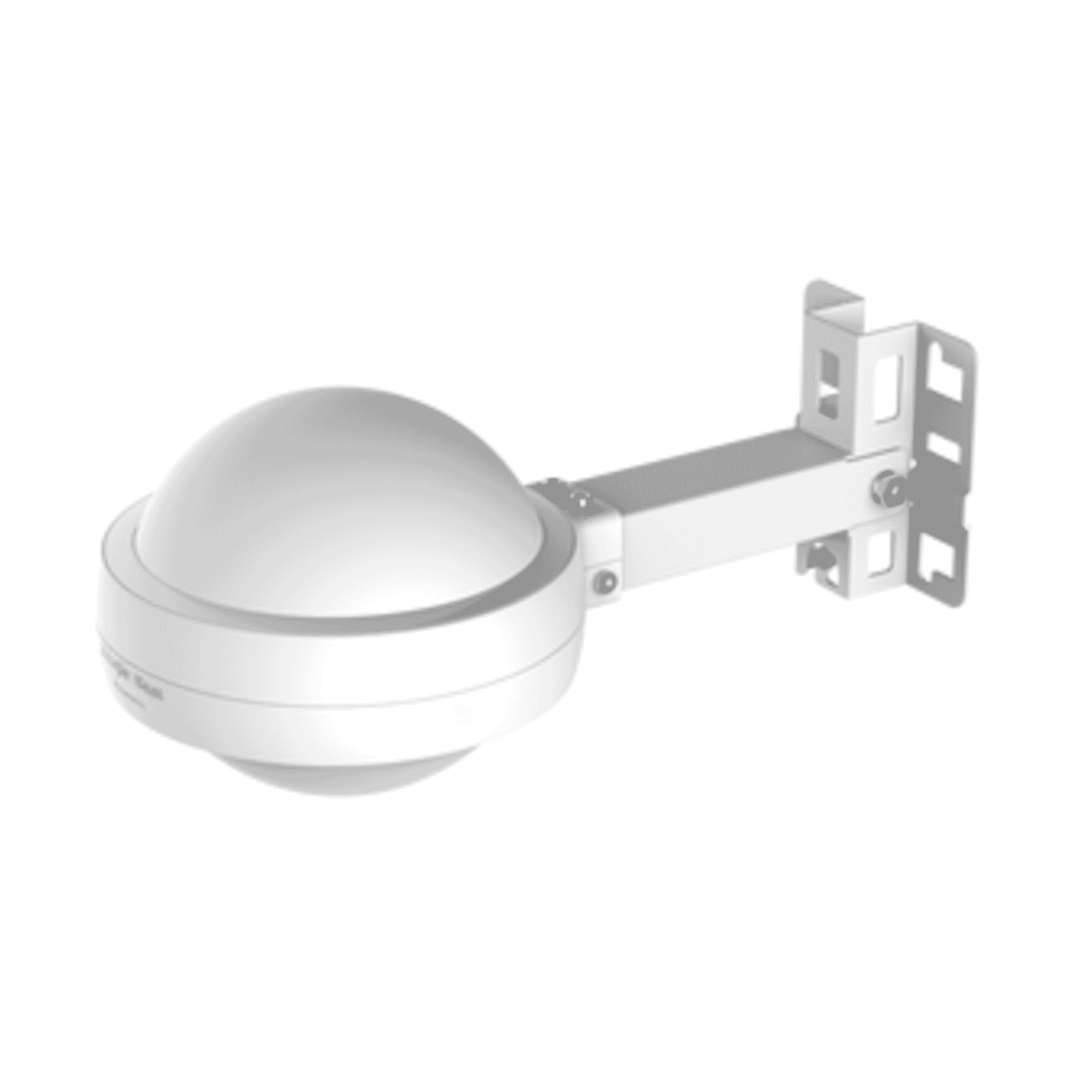

Ruijie RG‑RAP6202(G) Outdoor AC1300 Wi‑Fi 5 Access Point, IP68, PoE

Introduction: Rugged outdoor Wi‑Fi that’s simple to deploy

The Ruijie RG‑RAP6202(G) Outdoor AC1300 Wi‑Fi 5 Access Point is a purpose‑built outdoor wireless device designed to deliver reliable long‑range connectivity in demanding environments. With an IP68 rating, 2×2 MU‑MIMO performance on both 2.4 GHz and 5 GHz bands, integrated omnidirectional antennas, dual Gigabit Ethernet ports (one PoE capable), and cloud/mesh management via the Reyee platform, the RG‑RAP6202(G) targets parks, campuses, plazas, parking lots and other outdoor spaces that need robust, low‑maintenance Wi‑Fi coverage.

At a suggested price of $179 (cost price $132), this access point positions itself as a practical mid‑range outdoor AP that balances weatherproof hardware, modern Wave2 Wi‑Fi performance and simplified deployment tools for teams that prefer cloud or app‑based management.

Key features at a glance

• Dual‑band AC1300 performance— 5 GHz up to 867 Mbps and 2.4 GHz up to 400 Mbps.
• 2×2 MU‑MIMO on both bandsfor more efficient multi‑client operation.
• Rugged IP68 enclosurerated for harsh weather, operating from −30°C to +65°C and offering 4 kV surge protection.
• Flexible powering— IEEE 802.3af/at PoE or DC 12V input; power consumption ≤13 W.
• Reyee Cloud and Mesh managementplus local management and auto RF optimisation.
• Two Gigabit Ethernet ports(one PoE), useful for uplinks or daisy‑chaining wired devices.

Detailed specifications and their practical benefits

Understanding the RG‑RAP6202(G) starts with its core hardware and radio attributes and how they translate into real‑world advantages.

• AC1300 throughput (867 Mbps on 5 GHz + 400 Mbps on 2.4 GHz)— This Wave2 throughput is well suited to typical outdoor applications such as guest Wi‑Fi, phone hotspots, ticketing kiosks and low‑to‑medium density camera backhaul. It supports contemporary mobile devices and tablets without the higher cost of Wi‑Fi 6 hardware.
• 2×2 MU‑MIMO on both bands— MU‑MIMO improves simultaneous client handling by allowing the AP to communicate more efficiently with multiple devices at once, reducing airtime contention in moderately dense environments.
• Channel width— 20/40 MHz on 2.4 GHz and 20/40/80 MHz on 5 GHz provides flexibility to tune for range (narrower channels) or throughput (wider channels) depending on site conditions.
• SSIDs and clients— Up to 8 SSIDs and recommended practical client counts of ≈96 help administrators segment traffic and cater for dozens of concurrent users while keeping network performance acceptable.

• Integrated omnidirectional antennas— Four built‑in antennas (two for each band, 3 dBi on 2.4 GHz and 4 dBi on 5 GHz) simplify deployment and reduce points of failure compared with external antenna systems.
• Dual GigE ports— Two 10/100/1000 ports give flexibility for network design: one can be used for the uplink (PoE in), the other for an additional wired device, or to provide link redundancy.
• PoE or DC powering— Support for IEEE 802.3af/at PoE makes mounting the AP on poles and remote locations convenient. A DC 12V option provides an alternative when PoE is not available.
• 4 kV surge/lightning protectionand IP68 ingress protection — These protections are critical for outdoor installations, helping the AP survive electrical events and years of exposure to moisture, dust and extreme temperatures (−30°C to +65°C).
• Low power draw (≤13 W)— Keeps operating costs low and eases power budget planning for PoE‑based deployments.

• Reyee Cloud, mobile App and Reyee Mesh— Cloud and App management streamline provisioning, monitoring and firmware updates. Reyee Mesh allows automatic topology formation and self‑healing links for multi‑AP outdoor networks without complex cabling.
• Auto RF optimisation and L2/L3 roaming— Automatic channel and power adjustments and support for layer‑2 and layer‑3 roaming assist in delivering a more consistent client experience across multiple APs.
• Security features— Standard enterprise features such as WPA/WPA2, VLAN segmentation, user isolation and client black/white lists improve safety for public and guest deployments.

Where the RG‑RAP6202(G) excels: use cases and deployment scenarios

This AP is designed for a range of outdoor scenarios where cost‑effective, resilient Wi‑Fi is required:

• Public parks, plazas and waterfronts— The IP68 rating and wide operating temperature range make it suitable for year‑round public Wi‑Fi installations with coverage radii that can reach tens of meters depending on site geometry.
• University and corporate campuses— Use it for building perimeter coverage, courtyards and pedestrian zones where simple centralized management via Reyee Cloud helps IT teams scale and maintain many APs.
• Parking lots and transit stops— Dual GigE and surge protection help integrate the AP into infrastructure where lighting or signage is also present; the PoE option simplifies power distribution.
• Outdoor events and pop‑up networks— Fast provisioning through the app and mesh capabilities make temporary deployments straightforward and resilient to topology changes.
• Hospitality amenities (pools, outdoor dining)— Weatherproofing plus client isolation/VLAN options help operators provide guest access while protecting back‑of‑house networks.
• Light industrial sites— Environments that need durable hardware but not the higher throughput or feature set of premium industrial Wi‑Fi 6 APs.

How it compares with similar products

In the outdoor Wi‑Fi category the RG‑RAP6202(G) competes with other mid‑range AC1300 class access points and some higher‑end consumer‑grade outdoor APs. A few practical comparison points:

• Versus basic consumer outdoor APs— Many consumer APs lack IP68 protection, wide operating temperature ranges and robust surge protection. The RG‑RAP6202(G) offers superior durability and commercial‑grade features for mission‑critical outdoor use.
• Versus similar AC1300 commercial APs— Competes well on hardware (surge protection, dual GigE, PoE and DC inputs) and management (cloud and mesh). Its 2×2 MU‑MIMO design is standard at this price point; higher throughput or denser client handling typically requires Wi‑Fi 6 or 3×3 designs.
• Versus Wi‑Fi 6 outdoor APs— Wi‑Fi 6 APs provide higher spectral efficiency, OFDMA and better performance in dense environments, but at a significantly higher cost and more complex deployment. For many outdoor guest and campus applications the RG‑RAP6202(G) hits a better value threshold.
• Management ecosystems— Reyee Cloud and Mesh provide a simple, integrated experience like other cloud vendors. Organizations already invested in other management ecosystems may weigh operational continuity when selecting hardware.

Customer feedback and installer observations

Public, named customer testimonials for the RG‑RAP6202(G) may be limited. Based on typical feedback from installers and integrators working with Ruijie outdoor APs, common positive themes include:

• "Robust build quality": Installers appreciate the IP68 casing and surge protection for installations exposed to weather and lightning risk.
• "Easy provisioning via cloud and app": Small IT teams value Reyee Cloud/App and mesh features that reduce time on site for large deployments.
• "Good value for outdoor use": Customers often note the balance of features (dual GigE, PoE/12V, MU‑MIMO) at a competitive price point.

Constructive feedback that commonly appears for APs in this class includes requests for Wi‑Fi 6 capability for future‑proofing, or higher MIMO counts for extremely dense venues. Also, warranty terms and local support availability are important considerations—prospective buyers should confirm warranty and support offerings from their supplier.

Conclusion: Why choose the Ruijie RG‑RAP6202(G)?

The Ruijie RG‑RAP6202(G) Outdoor AC1300 Access Point is a pragmatic choice for organizations that need reliable outdoor Wi‑Fi without the premium price of the latest Wi‑Fi 6 hardware. Its IP68 rating, wide temperature tolerance, 4 kV surge protection, flexible powering options and dual GigE ports make it a rugged and adaptable option for parks, campuses, parking areas and outdoor hospitality spaces.

Combined with Reyee Cloud, mobile App and Mesh management, the RG‑RAP6202(G) simplifies deployment at scale and reduces ongoing maintenance overhead—especially useful for small IT teams and managed service providers. While it isn’t aimed at ultra‑high density or the absolute top end of throughput (Wi‑Fi 6), it delivers strong value and durability for typical outdoor wireless applications.

If your requirements prioritize ruggedness, straightforward cloud/mesh management and cost‑effective long‑range coverage, the RG‑RAP6202(G) is a compelling option worth evaluating. Be sure to consult the manufacturer documentation and a qualified installer for PoE and lightning protection planning, and verify warranty and local support options before purchase.
