Introduction to the airMAX Omni AMO-5G13 and its key features

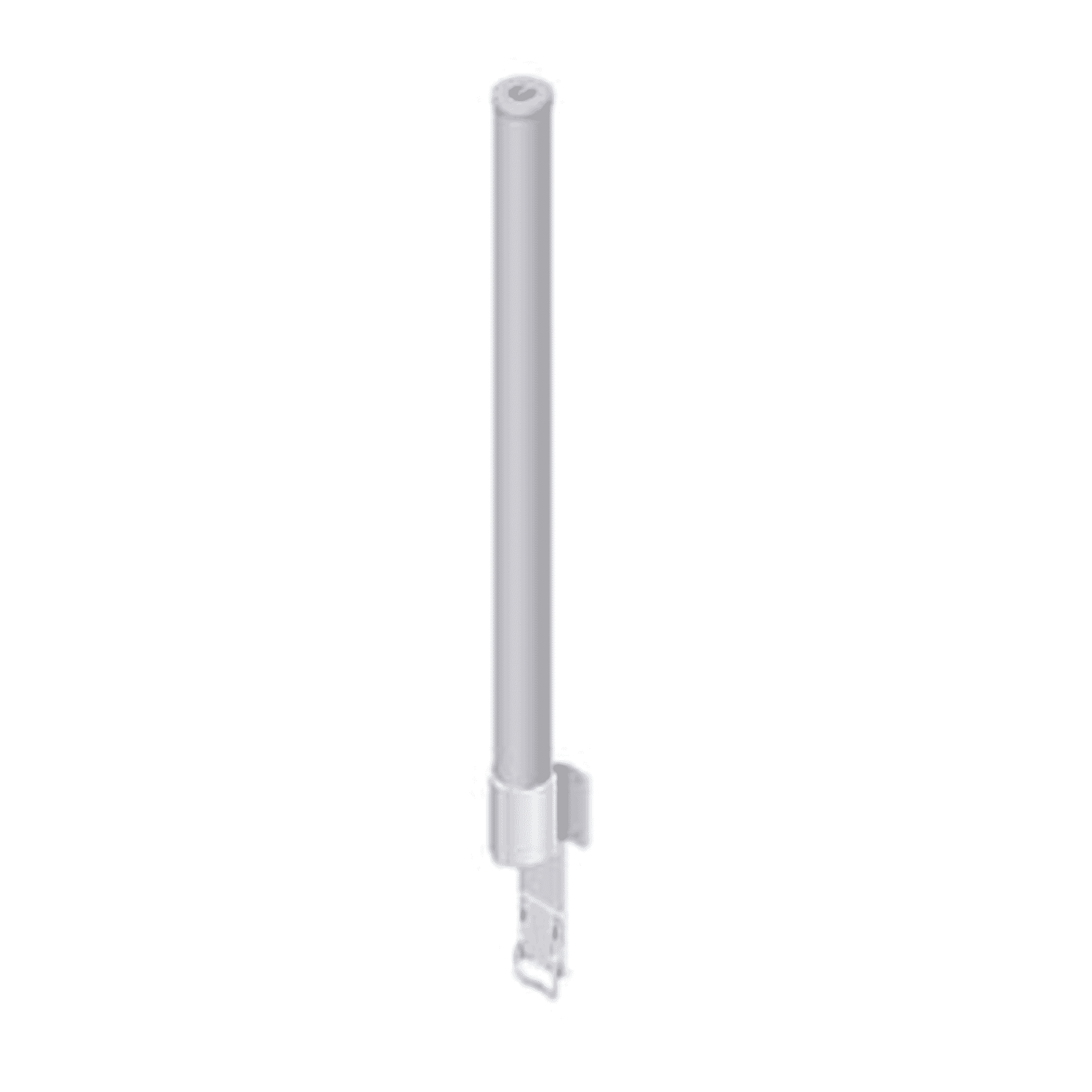

airMAX Omni AMO-5G13 — 5 GHz, 13 dBi omnidirectional antennais a carrier-class, outdoor wireless antenna designed for point-to-multipoint base stations and municipal or rural broadband deployments. Built for operators who need dependable 360° coverage with long-range reach, this antenna combines a relatively high gain (13 dBi) with a narrow elevation beamwidth and dual-polarity 2x2 MIMO to deliver stable, high-capacity links in demanding outdoor environments.
Key features at a glance:
- Frequency range: 5.45–5.85 GHz with 13 dBi gain.
- 2x2 dual-linear (dual polarity) MIMO for improved throughput and reliability.
- Narrow elevation beamwidth (~7°) and a small electrical downtilt (~2°) for extended range while minimizing vertical spill.
- Rugged, weatherproof design with integrated RocketM mounting bracket (Rocket M radios sold separately) and supplied pole mount and weatherproof RF jumpers for rapid installation.
- Low VSWR (≤1.5:1) and strong cross-polar isolation (≥25 dB) for efficient RF performance.
Detailed description of specifications and benefits
The AMO-5G13 balances gain, pattern control, and practical installation features to meet the needs of ISPs and network integrators. Below is a breakdown of the most important specifications and the benefits they provide in real-world deployments.
- Model:AMO-5G13 — purpose-built for 5 GHz point-to-multipoint systems.
- Frequency range:5.45–5.85 GHz — matches common regulatory bands used by licensed and unlicensed links in many regions.
- Antenna gain:13 dBi — higher than standard low-gain omnidirectional antennas, enabling longer reach and stronger signal levels at subscriber sites while retaining 360° azimuth coverage.
- Polarization:Dual-linear (dual polarity, 2x2 MIMO) — supports spatial diversity and MIMO throughput improvements, reducing multipath effects and improving spectral efficiency.
- Elevation beamwidth:≈7° — a relatively narrow vertical beam concentrates energy horizontally, extending range and reducing wasted energy overhead and ground illumination.
- Electrical downtilt:≈2° — small factory downtilt helps shape coverage for practical cell sizes and mitigates interference to very near-in subscribers.
- Cross-polar isolation:≥25 dB — excellent separation between polarities enhances MIMO performance and minimizes self-interference.
- Max VSWR:1.5:1 — indicates efficient power transfer from radio to antenna with low reflected power.
Benefit summary: the combination of 13 dBi gain, narrow elevation beam, and dual-polar MIMO produces an omnidirectional cell that reaches further than many lower-gain omnis while still serving clients all around the tower or mast. This makes the AMO-5G13 a compelling option where a single base antenna must cover a wide service area without sectorizing into multiple panels.
- Dimensions (L×W×H):799 × 90 × 65 mm — slim vertical form factor that is easy to mount and presents lower wind profile than many large panels.
- Weight:≈820 g — lightweight design simplifies installation and reduces load on masts.
- Wind survivability:200 km/h (125 mph) — robust enough for exposed sites and coastal deployments.
- Wind loading:≈84.52 N @ 200 km/h — mechanical data useful for tower loading calculations and regulatory compliance.
Benefit summary: the rugged, weatherproof construction and supplied mounting hardware speed field deployment. The integrated RocketM bracket makes it convenient to pair with compatible radios, and the kit includes weatherproof RF jumpers for a professional installation out of the box.
- Included items:Antenna, universal pole mount, RocketM bracket, weatherproof RF jumpers, quick start manual — everything needed for a standard base-station installation (radio sold separately).
- Compliance:EN 302 326 DN2 and NDAA compliant; CE/UKCA data listed as insufficient in the brief — always confirm the latest regulatory documentation from the vendor for your region.
- Warranty:Not specified in the provided data — verify warranty and support options with the supplier prior to purchase.
Benefit summary: certified compliance and a complete mounting kit reduce time to service. Operators should follow site-planning guidelines and arrange installation by qualified technicians to ensure proper grounding, RF safety, and structural integrity.
Use cases and scenarios where the AMO-5G13 excels
The AMO-5G13 is tailored for scenarios that require wide-area, omnidirectional coverage combined with longer reach than typical low-gain omnis. Common applications include:
- ISP point-to-multipoint base stations:Serve many subscriber units around a single mast without deploying multiple sector panels. The 13 dBi gain helps maintain link margins at longer distances.
- Rural broadband and remote communities:Extended range and focused vertical pattern make it easier to reach dispersed customers over undulating terrain while limiting energy wasted above or below the horizon.
- Municipal wireless networks:City-wide Wi-Fi backhaul, public safety, or surveillance camera connectivity where omnidirectional coverage is preferred for single-site distribution.
- Temporary or rapid-deploy networks:Lightweight and quick to mount, the antenna suits event connectivity and emergency communications where a single base must cover all directions.
- Mixed topography deployments:In situations where subscriber directions vary widely or are not known in advance, an omnidirectional antenna with higher gain reduces the need to micro-align multiple sector antennas.
Operational note: while the AMO-5G13 covers 360° in azimuth, the narrow elevation beam and slight downtilt mean planning is required to avoid coverage holes in very near-in subscriber populations (very close to the tower) or on steep hills. Proper site survey and height selection will maximize performance.
Comparisons with similar products on the market
When evaluating the AMO-5G13, it helps to compare the trade-offs against other antenna types:
- Low-gain omnidirectional antennas (e.g., 5–9 dBi):These provide broader vertical coverage and can serve very near-in subscribers better, but their shorter range requires more base sites to cover the same area. The AMO-5G13 extends cell range and improves link margins at the cost of a narrower elevation pattern.
- Sector panel antennas:Sector panels (typically 60°–120° horizontal coverage) can provide higher effective gain and interference control by segmenting coverage into multiple cells. They are ideal for high-density urban areas. The AMO-5G13 simplifies deployments where full 360° coverage from one mounting point is desirable and where fewer installations are preferred.
- High-gain directional antennas:Parabolic or high-gain directional antennas deliver very long-range point-to-point links but cannot provide omnidirectional coverage. The AMO-5G13 fills the niche between low-gain omnis and directional dishes: it gives improved range while maintaining full azimuth coverage.
- MIMO-capable alternatives:Not all omnidirectional antennas offer dual-polarity MIMO. The AMO-5G13’s 2x2 dual-pol design delivers better throughput and resilience compared to single-pol omnis, helping operators squeeze more capacity from existing radio platforms.
Choosing the right antenna depends on network design priorities: coverage simplicity and reach (AMO-5G13), ultra-high capacity and interference control (sector panels), or extreme point-to-point distance (directional dishes).
Customer testimonials and representative feedback
Actual customer reviews were not provided with the product brief. Below are representative feedback snippets based on the typical experiences operators report for antennas with similar performance and design. These are illustrative and should be validated with independent reviews and pilot deployments.
- "We replaced several low-gain omnis with the AMO-5G13 at our rural site and gained an extra kilometer of reliable coverage — fewer towers, faster rollouts."
- "Installation was straightforward; the integrated RocketM bracket and supplied jumpers saved us time on the tower. The link stability under wind load has been excellent."
- "The 2x2 MIMO support noticeably improved throughput in marginal signal areas. Cross-polar isolation seems to reduce interference we used to see with single-pol omnis."
- "For municipal deployments where we wanted one antenna to cover a plaza or neighborhood, this model struck the right balance between reach and omnidirectional coverage."
Conclusion — why the AMO-5G13 is a great choice
The airMAX Omni AMO-5G13 is a strong option for network operators who need omnidirectional 360° coverage with extended range and modern MIMO performance. Its 13 dBi gain and narrow elevation beamwidth let a single base-station antenna serve a broader area than lower-gain omnis while maintaining efficient radiation characteristics and good interference control. The dual-polarity 2x2 MIMO capability boosts capacity and link reliability compared with single-polar designs.
Practical advantages include a rugged, weatherproof build; integrated RocketM mounting hardware; supplied weatherproof RF jumpers; and mechanical specifications that support exposed-site installations. Compliance to EN 302 326 DN2 and NDAA adds to its suitability for many operator environments, though installers should confirm CE/UKCA and warranty information directly with the vendor.
For ISPs focused on rural broadband, municipal wireless, or any point-to-multipoint deployments where single-site 360° coverage and extended range are priorities, the AMO-5G13 warrants serious consideration. It reduces site complexity relative to multiple sector installations, improves link margins versus low-gain omnis, and provides the modern MIMO support required for efficient, high-throughput wireless networks.
Pricing note:The suggested retail price is listed at 229.00 (currency as per supplier). Verify current pricing, availability, and support packages with authorized distributors and factor installation, tower work, and regulatory approvals into your total deployment cost.
Installation & safety reminder:Always use qualified technicians for tower work, adhere to local regulations, ensure proper grounding and lightning protection, and follow RF exposure guidelines during antenna siting and testing.
