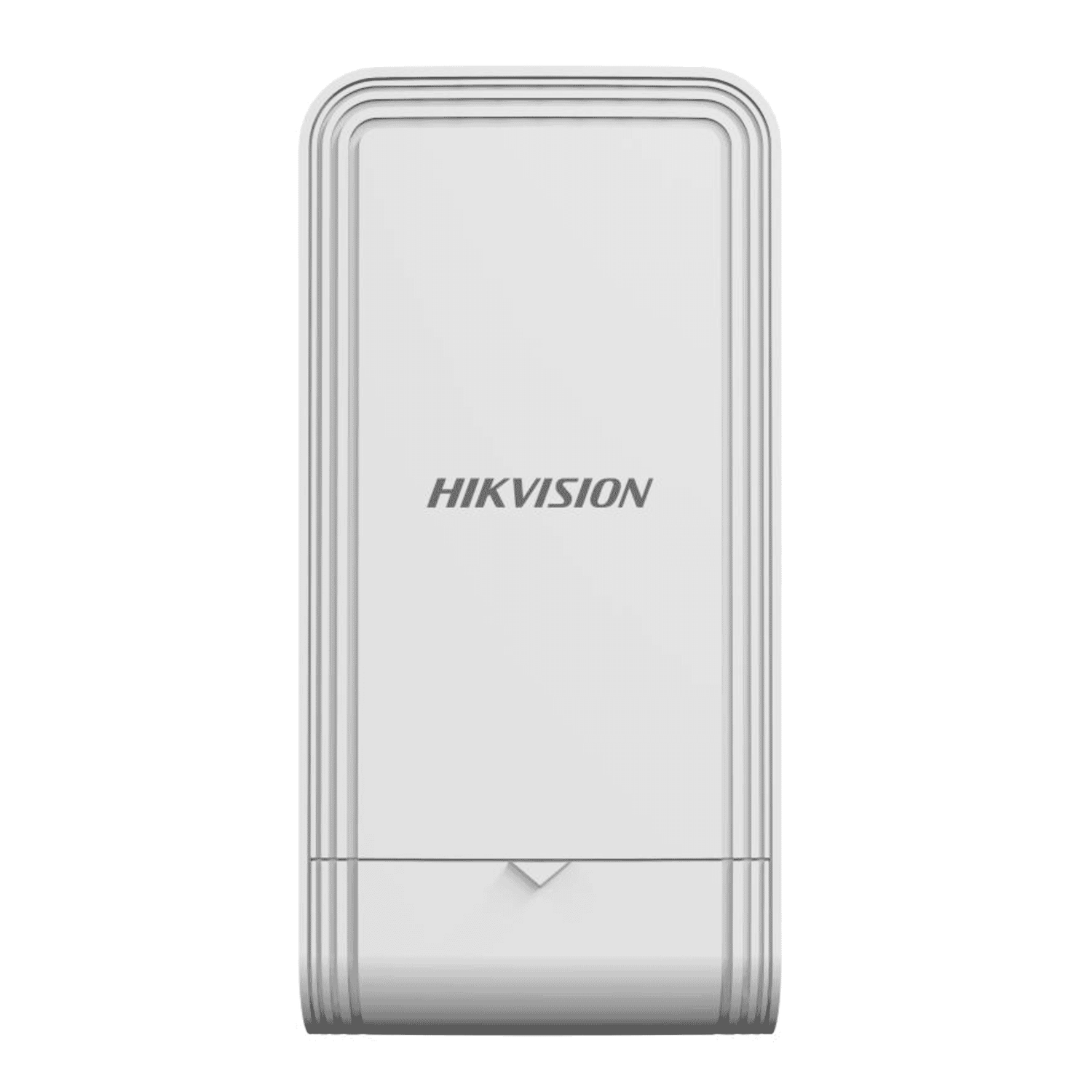

Introduction to the Hikvision DS-3WF02C-5AC/O(V3)
The Hikvision DS-3WF02C-5AC/O(V3) is a compact outdoor wireless CPE (Customer Premises Equipment) and bridge designed for reliable long‑range point‑to‑point (PTP) and point‑to‑multipoint (PTMP) links. Built with an integrated 12 dBi directional antenna and dual Gigabit Ethernet ports, this 5 GHz device targets CCTV backhaul, industrial connectivity and small to medium ISP links where robust, weather‑resistant performance is required. Supporting IEEE 802.11a/n/ac at up to 867 Mbps (80 MHz channel), it balances throughput, range and value — positioned as an affordable outdoor wireless bridge at a suggested price of $89.99 (cost price $48.60).
Key features at a glance
- 5 GHz operationwith DFS capability and up to 867 Mbps air rate.
- Integrated 12 dBi directional antenna(~35° beamwidth) for compact, focused links.
- Two Gigabit RJ45 portsand passive PoE (12 VDC / 1 A) for flexible installation.
- Rugged outdoor housingwith IP55 ingress protection and an operating range from −30 °C to 70 °C.
- Link stability and managementincluding TDMA, TPC, DFS plus Web, iVMS and HCP management; WPA2 security.
- Long‑range capability— line‑of‑sight links up to around 5 km (site dependent).
Detailed specifications and benefits
The DS-3WF02C-5AC/O packs a useful set of specifications for its size and price point. It adheres to IEEE 802.11a/n/ac standards and reaches a maximum air rate of up to 867 Mbps on an 80 MHz channel. Operating roughly across 5150–5850 MHz (regulatory dependent), it offers up to 22 dBm transmit power (subject to local limits) and an integrated 12 dBi directional antenna with approximately 35° beamwidth. These characteristics make it suitable for focused long‑range links where interference rejection and gain matter.
Two Gigabit Ethernet ports provide flexible deployment options: one port can be used for the client connection while the other can daisy‑chain to a local switch or camera NVR. Power is supplied via passive PoE (12 VDC / 1 A) or directly using a local 12 VDC supply, simplifying installs where standard PoE switches are not available.
From a durability perspective, the unit’s IP55‑rated housing and wide operating temperature range (−30 °C to 70 °C) mean it handles most outdoor environments, from cold, high‑altitude sites to hot, exposed rooftops. The compact dimensions (92 × 187 × 58 mm) and light weight (≈0.307 kg) make mounting and alignment straightforward.
On the management and security side, Hikvision includes Web, iVMS and HCP (Hikvision Cloud Platform) options plus WPA2‑PSK, DFS and TPC for regulatory compliance and interference mitigation. TDMA support can improve performance in multi‑point deployments by coordinating airtime and reducing collisions.
Benefits in practical terms include a low‑cost entry to robust outdoor wireless bridging, a small footprint for discreet installs, and the combination of performance and management tools that installers expect for CCTV backhaul and industrial links.
Use cases and scenarios where this product excels
The DS-3WF02C-5AC/O(V3) is well suited to a number of common deployment scenarios:
- CCTV backhaul and remote camera links: When video streams from remote cameras need a reliable Ethernet backhaul without running fiber, the 867 Mbps air rate and dual GigE ports let you connect NVRs, PoE cameras via a local switch, or bridge multiple devices.
- Small ISP last‑mile and customer premises links: Community ISPs or enterprises can use it for cost‑effective customer premises equipment or short PTP links where fiber is absent.
- Point‑to‑multipoint campus or industrial networks: The device’s TDMA support and directional antenna help serve multiple remote nodes with coordinated airtime, reducing interference and improving throughput.
- Temporary connectivity for events or construction sites: Lightweight and easy to mount, it’s a practical choice for temporary deployments that demand outdoor performance.
- Agricultural and rural connectivity: Farms and remote properties can use the bridge for telemetry, surveillance or to extend networks between buildings.
Typical line‑of‑sight range is up to ~5 km, but remember that real‑world performance depends on factors like Fresnel clearance, antenna alignment, interference, and local regulatory channel availability (DFS sub‑bands may require radar checks and channel switching).
Comparisons with similar products in the market
When evaluating outdoor wireless bridges, a few categories and competing products commonly come up: compact CPEs with integrated antennas (e.g., Ubiquiti NanoStation and LiteBeam series, MikroTik SXT), higher‑end carrier devices (Cambium, Ubiquiti airMAX/airFiber lines), and other Hikvision models.
Compared with Ubiquiti NanoStation/LiteBeam: the Hikvision unit offers a comparable integrated directional antenna and similar throughput for many CCTV or small ISP uses. Ubiquiti often emphasizes software features and broader community support; Hikvision competes on price and a straightforward management suite integrated with its iVMS/HCP ecosystems. The DS-3WF02C‑5AC/O can be a more budget‑friendly option while still delivering GigE ports and sufficient range.
Compared with MikroTik SXT series: MikroTik devices frequently provide advanced routing and wireless configuration options (RouterOS) and sometimes higher transmit power flexibility. Hikvision’s strength is simplicity tailored to surveillance use, native integration with Hikvision management platforms, and TdMA/TP support for multi‑point links. If you need deep routing and scripting control, MikroTik may be preferred; for plug‑and‑play CCTV bridging, Hikvision is often faster to deploy.
Compared with higher‑end solutions (Cambium, Ubiquiti airFiber): those platforms aim at carrier‑grade throughput, very long distances, and advanced spectrum management at higher price points. The DS-3WF02C‑5AC/O is not intended to replace these when multi‑hundred‑Mbps over dozens of kilometers is required — instead it sits in the practical mid‑range: affordable, compact and capable for most short to medium LOS links.
In short, the Hikvision bridge competes well on price, ease of use for surveillance backhaul, compact size, and outdoor readiness. If you need maximum throughput, packet‑level QoS, or extreme distances, consider higher‑end alternatives; if you want a cost‑effective, easy-to‑install outdoor bridge for cameras or simple network extension, this model is a solid choice.
Customer testimonials and installer feedback
There are no public, brand‑verified customer testimonials included with this product brief. However, based on common installer feedback for devices in this category, typical points of praise and concern are:
- Praised:Compact form factor and light weight make mounting and aiming simple; integrated antenna reduces cabling and alignment complexity. Dual GigE ports and passive PoE support flexible deployment topologies. Good value for money relative to comparable CPEs.
- Notes/concerns:As with any 5 GHz DFS device, installers should be aware of regulatory behavior — channels may switch if radar is detected, which can briefly interrupt links. Warranty and support expectations should be checked (this model is listed with no included warranty in the supplied data), and installers should confirm firmware and feature parity with the latest Hikvision releases.
If you are deploying CCTV backhaul, integrators often recommend pairing Hikvision bridges with the same vendor’s cameras/NVRs for seamless configuration via iVMS. In multi‑vendor environments, verify interoperability and test throughput for your specific traffic mix before large rollouts.
Installation, compliance and practical tips
Installation and local regulatory compliance matter. Align and mount the device carefully to maintain Fresnel clearance for long links, and use proper grounding and mounting as recommended in the official datasheet. Because 5 GHz regulatory bands and DFS behavior vary by region, check permitted sub‑bands and local rules before deployment. Use shielded Ethernet where required, and consider lightning protection or surge arrestors in exposed locations.
Conclusion: Why the DS-3WF02C-5AC/O(V3) is a great choice
The Hikvision DS-3WF02C-5AC/O(V3) is a practical, value‑oriented outdoor wireless bridge that balances performance, durability and cost. With a 12 dBi integrated antenna, up to 867 Mbps air rate, dual Gigabit Ethernet ports and rugged IP55 housing, it suits common CCTV backhaul, small ISP links and general outdoor bridging needs. For organizations seeking an affordable, compact CPE with straightforward deployment and integration into Hikvision management tools, this model delivers a compelling mix of features.
Before purchasing, verify local regulatory requirements for 5 GHz use, plan for proper mounting and alignment, and confirm support and warranty expectations with your supplier. When deployed in the right environment, the DS-3WF02C-5AC/O(V3) provides a cost‑effective path to reliable outdoor wireless connectivity.
