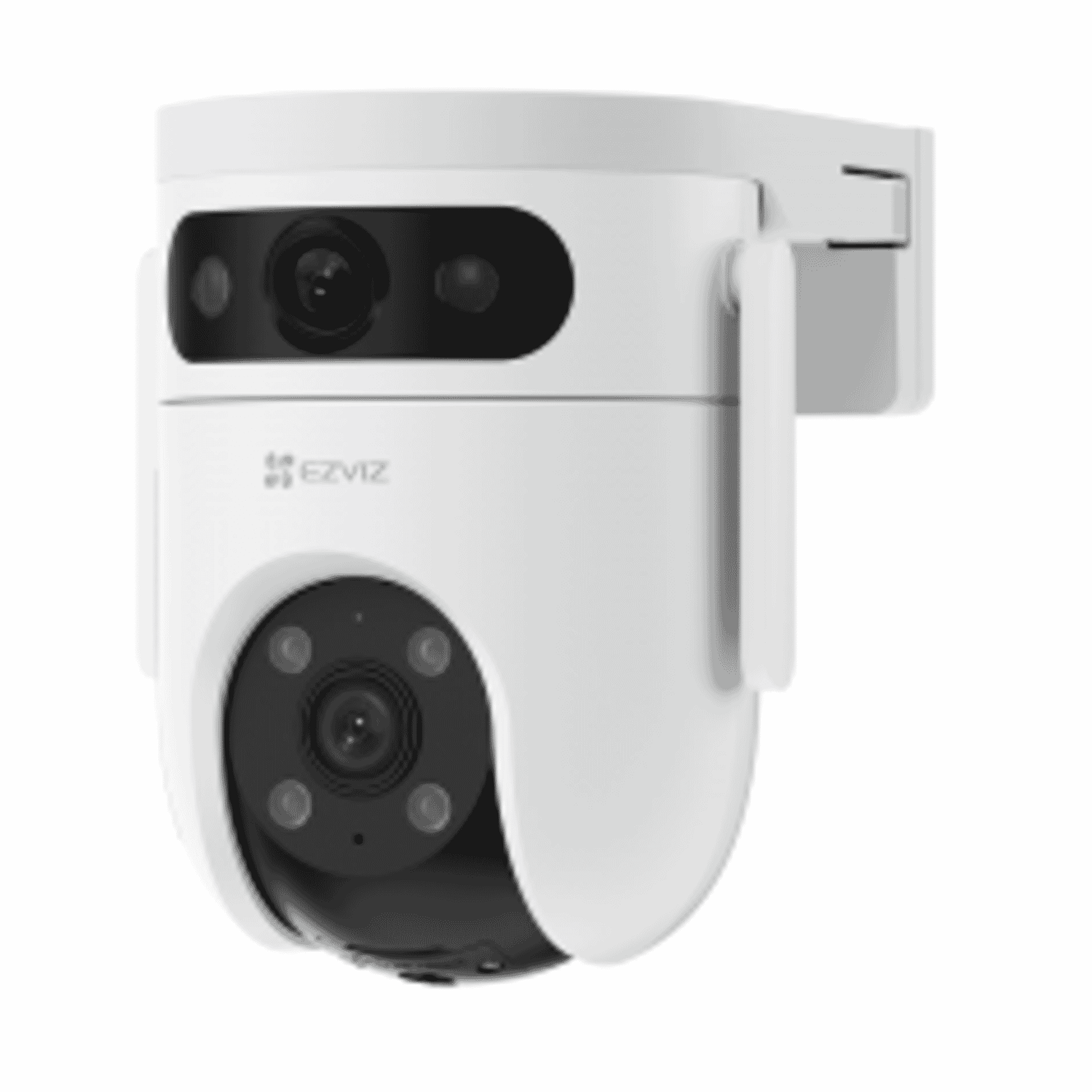

Introduction to the EZVIZ H9C Dual‑Lens Pan & Tilt Outdoor Wi‑Fi Camera
The EZVIZ H9C (CS‑H9C)is a purpose‑built outdoor security camera that combines a dual‑lens optical design with motorised pan & tilt mechanics, delivering wide situational awareness plus a telephoto option for zoomed detail and automated tracking. With up to 3MP (2304 × 1296) resolution per lens, colour night vision, AI‑powered human and vehicle detection, and flexible on‑device or cloud storage, the H9C is aimed at homeowners and small business users who want more than a basic fixed camera without the complexity of high‑end PTZ systems.
At a suggested retail price of$169.99(cost price shown at $89.99), the H9C sits in the mid‑range segment for consumer and prosumer outdoor security cameras. Its feature set — dual optics, pan/tilt coverage (Pan 350° / Tilt 80°), auto‑tracking and colour night vision — is designed to deliver both broad coverage and actionable detail when events occur.
Key features at a glance
- Dual‑lens arrangement: a wide fixed 2.8 mm lens (~108° horizontal) plus a motorised 6 mm telephoto lens for longer reach and detail.
- 3MP resolution per lens (2304 × 1296) with H.265/H.264 compression and Digital WDR for balanced images in mixed lighting.
- AI detection: human and vehicle recognition, motion alerts, configurable activity zones and automatic tracking of targets.
- Colour night vision supported by IR backup (B/W) with an approximate IR range to 30 m.
- Two‑way audio, active deterrence options (where supported), local microSD storage up to 512 GB and optional EZVIZ CloudPlay.
- Dual connectivity: 2.4 GHz Wi‑Fi (802.11b/g/n) and RJ45 10/100 Ethernet; secure WPA/WPA2 protocols.
Detailed specifications and benefits
- Image sensor:1/2.7" progressive‑scan CMOS delivering up to 3MP clarity (2304 × 1296).
- Wide lens:2.8 mm, F1.6 — ideal for near‑field coverage and situational context (~108° horizontal).
- Tele lens:6 mm, F1.6 — motorised pan/tilt operation lets the tele lens zoom to capture licence plates or faces at distance without purely relying on digital zoom.
- Pan/Tilt range:Pan 350° and Tilt 80° gives near‑complete horizontal coverage and strong vertical coverage for typical mounting positions.
- Video processing:H.265/H.264 codecs reduce bandwidth and storage needs while preserving quality; Digital WDR and 3D DNR improve detail in high contrast and low‑light scenes.
Benefit: The dual‑lens approach gives you a continuous wide overview and an optical telephoto view that preserves detail. For many outdoor scenarios this avoids the trade‑off between a very wide field that sacrifices detail and a zoomed lens that loses context.
- Minimum illumination:0.5 lux (colour) and 0 lux with IR engaged.
- Night range:Approx. 30 m with IR — plus colour night vision capability where ambient light permits.
Benefit: Colour night vision improves situational awareness when there is some residual illumination (streetlights, porch lights), while IR provides reliable black‑and‑white imagery in darker conditions.
- AI Detection:Human and vehicle shape detection reduces false alerts from animals or moving foliage.
- Auto‑tracking:The camera can follow detected targets across its pan/tilt range, making it useful for active events such as vehicle arrivals or intruder movement.
- Alerts & zones:Motion alerts, configurable activity zones and presets for automated patrol positions.
Benefit: These features focus attention on relevant events and reduce alert fatigue. Auto‑tracking turns a static alarm into a recorded sequence that follows the subject, improving evidence capture.
- Audio:Two‑way talk via built‑in microphone and speaker supports visitor communication or deterrence.
- Storage:microSD support up to 512 GB for local recording; optional EZVIZ CloudPlay for off‑site retention.
- Network:2.4 GHz Wi‑Fi or RJ45 Ethernet; WPA/WPA2 security.
- Power:DC 12 V ⎓ 1.5 A, max power ≈ 12 W.
Benefit: Local storage avoids mandatory subscription costs and keeps video on‑site, while cloud options are available for redundancy and remote archive access. Two‑way audio and active deterrence capabilities add a proactive layer to passive recording.
Use cases and scenarios where the H9C excels
- Perimeter and garden monitoring:The wide lens provides continuous coverage of fences, gates and paths while the tele lens can zoom to identify a person or vehicle approaching the property.
- Driveway & vehicle surveillance:AI vehicle detection and telephoto detail make the H9C suitable for tracking license plates and arrival times, particularly when combined with auto‑tracking.
- Small business outdoor monitoring:Retail storefronts, cafes and small offices benefit from the H9C’s wide situational awareness, active deterrence and two‑way audio for customer or staff interactions.
- Hybrid DIY/contractor installation:The camera’s standard power and network requirements make it suitable for DIY mounts or professional installs; for mains work, consult a qualified electrician and follow local wiring regulations.
In short, the H9C is a flexible option when you need a single camera to provide both a broad field and detailed evidence capture without installing multiple fixed cameras.
How the H9C compares with similar products
There are a few common camera types to compare against: fixed wide‑angle cameras, single‑lens motorised zoom cameras, and larger PTZ systems. The EZVIZ H9C aims to bridge the gap.
- vs fixed wide‑angle cameras:Fixed cameras offer simplicity and often lower cost but cannot optically zoom. The H9C’s tele lens gives optical reach for detail while the wide lens keeps context, avoiding the compromise of digital crop.
- vs single varifocal or motorised zoom cameras:Some varifocal cameras can zoom but may require manual control or separate presets. The H9C’s dual‑lens approach provides instant switchable views plus automatic tracking, which can be more responsive for sudden events.
- vs higher‑end PTZ systems:Full PTZ cameras on a professional platform can offer greater zoom ranges and integrative controls for multiple cameras. The H9C is more affordable and simpler to deploy, making it attractive for residential and small business users who want many PTZ features without enterprise complexity or cost.
Overall, the H9C is positioned to deliver many practical benefits of zoom and tracking while keeping cost and setup straightforward compared with larger commercial PTZ systems.
Customer feedback and common impressions
Direct customer testimonials for every listing vary, but aggregated feedback themes for cameras with this feature set commonly include:
- Positives:Users appreciate the dual‑lens capability for preserving context and capturing distant detail; auto‑tracking and AI detection reduce irrelevant alerts; colour night vision is noted as helpful in suburban environments with ambient lighting.
- Practical notes:Installers highlight the value of Ethernet connectivity when Wi‑Fi is unreliable, and customers often praise the option for large microSD cards to avoid subscription fees.
- Constructive points:Some users expect faster frame rates for very rapid motion (the H9C uses up to ~15 fps self‑adaptive), and others recommend careful placement to avoid obstructions within the pan/tilt sweep. As with all outdoor cameras, adherence to local privacy laws and clear signage where required is important.
If you require verified, named testimonials or ratings from specific retailers, check product listings and independent review sites for the latest user reviews and video examples.
Conclusion: Why the EZVIZ H9C is a strong choice
The EZVIZ H9C Dual‑Lens 3MP Pan & Tilt camera offers a compelling mix of capabilities for users who want both wide coverage and zoomed detail from a single outdoor unit. Its dual‑lens design solves a practical problem — maintaining situational awareness while being able to capture forensic detail — without the expense and complexity of a full PTZ system.
Key advantages include AI human and vehicle detection, automatic tracking, flexible storage (large microSD support and optional cloud), and a range of connectivity options. Colour night vision plus IR backup extends usefulness after dark, and the pan/tilt mechanics provide near‑complete horizontal coverage for typical property monitoring needs.
For homeowners securing gardens, driveways and entrances, or small businesses needing reliable perimeter surveillance, the H9C represents a feature‑rich middle ground: more capable than a basic fixed camera, yet simpler and more affordable than enterprise PTZ installations. Before purchase and installation, verify regional compliance markings (CE/UKCA) and consult the supplied datasheet and user manual for mounting, wiring and safety details.
Datasheet & user manual:Refer to the manufacturer’s H9C datasheet and user manual for full technical details, installation guidance and safety declarations.
Overall, if you’re looking for an outdoor camera that delivers wide coverage, optical telephoto detail and smart detection without heavy professional infrastructure, the EZVIZ H9C is a practical and capable option worth considering.
