Introduction to the Premier Elite 64‑W LIVE (GEX-0001) and its key features

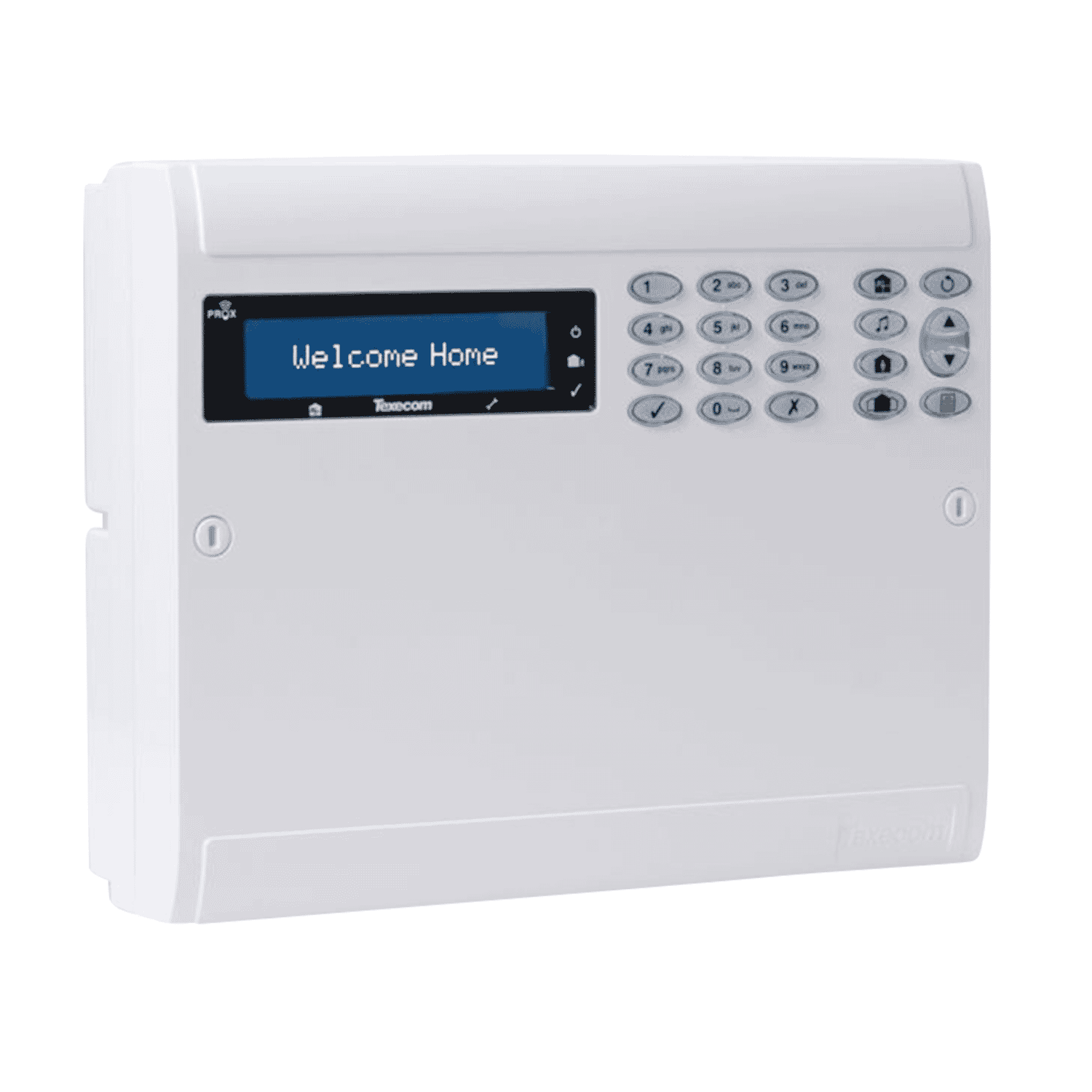

The Premier Elite 64‑W LIVE (GEX-0001) is a hybrid intruder alarm control panel designed for modern residential and light commercial security applications. Combining an integrated LCD keypad with a proximity reader, support for Texecom Ricochet mesh wireless technology, and Premier Elite Connect‑ready firmware, the 64‑W LIVE aims to deliver flexible installation, robust wireless performance, and cloud connectivity for remote monitoring and control. With 32 onboard wireless zones (expandable to 64), four onboard wired zones and support for a range of communicator options (SmartCom, ComIP, ComWiFi), this panel sits squarely between simple DIY systems and large enterprise panels — giving installers and end users a scalable, professional-grade solution.
- Ricochet mesh wireless:32 onboard wireless zones, expandable to 64 using Ricochet devices.
- Hybrid capability:4 onboard wired zones with support for additional wired expanders.
- Integrated interface:Onboard LCD keypad with proximity reader; supports up to 4 keypads.
- Remote connectivity:Connect‑ready firmware with SmartCom / ComIP / ComWiFi compatibility for remote monitoring and control.
- Event logging and programmability:Up to 500 time‑ and date‑stamped events and 4 programmable outputs.
- Standards compliant:Designed to meet EN50131 / PD6662 Grade 2 Class II requirements (refer to datasheet for full compliance details).
Detailed specifications and benefits
The Premier Elite 64‑W LIVE brings a comprehensive specification set appropriate for many modern installations. Beyond headline features, the panel offers a number of practical benefits that ease installation, improve reliability and deliver better user experience.
- Product code:GEX-0001
- Model:Premier Elite 64‑W LIVE
- Maximum zones (total):76
- Wireless zones:Up to 64 (32 onboard)
- Onboard wired zones:4 (expandable)
- Areas:4 independently configurable areas
- User codes:Up to 50
- Event log:500 entries (time & date stamped)
- Programmable outputs:4
- Radio / Frequency:868.2–868.4 MHz (GEXA1000) or 866.0–866.6 MHz (GEXA3000)
- Standards:EN50131-1 / EN50131-3 / EN50131-5-3; PD6662 Grade 2 Class II; EMC: EN 50130-4 / ETSI EN 301 489-3
- Operating temperature:−10° to 40°C
- Dimensions:283 mm × 229 mm × 89 mm
- Weight:Approx. 1.7 kg
- Scalability:With 32 wireless zones built in and the ability to expand to 64 wireless zones, the panel grows with the premises. Deploy additional Ricochet devices as needs change without major rewiring.
- Reliable wireless mesh:Texecom Ricochet mesh networking improves range and redundancy compared to single‑hop wireless sensors because messages can route through other devices — reducing dead spots and improving resilience against individual device failures.
- Hybrid flexibility:The combination of wired and wireless zone support gives installers flexibility to use wired sensors where preferred (e.g., high-security doors) and wireless where access or aesthetics make wiring impractical.
- Remote management:Connect‑ready firmware with SmartCom / ComIP / ComWiFi support enables cloud connectivity, remote diagnostics and user control via Texecom Connect or compatible monitoring services — useful for both end users and system integrators.
- Professional interface:An onboard LCD keypad with proximity reader provides easy local operation and modern user experience; support for multiple keypads lets system access be distributed around a property.
- Compliance and logging:Standards compliance and a 500‑entry event log help satisfy insurance and monitoring requirements while providing forensic detail when incidents occur.
Use cases and scenarios where the Premier Elite 64‑W LIVE excels
The hybrid architecture and Ricochet mesh capability make the Premier Elite 64‑W LIVE well suited to several common installation scenarios:
Large homes, multi‑storey houses or properties with outbuildings often present challenges for wired systems. The Ricochet mesh lets you place motion detectors, door/window contacts and external sensors across the site with minimal cabling, while wired zones can be used for critical perimeter doors or where a wired connection is desired for added reliability.
Retail shops and small offices benefit from the panel’s area partitioning (4 areas), which allows different parts of the premises to be armed independently. The event log and user codes help with staff access control and incident auditing, while remote connectivity helps managers and monitoring stations stay informed.
When upgrading security in a building where running new cables is disruptive or costly, the hybrid panel lets installers combine existing wired sensors with new wireless devices, minimising disruption and cost.
Connect‑ready firmware and communicator options make the panel appropriate where remote alerts, app control or integration with cloud monitoring is required. Installers can set up remote diagnostics to reduce site visits and provide faster support.
Comparisons with similar products on the market
The Premier Elite 64‑W LIVE occupies the mid‑to‑higher end of the hybrid intruder panel segment. When comparing it to other systems, consider these angles:
Traditional single‑hop wireless sensors communicate directly with the panel and can suffer range or obstruction issues on larger sites. Ricochet mesh devices relay messages through other devices, increasing effective range and offering redundant communication paths. This often results in more reliable coverage without adding repeaters or additional infrastructure.
Fully wired panels are still a strong choice for high‑security installations where cabling is already present. However, hybrid panels like the 64‑W LIVE reduce installation time and cost in many scenarios and ease future expansion. For many homeowners and small businesses, the trade‑off favours hybrid flexibility with professional features.
Competing hybrid panels may offer similar zone counts or connectivity options, but the Texecom ecosystem adds value through the Ricochet mesh, proven communicator options and widespread installer support. Buyers should compare specifics — such as maximum logged events, user code capacity, area partitioning and the availability of compatible wireless sensor ranges — to choose the best fit.
Customer feedback and installer impressions
Official individual customer testimonials are not provided here, but installer and user feedback trends for Texecom Premier Elite products highlight several recurring points:
- Reliability:Installers commonly praise the stability of Ricochet mesh on multi‑device sites and note fewer call‑backs related to signal loss compared with older wireless systems.
- Installation speed:The hybrid approach and onboard keypad reduce installation time, particularly in retrofit jobs where existing wired devices can be integrated with new wireless sensors.
- Remote management:Professional users appreciate Connect‑ready firmware and communicator compatibility because remote diagnostics and alarm reporting reduce the need for site visits and enable faster response.
- User experience:End users often comment positively on the intuitive LCD keypad and proximity reader for daily arming/disarming.
For verified customer reviews, check retailer or monitoring partner pages and request references from installers for real‑world examples.
Conclusion: why the Premier Elite 64‑W LIVE is a strong choice
The Premier Elite 64‑W LIVE (GEX‑0001) combines professional‑grade features, proven wireless mesh technology and flexible hybrid architecture to deliver a compelling solution for homes, small businesses and retrofit projects. Its expandability to 64 wireless zones, support for wired expanders, onboard LCD keypad with prox reader and Connect‑ready remote capabilities position it as a versatile panel that can grow with the site. Standards compliance and a robust event log add the reassurance required for monitored installations.
Whether you are a professional installer looking for a reliable, scalable panel for diverse job types or a property owner seeking a future‑proofed security platform, the Premier Elite 64‑W LIVE offers a balanced mix of performance, flexibility and remote capability. For pricing, the suggested retail price is around 209.99 (check local suppliers for current offers and installation costs). Always consult a competent installer and the official installation manual to ensure regulatory compliance and to get warranty and support details specific to your region.
