Introduction: Robust surveillance for corrosive and exposed environments

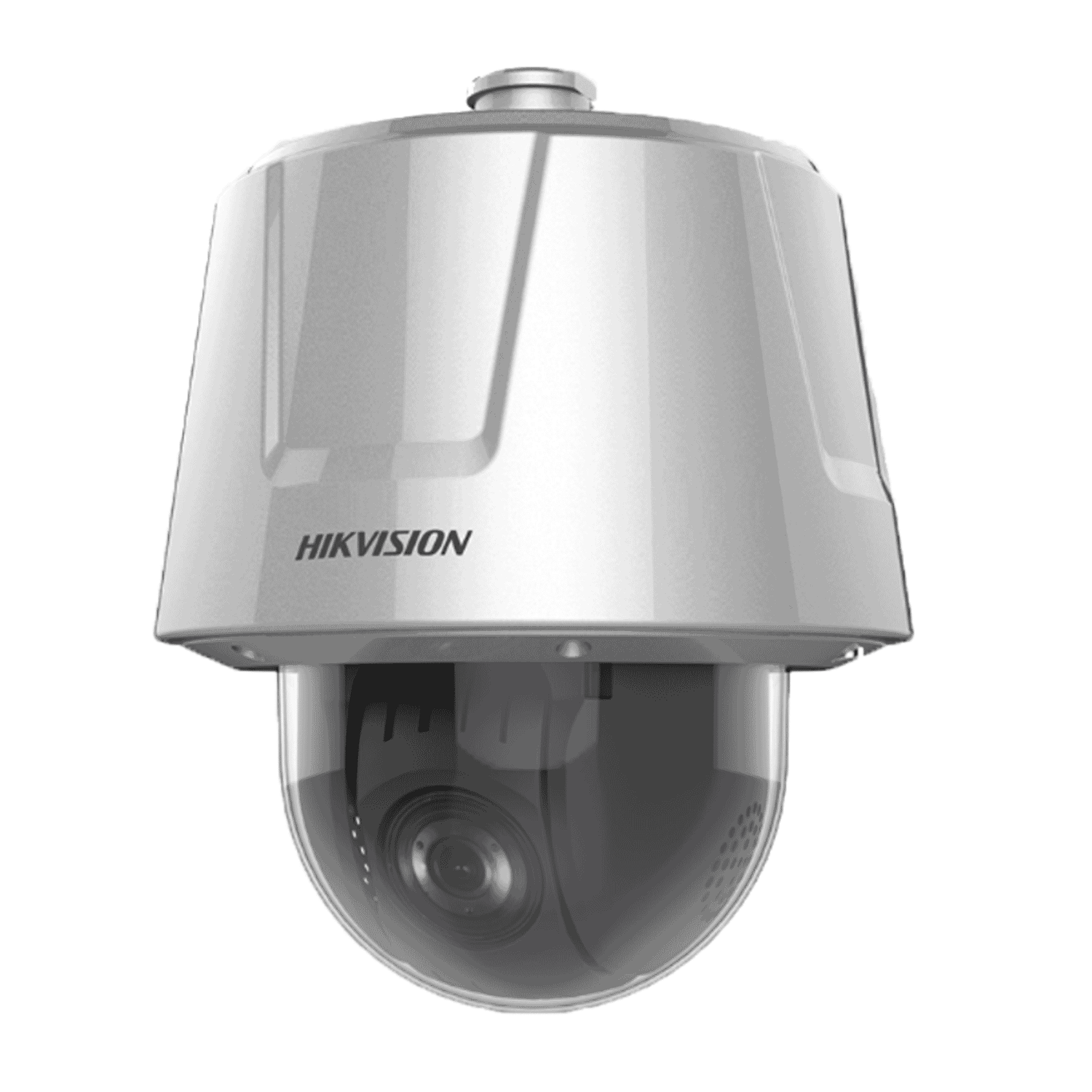

The DS-2DT6232X‑AELY(T5) is a purpose‑built industrial IP PTZ camera that combines long‑range optics, advanced video processing and a corrosion‑resistant mechanical design. Marketed as a 2 MP Anti‑corrosion PTZ with 32× optical zoom, SUS316L body and IP67/NEMA 4X/IK10 protection, this unit is aimed at sites where ordinary cameras fail: ports, coastal facilities, chemical plants, oil & gas installations and other facilities exposed to salt, chemicals, moisture and mechanical impact. Its mix of imaging performance, analytics and rugged construction make it a compelling option for systems integrators and end users who require reliable day/night monitoring over wide areas.
Key features at a glance
- Imaging:2 MP (1920 × 1080) 1/1.8" progressive CMOS sensor delivering full HD at up to 30/25 fps.
- Zoom & optics:32× optical (5.9–188.8 mm) with an additional 16× digital zoom and fast zoom response (~4.5 s), suited for long‑range identification.
- Rugged housing:SUS316L stainless steel construction with NEMA 4X anti‑corrosion finish, IP67 ingress protection and IK10 impact resistance.
- Environmental tolerance:Wide operating range from −40 °C to +70 °C and high humidity tolerance.
- Smart analytics:Face capture, vehicle and license‑plate detection, perimeter alarms and built‑in auto‑tracking.
- Advanced video processing:H.265/H.264 compression, 140 dB WDR, 3D DNR, defog, HLC/BLC and EIS for stable, high‑quality streams.
- Flexible connectivity & storage:RJ45 10/100, ONVIF support, microSD up to 256 GB, NAS and ANR.
Detailed specifications and practical benefits
The camera uses a 1/1.8" progressive CMOS sensor tuned for high sensitivity. With a minimum illumination of 0.002 lux in colour and 0.0002 lux in black‑and‑white (at F1.5), the unit excels in low‑light and near‑night conditions. The 32× optical zoom (5.9–188.8 mm) gives a horizontal field of view from 59.8° down to 3.3°, enabling operators to both monitor wide areas and zoom in for identification at long range. The additional 16× digital zoom increases investigative reach, while the zoom speed of roughly 4.5 seconds provides responsive target framing.
Modern video management demands efficient codecs and smart processing. The DS‑2DT6232X‑AELY supports H.265/H.265+/H.264/MJPEG with three independent streams, helping reduce bandwidth and storage needs without sacrificing quality. A 140 dB wide dynamic range (WDR) tackles scenes with extreme contrast—such as ship decks, gates or bright sky backgrounds—while 3D DNR, defog, BLC/HLC and EIS address noise, smoke/haze and stabilization for clearer evidence capture.
Built‑in analytics such as face capture, vehicle detection, license‑plate recognition (LPR) and perimeter alarms provide on‑device intelligence. Auto‑tracking follows moving targets automatically, reducing operator workload and improving incident response times. This blend of processing and analytics is particularly valuable in environments where bandwidth is limited but situational awareness is critical.
Mechanically, the camera supports full 360° pan and a tilt range from −15° to 90°, with an auto‑flip function to maintain orientation when panning continuously. It stores up to 300 presets, 8 patrols (each up to 32 presets) and 4 pattern recordings—allowing complex automated patrol routes and fast recall of key positions. Pan speeds reach up to 300°/s, which is useful for fast target reacquisition across wide sites.
The housing is fabricated from SUS316L stainless steel, chosen for its excellent corrosion resistance to chloride and many industrial chemicals. With NEMA 4X rating, IP67 ingress protection and IK10 impact resistance, the camera resists water, dust, corrosive atmospheres and vandal attempts. It operates reliably from −40 °C to +70 °C, making it suitable for arctic to desert climates. Official certifications (CE, FCC SDoC, RCM, IC, KC, UL/CB references in the datasheet) support global deployments and regulatory compliance.
Networking features include IPv4/IPv6 support, ONVIF Profiles S/G/T for interoperability with VMS platforms, and a 10/100 RJ45 interface. Local storage via microSD (up to 256 GB), NAS (NFS/SMB/CIFS) and ANR provide flexible recording options to match site architectures. Power options include 24 VAC (with up to 45 W maximum to support the internal heater) or Hi‑PoE up to 60 W—important for cold environments where heaters are required. I/O interfaces (7 alarm in / 2 alarm out, audio in/out, BNC out, RS‑485) support integration with external sensors, alarms and legacy systems.
Primary use cases and scenarios where this camera excels
- Ports and harbours:Long‑range optics and anti‑corrosion housing make it ideal for ship lane monitoring, berth surveillance and perimeter security where salt spray and harsh weather are constant challenges.
- Coastal and offshore installations:For coastal power stations, desalination plants and offshore platforms, the SUS316L body and NEMA 4X protection ensure longevity in highly corrosive conditions.
- Chemical plants and refineries:Chemical atmospheres and washdown procedures demand corrosion‑resistant enclosures and resilient electronics. The camera addresses these needs while providing LPR, vehicle detection and perimeter analytics.
- Oil & gas facilities:Wide temperature tolerance, impact resistance and auto‑tracking support perimeter protection, wellhead monitoring and access control points in remote installations.
- Critical infrastructure:Airports, power substations and water treatment sites benefit from the camera’s environmental hardening, WDR and analytics for reliable situational awareness.
Comparisons with similar products
When compared to conventional outdoor PTZ cameras that use aluminum or painted steel housings, the DS‑2DT6232X‑AELY stands out for its SUS316L construction and NEMA 4X anti‑corrosion rating. Competing 2 MP PTZs may match optical zoom or analytics, but they often fall short in long‑term resistance to salt, chemical exposure and washdown procedures—conditions that accelerate corrosion and shorten service life.
Higher resolution PTZs (4K/8MP) offer finer detail at distance, but they also require more bandwidth, greater storage capacity and more expensive processing—potential drawbacks in remote industrial sites with limited network infrastructure. The DS‑2DT6232X‑AELY’s balance of 2 MP resolution and 32× optical zoom delivers practical identification range while keeping network and storage costs manageable.
Compared with purpose‑built stainless‑steel PTZs from other vendors, this model competes strongly on a combination of zoom reach, analytics and electrical options (Hi‑PoE or 24 VAC). Price and availability, overall system compatibility (ONVIF), and local service/support should be considered when selecting between vendors. At a suggested price of approximately USD 2,600 (cost price: USD 1,789.26), it positions itself as a mid‑to‑high‑value industrial PTZ with durable hardware and advanced features.
Customer feedback and field observations
Public, named customer testimonials for this specific model are limited in the open domain. However, installer and systems integrator feedback for similar anti‑corrosion PTZ devices commonly highlights several recurring benefits: extended service life in marine environments, reduced maintenance costs (less repainting and enclosure replacement), and improved detection/identification at range thanks to high optical zoom coupled with analytics and WDR.
Typical installer notes often report that the SUS316L housing and NEMA 4X rating significantly reduce lifecycle interventions in coastal projects, and the flexible power options simplify deployments in sites where PoE budget and AC power availability vary. When operators describe operational benefits, they frequently emphasize the value of auto‑tracking and presets for automated patrols that cut down on operator fatigue during long shifts.
Conclusion: Why this camera is a strong choice for harsh‑environment surveillance
The DS‑2DT6232X‑AELY(T5) is a specialized solution for demanding environments where corrosion, impact and extreme weather would undermine standard cameras. It pairs a practical 2 MP imaging platform and long‑reach 32× optical zoom with advanced video processing and analytics, all enclosed in a SUS316L, NEMA 4X, IP67 and IK10 rated body. For ports, coastal facilities, chemical plants, oil & gas sites and other harsh installations, the camera offers a balance of durability, capability and interoperability (ONVIF, diverse storage options and flexible power inputs).
Decisions on deployment should weigh system requirements—resolution versus bandwidth, analytics needs, power availability and local serviceability—alongside budget considerations. For projects prioritizing corrosion resistance and long‑term reliability without the infrastructure overhead of ultra‑high resolution cameras, the DS‑2DT6232X‑AELY represents a pragmatic, well‑engineered choice.
Installation should be performed by a qualified installer in accordance with local electrical and safety regulations. Refer to the official datasheet and product documentation for detailed certification listings, mounting instructions and environmental limits.
