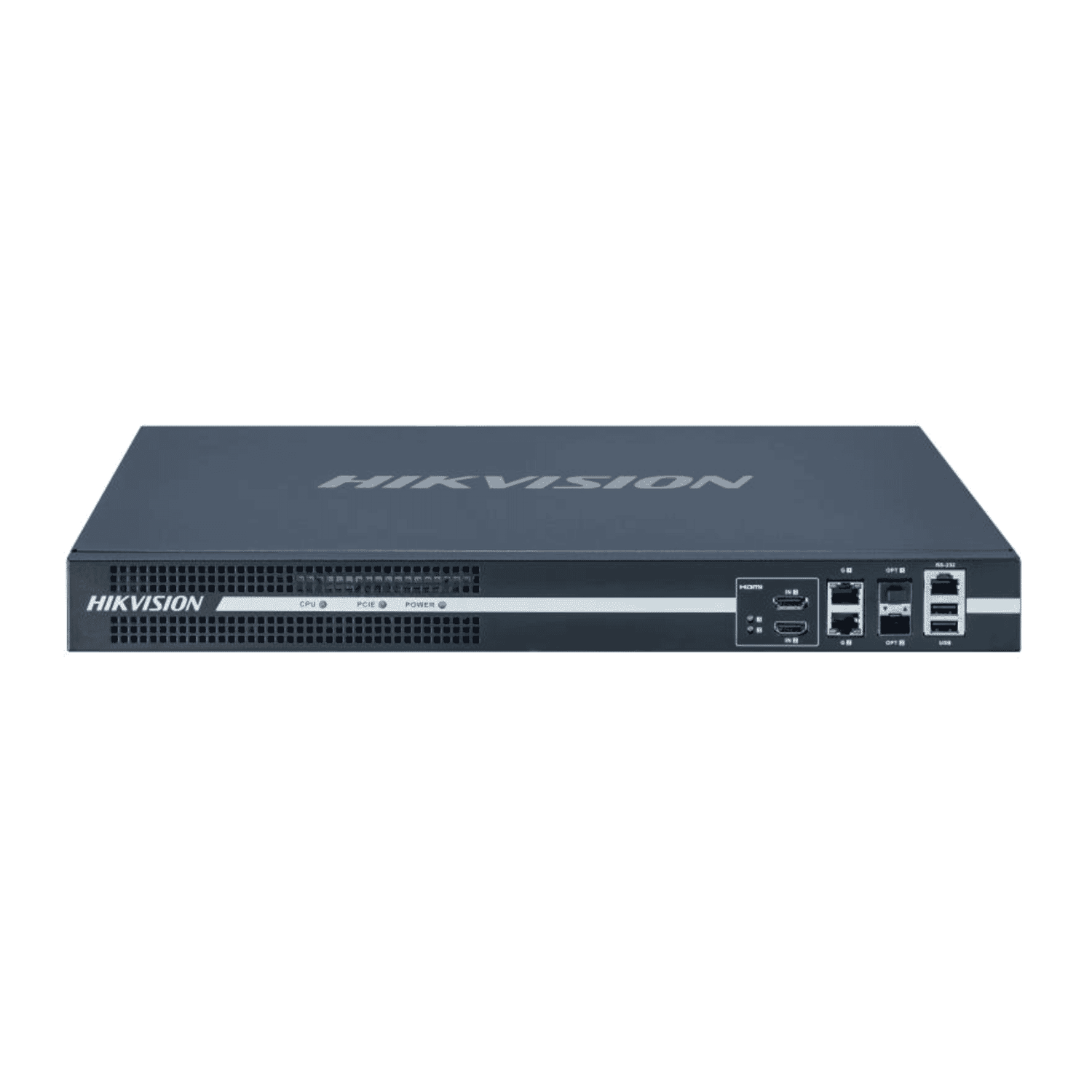

Introduction to the Hikvision DS-6904UDI 4-Channel 4K IP Video Decoder
The Hikvision DS-6904UDI is a professional-grade 4-channel IP video decoder engineered for multi-screen and video-wall environments. Marketed as the Hikvision 4K Video Decoder (4‑ch), it decodes network video streams and outputs crisp 4K HDMI video across multiple displays. With flexible split-screen modes, virtual and irregular screen configurations, optical network connectivity and a rackable 1U chassis, the DS-6904UDI targets control rooms, security operations centres and any deployment that needs reliable, high-density decoding and display management.
Key features at a glance:
- 4 × HDMI outputs supporting up to 3840×2160 (4K) @ 30 Hz.
- 2 × BNC analogue outputs for legacy displays (PAL/NTSC).
- High decoding capacity — up to 72 channels depending on resolution.
- Supports H.265/H.264 families (including H.265+, H.264+) plus MJPEG and MPEG4.
- Gigabit RJ45 plus optical combo port for flexible network connectivity.
- Advanced video-wall features including virtual/irregular screens and roaming windows.
The DS-6904UDI is built around practical engineering that balances decoding power, flexible I/O and professional-grade control interfaces. Below are the key specifications and what they mean for real-world deployments.
- Video outputs:Four HDMI outputs able to deliver 4K (3840×2160 @ 30 Hz) let you use native 4K monitors or drive video-wall processor inputs. Two BNC/CVBS outputs support legacy displays in PAL/NTSC formats (PAL 704×576; NTSC 704×480).
- Decoding capability:The unit supports multiple codecs (H.265, H.264, Hik264, H.265+/H.264+, MPEG4, MJPEG) and can handle up to 72 decoding channels depending on resolution and codec. Typical examples include 36 channels at 1080p or 72 channels at 720p; it also handles fewer higher-resolution streams (e.g., 8MP/24 MP aggregate depending on mode).
- Video-wall and split-screen:Multiple split-screen layouts (1/2/4/6/8/9/12/16/25/36) and advanced windowing features (window opening/roaming, virtual and irregular screens, LED width/height configuration) make the DS-6904UDI suitable for control rooms that need flexible, dynamic layouts.
- Network and control:A combo network port (1 × RJ45 10/100/1000 + 1 × optical 100FX/1000X) provides redundancy and fibre options. Serial control interfaces (RS-232 via RJ45 and RS-485) allow integration with third-party matrix controllers, keyboard controllers or automation systems.
- Audio:Four audio outputs with support for common audio codecs (G.722, G.711A/U, G726, MPEG2-L2, AAC) and remote two-way audio through client integrations help deliver synchronized AV playback and communications in monitoring centres.
- Physical & power:The chassis is a 1U-style rack width (440 × 320.8 × 44.5 mm), weight ≤ 5.2 kg, designed for rack mounting. Power input is 100–240 VAC (region variants), with power consumption ≤ 70 W. Environmental specs: operating temperature −10 °C to 55 °C, humidity 10%–90%.
These specifications translate into benefits for integrators and operators: high-resolution output for modern displays, broad codec support for efficient bandwidth use, a high channel-density architecture that lowers hardware counts, and flexible I/O for mixed legacy and modern systems.
The DS-6904UDI is purpose-built for professional surveillance display environments. Typical deployments include:
- Security operation centres and control rooms:The decoder’s multi-HDMI outputs and video-wall features enable operators to view multiple camera feeds, map screens, alarms and third-party video sources across large wall displays or multiple monitors.
- Transportation hubs and traffic management:Airports, railway stations and traffic control centres benefit from the high-resolution outputs and flexible layout options. Operators can view live camera feeds, digital signage, and incident video side-by-side.
- Utilities and critical infrastructure:Power stations, water treatment plants and substations require reliable display systems for monitoring — the DS-6904UDI provides deterministic decoding and serial control integration for SCADA and alarm systems.
- Retail and large commercial sites:Centralised video monitoring, loss prevention displays, and digital signage feeds can be combined on the same decoder for unified situational awareness.
- Broadcast contribution and post-production monitoring:While not a broadcast encoder, the 4K output and multiple display channels can serve as a monitoring node in technical areas where multiple program sources must be observed.
Because it supports both HDMI and analogue outputs, the DS-6904UDI is ideal for mixed environments that are transitioning to 4K displays but still retain legacy equipment.
When evaluating the DS-6904UDI, integrators often compare it to other decoders from Hikvision and competing manufacturers. A few points of comparison:
- Within Hikvision’s line-up:Larger models (e.g., 8-channel decoders) offer greater HDMI/BNC outputs or higher concurrent window counts for very large walls. The DS-6904UDI’s advantage is its compact 4-HDMI form factor optimized for smaller video walls and multi-monitor desks.
- Against other manufacturers (Hanwha/Wisenet, Dahua, Axis):Many competitors offer IP video decoders with similar features. The DS-6904UDI competes strongly on codec flexibility (H.265+ support), optical network options, and video-wall features such as virtual/irregular screens. Some competing decoders may offer higher frame-rate 4K support or additional HDMI audio embedding options; others provide tighter VMS integrations. Choosing between models typically depends on existing camera/VMS ecosystem, preferred support channel, and detailed feature matching.
- Strengths vs trade-offs:Strengths include robust decoding density, flexible I/O (4×HDMI + 2×BNC), and video-wall sophistication. The main trade-offs are that the model is listed as discontinued/legacy in some regions — meaning availability, firmware updates and warranty may vary — and larger video-wall projects might prefer higher-capacity units.
While individual reviews may vary by integrator and region, common themes from professionals who have used the DS-6904UDI include:
- "Reliable decoding and crisp 4K output — ideal for a small control room setup where we needed multiple HDMI outputs."
- "Video-wall features are surprisingly flexible. Virtual screens and window roaming made it simple to create operator layouts without a separate video-wall processor."
- "Good codec support helped reduce bandwidth on our network — H.265+ compatibility lowered storage and transmission costs."
Some integrators caution that because the model is classed as legacy or discontinued in certain markets, buyers should check current firmware support, local certifications (CE/UKCA), and the vendor’s support policy before purchasing. Several installers recommend professional configuration by a qualified CCTV/integration engineer to ensure optimal performance and integration with control-room workflows.
The Hikvision DS-6904UDI 4-channel 4K IP video decoder is a pragmatic, professional solution for display-centric surveillance environments. It brings together 4K HDMI outputs, extensive codec and decoding support, flexible video-wall and split-screen features, and practical connectivity (including an optical network combo port and serial control). For small to medium-sized control rooms, retail command centres or infrastructure-monitoring sites, the DS-6904UDI offers a compact, rackable footprint with the decoding muscle needed to consolidate many camera streams into clear, manageable displays.
There are important considerations: the model’s discontinued/legacy status in some regions means buyers should verify local approvals, ongoing firmware updates and support options. Also, larger systems may require higher-capacity decoders. Nonetheless, for installations that match its channel-density and display requirements, the DS-6904UDI remains a capable and cost-effective choice.
Pricing note:Suggested retail pricing on this unit has been listed around $975 (cost price example: $814.80), though market availability and regional pricing will vary. Always confirm current stock, warranty and firmware support with your reseller.
In short, if you need reliable 4K multi-channel decoding, flexible video-wall control and a compact rackable design — and you confirm local support and certification — the Hikvision DS-6904UDI is worth serious consideration for professional display and monitoring projects.
