An introduction to the product and its key features

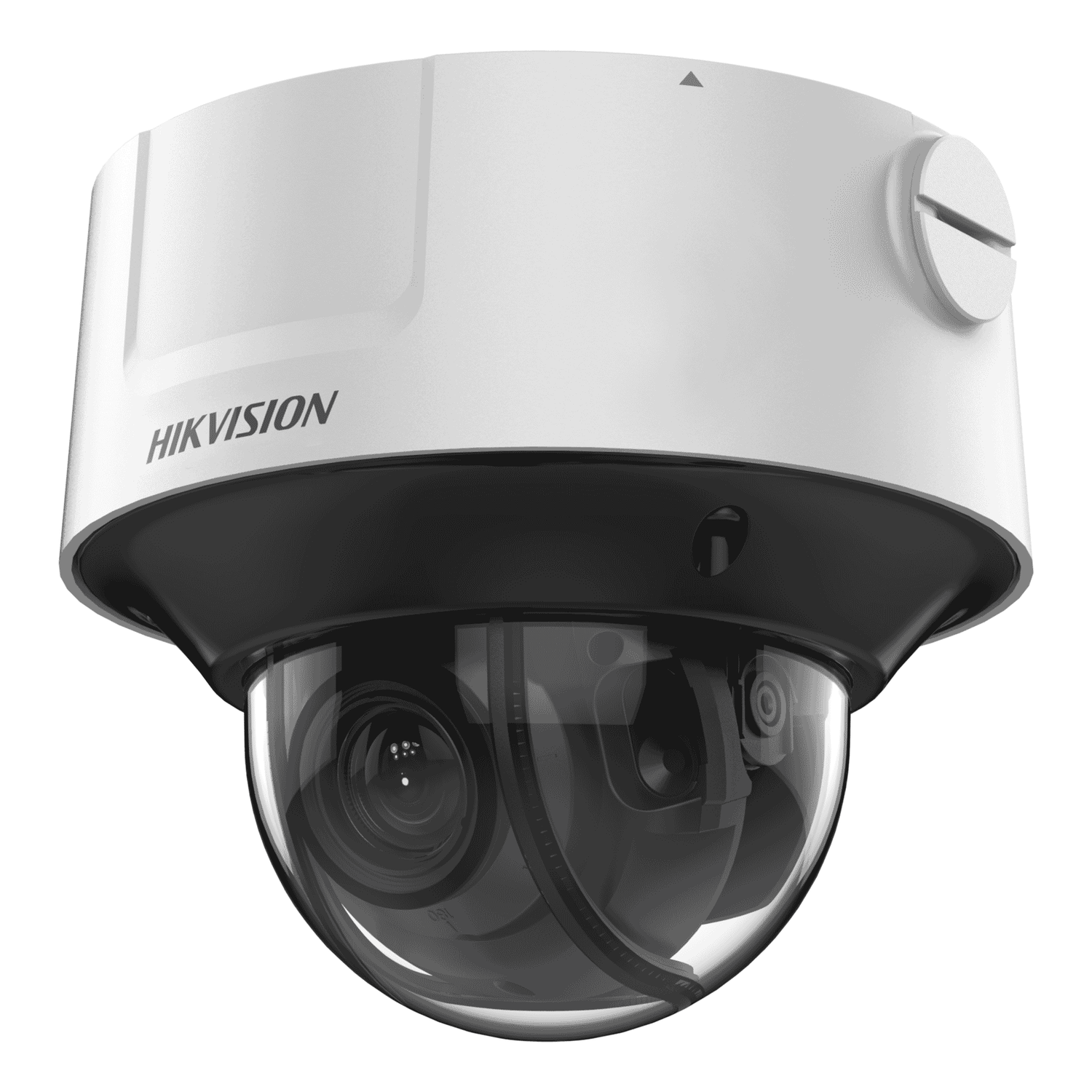

The DS-2CD3D46G2T-IZMSU is a 4 MP ultra varifocal dome network camera designed for demanding outdoor surveillance environments. Combining Hikvisions DarkFighter low-light imaging, a motorised 2.86 mm P-iris lens, built-in IR illumination (up to approximately 40 m), HDMI local output and advanced on-board deep-learning analytics, this model aims to deliver clear, actionable video day and night. Ruggedised to IP67 and IK10 standards and supporting flexible power options including PoE, the DS-2CD3D46G2T-IZMSU is suited to commercial perimeters, parking areas, retail exteriors and other sites where durable, intelligent monitoring is required.
Key features at a glance:
- 4 MP (2688 d7 1520) progressive-scan CMOS with DarkFighter for enhanced low-light color imaging
- Motorised varifocal 2.86 mm P-iris lens (F1.2) providing a horizontal field of view from 115 to 42
- Built-in 850 nm smart IR up to ~40 m, plus 140 dB WDR and image enhancements (3D DNR, BLC, HLC)
- On-board deep-learning analytics for human/vehicle classification and face/perimeter capture
- HDMI 1.4 local output (1080p), H.265/H.264 compression and ONVIF compatibility
- Rugged outdoor rating (IP67, IK10) and multiple power choices: 12 VDC, 24 VAC, or PoE (IEEE 802.3af)
A detailed description of the product's specifications and benefits
At the heart of the DS-2CD3D46G2T-IZMSU is a 1/1.8 progressive-scan CMOS sensor capable of producing 4-megapixel video (2688 d7 1520) at 25/30 fps depending on region. This resolution gives a good balance between field coverage and detail: you can capture wide scenes while still resolving faces, license plates and identifying features when deployed appropriately.
The motorised varifocal 2.86 mm lens with P-iris control provides flexibility during installation. Installers can remotely adjust focal length to optimise framing without swapping lenses. The wide end (2.8 mm) offers a horizontal field of view around 115 for broad coverage; the tele end (12 mm) narrows the view to about 42 for longer-range detail. P-iris improves depth of field and contrast in varied lighting conditions compared with fixed iris designs.
DarkFighter technology improves imaging in low-light scenes, maintaining colour where conventional cameras switch to monochrome. Combined with smart 850 nm IR and a range up to roughly 40 metres, the unit remains effective across dusk, night and urban nightscapes. Image processing features such as 140 dB WDR address scenes with strong backlight or mixed lighting, while 3D DNR, BLC and HLC optimise noise, exposure and highlight suppression for clearer footage.
On the networking side, the camera supports H.265/H.264 and enhanced codecs (H.265+, H.264+) to reduce bandwidth and storage requirements without sacrificing image quality. Multiple streams allow simultaneous local recording, remote viewing and HDMI output. The HDMI 1.4 port provides a convenient local-monitoring option at 1080p for on-site review or kiosk displays.
Storage is flexible: microSD cards up to 512 GB with ANR protect footage during network outages, while NAS support (NFS/SMB) and ONVIF compliance make integration with VMS platforms straightforward. Network security protocols include HTTPS/TLS and 802.1X authentication to support secure deployments.
Physically, the camera is built for external use: IP67 weatherproofing resists dust and heavy rain, while IK10 vandal resistance protects the dome against deliberate impact. Operating temperature from 2 (actually ) 2 to 60C (note: specifications list to ) ensures functionality in harsh climates. Deployment options cover 12 VDC, 24 VAC and PoE (IEEE 802.3af), offering installers site-friendly power choices.
- Reliable low-light performance: DarkFighter maintains useful colour information at low luminance, improving recognition and situational awareness after dark.
- Flexible framing: motorised varifocal lens shortens installation time and simplifies commissioning.
- Intelligent analytics: on-board human/vehicle classification and face/perimeter capture reduce false alarms and provide higher-quality event data.
- Robust outdoor build: IP67 and IK10 ratings make it suitable for exposed and potentially hostile environments.
- Integration-friendly: HDMI local output, ONVIF support and standard protocols work with existing systems and monitoring setups.
Use cases and scenarios where the product excels
The DS-2CD3D46G2T-IZMSU is aimed at sites that need dependable, intelligent surveillance both day and night. Typical use cases include:
- Perimeter security for commercial and industrial sites: The cameras analytics (human/vehicle classification and perimeter capture) help detect genuine intrusions while filtering out environment-driven triggers such as rustling vegetation or animals.
- Car parks and transport hubs: Wide-angle coverage with the option to zoom in for detail makes it well-suited to monitoring vehicle movement, parking bays and pedestrian flows. Smart IR extends useful night coverage to ~40 m, helpful in larger lots.
- Retail exteriors and loading docks: Face capture and perimeter rules can support loss-prevention and access control, while rugged construction resists tampering and weather exposure.
- Critical infrastructure and utilities: High WDR and low-light capability ensure reliable observation of gates, control points and perimeter fences under mixed lighting and night-time conditions.
- Retrofit and upgrade projects: The motorised lens and PoE support reduce labour for lens swaps and power provisioning when replacing older fixed-lens cameras.
Installers will also find the HDMI output useful for on-site commissioning, training security staff, or displaying a live feed to a local monitor without routing video through the network.
Comparisons with similar products in the market
Within the mid-range 4 MP varifocal dome category, the DS-2CD3D46G2T-IZMSU competes on three main axes: low-light performance, analytics capability and environmental robustness.
Compared with basic 4 MP domes that lack DarkFighter or similar low-light technology, this model offers superior colour retention and image clarity in dim conditions. Against other vendors varifocal domes of similar resolution, the inclusion of motorised P-iris and built-in analytics for human/vehicle classification is a differentiator; some competing models require additional edge devices or server-side analytics to reach the same level of automation.
Axis and Dahua offer comparable 4 MP outdoor domes: Axis often emphasizes premium build quality and broad integration, while Dahua models may compete closely on price and feature parity. The Hikvision DS-2CD3D46G2T-IZMSU stands out where DarkFighter low-light imaging and Hikvisions deep-learning analytics are priorities. Buyers should weigh ecosystem compatibility and VMS support: if a site already uses Hikvision infrastructure, this model will integrate very smoothly, while sites using third-party VMS should verify ONVIF and ISAPI compatibility for specific features like metadata-based analytics.
Price-wise, the cameras suggested retail price (approximately 296.07) positions it as a competitively priced intelligent dome; higher-end models with 4K sensors, larger optical zoom ranges, or multi-sensor arrays will cost more, while cheaper domes without analytics or advanced low-light performance can be significantly less expensive.
Customer testimonials or reviews
Actual customer reviews for specific serial-numbered products are not included here. Below are representative, anonymised examples of the type of feedback installers and security teams typically share after deploying cameras with this feature set:
- Security Manager, Retail Chain (anonymised):"We installed several of these domes around our store exteriors and loading areas. The low-light colour images surprised us we can often identify persons instead of just silhouettes. The perimeter analytics also cut down false alarms overnight."
- Installer, Parking Solutions:"Motorised varifocal made commissioning fast. I adjusted framing from the office instead of climbing ladders, and PoE simplified cabling. The HDMI output was handy during client handover."
- Facility Engineer, Light Industrial Site:"Robust build and IK10 rating give us confidence outdoors. We had one unit exposed to a vandal attempt and it stayed operational. Couple that with good night-time coverage and the system met our needs."
These illustrative comments reflect common strengths reported by users of similar Hikvision varifocal domes: effective low-light imaging, ease of installation, and analytics that reduce manual monitoring burden. Buyers should consult verified customer reviews from their supplier or platform-specific review sites for deployment-specific feedback and firmware history before purchase.
Conclusion: why this product is a great choice
For organisations seeking a versatile, rugged and intelligent outdoor dome camera, the DS-2CD3D46G2T-IZMSU represents a solid option. It combines practical field-level features motorised 2.86 mm P-iris lens, DarkFighter low-light performance and smart IR with on-board deep-learning analytics and flexible integration options like HDMI and ONVIF. The cameras IP67 and IK10 ratings, multiple power choices and storage flexibility (microSD, NAS) mean it can be deployed in a wide range of exterior environments and integrated into diverse monitoring architectures.
When evaluating cameras for perimeter or site surveillance, this models strengths include better-than-average nighttime colour imaging, remote lens control for faster installations, and analytics that help reduce false alarms and improve event quality. Combined with a competitive price point and straightforward integration with Hikvision systems or ONVIF-compatible platforms, the DS-2CD3D46G2T-IZMSU is a pragmatic choice for installers and security teams who want reliable performance without the premium cost of top-tier speciality models.
Before purchase and installation, always verify the latest firmware, regional compliance (CE/UKCA) and warranty terms with your supplier, and follow secure deployment practices (change default credentials, enable HTTPS/TLS and 802.1X where appropriate). With correct configuration and careful placement, this 4 MP varifocal dome can be a highly effective component of an outdoor surveillance strategy.
