Introduction to the Ajax Smart Socket Type G and its key features

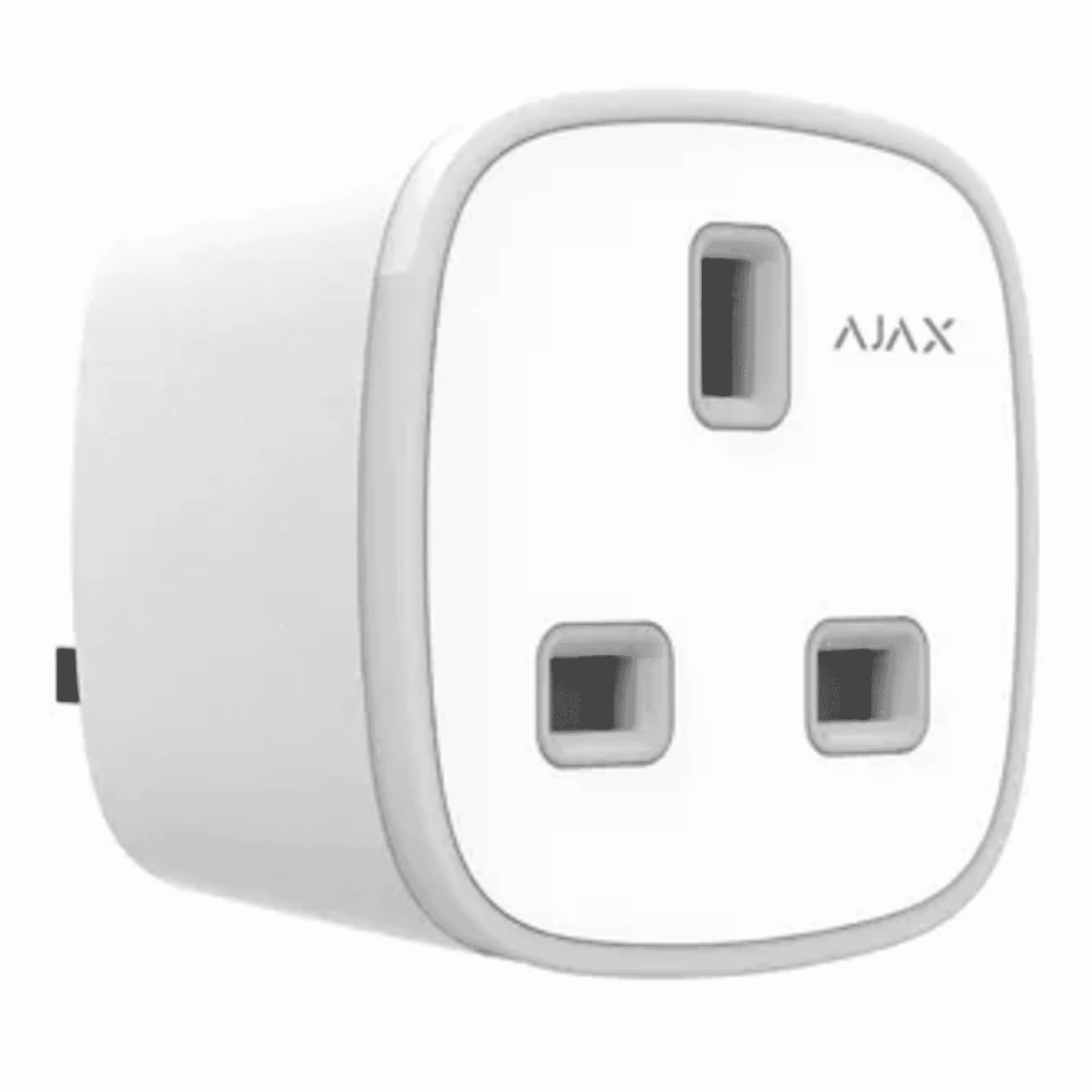

Ajax Smart Socket Type G (model 32632.34.WH1)is a compact indoor smart plug designed for UK mains outlets that combines remote switching, precise energy metering and a suite of safety protections. Built to integrate with Ajax security hubs and range extenders via the Jeweller two-way encrypted radio protocol, this smart socket is aimed at homeowners, installers and small businesses that want reliable automation, secure remote control and actionable consumption data for plugged appliances.
Key highlights include real-time energy monitoring (current, voltage, instantaneous power and cumulative energy), adjustable current and voltage protections, selectable operation modes (pulse and bistable), a multi-colour LED ring for status and load indication, child-safety shutters and a Class I grounding terminal. Its long tested switch life and AES-encrypted communications position it as a robust choice for monitored systems where both safety and information are priorities.
Detailed specifications and benefits
- Power supply:230 V~, 50 Hz — designed for typical UK mains.
- Maximum resistive power:Up to 3 kW with a 13 A fuse/default; supports up to 16 A short bursts (up to 5 s) with configurable current cutout between 1–16 A.
- Energy metering:Measures current, voltage, instantaneous power and cumulative energy — useful for tracking consumption and spotting abnormal draws.
Benefit: The built-in metering lets you quantify the energy use of individual appliances and take action to reduce waste or cost. It also provides diagnostic data that can help identify failing or overloaded equipment early.
- Adjustable protections:Current cut-off (1–16 A), voltage protection (approx. 184–253 V) and thermal shut-off.
- Service life:At least 200,000 switching cycles.
- Safety features:Child-safety shutters, Class I grounding terminal, automatic shutdown on overtemperature.
Benefit: Adjustable protection settings let you match the socket to the connected load, preventing damage from surges or overheating. Long switch life and thermal protection increase reliability and reduce maintenance.
- Radio protocol:Ajax Jeweller — two-way, AES encrypted for secure and reliable communication within Ajax monitored systems.
- Range & responsiveness:Radio range up to ~1,100 m in open space (region dependent); ping interval adjustable from 12–300 seconds.
- User interface:Remote on/off via the Ajax mobile app, automation scenarios (schedules, alarm-triggered actions, scenes), manual control button on the unit and an LED ring with 7 colours and 15 brightness levels for status/load indication.
Benefit: Professional-grade encrypted communication and long radio range make this plug suitable for larger properties and multi-device Ajax setups. The LED ring improves usability when working locally, while app control and automation enable energy savings and convenience.
- Form factor:54.5 × 54.5 × 59 mm (with plug) — compact enough for most indoor outlets.
- Ingress protection:IP20 — intended for indoor, dry environments.
- Operating conditions:0 °C to +40 °C; up to 75% humidity (non-condensing).
Benefit: The compact size and indoor rating suit typical home and office deployments; however, avoid outdoor or damp locations without appropriate enclosures.
Use cases and scenarios where the Ajax Smart Socket excels
Install the Ajax Smart Socket under or behind appliances such as refrigerators, electric kettles, coffee machines, heaters and dehumidifiers to monitor real consumption. With cumulative energy reporting you can identify the most power-hungry devices, measure the impact of behaviour changes and justify upgrades to more efficient appliances.
Use scheduling and scenes to automate lighting, small heaters, fans or timed chargers. With pulse mode you can trigger momentary actions (for example, sending a pulse to a garage door controller) while bistable mode maintains standard on/off behavior for lamps or slow appliances.
Pair the socket with Ajax alarm events to automatically cut power to defined appliances when an alarm triggers (e.g., to prevent arcing or stop motor-driven devices during a fault). Adjustable current and thermal protection reduce the risk of overloads and overheating.
In small business settings — cafés, kiosks, offices, remote monitoring locations — the combination of encrypted communications, long radio range and energy reporting makes the device useful for asset management, preventive maintenance and cost allocation across departments or outlets.
Comparisons with similar products on the market
There are a number of smart plugs with energy monitoring available, such as Wi‑Fi-based consumer plugs (TP-Link Kasa HS110 / KP115, Gosund/Sonoff variants), HomeKit-focused products (Eve Energy) and local MQTT/Shelly solutions. How Ajax Socket Type G compares:
- Security & integration:Unlike generic Wi‑Fi plugs, the Ajax socket is designed to work inside a professional Ajax ecosystem with AES-encrypted radio and centralized alarm integration. This makes it preferable where monitored systems and reliable event handling are required.
- Connectivity model:Wi‑Fi plugs connect directly to the home router — convenient for single-device setups but potentially less reliable in dense Wi‑Fi environments and with less secure remote access. Ajax requires a hub or range extender, which adds cost and setup steps but provides dedicated, lower-latency radio communications and system-wide automation.
- Protection and industrial readiness:The Ajax socket offers configurable current cut-offs, voltage protection and thermal shutdown — features often missing or limited on consumer Wi‑Fi plugs. It’s therefore better for monitored installations and environments where protection tuning matters.
- Features and UI:Many Wi‑Fi plugs offer energy reporting but may lack advanced scheduling tied to security events, or a multi-colour local indicator. The Ajax LED ring and manual button improve local usability.
- Limitations:Compared with open‑platform plugs (Shelly) that can be flashed or integrated into custom home automation controllers via local APIs, the Ajax socket is designed for the Ajax platform and may be less flexible for DIY integrations unless supported by the platform.
Customer testimonials and representative user comments
Below are anonymised, representative comments that reflect the kinds of feedback users typically give about a professionally-oriented smart plug with energy metering and secure radio integration. These are illustrative and not pulled from a single source.
- Homeowner:“I installed the Ajax socket in the kitchen to monitor the old fridge. Seeing the actual kWh usage helped me decide to upgrade — and the current cut-out gave me peace of mind during a small motor fault.”
- Installer:“For monitored properties, having a smart socket that talks to the Ajax hub is a big plus. It’s robust, the range is excellent and the configurable protections are useful for sensitive installs.”
- Small business owner:“We use several sockets for coffee machines and displays. The automation scenes and energy reports helped us cut operating time and reduce costs.”
Conclusion: why the Ajax Smart Socket Type G is a great choice
The Ajax Smart Socket Type G (32632.34.WH1) is well suited to anyone who needs more than basic on/off remote control: it brings accurate energy monitoring, configurable safety protections and encrypted, long-range radio integration into a compact indoor smart plug. Its strengths lie in monitored and professionally-managed environments — homes with security systems, rental properties, small businesses and installations where reliability and safety matter.
While it does require an Ajax hub or range extender to unlock its full capabilities (which may be a consideration for users seeking a simple, standalone Wi‑Fi plug), that requirement is also what enables secure communications, centralized automation and alarm-linked actions. If you value secure, dependable control, actionable consumption data and protection features that go beyond consumer-grade plugs, the Ajax Smart Socket Type G is a compelling option. Suggested retail positioning places it as a premium, professionally-oriented smart plug — an investment in control, safety and insight for connected appliances.
Note:Check the product datasheet and local regulations for load type guidance (inductive vs capacitive), region-specific conformity marks (UKCA/CE) and detailed installation instructions before use. The socket is rated for indoor use (IP20) and has specific temperature and humidity operating limits.
