Introduction: What the EZVIZ CS-TRANSFORMER BT16 Offers

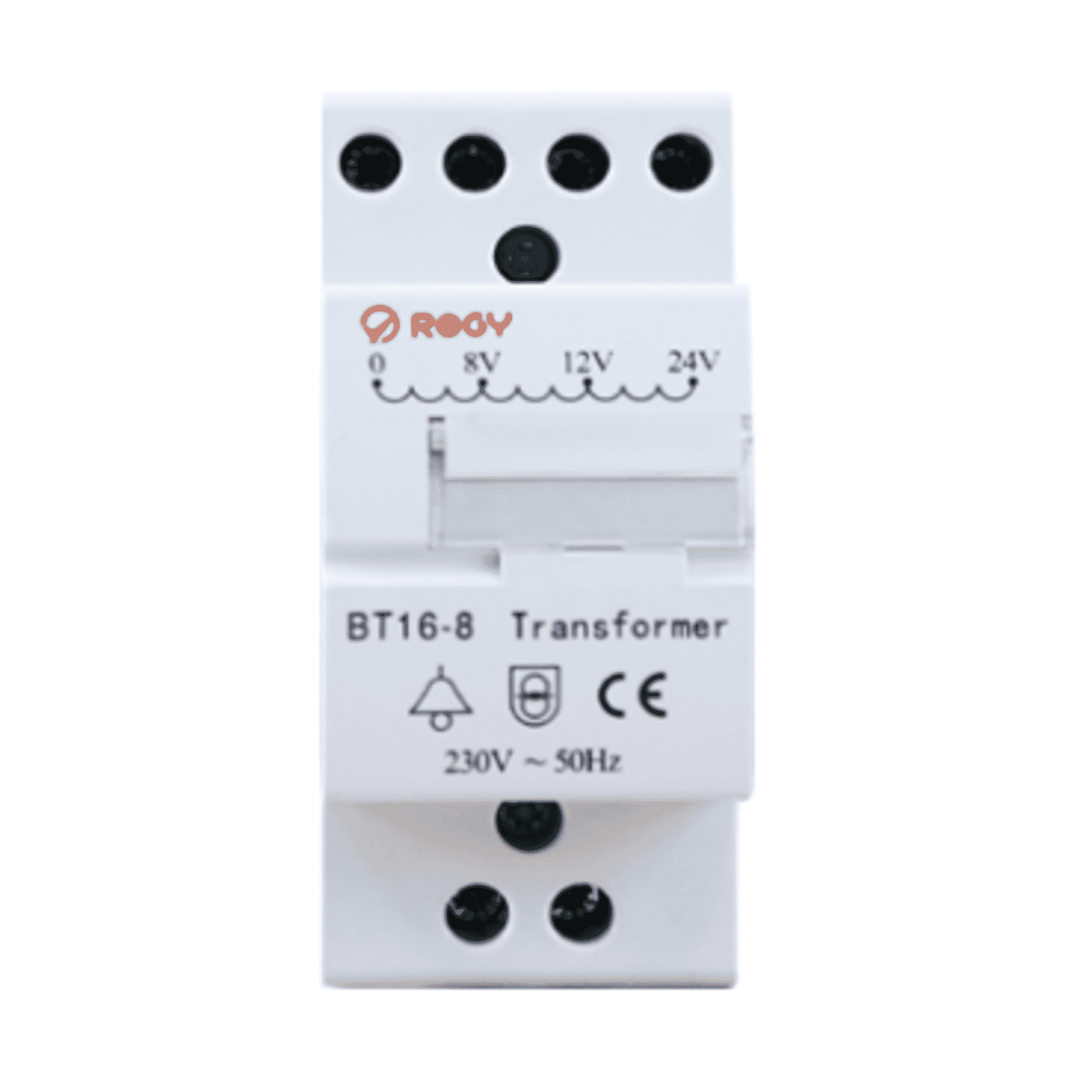

EZVIZ CS-TRANSFORMER BT16 (CS-CMT-A0)is a compact DIN-rail mounted low-voltage transformer engineered to convert 230 V AC mains into a regulated low-voltage AC output selectable at 8 V, 12 V or 24 V. With an 8 VA rating and continuous-duty design, it is aimed primarily at powering EZVIZ doorbells and other small CCTV or home devices that require a smooth AC supply. Its small footprint, 35 mm DIN-rail or panel mounting, and pillar terminal connections make it an easy-to-install option for electrical enclosures and distribution boards in residential and light-commercial settings.
Key Features at a Glance
- Selectable, regulated output voltages: 8 V / 12 V / 24 V AC
- Rated power output: 8 VA, suitable for small doorbells and CCTV peripherals
- 230 V AC input at 50 Hz, designed for continuous operation
- Compact dimensions (35.3 × 86 × 68 mm) for space-limited panels
- Mounting: 35 mm symmetrical DIN rail or direct panel mounting
- Pillar terminal with clamp for rigid conductors up to 10 mm²
- Certifications: CE, RoHS, REACH, WEEE
Detailed Specifications and Benefits
Understanding the BT16's specifications helps explain where it fits and what advantages it brings to an installation. The unit converts a standard 230 V AC mains input into one of three regulated low-voltage AC outputs selectable by the installer. The selectable output (8 V / 12 V / 24 V AC) gives the device flexibility to suit multiple types of low-voltage appliances without stocking several transformer variants.
- Model / Reference: CS-CMT-A0 / CS-TRANSFORMER / BT16
- Rated input voltage: 230 V AC
- Rated output voltages: 8 V / 12 V / 24 V AC (selectable)
- Rated power output: 8 VA
- Power consumption (standby): 1.15 W
- Rated frequency: 50 Hz
- Connection terminals: Pillar terminal with clamp
- Conductor capacity: Rigid conductor up to 10 mm²
- Mounting: 35 mm symmetrical DIN rail or panel
- Operating temperature: -5 °C to 40 °C
- Operating humidity: ≤ 95 %
- Dimensions (W × H × D): 35.3 × 86 × 68 mm
- Net weight: 323 g
- Terminal connection height: 15.5 mm
- Certifications: CE, RoHS, REACH, WEEE
Benefits derived from these specs include a small installation footprint that saves enclosure space, a regulated output to protect low-voltage electronics, and straightforward wiring thanks to the pillar clamp terminals. The selectable output removes the need to purchase multiple transformer models for different devices and simplifies stocking for installers and system integrators.
Use Cases and Scenarios Where the BT16 Excels
The BT16 is designed for low-current, continuous-service applications. Typical scenarios where it performs well include:
- EZVIZ doorbells: Intended compatibility with EZVIZ doorbell models (for example DB1 / DB1C where vendor compatibility is confirmed). Its selectable low-voltage output and regulated supply are well suited to chime circuits and the powering requirements of many modern smart doorbells.
- Small CCTV devices: Ideal for low-power cameras, auxiliary devices such as IR illuminators or simple sensors that require AC input less than around 8 VA.
- Powering chimes and small AC accessories: Many door chimes and small auxiliary devices use low-voltage AC; the BT16 can be used in multi-device setups where multiple low-voltage outputs are grouped in an enclosure.
- Electrical enclosure integration: Because it mounts on a standard 35 mm DIN rail, the BT16 fits standard distribution and control panels used in home automation or small commercial installations.
- Remote/centralized supply: Use in a central electrical cabinet to feed multiple devices in different rooms (within the VA and wiring limits), reducing the need for individual transformers at each device location.
Important deployment note: confirm the device draw and starting current of the attached device. An 8 VA transformer is intended for low-power devices; higher-draw cameras, doorbells with built-in heaters, or mechanical chime mechanisms may exceed the BT16’s rating. Always verify compatibility with the specific device.
Comparisons with Similar Products on the Market
The DIN-rail transformer market includes a range of options from compact, low-VA units to industrial multi-output power supplies. Compared with similar small DIN-rail transformers, the EZVIZ BT16 stands out in several ways:
- Selectable outputs: Many low-cost DIN-rail transformers supply a single fixed secondary voltage. The BT16’s selectable 8/12/24 VAC output offers flexibility and reduces SKU count for installers.
- Designed for consumer smart devices: Although generic DIN-rail transformers are available from industrial suppliers, the BT16 is positioned and marketed with consumer devices like EZVIZ doorbells in mind, making it a convenient choice for smart-home installers.
- Compactness: At roughly 35 mm width, it occupies minimal DIN-rail space compared to bulkier transformers and power supplies, useful in crowded panels.
- Certifications and compliance: CE and environmental certifications (RoHS, REACH, WEEE) make it suitable for residential and commercial installations within relevant regulatory regions.
Where other products may outpace the BT16:
- Higher power requirements: If you require significantly more than 8 VA, industrial DIN-rail power supplies (switched-mode power supplies with higher wattages) are more appropriate.
- DC output needs: Many CCTV systems and third-party devices expect DC power (12 V DC, 24 V DC). The BT16 supplies AC; if a device requires DC you will need a rectifier or choose a DC DIN-rail power supply instead.
- Integrated surge protection: Higher-end DIN-rail supplies sometimes include robust transient suppression or integrated fusing. The BT16 should be installed with proper upstream protection according to local regulations.
Customer Feedback and Typical User Perspectives
Official verified customer testimonials for the BT16 may not be widely available in all retail channels. However, based on typical installer and user feedback for similar DIN-rail low-voltage transformers, common points include:
- Positive: Compact size that saves panel space, easy DIN-rail mounting, and simple wiring with pillar clamps. Installers often appreciate the selectable output voltages which simplify stock management.
- Neutral: The 8 VA rating meets the needs of small devices but requires verification for systems with higher inrush currents or additional accessories; some users note the need to check device compatibility carefully.
- Constructive: Suggestions often include adding built-in short-circuit protection indicators or clearer labeling for the output selection switch for field service convenience.
Because no manufacturer warranty is specified with this listing (warranty: none included), prospective buyers and installers should consider this in procurement decisions and follow local best practices for supply selection and installation.
Safety, Installation and Best Practices
Safety and correct installation are paramount. The BT16 should be installed by a licensed electrician or qualified installer in accordance with local electrical regulations. Always isolate mains power before wiring. Verify the secondary voltage selection and that the VA rating of the transformer exceeds the continuous and inrush power requirements of the connected device. Provide appropriate upstream protection (fuses or breakers) as required by local codes.
Conclusion: Why Choose the EZVIZ BT16?
The EZVIZ CS-TRANSFORMER BT16 is a practical, compact DIN-rail transformer designed for low-voltage AC applications in residential and light-commercial settings. With selectable 8/12/24 VAC outputs, an 8 VA continuous rating, compact dimensions for 35 mm DIN-rail mounting, and compliance with common regulatory standards, it is a straightforward solution when your project calls for a small, reliable AC supply — especially when installing or retrofitting EZVIZ doorbells and similar low-power CCTV accessories.
If your installation requires a small centralized transformer that minimizes panel space and offers selectable outputs, the BT16 is a strong candidate. Just ensure the device you intend to power matches the 8 VA rating and AC output type. For higher-power or DC requirements, consider higher-wattage or DC DIN-rail power supplies.
Suggested retail price: approximately 19.99 (check local listing for current pricing and availability). For safe, reliable installations, pair the BT16 with correct upstream protection and professional installation to get the best long-term performance from your smart-home and CCTV devices.
