Introduction to the Hikvision DS-KD-KK 6‑Button Nametag Module

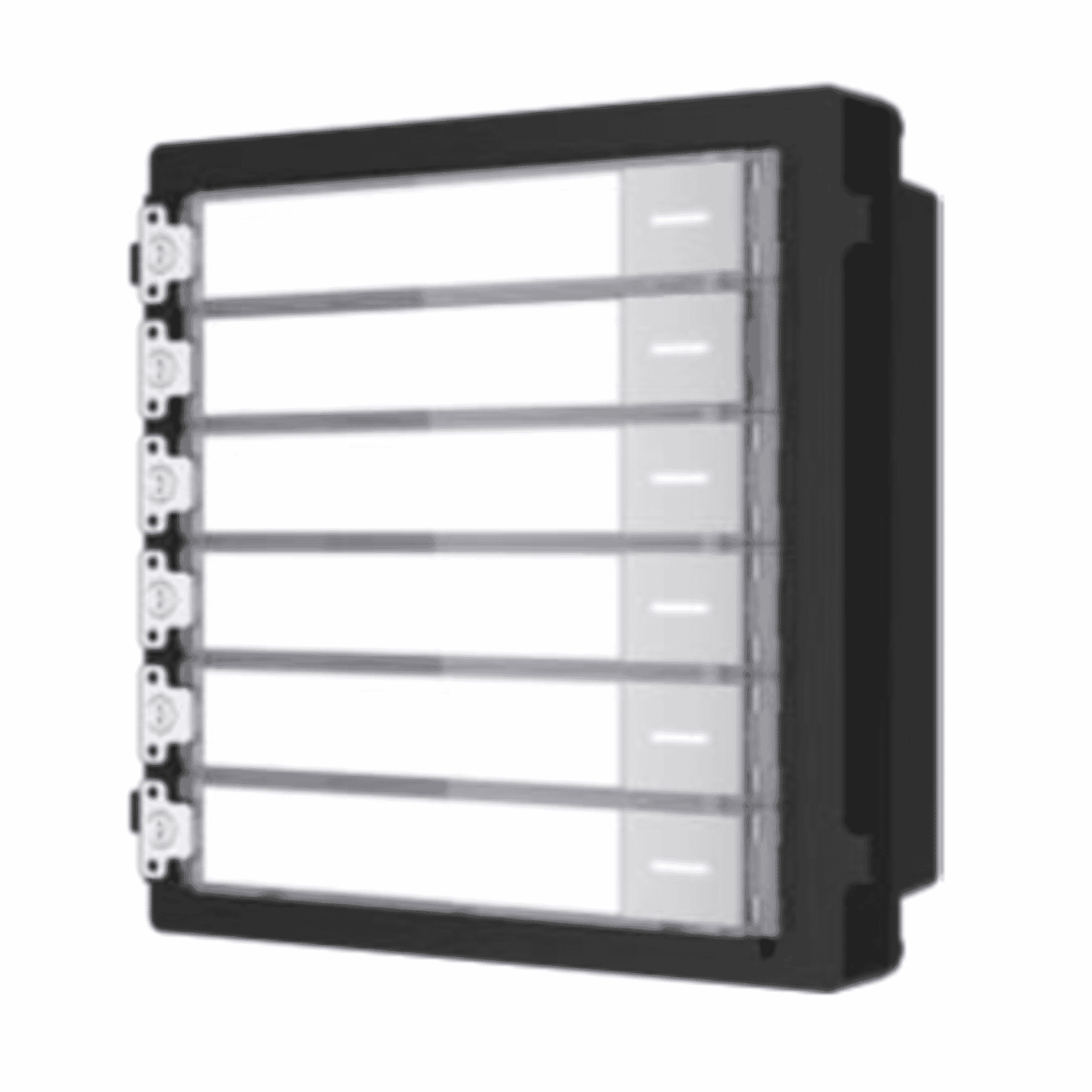

Hikvision DS-KD-KK — 6‑button nametag / call module for KD8 seriesis a compact, weatherproof expansion module designed to add simple labelled calling to Hikvision KD8-series modular video intercom and door‑station systems. With six backlit physical buttons, name‑card slots and IP65 ingress protection, the DS-KD-KK is tailored for residential blocks, small multi-tenant offices and applications that demand a straightforward, tactile calling interface integrated into a modular KD8 installation.
At a suggested price of approximately $59.99 (cost price listed at $39.19), this accessory provides an affordable, low-power way to extend the functionality of a KD8 master module while maintaining a consistent aesthetic and installation method across a multi-module door panel.
Key features at a glance
- Six backlit, labelled call buttonswith name‑card slots for easy identification and one‑touch calling.
- KD8 modular power and communication— powered and chained from the KD8 master/module (no separate mains supply required).
- Weatherproof design— IP65-rated enclosure for outdoor use and durability.
- Low power consumption— rated at ≤ 2 W, suitable for chained multi‑module systems.
- Compact footprint— designed for flush or surface mounting and seamless integration into KD8 door station arrays.
Detailed specifications and benefits
Understanding the technical specifications of the DS-KD-KK helps explain why it is a popular accessory for KD8 installations. The module is optimized to balance size, reliability and low power demand — all important considerations for multi-unit entry panels.
- Model:DS-KD-KK
- Module type:6-button nametag / call module
- Buttons:6 physical backlit buttons with name-card slots
- DIP switches:8 (for addressing / configuration)
- Processor / OS:Embedded MCU (some references note Embedded Linux on KD8 ecosystem devices)
- Power source:Powered via KD8 master/module (e.g. DS-KD8003-IME1)
- Power consumption:≤ 2 W
- Interfaces:Module connect (1 input, 1 output), RS‑485, debug port
- Network:No independent RJ‑45 network port — integrates via KD8 master module
- Ingress protection:IP65
- Operating temperature:−40 °C to +60 °C (datasheet; some reseller pages note −40 °C to +55 °C)
- Operating humidity:10%–95% RH
- Dimensions (W×H×D):98.21 × 100.21 × 33.7 mm
- Weight (net):≈ 190 g
- Mounting:Flush or surface mount
- Compatibility:Designed for Hikvision KD8-series modular door stations
- Simple, reliable calling:The physical, backlit buttons make it obvious for visitors how to place a call — no app, touchscreen or complicated menu required.
- Low-power chaining:Because the module draws ≤ 2 W and is powered via the KD8 master, you can add multiple modules without separate power runs, which simplifies wiring and reduces installation cost.
- Robust for outdoors:IP65 protection and wide operating temperature range mean the module holds up to rain, dust and a variety of climates.
- Neat, modular integration:The compact footprint and standard interfaces allow designers and integrators to create tailored door panels that combine cameras, keypads, speakers and call modules as needed.
Use cases and scenarios where the DS-KD-KK excels
The DS-KD-KK is targeted at deployments that need a basic, reliable physical calling interface. Typical scenarios include:
- Small to medium-sized residential buildings where visitors, delivery personnel or tradespeople need to ring specific flats via labelled buttons rather than searching for an app or dialing an extension.
- Shared housing or converted properties where a clear, durable calling surface is preferable to a touchscreen in an exposed location.
- Small office clusters or business parks that require quick internal routing to reception, specific offices or suites via a modular door station.
- Locations that favour a familiar push-button interface for visitors and couriers.
- Projects that expand over time can add additional DS-KD-KK modules to an existing KD8 master without changing the network topology.
- Integrators building custom door panels can mix and match modules (camera, microphone, keypad, and call modules) to meet specific client needs.
Comparisons with similar products on the market
When evaluating the DS-KD-KK, it helps to compare it with other approaches to entry calling and with other Hikvision modules:
- Large, dedicated multi‑tenant call panels can provide dozens of buttons or directory listings, but they are bigger, harder to customize and often costlier. The DS-KD-KK is better suited for small blocks or concise panels where a compact and modular form is more appropriate.
- Touchscreen panels and mobile-app solutions offer flexibility (remote calling, custom directories), but they introduce complexity, higher power needs and potential reliability issues in exposed outdoor environments. The DS-KD-KK trades advanced features for simple, dependable physical buttons that are easy for any visitor to use.
- Compared to camera modules or keypad modules within the KD8 range, the DS-KD-KK specifically focuses on labelled call functionality. If a site needs direct dialling or access control credentials, a keypad or card reader module may be more suitable. For labelled, one-touch calling, the DS-KD-KK is the logical choice.
Customer feedback and installer notes
Public, named customer testimonials specific to the DS-KD-KK are limited, which is common for small accessory modules that are typically sold through trade channels or bundled into larger intercom projects. However, common feedback themes from installers and system integrators working with KD8 modular systems include:
- Positive — Ease of integration:Installers appreciate the KD8 chaining and the absence of separate power requirements for the module, which reduces wiring complexity and installation time.
- Positive — Durability:The IP65 rating and solid build get favourable mentions for exposed installations in temperate climates.
- Constructive — Limited standalone functionality:Some users note that because the module has no independent network interface, it must be used as part of a KD8 system — this is expected by design but worth planning for during procurement.
- Practical — Label maintenance:The name‑card slots are convenient, but long-term installations may require periodic label replacement due to wear or environmental exposure.
Conclusion: why choose the Hikvision DS-KD-KK?
The Hikvision DS-KD-KK 6‑button nametag module is a focused, cost‑effective accessory for KD8-series modular intercom systems. It delivers a simple and familiar user experience — backlit, labelled buttons for one‑touch calling — while remaining robust for outdoor use thanks to IP65 protection and a wide operating temperature range. Low power consumption and KD8 chaining make it practical for multi‑module panels, and its compact size fits neatly into modular door station designs.
For integrators and property owners who prioritise a reliable physical interface for visitor calling, particularly in residential or small commercial deployments, the DS-KD-KK represents a sensible balance of price, practicality and modular flexibility. If your project requires touchscreen directories, large-scale multi‑tenant directories or standalone networked call modules, you may need to consider other KD8 modules or larger panel solutions — but for labelled, easy-to-use calling, the DS-KD-KK remains an efficient, well-matched choice.
For complete technical and compliance information, consult the official Hikvision DS-KD-KK datasheet and the KD8-series product documentation before installation.
