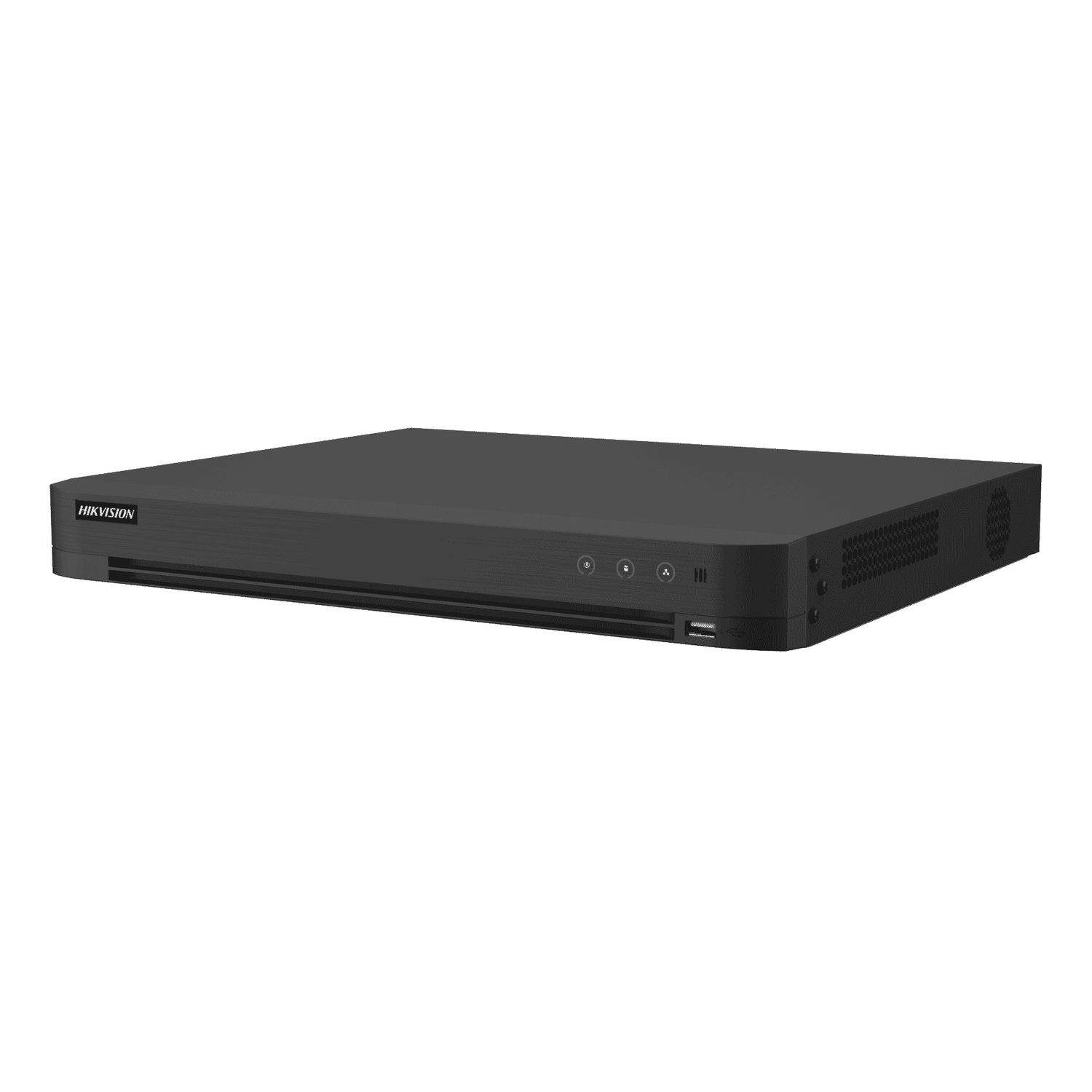

Introduction: Hikvision iDS-7208HTHI-M2/XT at a glance
The Hikvision iDS-7208HTHI-M2/XT is an 8-channel Turbo HD (AcuSense) hybrid DVR in a compact 1U form factor that brings modern deep‑learning analytics to mixed analogue/IP CCTV installations. Designed for sites where legacy coaxial cameras are being kept but IP cameras are being added, this model supports up to 8 MP (4K) encoding per channel, H.265 Pro+ compression to reduce storage needs, and Hikvision’s AcuSense human/vehicle classification for improved alarm accuracy. For installers and security managers who need a balance of performance, analytics and compatibility, this DVR is a practical, cost‑effective choice.
Key features summary
- Hybrid inputs:8 BNC analogue channels (HDTVI/AHD/HDCVI/CVBS) plus up to 16 IP channels (each up to 8 MP).
- Deep‑learning analytics:AcuSense human/vehicle classification, Motion Detection 2.0, perimeter protection, face detection and 4‑channel face comparison.
- High resolution & efficient compression:Up to 8 MP per channel with H.265 Pro+/H.265 Pro codecs for reduced bandwidth and storage.
- 4K output:HDMI output supporting up to 4K@30Hz (plus VGA) for local monitoring.
- Storage flexibility:Dual SATA bays supporting large capacity HDDs (regional limits may vary).
- Network & interoperability:ONVIF, Hik‑Connect, DDNS, iSCSI, NFS, HTTPS and more; total network bandwidth 256 Mbps.
Detailed specifications and benefits
This DVR balances physical inputs and advanced features to serve a wide range of CCTV deployments. Key specifications and what they mean in practice:
- Channel capacity:8 analogue BNC inputs plus up to 16 IP channels. Benefit: migrate gradually from analogue to IP cameras without replacing the recorder, or combine high‑resolution IP cameras for critical areas while keeping coax still in use elsewhere.
- Max encoding up to 8 MP (4K):Each channel supports up to 8 MP encoding (model/firmware dependent). Benefit: capture fine detail for identification and forensic review when paired with high‑resolution cameras.
- Compression (H.265 Pro+/H.265 Pro):Advanced codecs reduce bitrate and storage requirements versus H.264. Benefit: longer retention on the same storage and less network congestion—useful where downloads or remote viewing are frequent.
- Deep‑learning analytics (AcuSense):Human/vehicle classification, perimeter protection and Motion Detection 2.0 significantly reduce false alarms caused by environmental motion (trees, rain, small animals). Benefit: fewer nuisance alerts, faster response to true threats, and more efficient use of operator time.
- Face functions:Face detection and 4‑channel face comparison with face libraries. Benefit: quick identification workflows for access control or investigative follow‑ups in retail, hospitality or enterprise environments.
- Outputs:HDMI up to 4K@30Hz and VGA (simultaneous). Benefit: crisp local monitoring on modern displays and compatibility with legacy monitors.
- Storage & archive:Two SATA bays supporting up to 12 TB per disk (regional limitations may apply). Benefit: substantial internal retention without the immediate need for networked storage—suitable for small/medium sites.
- Network & protocols:256 Mbps total bandwidth, up to 64 concurrent remote connections, plus compatibility with common services and ONVIF for third‑party camera integration. Benefit: flexible remote access and integration into larger systems.
- Physical & power:Compact 1U chassis (approx. 384 × 313 × 52 mm), 12 V DC power input (recommended 5 A), low idle consumption (≤ 15 W without HDDs). Benefit: fits standard equipment racks and low running power.
Beyond raw specs, the combination of hybrid inputs, efficient compression and AcuSense analytics delivers practical benefits: lower total cost of ownership through reduced storage needs; phased upgrade paths from analogue to IP; higher operational efficiency through fewer false alarms; and improved investigative capability with 4K‑level image capture and face comparison tools.
Use cases and scenarios where this DVR excels
The iDS-7208HTHI-M2/XT is particularly well suited to environments where mixed camera fleets are present and analytics are required without the cost of high‑end NVR-only systems. Common scenarios include:
- Retail stores and shopping centres:Keep existing analogue POS or till cameras and add IP cameras for entrances and high‑risk zones. AcuSense reduces false alarms from busy storefronts and improves detection of human incidents for loss prevention.
- Small to medium offices:Combine legacy analogue interior cameras with IP cameras at external doors; use face detection to monitor access areas or to identify visitors for security teams.
- Light industrial and warehouses:Monitor loading bays and perimeters with perimeter protection and vehicle classification to prioritise true vehicle movements over other activity.
- Multi‑site rollouts managed by contractors:Installers can standardise on a hybrid recorder to support a mix of camera types, simplifying spare parts and training while enabling future IP expansion.
- Cost‑sensitive upgrades:Sites that want analytics benefits (reduced false alarms, human/vehicle filtering) without migrating every camera to IP simultaneously will find this DVR a balanced choice.
Comparisons with similar products on the market
When considering hybrid DVRs and entry‑to‑mid level recorders, the iDS-7208HTHI-M2/XT competes on three main axes: analytics capability, hybrid flexibility and storage/codec efficiency.
- Vs. basic analogue DVRs:Older analogue DVRs lack IP channel support, modern codecs and analytics. The Hikvision model outperforms by enabling IP expansion, providing H.265 Pro+ compression and offering AcuSense analytics for far fewer false alarms.
- Vs. entry-level NVRs:NVRs built for IP‑only systems may offer similar analytics but lack coax inputs. If all‑IP is planned, an NVR may be simpler; however, for phased upgrades where legacy coax remains, the Hikvision hybrid DVR offers greater flexibility at comparable cost.
- Vs. rival hybrid units (other brands):Competing hybrid DVRs from other major manufacturers (e.g., Dahua hybrid models) provide similar hybrid inputs and compression, but Hikvision’s AcuSense analytics and wider ecosystem (Hik‑Connect, extensive firmware features) are differentiators for sites that prioritise classification accuracy and integrations. Buyers should compare analytics performance, firmware update cadence, ONVIF interoperability and local support when choosing between brands.
- Value for money:With a suggested retail price of approximately $459.95 and a supplier cost price of $244.56 (trade prices vary), this unit sits competitively in the market for 8‑channel hybrid recorders with advanced analytics—offering a strong feature set for the price.
Customer testimonials and reviews
At the time of writing, public user reviews for specific regional SKUs vary. Typical feedback from installers and end users of Hikvision AcuSense hybrid recorders highlights the following recurring points:
- Pros: Installers praise the hybrid flexibility (analogue plus IP), the noticeable reduction in false alarms thanks to human/vehicle classification, and efficient H.265 Pro+ storage savings compared with older H.264 systems.
- Cons: Some users note that full benefit depends on correct setup—proper firmware versions, camera configuration and face‑library management—and advise professional installation for larger systems. Regional firmware differences and SKU variants mean buyers should confirm exact features on the invoice.
- Typical user tip: Confirm HDD compatibility and capacity limits prior to purchase, and ensure the unit displays regional compliance (CE/UKCA) if required for warranty and regulation.
Installation, maintenance and purchasing notes
To get the most from this recorder: use quality surveillance‑grade HDDs sized to your retention needs, keep firmware up to date from the manufacturer’s datasheets and guides, and configure AcuSense analytically zones and sensitivity to suit the scene. Power: the unit requires 12 V DC (recommended 5 A; check the unit label). For warranty and safety, have installations performed by qualified engineers and verify regional compliance marks on shipped units.
Conclusion: Why choose the iDS-7208HTHI-M2/XT?
The Hikvision iDS-7208HTHI-M2/XT is an effective hybrid DVR for organisations that need to combine analogue and IP cameras while benefiting from modern analytics and efficient compression. It delivers high‑resolution recording (up to 8 MP), practical AcuSense human/vehicle filtering to reduce false alarms, face detection/comparison tools, flexible storage options and 4K local output—all in a compact 1U chassis. For retail outlets, offices, small commercial sites and installers managing mixed fleets, it offers a strong balance of capability and value. As with any surveillance purchase, verify regional firmware/feature sets, choose suitable HDDs and consider professional installation to ensure the system delivers optimal performance.
