Introduction to the HiLook DVR-208G-M1/T and its key features

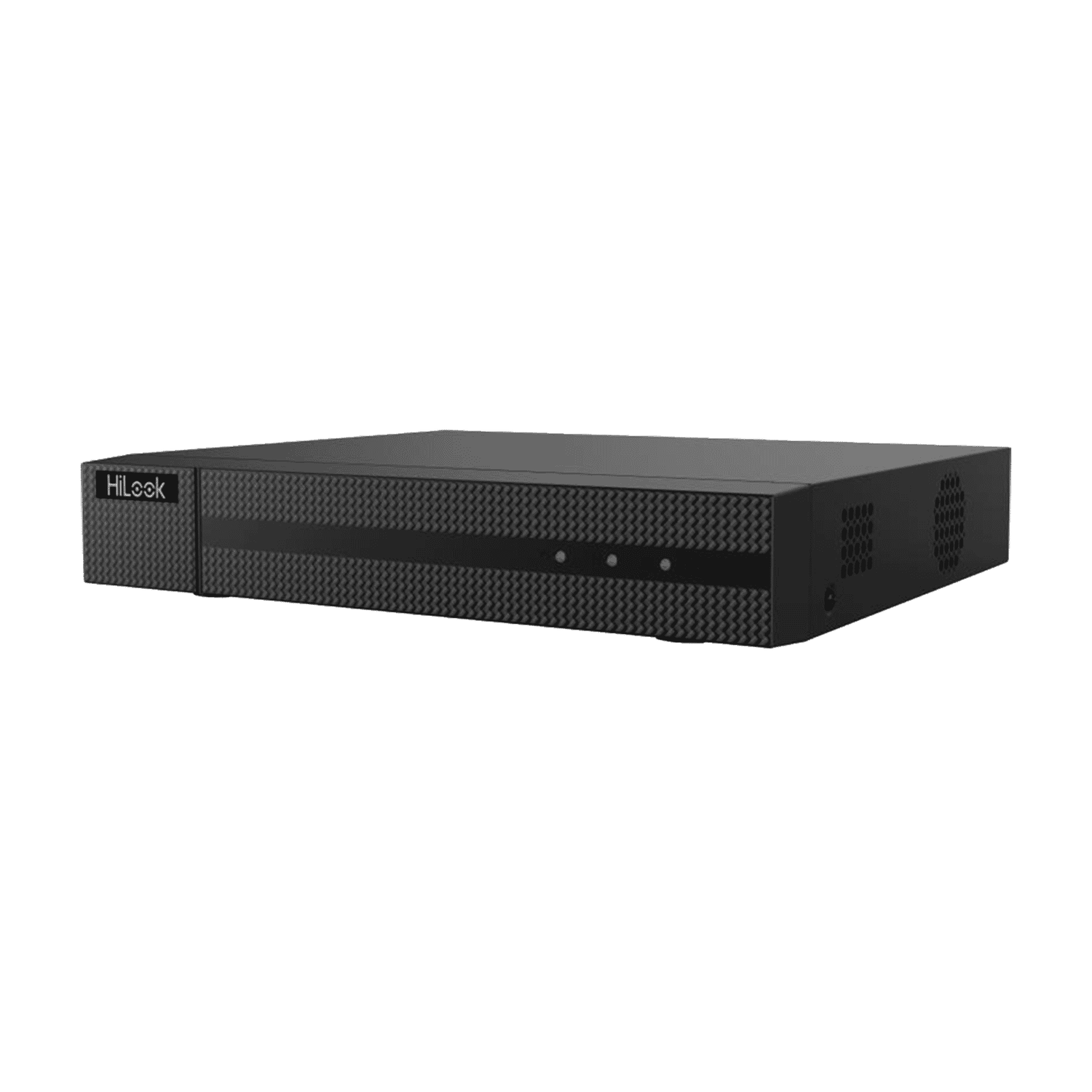

HiLook DVR-208G-M1/Tis an 8‑channel hybrid 1080p‑Lite digital video recorder designed for compact, cost-conscious CCTV installations. Packaged in a slim 1U chassis, this recorder combines support for multiple analogue standards (HDTVI/AHD/HDCVI/CVBS) with limited IP expansion, efficient H.265‑family compression and practical features such as motion detection with human/vehicle classification and audio over coax. With a suggested retail price of $74.99, it targets small shops, homes and installer packages where simplicity, format compatibility and storage efficiency are priorities.
Detailed description of specifications and benefits
The HiLook DVR-208G-M1/T packs a useful set of specifications for the price and form factor. Below is a breakdown of the most relevant areas and the practical benefits they bring to everyday CCTV deployments.
- 8 analogue BNC inputs (1.0 Vp-p, 75 Ω) supporting HDTVI/AHD/HDCVI and legacy CVBS — allows installers to mix and match camera types without swapping out the recorder.
- Up to 2 IP channels built into the unit (expandable to 10 total) — provides a path to add a few higher‑resolution IP cameras while keeping the bulk of the system analogue.
- Supported analogue resolution up to 1080p25/30 (1080p‑Lite) with main stream frame rates up to 15 fps — optimised for cost and bandwidth-conservative recording while delivering clear Full HD stills when needed.
- Encoding options include H.265 Pro+/H.265 Pro/H.265 and H.264+/H.264 — modern H.265 variants significantly reduce storage requirements and network bandwidth compared with H.264, which is especially useful when storage or uplink bandwidth is limited.
- 1 × RCA audio input and 1 × RCA output with G.711u compression and audio‑over‑coax support — enables two‑way audio reuse for compatible cameras or legacy audio systems.
- RJ45 10/100 Mbps network interface with total throughput up to 72 Mbps and support for up to 64 remote connections — sufficient for remote monitoring and moderate concurrent streams, though not designed for very large, high‑bandwidth multi‑user setups.
- 2 × USB 2.0 ports for export and mouse control — easy local backup and system management.
- 1 × SATA bay officially supporting up to 4 TB per drive — a single hard drive is sufficient for many small systems, and using H.265 compression further extends recording retention.
- 12 VDC power input (1.5 A) and power consumption ≤ 10 W without HDD — low power draw helps when power availability is a concern or when using UPS for short outages.
- Compact footprint (approx. 263 × 225 × 48 mm) in a 1U chassis — fits into small racks, counters or shelf spaces in retail and residential installations.
- Simultaneous HDMI and VGA outputs at Full HD (1920×1080) — local monitoring on modern displays without sacrificing resolution.
- Synchronous playback up to 8 channels — review multiple camera recordings at once to quickly assess incidents.
- Motion Detection 2.0 with human/vehicle classification — reduces false alarms from pets, foliage or light changes by prioritising person and vehicle detections for event recording and notifications.
Use cases and scenarios where the DVR excels
The HiLook DVR-208G-M1/T is tailored to situations that balance budget constraints, existing analogue infrastructure and a need for modest IP expansion. Typical scenarios where it excels include:
- Small retail stores and cafés: Operators can keep existing analogue cameras and add one or two IP cameras (for example, for a high‑value area or entrance) while benefiting from efficient H.265 retention to maintain several days of footage on a single drive.
- Residential properties and multi‑unit dwellings: The compact 1U form and low power consumption make installation tidy and economical. Human/vehicle classification helps reduce nuisance alerts to homeowners.
- Service‑led installer packages: Installers offering value bundles to small clients can use the DVR as an affordable backbone that supports several analogue cameras and optional IP additions without complex configuration.
- Legacy system upgrades: Where customers have existing analogue cameras, the hybrid nature avoids wholesale replacement; use the DVR to modernise compression and remote access while reusing cameras.
Comparisons with similar products in the market
Within the entry‑level hybrid recorder class, the HiLook DVR-208G-M1/T competes on price, simplicity and format compatibility. Here are practical comparisons against alternatives.
Compared with legacy DVRs that only support CVBS or older compression, the HiLook unit offers modern codec support (H.265 family) and multi‑standard analogue inputs (HDTVI/AHD/HDCVI). That translates into better storage efficiency and the flexibility to accept newer HD analogue camera types without swapping hardware.
Network Video Recorders (NVRs) that support many IP cameras deliver higher resolution options and scalable channel counts, but they typically cost more and require IP cameras (and often PoE switches). The HiLook DVR is advantageous when existing analogue infrastructure exists or when cost per channel is a primary concern. However, NVRs win if you need many high‑resolution IP cameras, PoE integration or higher network throughput.
Other hybrid models may offer more onboard IP channels, multiple SATA bays, PoE or gigabit network ports. The DVR-208G-M1/T is positioned as a compact, low‑cost hybrid with basic IP expansion (2 channels, expandable to 10 via licensing or vendor ecosystem) and a single SATA bay. If you require large storage retention, many users or high concurrent remote streams, models with multiple drives and gigabit networking are a better fit. For small sites seeking simplicity, the HiLook model provides a strong value.
Customer testimonials and common user feedback
Official customer reviews for specific low‑cost OEM products can be limited in some markets. Where installers and end users have commented on similar HiLook/HiSilicon family products, common themes include:
- Positive: Good value for money — buyers highlight the attractive price point and straightforward feature set for small installations.
- Positive: Ease of integration with existing analogue cameras — installers appreciate multi‑standard inputs and simple migration paths.
- Constructive: Limited storage and IP channels — some users request more than one SATA bay or built‑in PoE for IP camera power, which this model does not provide.
- Constructive: Network performance limitations for very large remote viewing needs — the 10/100 Mbps port and 72 Mbps total bandwidth are adequate for small systems but not for large multi‑viewer scenarios.
If you rely on verified customer testimonials for procurement decisions, ask suppliers for demo units, real‑world retention examples using H.265 compression and reference installations similar to your use case.
Conclusion — why the HiLook DVR-208G-M1/T is a great choice for small CCTV projects
TheHiLook DVR-208G-M1/Tis a practical, budget‑minded hybrid recorder that balances analogue compatibility, modest IP expansion and modern compression. Its key strengths are multi‑format analogue support (making upgrades painless), H.265‑family codecs that reduce storage needs, human/vehicle motion classification to lower false alarms and a compact 1U chassis that suits constrained spaces.
For small shops, residences and installer packages where cost and compatibility matter more than large‑scale scalability, the DVR offers an efficient, economical platform. Its single SATA bay and 10/100 network interface reflect its entry‑level positioning — choose this unit when you want a simple, affordable recorder that extends the life of existing analogue cameras and introduces modern compression and smart detection features.
Before purchase or deployment, verify local certification (CE/UKCA) and warranty conditions with your supplier, confirm the drive capacity and retention you need (official support up to 4 TB per drive), and review whether additional IP channels or higher network throughput are required for your long‑term plans. When matched to the right application, the HiLook DVR-208G-M1/T delivers strong value and reliable performance for everyday CCTV needs.
